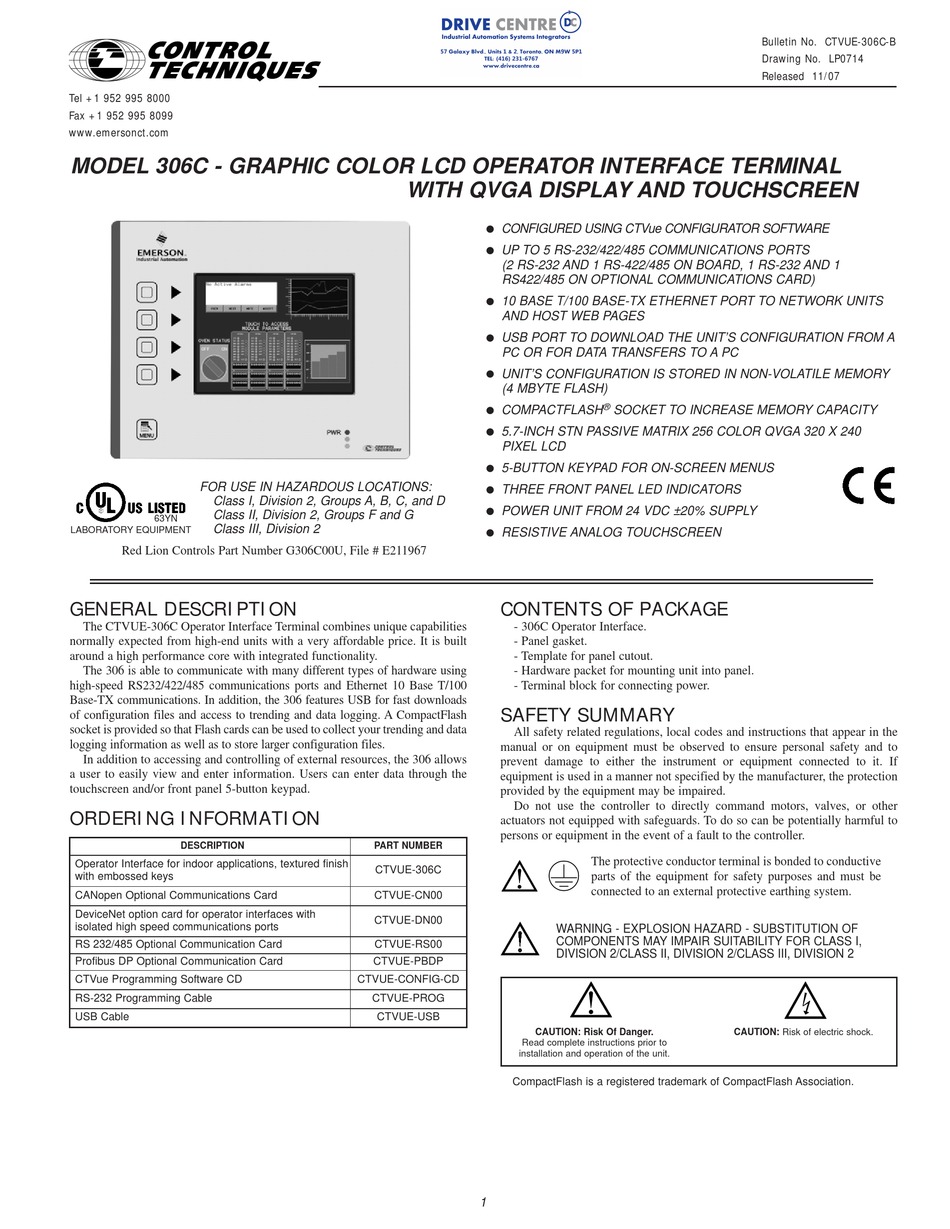

MODEL 306C - GRAPHIC COLOR LCD OPERATOR INTERFACE TERMINAL
FOR USE IN HAZARDOUS LOCATIONS:
Class I, Division 2, Groups A, B, C, and D
Class II, Division 2, Groups F and G
63YN
Class III, Division 2
LABORATORY EQUIPMENT
Red Lion Controls Part Number G306C00U, File # E211967
GENERAL DESCRIPTION

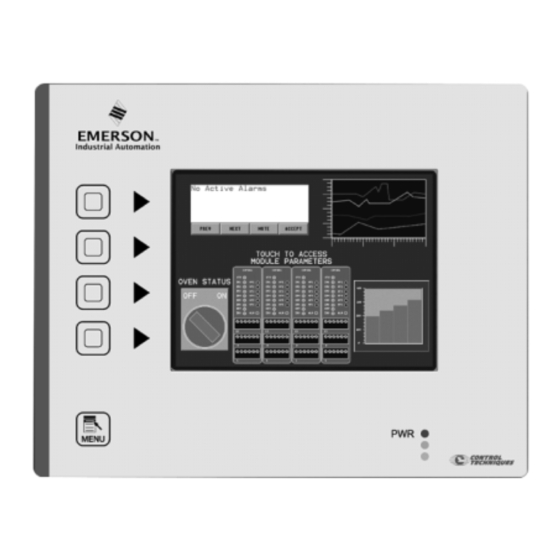

The CTVUE-306C Operator Interface Terminal combines unique capabilities
normally expected from high-end units with a very affordable price. It is built
around a high performance core with integrated functionality.
The 306 is able to communicate with many different types of hardware using
high-speed RS232/422/485 communications ports and Ethernet 10 Base T/100
Base-TX communications. In addition, the 306 features USB for fast downloads
of configuration files and access to trending and data logging. A CompactFlash
socket is provided so that Flash cards can be used to collect your trending and data
logging information as well as to store larger configuration files.
In addition to accessing and controlling of external resources, the 306 allows
a user to easily view and enter information. Users can enter data through the
touchscreen and/or front panel 5-button keypad.
ORDERING INFORMATION
DESCRIPTION
Operator Interface for indoor applications, textured finish
with embossed keys
CANopen Optional Communications Card
DeviceNet option card for operator interfaces with
isolated high speed communications ports
RS 232/485 Optional Communication Card
Profibus DP Optional Communication Card
CTVue Programming Software CD
RS-232 Programming Cable
USB Cable
WITH QVGA DISPLAY AND TOUCHSCREEN
CONFIGURED USING CTVue CONFIGURATOR SOFTWARE
!
UP TO 5 RS-232/422/485 COMMUNICATIONS PORTS
!
(2 RS-232 AND 1 RS-422/485 ON BOARD, 1 RS-232 AND 1
RS422/485 ON OPTIONAL COMMUNICATIONS CARD)
10 BASE T/100 BASE-TX ETHERNET PORT TO NETWORK UNITS
!
AND HOST WEB PAGES
USB PORT TO DOWNLOAD THE UNIT'S CONFIGURATION FROM A
!
PC OR FOR DATA TRANSFERS TO A PC
UNIT'S CONFIGURATION IS STORED IN NON-VOLATILE MEMORY
!
(4 MBYTE FLASH)
COMPACTFLASH
!
5.7-INCH STN PASSIVE MATRIX 256 COLOR QVGA 320 X 240
!
PIXEL LCD
5-BUTTON KEYPAD FOR ON-SCREEN MENUS
!
THREE FRONT PANEL LED INDICATORS
!
POWER UNIT FROM 24 VDC ±20% SUPPLY
!
RESISTIVE ANALOG TOUCHSCREEN
!
CONTENTS OF PACKAGE
- 306C Operator Interface.
- Panel gasket.
- Template for panel cutout.
- Hardware packet for mounting unit into panel.
- Terminal block for connecting power.
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in the
manual or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
Do not use the controller to directly command motors, valves, or other
actuators not equipped with safeguards. To do so can be potentially harmful to
persons or equipment in the event of a fault to the controller.
PART NUMBER
CTVUE-306C
CTVUE-CN00
CTVUE-DN00
CTVUE-RS00
CTVUE-PBDP
CTVUE-CONFIG-CD
CTVUE-PROG
CTVUE-USB
CAUTION: Risk Of Danger.
Read complete instructions prior to
installation and operation of the unit.
CompactFlash is a registered trademark of CompactFlash Association.
1
®
SOCKET TO INCREASE MEMORY CAPACITY
The protective conductor terminal is bonded to conductive
parts of the equipment for safety purposes and must be
connected to an external protective earthing system.
WARNING - EXPLOSION HAZARD - SUBSTITUTION OF
COMPONENTS MAY IMPAIR SUITABILITY FOR CLASS I,
DIVISION 2/CLASS II, DIVISION 2/CLASS III, DIVISION 2
CAUTION: Risk of electric shock.
Bulletin No. CTVUE-306C-B
Drawing No. LP0714
Released 11/07
