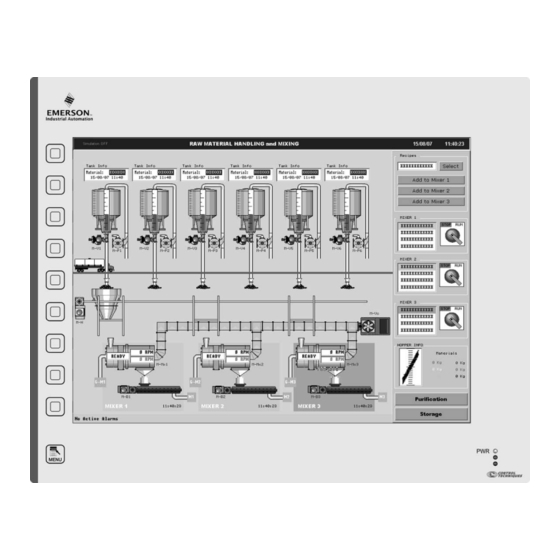

MODEL 315C - GRAPHIC COLOR LCD OPERATOR INTERFACE TERMINAL
GENERAL DESCRIPTION
The CTVUE-315C Operator Interface combines powerful features normally
found only in PC-based HMIs, with the reliability of a dedicated operating
system. It is built around a high performance core with integrated features,
allowing it to provide SCADA-like functionality at a fraction of the cost.
The 315 is able to act as a multiple protocol converter using four high-speed
RS232/422/485 communications ports and an Ethernet 10/100 Base-TX port.
The Ethernet port supports up to four protocols simultaneously, allowing
dissimilar Ethernet based products to communicate with one another.
The 315's USB port allows fast downloads of configuration files and access
to trending and data logging. A CompactFlash socket is provided so that
standard ComplactFlash cards can be used to collect your trending and data
logging information as well as to store configuration files. The built-in web
server allows processes to be controlled remotely.
The 315's large, high-resolution display allows users to easily view and enter
information. Data can be manipulated through the touchscreen and/or the 10-
button keypad.
ORDERING INFORMATION
DESCRIPTION
Operator Interface for indoor applications, textured finish
with embossed keys
CANopen Optional Communication Card
DeviceNet option card for G3 operator interfaces with
isolated high speed communications ports
RS232/485 Optional Communication Card
Profibus DP Optional Communication Card
CTVue Configurator 2.0
RS-232 Programming Cable
USB Cable
WITH TFT XGA DISPLAY AND TOUCHSCREEN
CONFIGURED USING CTVue CONFIGURATOR SOFTWARE
UP TO 6 RS-232/422/485 COMMUNICATIONS PORTS
(2 RS-232 AND 2 RS-422/485 ON BOARD, 1 RS-232 AND 1
RS422/485 ON OPTIONAL COMMUNICATIONS CARD)
10 BASE T/100 BASE-TX ETHERNET PORT SUPPORTS
MULTIPLE PROTOCOLS SIMULTANEOUSLY
BUILT-IN WEB SERVER AND FTP SERVER/CLIENT
USB PORT TO DOWNLOAD THE UNIT'S CONFIGURATION FROM
A PC OR FOR DATA TRANSFERS TO A PC
UNIT'S CONFIGURATION IS STORED IN NON-VOLATILE
MEMORY (32 MBYTE FLASH)
COMPACTFLASH
AND DATA LOGGING
15-INCH TFT ACTIVE MATRIX 32K COLOR XGA 1024 X 768
PIXEL LCD
10-BUTTON KEYPAD FOR ON-SCREEN MENUS
THREE FRONT PANEL LED INDICATORS
POWERED BY 24 VDC ±20% SUPPLY
RESISTIVE ANALOG TOUCHSCREEN
CONTENTS OF PACKAGE
- 315C Operator Interface.
- Panel gasket.
- Template for panel cutout.
- Hardware packet for mounting unit into panel.
- Terminal block for connecting power.
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in the
manual or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
Do not use the controller to directly command motors, valves, or other
actuators not equipped with safeguards. To do so can be potentially harmful to
persons or equipment in the event of a fault to the controller.
PART NUMBER
CTVUE-315C
CTVUE-CN00
CTVUE-DN00
CTVUE-RS00
Read complete instructions prior to
CTVUE-PBDP
installation and operation of the unit.
CTVUE-CONFIG-CD
CompactFlash is a registered trademark of CompactFlash Association.
CTVUE-PROG
CTVUE-USB
1
®
SOCKET FOR DATABASE/RECIPE STORAGE
The protective conductor terminal is bonded to conductive
parts of the equipment for safety purposes and must be
connected to an external protective earthing system.
CAUTION: Risk Of Danger.
Bulletin No. CTVUE-315C-X
Drawing No. LP0760
Released 7/08
CAUTION: Risk of electric shock.
400370-08, Rev: X
Advertisement
Table of Contents
Related Manuals for Control Techniques DRIVE CENTRE 315C
Summary of Contents for Control Techniques DRIVE CENTRE 315C

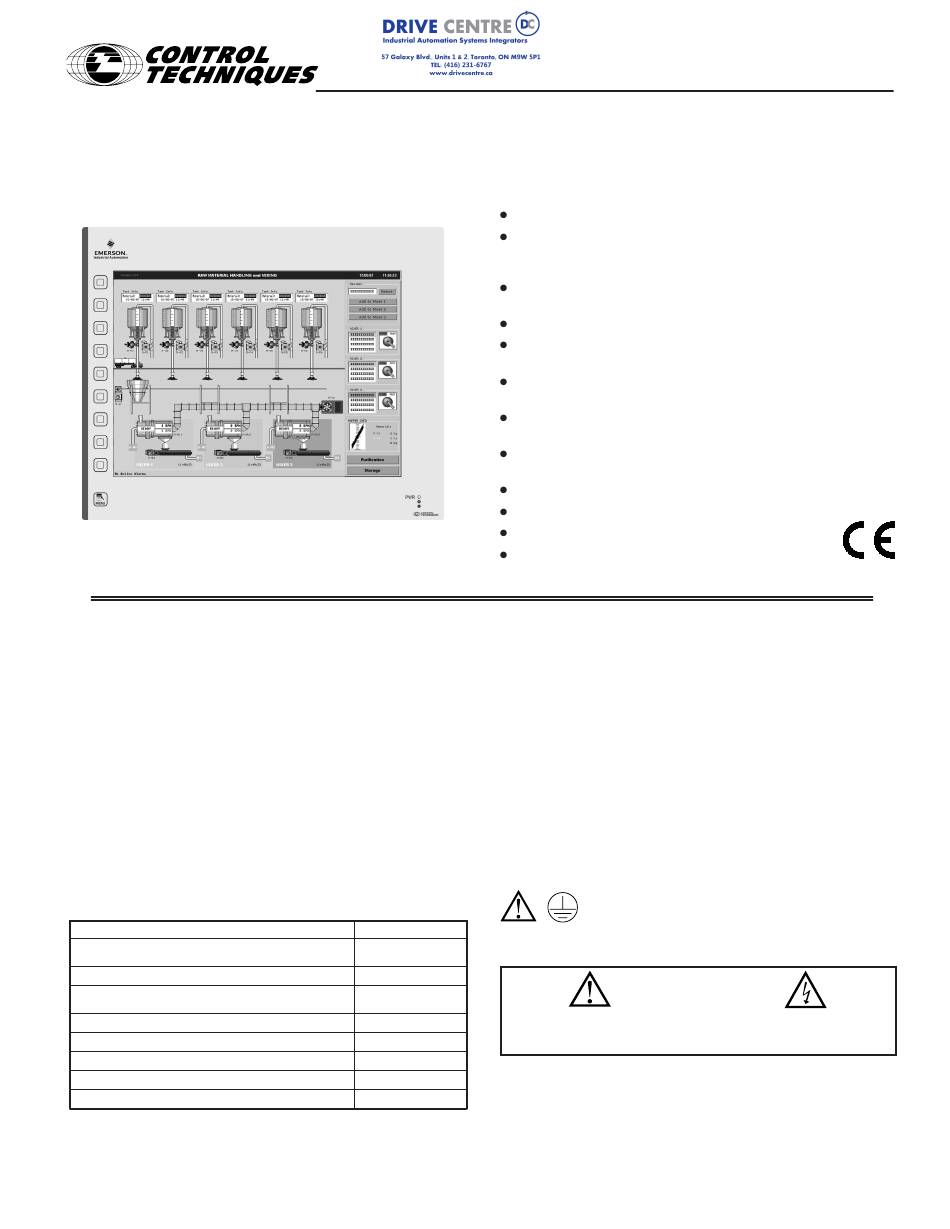

- Page 1 Bulletin No. CTVUE-315C-X Drawing No. LP0760 Released 7/08 Tel +1 952 995 8000 Fax +1 952 995 8099 www.emersonct.com MODEL 315C - GRAPHIC COLOR LCD OPERATOR INTERFACE TERMINAL WITH TFT XGA DISPLAY AND TOUCHSCREEN CONFIGURED USING CTVue CONFIGURATOR SOFTWARE UP TO 6 RS-232/422/485 COMMUNICATIONS PORTS (2 RS-232 AND 2 RS-422/485 ON BOARD, 1 RS-232 AND 1 RS422/485 ON OPTIONAL COMMUNICATIONS CARD) 10 BASE T/100 BASE-TX ETHERNET PORT SUPPORTS...
-
