T236BX IB_US version
Size: 178 x 178 mm (16 pages)
Printing color: Black
Mat'l: 90gsm book paper
Sep. 08, 2016

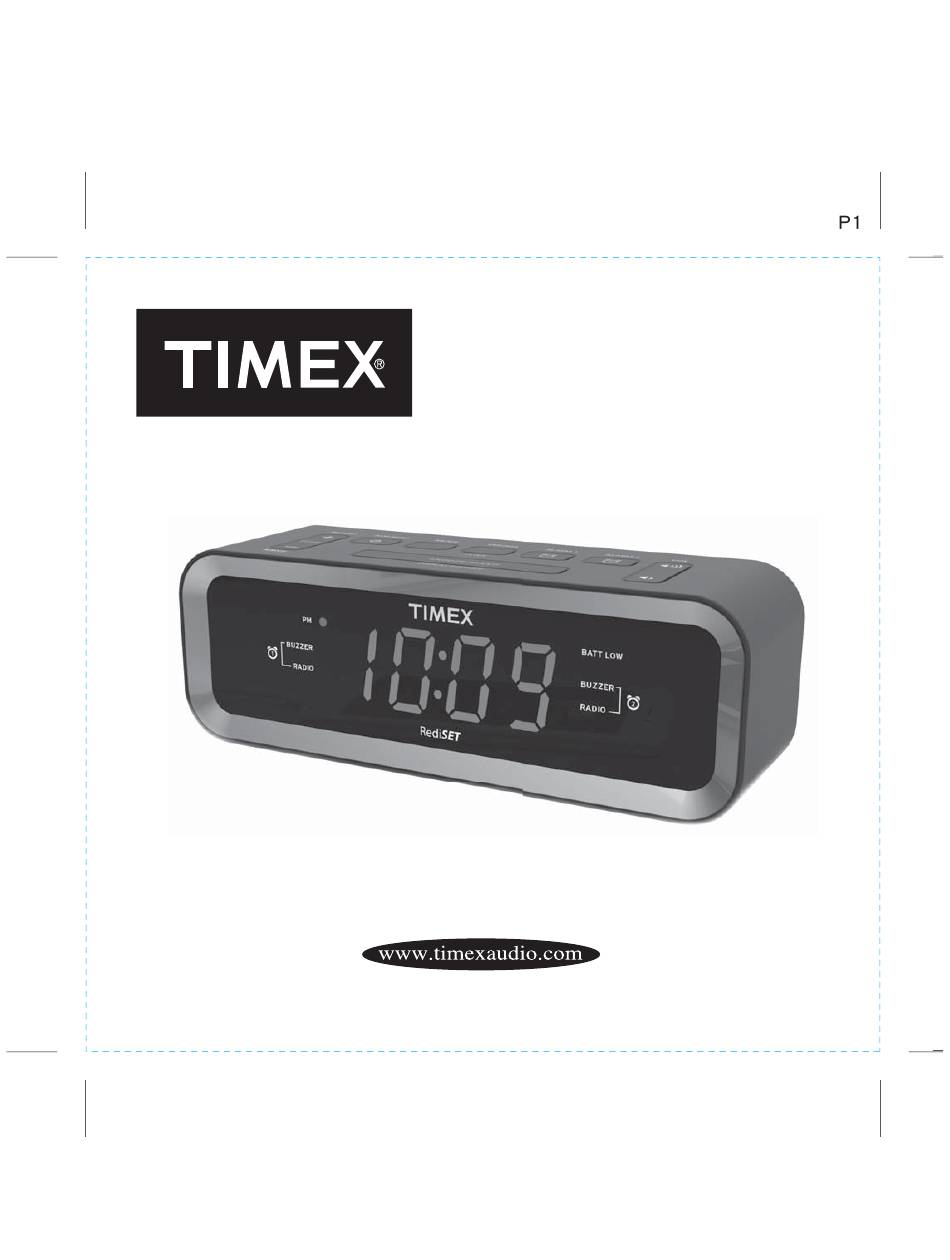

Model T236BQX
Jumbo Display
FM Clock Radio
For additional information, online registration,
and exclusive special offers visit our website:
Questions? Contact Customer Service at 1-800-888-4491
Advertisement
Table of Contents
Related Manuals for Timex T236BQX
Summary of Contents for Timex T236BQX
- Page 1 T236BX IB_US version Size: 178 x 178 mm (16 pages) Printing color: Black Mat’l: 90gsm book paper Sep. 08, 2016 Model T236BQX Jumbo Display FM Clock Radio For additional information, online registration, and exclusive special offers visit our website: Questions? Contact Customer Service at 1-800-888-4491...
-
Page 2: Table Of Contents
Troubleshooting................................17 Warranty Information ................................18 What’s in the Box This product ships with the following items. Make sure all are present. 1. T236BQX Alarm Clock 2. AC adaptor 3. Instruction book Product Care • Place the unit on a level surface away from sources of direct sunlight or excessive heat. -
Page 3: Controls Overview
Controls Overview Top Panel Power/ Radio Presets/ Alarm Reset Mode Clock Alarm 1 Alarm 2 Button Button Button Button Button PRESETS ALARM 1 HOURS MODE ALARM 2 ALM RESET Tune + / Volume Up Hours Button Button CLOCK TUNE Tune – / Volume Down SNOOZE/SLEEP Minutes... -
Page 4: Display
Display Time display When lit, When lit, indicates backup indicates time batteries should be replaced displayed is PM When lit, When lit, BATT LOW indicates indicates Buzzer or Buzzer or Radio BUZZER Radio BUZZER is Alarm 2 is Alarm 1 RADIO RADIO alarm source. -
Page 5: Adjusting The Time Zone
Adjusting the Time Zone TIME ZONE 2 SECS If you are NOT in the Eastern time zone, press and hold the Time Zone Button located on back of the unit. “02” will flash in the display. 04——Mountain Time 01——Atlantic Time Set Up 05——Pacific Time 02——Eastern Time Default Setting... -
Page 6: Setting The Clock
Setting the Clock This unit features Redi-SET and should display the correct time when first connected to power. If the time is not correct, follow these steps to set the clock manually. ALM RESET BATT LOW BUZZER BUZZER RADIO RADIO Make sure unit is OFF. - Page 7 HOURS PM indicator BATT LOW TUNE BUZZER BUZZER RADIO RADIO MINS Press and release the Tune +/HOURS Button to adjust the HOUR. NOTE: The PM indicator will light when the hour is set for PM. There is no AM indicator. TUNE BATT LOW BUZZER...
- Page 8 PRESETS BATT LOW BUZZER BUZZER RADIO RADIO CLOCK Press and release the Presets/Clock Button. The MONTH and DATE flash on the display. HOURS BATT LOW BUZZER BUZZER RADIO RADIO TUNE Press and release the TUNE+/HOURS Button to adjust the MONTH. TUNE BATT LOW BUZZER...
-
Page 9: Setting And Using Alarms
Setting and Using Alarms This unit has two independent alarms, Alarm 1 and Alarm 2. Each is set and operates in the same way. Instructions below show Alarm 1. Follow the same method to set Alarm 2. ALARM 1 2 SECS BATT LOW BUZZER BUZZER... - Page 10 ALARM 1 BATT LOW BUZZER BUZZER RADIO RADIO Press and release the Alarm 1 Button to complete alarm time setting. SELECTING YOUR ALARM SOURCE/DISARMING THE ALARM Alarm set to Buzzer ALARM 1 BUZZER Set alarm to Buzzer RADIO BUZZER Set alarm to Radio RADIO Alarm set to Radio BUZZER...
-
Page 11: Setting And Using The Radio
SNOOZE Press and release the Snooze/Sleep Button when the alarm sounds to silence it DISPLAY DIMMER for 9 minutes. Snooze can be used several times during 1 hour alarm cycle. Setting and Using the Radio BASIC RADIO OPERATION TIP: Extend FM antenna for best reception. ALM RESET Press and release the Power/Alarm Reset Button to turn unit On. - Page 12 PRESET RADIO SETTING AND OPERATION SETTING RADIO PRESETS This unit will store up to 10 FM station presets. ALM RESET Press and release the Power/Alarm Reset Button to turn unit On. MODE BATT LOW BUZZER BUZZER RADIO RADIO Press and release the Mode Button as needed to select FM radio band. HOURS TUNE Press and release the TUNE+/HOURS Button or TUNE –...
-
Page 13: Using In Aux-In Audio
Press and release the Presets/Clock PRESETS Button to confirm the preset number (P01 - P10) you want to assign to the CLOCK current station. Continue steps 3- 6 to set all desired presets. PRESET RADIO OPERATION To listen to a preset at any time, press and release the Presets/Clock Button as needed to select the desired preset station. -
Page 14: Sleep Mode
It allows you to fall asleep while listening to the radio or a device that is connected to the Aux In jack. NOTE: It will power off the Timex unit, but it will not power off your AUX device. -
Page 15: Charging Devices Using The Usb Port
Charging Devices Using the USB Port AUX-IN TIME ZONE DC 5V Connect a USB cable (not included) to the USB Charging Port on the back of the unit and connect the other end to the device you wish to charge. Unit must be connected to AC to charge devices via USB: it will not charge when operating on batteries. -
Page 16: Installing And Replacing Backup Batteries
Installing and Replacing Backup Batteries Your new Timex Clock Radio includes 2 AA batteries (installed). This battery backup system will maintain the time and alarm settings during a temporary power interruption. When the Battery Low Indicator on the top left of the display is lit, it’s time to replace the batteries. -
Page 17: Safety Information
IMPORTANT SAFETY INSTRUCTIONS When used in the directed manner, this unit has been designed and manufactured to ensure your personal safety. However, improper use can result in potential electrical shock or fire hazards. Please read all safety and operating instructions carefully before installation and use, and keep these instructions handy for future reference. Take special note of all warnings listed in these instructions and on the unit. -
Page 18: Troubleshooting
Troubleshooting 1. The unit does not power ON. The unit is not connected to AC outlet, the AC outlet has no power, or is controlled by a wall switch that is “OFF”. Check AC outlet and wall switch. 2. Alarm does not come on? The alarm time AM or PM incorrectly set, Alarm was OFF, etc. -
Page 19: Warranty Information
Limited 90 Day Warranty Information Timex Audio Products, a division of SDI Technologies Inc. (hereafter referred to as SDI), warrants this product to be free from defects in workmanship and materials, under normal use and conditions, for a period of ninety (90) days from the date of original purchase.
