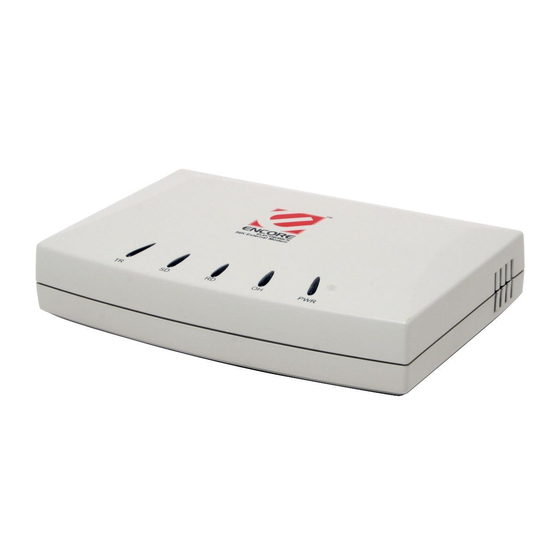

Encore ENF656-EV-AGER User Manual

56k analog modem
Hide thumbs Also See for ENF656-EV-AGER:

Advertisement

Quick Links

56K Anal o g Modem
User' s Manual
Copyright
Copyright © 2002 by this company. All rights reserved. No part of this publication may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in
any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without
the prior written permission of this company.
Disclaimer
This company makes no representations or warranties, either expressed or implied, with respect to the
contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose.
Any software described in this manual is sold or licensed "as is". Should the programs prove defective
following their purchase, the buyer (and not this company, its distributor, or its dealer) assumes the entire cost
of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the
software. Further, this company reserves the right to revise this publication and to make changes from time to
time in the contents hereof without obligation to notify any person of such revision or changes.
All brand and product names mentioned in this manual are trademarks and/or registered trademarks of their
respective holders.
56K Analog Modem 1

Advertisement

Table of Contents
loading

Summary of Contents for Encore ENF656-EV-AGER

  • Page 1 56K Anal o g Modem User’ s Manual Copyright Copyright © 2002 by this company. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of this company.
  • Page 2: Table Of Contents

    Contents 1 Introduction ... 3 1.1 System Requirements ... 3 1.2 Package Contents ... 3 2 Hardware Installation Instructions ... 4 2.1 PCI Interfaced Analog Modem Card ... 4 2.2 RS232 Analog Modem ... 4 2.3 Pocket Sized USB/RS232 Analog Modem ... 4 3 Software Driver Installation ...
  • Page 3: Introduction

    FaxTalk NetOnHold (modem software driver installation program for modems with Hold- on-Call feature), Adobe Reader 6.0 and Panda Antivirus Platinum 9.0. User Manual includes this user’s manual and specs for all modems this utility supports. Readme includes modem software driver locations and modem hardware installation instructions.
  • Page 4: Hardware Installation Instructions

    2. Hardware Installation Instructions 2.1 PCI Interfaced Analog Modem Card 1) Open PC case and insert PCI Card into an available PCI slot. 2) Close PC case, then plug one end of RJ-11 cables into modem’s LINE jack and the other end into telephone wall jack.
  • Page 5: For Windows Me, 2000 And Xp

    Hold-on-Call feature), Adobe Reader 6.0 and Panda Antivirus Platinum 9.0. User Manual: User Manual includes this user’s manual and specs for all modems this utility supports. Readme: Readme includes modem software driver locations and modem hardware installation instructions. 3.1.1 For Windows ME, 2000 and XP 1)Once click Install Driver to start the analog modem installation, window below will appear.
  • Page 6 3)Click Exit to close FAX Modem Installation Utility. 4) To check if modem is properly installed: For Windows ME Click “Start→Settings→Control Panel→Modems”. 56K Analog Modem 6...
  • Page 7: For Windows 98Se

    3.1.2 For Windows 98SE 1) Once click Install Driver to start the analog modem installation, window below will appear: 2) After Fax Modem Installation Utility finishes copying analog modem device driver, window below will appear then click OK to reboot your system. 3) After system boots up, operating system will detect the recently installed analog modem, window below will appear then click Next to continue.
  • Page 8 4) Click Next to continue, 5) Select Specify a location (utility automatically gives driver location, so you don’t have to enter the driver location path) then click Next to continue, 56K Analog Modem 8...
  • Page 9 6) Click Next to continue, 7) After operating system finishes installing the analog modem driver, click Finish to complete the device driver installation, 56K Analog Modem 9...
  • Page 10: For Windows Nt4.0

    8) To check if modem is properly installed: Click “Start →Settings →Control Panel →Modems”. 3.1.3 For Windows NT4.0 Windows NT4.0 Installation process: 1) This Fax Modem Installation CD does NOT support Windows NT4.0 autorun. Once you install modem in Windows NT4.0 system, open the CD-ROM contents, and direct to Modem’s NT4.0 driver.
  • Page 11: Contact Information

    3.2 If you have trouble to install modem on your system, please contact us. Before contacting us, make sure collect following information. With complete information of your problem, we will provide you accurate answers. Model Name: Serial Number: PC Settings: Other: 56K Analog Modem 11...
