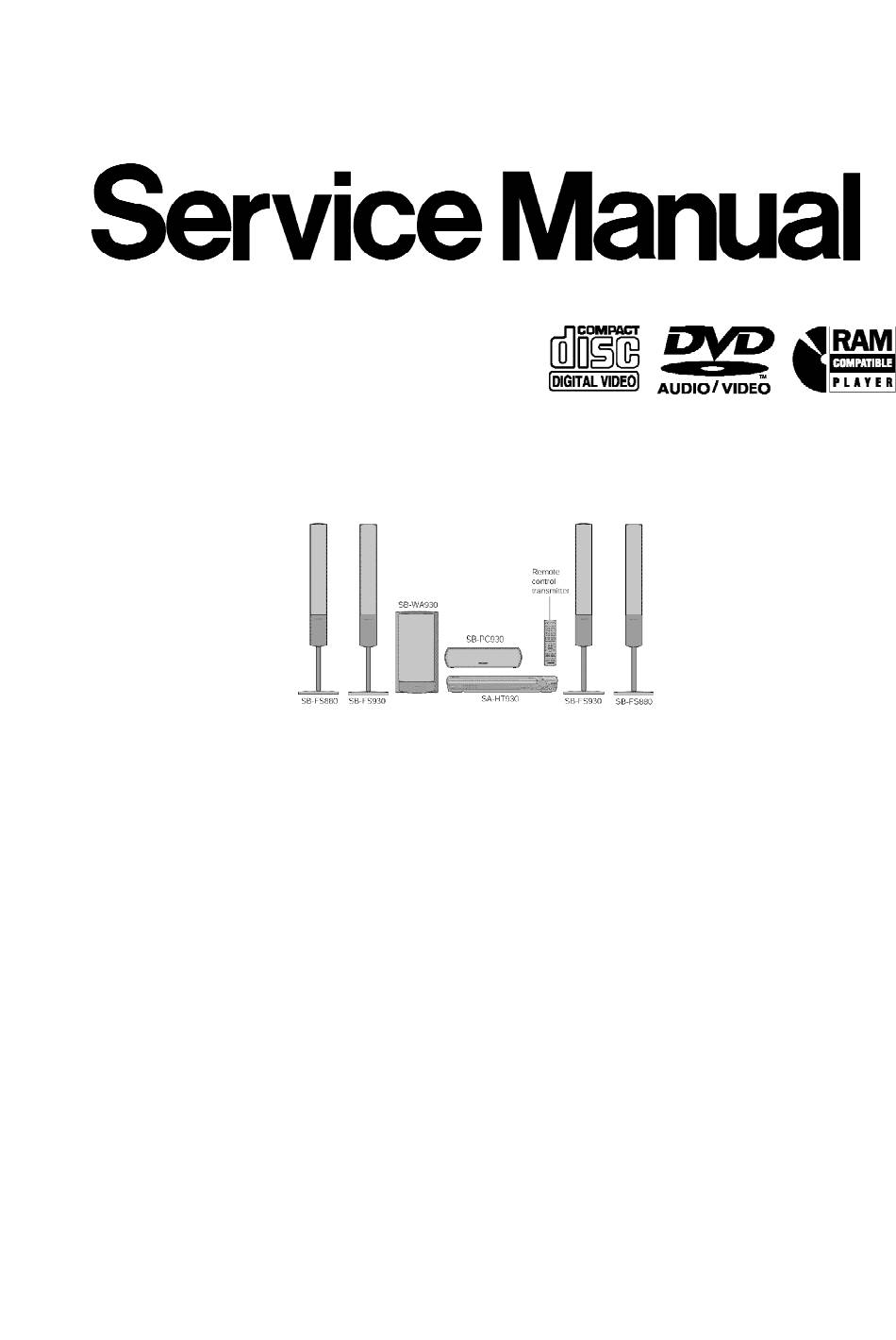

Panasonic SA-HT930GC Service Manual

Dvd home theater sound system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ORDER NO. MD0503077C3
DVD Home Theater Sound System
SA-HT930GC / SA-HT930GS
Colour
(S).......................Silver Type
SPECIFICATIONS
Specifications
1
