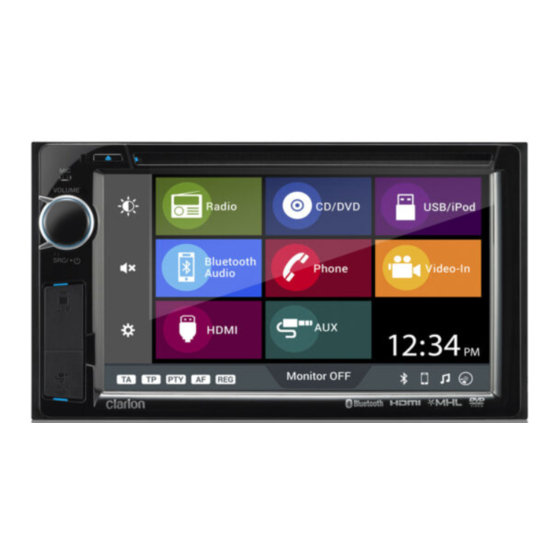

- Page 1 Owner’s manual VX316AU DVD Multimedia Station With 6.2” Touch Panel Control...
-
Page 2: Table Of Contents
Loading a CD ...............................19 Eject the CD.................................19 USB ..................................19 USB Digital Media Streaming ..........................19 Hot plugging function ............................19 Connecting a USB memory/MTP device ......................20 Watching/Listening to a track with USB memory device ..................20 Unplug the USB memory/MTP device .........................20 VX316AU... - Page 3 14. iPod/iPhone OPERATIONS ..........................27 Select iPod Mode..............................27 Play/Pause Playback ............................27 Switch to Previous/Next Track ..........................27 Fast Forward/Backward ............................27 Tag Display Function ............................27 Repeat Play .................................27 Shuffle Play................................27 Selecting a Song from iPod Menu ........................28 Available iPod Categories ............................28 Supported iPod/iPhone Devices ..........................28 VX316AU...
- Page 4 20. SETTINGS OPERATIONS ..........................37 Select Settings ..............................37 Balance/Fader Adjustment...........................37 Time Alignment Adjustment ..........................37 Sound Effect Controls ............................38 Subwoofer Controls .............................38 Graphic Equalizer ..............................38 Clock Adjustment ..............................39 General Settings ..............................39 About ...................................40 21. TROUBLESHOOTING ............................41 22. ERROR DISPLAY ...............................45 23. SPECIFICATIONS ...............................46 VX316AU...
-
Page 5: Features
CD/DVD VOLUM iPhone/Mobile phone Handsfree/Audio Mobile phone via USB flash memory via HDMI/MHL Streaming via Bluetooth USB (MTP) Note: The items listed outside of the unit are the commercial products generally sold. VX316AU... -
Page 6: Precautions
For the installation of this unit or a change in the installa- This unit uses a precision mechanism. Even in the event tion, ask your authorized dealer or a nearest Clarion ser- that trouble arises, never open the case, disassemble the vice center for safety. -
Page 7: Cautions On Handling
When affected by static electricity or electric When the memorized data is lost or damaged by any noise. Connect/disconnect the USB memory stick when it chance, Clarion shall not be liable for any damage. is not accessed. When using an USB memory stick, we recommend that Connecting with the computer is not covered. - Page 8 Bluetooth SIG, Inc. and any ly to iPod or iPhone, respectively, and has been certified use of such marks by Clarion Malaysia Sdn. Bhd. is under by the developer to meet Apple performance standards. license. Other trademarks and trade names are those of their respective owners.
-
Page 9: Panel Controls
Press and hold the knob to turn off the power. Rotate the knob left or right to decrease or increase the Microphone volume. For handsfree. RESET hole Reboot the system. Note: When the RESET button is pressed, all saved memory in the unit are cleared. VX316AU... -
Page 10: Remote Control
Use only the designated battery. When replacing the battery, insert properly, with +/- polarities oriented correctly. Do not subject battery to heat, or dispose of in fire or water. Do not attempt to disassemble the battery. Rear cover Dispose of used batteries properly. VX316AU... -
Page 11: Remote Control Functions
• Press the button in DVD video to toggle available audio. [ SUBTITLE ] • Press the button in CD/DVD/USB/MTP video to toggle available subtitles. [ ANGLE ] • Press the button in DVD video to toggle available angles. VX316AU... -
Page 12: Basic Operations
4 seconds. Press any area of the touch screen to immediately cancel the volume display. 15. Mute button. The volume level is from 0 (minimum) to 33 (maximum). The fac- tory default setting for this volume is “13”. VX316AU... -
Page 13: Screen Adjustment
1. When the vehicle is set to reverse gear, the unit will dis- play the reverse camera view. 2. All video display will be disabled and audio will be muted during reverse camera view. 3. The system will return to the previous display after the reverse gear is released. VX316AU... -
Page 14: Radio Mode Operations
2. Press the [FM1/FM2/FM3/AM] button to select the de- 3. Seek Up Button sired band. 4. Save Button 3. Press the button to begin auto store. The 6 stations 5. Autostore Button with the strongest reception are stored automatically into the preset channels. 6. TA Button VX316AU... -
Page 15: Storing Preset Memory
EON : Enhanced Other Network TP : Traffic Programme TA : Traffic Announcement * RDS interrupt does not function during AM radio reception. * When set receives RDS signal, and can read PS data, PS appears in the display. VX316AU... -
Page 16: Ta (Traffic Announcement)
2. If a TP station is not received, the unit continues the 2. During PTY standby mode, press the button. The search operation. Press the button to stop the TP “PTY” indicator in the display goes off and PTY standby station searching. mode is cancelled. VX316AU... -
Page 17: Volume Setting Of Ta, Emergency Broadcast, And Pty
2. During PTY standby mode, press the button to search for a PTY broadcast in the direction of a higher frequency. If no station with the selected PTY broadcast can be received, the unit returns to the previous receiving station. VX316AU... -
Page 18: Cd/Usb Mode Operation
Mode another format. The folder name and file name can be displayed as the ISO 9660 Level 1, 2, File System title during MP3/WMA/AAC play. Romeo or Joliet VX316AU... -
Page 19: Watching/Listening To A Disc
If a CD (12 cm) is left in the ejected position for 15 seconds, the CD is automatically reloaded (Auto reload). If you leave the ejected CD without removing it, it will be drawn into the unit automatically after about 15 seconds. VX316AU... -
Page 20: Connecting A Usb Memory/Mtp Device
CAUTION For safety driving purpose, avoid inserting the USB mem- ory/MTP device directly into the USB port. Please use an USB extension cable instead for USB con- nection. Always backup and save important data on your com- puter. VX316AU... -
Page 21: Dvd Video Player Operations
TITLE RPT (Title Repeat) The current playing title will be played repeatedly. The button will be displayed as “TITLE RPT” RPT OFF (Repeat Off) Disengage the unit from repeat play. During repeat off- mode, the button will be displayed as “RPT OFF”. VX316AU... -
Page 22: Switching Audio
ZOOM 2x ZOOM 3x ZOOM 4x ZOOM ZOOM 1/2 ZOOM 1/3 ZOOM 1/4 3. During Zoom ratio of 2x, 3x, 4x and 5x, press the direction button to move the picture accordingly. VX316AU... -
Page 23: Cd/Usb Video Operations (Mp4, Avi)
ZOOM 3x ZOOM 4x ZOOM 1. Press button during playback to play ZOOM 1/2 ZOOM 1/3 ZOOM 1/4 previous/next file. 3. During Zoom ratio of 2x, 3x, 4x and 5x, press the direc- tional button to move the picture accordingly. VX316AU... -
Page 24: Cd/Usb/Mtp Audio Operations
3. When fast backward reach the beginning of the track, the fast backward will be cancelled and restart the track. Note: The fast forward and fast backward speed may differ depending on the media device. VX316AU... -
Page 25: Selecting A Track On The Directory View
Tag Display Function 1. Each time the button is pressed, the display is toggled in the following order: (Album Art + Song Title) (Song Title + Album Name + Artist Name + File Name + Folder Name) VX316AU... -
Page 26: Cd/Usb/Mtp Picture Operations
FLD RPT (Folder Repeat) The pictures in current folder will be played repeatedly. The button will be displayed as “FLD RPT”. OFF (Repeat Off) Disengage the unit from repeat play. During repeat off mode, the button will be displayed as “OFF”. VX316AU... -
Page 27: Ipod/Iphone Operations
Note: 2. Press the button to resume playback. Shuffle Play for Audiobooks and Podcasts may not be available depending on the device. Switch to Previous/Next Track Press during playback to play previous/ next file. VX316AU... -
Page 28: Selecting A Song From Ipod Menu
Menu will be exited automatically. 6. Press the button to go to the previous category. 7. Press the button to exit iPod Menu. Available iPod Categories Playlists Artists Albums Songs Genres Composers Audiobooks Podcasts* * Availability depends on iPod VX316AU... -
Page 29: Bluetooth® Audio Player Operations
After the connection with a Bluetooth audio player is estab- lished, the play mode is automatically engaged. When playback is not started for some devices, press the button manually. Play/Pause Playback 1. Press the button during playback. 2. To resume playback, press the button. VX316AU... -
Page 30: Bluetooth® Telephone Operations
2. Voicedial Tab 3. Key input Tab 4. Phonebook Tab 5. History Tab 6. Bluetooth Settings Tab 1. Keypad 7. Tab display. Differs with each selected tab. 2. Numbers Display 3. Delete Button 4. Redial Button 5. Call Button VX316AU... -
Page 31: Phonebook
When the downloading process is being interrupted or cancelled, unit Depending on the mobile phone, the Telephone Interrupt screen may will only show the contacts which are already downloaded. be cancelled and the connection with this system may be disconnected when entering Private mode. VX316AU... -
Page 32: History
4. Press the button to hide the keypad. Notes: The search function only search for the first character of the contacts. If the characters cannot be found, it will search and display the fol- lowing alphabet. VX316AU... -
Page 33: Bluetooth Settings
2. Activate Bluetooth on your device and search for “CLARI- Notes: ON” on the device. Select “CLARION” to begin pairing. When the unit has successfully connected to a mobile phone, the unit will attempt to connect to the phonebook of the mobile phone. The process may take up to a few seconds. -
Page 34: Deleting A Bluetooth Device
Settings tab to toggle the Auto Play feature. Reset Bluetooth Information 1. Select “Reset Bluetooth” in the Bluetooth Settings tab. A confirmation screen will be displayed on the unit. 2. Press to confirm, or to cancel the process. Notes: All pairing information will be deleted. VX316AU... -
Page 35: Aux Operations
HDMI mode to display the screen of the connected de- Notes: vice. Certain devices require the unit to be connected directly with the HDMI cable. Only original certified cables are supported; cables without proper certification may not work properly. VX316AU... - Page 36 This HDMI mode only mirrors the screen of the iPhone, Android and electronic devices with HDMI output. No operation can be done though the touch screen of this unit. Depending of the application and model of the device, the black frame may appear around the screen. The wiring examples are only for reference, different devices might have different wiring connection. VX316AU...
-
Page 37: Settings Operations
0.05 milliseconds (ms). 2. Right Button 5. Press the button to reset the time alignment on all 3. Center Buttons speakers to “0”. 4. Front Button Note: 5. Pointer Display This feature is not available in Phone mode. 6. Rear Button VX316AU... -
Page 38: Sound Effect Controls
High Pass and Low Pass Filters 1.Press the button to select a higher frequency value. 2. Press the button to select a lower frequency value. 3. The ascending order of the phase options are: TRHOUGH 60 Hz 90 Hz 120 Hz THROUGH… VX316AU... -
Page 39: Clock Adjustment
5. Select a button on the touch screen to assign a key func- of general settings. tion to it. 6. Select one of the 17 functions available to be stored into the selected button: Source/Power Volume Up Volume Down Pause/Play Next Previous Right Left Enter Page Up Page Down Band VX316AU... -
Page 40: About
About tab to view the unit information. the unit. 3. Press the button to save calibration adjustment. 4. Press the button during the calibration process to cancel progress and return to the previous display. VX316AU... -
Page 41: Troubleshooting
Let dry for about 1 hour with the is turned on. internal lens when the car is power on. parked in a humid place. Video images are not displayed. The parking brake is not Check that the parking brake is engaged. engaged. VX316AU... - Page 42 Audio streaming is choppy when This is due to excessive It is advisable not to use the using the connected phone. Bluetooth activity on a low mobile phone while the audio is bandwidth link. Some mobile streaming. phones will face this problem. VX316AU...
- Page 43 Bluetooth is connected but Handsfree (HFP) may not be Make sure Handsfree (HFP) unable to make calls. connected. is connected by checking the display indication. Connect HFP from the device if allowed; otherwise try disconnecting and reconnecting the device again. VX316AU...
- Page 44 Adjust the Brightness properly. The headlight of the vehicle is lit. The display is made dark at night to prevent the glare (When the headlight of the vehicle is lit in the daytime, the display gets dark). Adjust the Brightness properly. VX316AU...
-
Page 45: Error Display
Disconnect and reconnect the unit. device to the unit. NO VIDEO SIGNAL DVB-T2 receiver is not Connect the receiver/input to connected to the unit. the unit. Video input is not connected to the unit. HDMI input is not connected to the unit. VX316AU... -
Page 46: Specifications
Charging Power : 1.5A iPod/ iPhone Supported iPod/ iPhone: iPhone 6S Plus, iPhone 6S, iPhone 6 Plus, iPhone 6, iPhone 5S, iPhone 5C, iPhone 5, iPhone 4S, iPod Touch 6th Gen, iPod Touch 5th Gen, iPod Nano 7th Gen VX316AU... - Page 47 VX316AU Printed in Malaysia...
