Clarion VX709 Owner's Manual & Installation Manual
  1. Manuals
  2. Brands
  3. Clarion Manuals
  4. Car Video System
  5. VX709
  6. Owner's manual & installation manual

Clarion VX709 Owner's Manual & Installation Manual

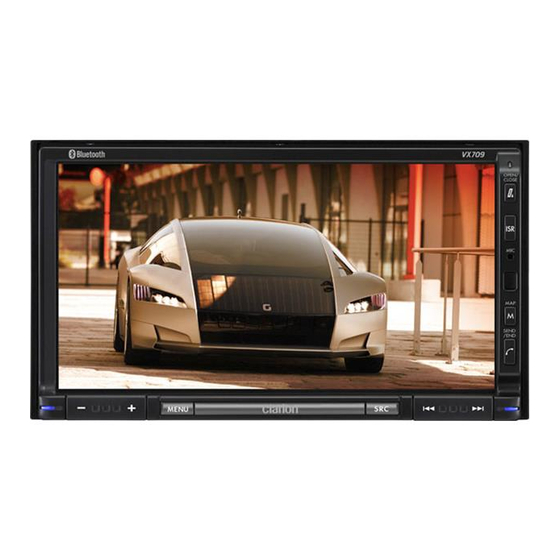

2-din dvd multimedia station with 7-inch touch panel control
Hide thumbs Also See for VX709:
Table of Contents

Advertisement

Quick Links

See also: Service Manual , Owner's Manual & Installation Manual
Owner's manual & Installation manual
Mode d'emploi et manuel d'installation
Manual de instrucciones y de instalación
VX709
2-DIN DVD MULTIMEDIA STATION WITH 7-inch
TOUCH PANEL CONTROL
STATION MULTIMEDIA DVD 2 DIN AVEC COMMANDE
PAR ECRAN TACTILE 7 pouces
EQUIPO DVD MULTIMEDIA 2-DIN CON PANEL DE
CONTROL TÁCTIL DE 7 pulgadas

Advertisement

Table of Contents
loading

Related Manuals for Clarion VX709

Summary of Contents for Clarion VX709

  • Page 1 Owner’s manual & Installation manual Mode d’emploi et manuel d’installation Manual de instrucciones y de instalación VX709 2-DIN DVD MULTIMEDIA STATION WITH 7-inch TOUCH PANEL CONTROL STATION MULTIMEDIA DVD 2 DIN AVEC COMMANDE PAR ECRAN TACTILE 7 pouces EQUIPO DVD MULTIMEDIA 2-DIN CON PANEL DE...

  • Page 2: Clarion Product Registration Information

    Once you’re registered, we can keep you informed of important product information. Register at www.clarion.com - it’s easy to keep your Clarion product up to date. INFORMATIONS DE L’ENREGISTREMENT DE PRODUITS CLARION Pour les Étas Unis et le Canada seulement Cher client: Nous vous remercions d’avoir acheté...

  • Page 3: Table Of Contents

    Thank you for purchasing the Clarion VX709. • Please read this owner’s manual thoroughly before operating this equipment. • After reading this manual, be sure to keep it in a handy place (e.g., glove compartment). • Check the contents of the enclosed warranty card and keep it carefully with this manual.

  • Page 4: Features

    Expanding audio features XM Mini-Tuner 4-Channel Amplifier iPod Bluetooth Audio Player Note: The items listed outside of the frames are the commercial products generally sold. VX709 Expanding visual features Rear Vision Camera Rear Monitor (CC2011/CAA185) NP509 NAX980HD/NAX970HD Expanding navigation features VTR etc.

  • Page 5: Playable Discs

    The DVD video system assigns a region number to DVD players and DVD discs by sales area. The DVD video region number playable in this system is marked on the disc jacket as shown below. CD TEXT DivX VX709...

  • Page 6: Dvd Video Features

    • The number of recorded subtitle languages is indicated by the icon shown below. VX709 Multi-story function When a DVD video contains more than one story for a film, you can select the story you wish to enjoy.

  • Page 7: Precautions

    WARNING INFORMATION FOR USERS: CHANGES OR MODIFICATIONS TO THIS PRODUCT NOT APPROVED BY THE MANUFACTURER WILL VOID THE WARRANTY AND WILL VIOLATE FCC APPROVAL. VX709...

  • Page 8: Operation Panel/Generalities

    The surface is easily scratched, so do not rub it with hard objects. VX709 • The remote control unit may not work if the remote control sensor is exposed to direct sunlight.

  • Page 9: About The Registered Marks, Etc

    Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. iPod is a trademark of Apple Inc., registered in the U.S. and other countries. ® logo are VX709...

  • Page 10: Controls

    30° in all directions). [o] (EJECT) button • Use this button to eject the disc set in this unit. [–], [+] (Volume) buttons • Use these buttons to increase/decrease the volume. VX709 Blink LED (OPEN/CLOSE) [ISR] Microphone Sensor [MAP]...
  • Page 11 System tab menu on the General Settings screen, blinks when the ACC power is turned off. Note: *1 This button is available only when a navigation system is connected. *2 This button is available only when the connection with a Bluetooth telephone is established. VX709...

  • Page 12: Outline Of Button And Touchkey Operation

    * In addition to the above conditions, the system check function can be performed from the System tab menu on the General settings screen. Note: *1 These images indicate the buttons to press or keys to touch. VX709 Engine ON position ∗1 You can change the media sources.
  • Page 13 Outline of Button and Touchkey Operation TUNER mode operation (Source screen) Switches the radio band. (Preset List screen) • Select desired station after selecting radio band. Selects Home/Travel modes. Manual tuning Seek tuning VX709...
  • Page 14 * Screen during DVD Video mode when automobile moving. Note: *2 When playing a DVD video movie, touching the screen surface will cause the DVD Video mode screen to be displayed. VX709 (DVD Video mode screen) *2 (Options screen) (DVD Setup screen)
  • Page 15 • Touch your desired Telephone key to select the telephone to be used. (10Key screen) • To make a call, enter the telephone number using 10-Key Pad, then touch the [ key. Register your Bluetooth cellular phone beforehand. ] (Send) VX709...
  • Page 16 Outline of Button and Touchkey Operation Adjusting the General settings (Menu screen) (General Settings screen) (Display tab screen) VX709 (Clock tab screen) (Clock tab screen) (Wall Paper tab screen) (System tab screen)
  • Page 17 Outline of Button and Touchkey Operation Adjusting the Audio settings (Menu screen) (Audio Settings screen) (DZE tab screen) (OTHERS tab screen) (BAL/FAD tab screen) (TONE tab screen) VX709...

  • Page 18: Remote Control Unit

    Take note of the following points: • Do not short-circuit, disassemble or heat battery. • Do not dispose of battery into fire or flames. • Dispose of spent battery properly. VX709 Signal transmitter Operating range: 30° in all directions [SUBTITLE]...

  • Page 19: Functions Of Remote Control Unit Buttons

    Remote Control Unit Functions of Remote Control Unit Buttons You can use the remote control unit to control the VX709. When the 2Zone function is ON, the controls work upon the Sub zone only. Note: • The steering wheel remote control operations work upon the Main zone even when the 2Zone function is ON.

  • Page 20: Basic Operations

    • The driver should not operate the operation panel while driving. VX709 1. Start the engine. The power is supplied to this unit. Engine ON position 2.

  • Page 21: Turning The Audio Off

    Turning the monitor on 1. Touch the monitor screen. The monitor screen is turned on, and resumes the last screen. • You can also turn on the monitor by pressing any button except for the [o] (EJECT), [7] (OPEN/CLOSE), and [–]/[+] buttons. VX709...

  • Page 22: Setting/Ejecting A Disc

    • Do not expose discs to excess humidity or dust. • Do not expose discs to direct heat from heaters. VX709 Cleaning • To remove fingermarks and dust, use a soft cloth and wipe in a straight line from the center of the disc to the circumference.

  • Page 23: Ejecting A Disc

    • If a disc is left in the ejected position for 15 seconds, the disc is automatically reloaded (Auto reload). 3. Remove the disc carefully. Note: • If you force a disc into the insertion slot before auto reloading, this can damage the disc. VX709...

  • Page 24: Connecting/Disconnecting An Usb Media Device

    • This system will not operate or may operate improperly with unsupported versions. • For detailed information on the playable iPod models, see our home page: www.clarion.com • For the other limitations, see “iPod Operations” (page 44). About the USB memory...
  • Page 25 USB media device. Do not stop the engine when the USB media device is connected. Note: • When turning on the ACC power with no USB media device connected, “MEDIA CHECK” may be displayed on the screen if the USB mode is selected. VX709...

  • Page 26: Selecting A Media Source

    You can select the BT Phone or Navigation mode from the Menu screen displayed by pressing the [MENU] button. • For details of the BT Phone mode operations, see “Bluetooth Telephone Operations” (page 51). • For details of the Navigation mode operations, see “Navigation System Operations” (page 55). VX709 Refer to Description page 26 —...

  • Page 27: 2Zone Function

    Sub zone for the Main zone, and then control it. Turning off the 2Zone function 1. Press the [SRC] button to display the Source screen. 2. Touch and hold the [2Zone Off] key for more than 1 second. VX709...

  • Page 28: Source Operations

    • When touching the [R] key, the station is sought in the direction of lower frequencies. VX709 Manual tuning There are 2 ways available: Quick tuning and step tuning. When it is in the step tuning mode, the frequency changes one step at a time.

  • Page 29: Manual Memory

    ●Recalling a station with ISR 1. In any mode, press the [ISR] button to switch to the ISR mode and tune in the stored radio station. “ISR” appears in the display. Press the [ISR] button again to return to the previous mode. VX709...

  • Page 30: Dvd Video Operations

    2. Touch the [DVD] key to select the DVD Video mode. The system changes to the DVD mode (DVD Video mode), and starts playback from the previous position. VX709 Changing the DVD System Settings Note: • If the Setup operation is performed in the middle of DVD video play, the disc will restart from beginning.
  • Page 31 • Input the same new password again, and touch the [ENT] key. Note: • When a disc with view restrictions is inserted, you will be prompted to input a password. The disc will not be viewable until the correct password is entered. VX709...

  • Page 32: Watching A Dvd Video

    4-3. Touch the [[] or []] key to select level “1” to “8”, or “No Parental”. The relationship between DVD video category codes and parental level are shown in the table below. Use this table when setting the parental level. VX709 LEVEL7 LEVEL6 LEVEL4 LEVEL3 Input code...

  • Page 33: Dvd Menu Operations

    4. Touch the [Hide] key to hide the Key Pad panel. ●Switching Key Pad position When the menu items become difficult to view by the Key Pad buttons, you can move the Key Pad panel to the other side of the screen. Key Pad Key Pad VX709...

  • Page 34: Stopping Playback

    • You can also use the [R] and [F] keys instead of the [R] and [F] buttons. VX709 Skipping chapters (searching) “Chapter” means a small segment to divide the “Title” (film) which is recorded on the disc.

  • Page 35: Repeat Playback

    [Options] key. 2. Touch the [ON] or [OFF] key of the P.Time item during playback. 3. Touch the [Back] key to return to the previous screen. Playback status is displayed on the screen. Title number Chapter number Playback time VX709...

  • Page 36: Audio Cd Operations

    2. Touch the [DVD] key to select the CDDA mode. The system changes to the DVD mode (CDDA mode), and starts playback from the previous position. VX709 Operating an audio CD Listening to an audio CD After disc loading, the play mode is automatically engaged.
  • Page 37 1. Displaying the text you wish to scroll, touch the [x] key displayed at the right of the text area. The text will scroll once. VX709...

  • Page 38: Mp3/Wma/Aac Operations

    • The ID3 version 2.x tag format is not completely supported. This system can display information up to 60 bytes, and ignores the rest. • Album titles of WMA-TAG may not be displayed properly. VX709 Precautions on the MP3/WMA/AAC files ●General precautions • Files other than MP3/WMA/AAC format cannot be played.
  • Page 39 Note: • The same operations listed below are also used in the USB Memory mode. Listening to MP3/WMA/AAC files After disc loading, the play mode is automatically engaged. • When playback is not started, touch the [p] key. WARNING VX709...

  • Page 40: Pausing Playback

    4. Touch the [c] or [C] key to scroll the list, and touch the desired Track key. The corresponding track is started playback. 5. Touch the [Back] key. VX709 Other various play functions 1. Touch the [Options] key. 2. Touch a touch key of the function you want to play.

  • Page 41: Divx Operations

    1. Press the [SRC] button to display the Source screen. 2. Touch the [DVD] key to select the DivX mode. The system changes to the DVD mode (DivX mode), and starts playback from the previous position. ® media files. VX709...
  • Page 42 The image is expanded so that the rectangle of the image fits to the screen (16:9). The aspect ratio of the image may be changed. VX709 [Cinema]: The image is expanded so that the top and bottom edges of the image fit to the screen.

  • Page 43: Source Operations (Accessories)

    1. Touch the [CAT] key to switch to the Category selection mode. If you do not perform operation for 15 seconds, the system will automatically return to the Channel selection mode. • Touch the [Back] key to switch to the Channel selection mode within 15 seconds. VX709...

  • Page 44: Recalling A Preset Station

    [CLR] key. 4. Touch the [ENT] key. The radio channel you entered will be tuned. VX709 Recalling a preset station A total of 24 XM stations can be stored (8-XM1, 8-XM2, and 8-XM3). This allows you to store your favorite XM stations in memory for later recall.
  • Page 45 1. Touch the [Options] key to display the Options screen. 2. Touch the [ON] or [OFF] key of the XM Source item to set this function to “ON” or “OFF”. 3. Touch the [Back] key. ] (Enter) key is VX709...

  • Page 46: Ipod Operations

    Note: • This system will not operate or may operate improperly with unsupported versions. • For detailed information on the playable iPod models, see our home page: www.clarion.com Notes on using Apple iPod • Do not connect an iPod to this unit with a headphone connected to the iPod.
  • Page 47 3. To cancel the shuffle play, touch the [OFF] key of the function to cancel. • The repeat play cannot be canceled. Normally, it should be set to the All repeat play. 4. Touch the [Back] key to return to the previous screen. VX709...
  • Page 48 1. Touch the [MENU] key from the iPod mode screen. The iPod Menu screen of the current operation mode is displayed. VX709 Selecting tracks to be played from a list screen 1. Touch the desired Category key from the iPod Menu screen to display the corresponding list screen.
  • Page 49 Menu screen. The iPod may be frozen. If the iPod is frozen, reset the iPod by following the procedure described in the instruction manual of the iPod. • Audio may be played back slightly out of synchronization with video images. VX709...

  • Page 50: Usb Memory Operations

    The limitations on the Tag titles are same as those in the MP3/WMA/AAC modes. See “Displaying MP3/WMA/AAC Tag titles” (page 36). VX709 ●Folder representation in the folder list The limitations on the folder representation are same as those in the MP3/WMA/AAC modes.

  • Page 51: Bluetooth Audio Player Operations

    Bluetooth mode. • This system will not operate or may operate improperly with some Bluetooth audio players. • For detailed information on the playable Bluetooth audio players, see our home page: www.clarion.com Selecting the Bluetooth mode 1. Press the [SRC] button to display the Source screen.

  • Page 52: Controlling The Bluetooth Audio Player

    Pass Key code of this unit. Perform these operations according to the message displayed. 3. Touch the [Back] key to return to the previous screen. VX709 Controlling the Bluetooth audio player Note: • Occasionally, depending on the environment, playback sounds may be fragmented, or switch noises may be generated.

  • Page 53: Bluetooth Telephone Operations

    When a call comes in, the system automatically connects the call approx. 5 seconds after the calling starts. • The factory default setting is “OFF”. 2-1. Touch the [ON] or [OFF] key of the Automatic Incoming Call item to set the function ON or OFF. VX709...

  • Page 54: Registering Your Cellular Phone

    100 records for second and third cellular phones, and 50 records for the others. [3]: Allows 100 records for each cellular phone. VX709 ●Selecting Microphone You can select the microphone to be used. • The factory default setting is “Internal”.

  • Page 55: Obtaining The Phone Book Data

    Making a call using the Ten-Key pad 1. Touch the [10Key] key to display the Ten-Key pad screen. 2. Enter the telephone number by using the Ten- Key pad displayed on the screen. VX709...
  • Page 56 1. Touch the [PhoneBook] key to display the Phone Book screen. VX709 2. Touch the desired Name key you wish to dial. • Touch the [c] or [C] key to scroll the list. • When you touch the alphabet key at the right of the screen, the list scrolls to the item which starts with the specified character.

  • Page 57: Navigation System Operations

    Navigation System Operations Notes on the NAVI functions • Hereafter in this section, the Navigation system will be called as “NAVI”. • When the Clarion NAVI NP509 NAX970HD is connected, the following functions are available: • Showing the NAVI display •...

  • Page 58: Aux Operations

    [SENS] key to select the level. HIGH: 10 dB MID: 4 dB LOW: 0 dB VX709 WARNING Selecting the screen size You can change the screen size to suit to the video image. • The factory default setting is “F.Wide”.

  • Page 59: System Settings

    • The volume changes each time the DZE setting is switched. • Sufficient effects cannot be obtained with some speaker systems. In such cases, adjust the volume. • When you set the DZE to other than “OFF”, the TONE and M-B EX (Magna Bass Extend) settings are disabled. VX709...

  • Page 60: Adjusting The Treble

    FREQ: 700Hz, 1kHz, 2kHz • The factory default setting is “1kHz”. Q: 1.5, 2 • The factory default setting is “2”. VX709 Adjusting the TREBLE The treble gain and treble frequency (center frequency) can be adjusted as follows. 3-1. Touch the [TONE] key to display the TONE tab screen.

  • Page 61: Adjusting The High Pass Filter

    • The factory default setting is “OFF”. 3-1. Touch the [OTHERS] key to display the OTHERS tab screen. 3-2. Touch the [ON] or [OFF] key of the AMP CANCEL item to turn the Amp Cancel function on or off. VX709...

  • Page 62: General Settings

    3-1. Touch the [Display] key to display the Display tab screen. 3-2. Touch the [ON] or [OFF] key of the Camera Warning item to turn the Camera Warning function on or off. VX709 Setting the VTR system (NTSC/PAL) • The factory default setting is “NTSC”. Note: •...

  • Page 63: Adjusting The Clock

    [Set] key (The factory default setting is “1:00 am”). Setting the anti-theft function (CATS) “CATS” is the acronym of “Clarion Anti-Theft System”. When you set a PIN code (called as “Personal Code”), a theft is prevented by disabling the operation of the unit at the theft.
  • Page 64 • The backup power was cut off. • The Reset button was pressed. Note: • If you forgot your Personal Code, please consult your dealer or an authorized Clarion service center. 1. Enter your Personal Code currently set. 2. When the correct Personal Code is entered, the unit will restart from the initial startup screen.

  • Page 65: Adjusting The Monitor

    [[]: Press to make contrast lower. [Hue]: Adjusts the tone of color (red is emphasized or green is emphasized). []]: Press to increase green. [[]: Press to increase red. 4. When the adjustment completes, touch the [Back] key to return to the previous screen. VX709...

  • Page 66: Troubleshooting

    8. TROUBLESHOOTING If you have a problem with this system, check the following items to resolve it. See also our homepage (www.clarion.com) for additional information. General Problem Power does not turn Fuse is blown. on. (No sound is produced.) Incorrect wiring.

  • Page 67: Dvd Player

    Disconnect the USB device and reconnect. If the device is still not recognized, try replacing with a different USB device. Store these files properly in the USB device. Use MP3/WMA/AAC files encoded properly. Set the TV Signal setting (NTSC/PAL) of the iPod correctly. Measure Measure VX709...

  • Page 68: Error Displays

    USB device. ERROR 3 (iPod) The selected category has no track data. The iPod is frozen. VX709 Cause This is a failure of DVD player’s mechanism. Consult your store of purchase. Replace with a non-scratched, non-warped disc. Eject the disc then reload it properly.
  • Page 69 Disconnect the device, and reconnect directly to the USB connector of this unit without using the USB Hub. Perform the operation such as skipping a file. (Repeat and random playback mode may be canceled.) Measure VX709...

  • Page 70: Specifications

    Mid: 1.3 V (at 2 V output) Low: 2.0 V (at 2 V output) (input impedance 10 kΩ or greater) Video input: 1.0 ±0.2 Vp-p (input impedance 75 Ω) VX709 Video Output Video output: 1.0 ±0.2 Vp-p (output impedance 75 Ω) LCD Monitor Screen Size: 7-inch wide type 156.2 mm Width ×...

  • Page 71: Installation And Wire Connection Manual

    9. SAMPLE SYSTEM...79 1. SAFETY PRECAUTIONS The Installation and Wire Connection Manual is intended for authorized Clarion dealers. Due to the complexity of the vehicle’s wiring and components, it is recommended an authorized Clarion dealer perform the installation. For the location of nearest authorized Clarion dealer, please visit: www.clarion.com...

  • Page 72: Installation Precautions

    • Please note the position of pipes, tanks and electrical wirings before installing the unit into the vehicle; failure in avoiding these may cause a fire or malfunction. VX709 CAUTION CAUTION • Use only the supplied parts. • If unspecified parts are used, they may cause damage.

  • Page 73: Before Starting

    4. GENERAL CAUTIONS 1. Do not open the case. There are no user- serviceable parts inside. If you drop anything into the unit during installation, consult your dealer or an authorized Clarion service center. Car battery Figure 1 6 Bag for accessories (No. 2)

  • Page 74: Cautions On Installation

    Figure 3 4. If you have to do any modification on the car body, such as drilling holes, consult your car dealer beforehand. VX709 5. Use the included screws for installation. Using other screws can cause damage. (Figure 4) Chassis Chassis Max.

  • Page 75: Installing The Main Unit

    Main Unit Mounting bracket (1 pair for the left and right sides) Figure 6 For TOYOTA vehicle 6-Spacer (thickness: 1 mm) 6-Flat head screw (M5 × 8) (attached to the main unit) VX709...
  • Page 76 ●Removing the Main Unit When the main unit is to be removed, disassemble it in the reverse of the order in “INSTALLING THE MAIN UNIT” (see page 73). VX709 Main Unit Figure 7 *3 If a hook on the installation bracket interferes with the unit, bend and flatten it with a nipper or similar tool.

  • Page 77: Cautions On Wiring

    (Figure 9) • When you want to extend the CeNET cable, use extension cable CCA-520 (2.5 m) or CCA-521 (0.6 m) (each of them is sold separately). Slide cap CeNET cable (provided with the Navigation System) Figure 9 CeNET terminal VX709...

  • Page 78: Wire Connection

    Gray Yellow Video output terminal Green Right Left White Black Yellow Video White Audio (left) Audio (right) VX709 Radio antenna jack Connect to terminal the AUX input terminal. CeNET terminal Front audio output terminal Rear audio output terminal Non fader output...
  • Page 79 Rear left + Green/Black Rear left - Blue/White Amplifier turn-on cord Orange/White Illumination Blue Auto antenna Grass-green Purple/white See next page for how to connect the parking brake cord. +12V main power Ground +12V accessory Parking brake cord Reverse gear cord VX709...
  • Page 80 When using the NAX980HD/NAX970HD: Connect the CeNET connector and the RGB terminal. For detailed information, refer to the instruction manual of the Navigation System. VX709 ●How to attach the electro-tap 1. Place the Parking brake cord at the stopper, and fold it back in the direction of the arrow.

  • Page 81: Sample System

    Yellow Black White RCA cable (sold separately) Gray White Black White RCA cable (sold separately) Gray Yellow Green White RCA cable (sold separately) iPod with video Connector cable (CCA-723) No connection Front speakers Rear 4-Channel speakers Amplifier Rear Monitor VX709...
  • Page 82 Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. 2009/1 FCC ID: AX2QZ6072B1 IC: 419C-QZ6072 Bluetooth ID: B013603 Clarion Co., Ltd. All Rights Reserved.Copyright © 2009: Clarion Co., Ltd. Printed in China / Imprimé en Chine / Impreso en China QZ-6074B 280-8754-00...
