Quick Start; Selecting Your Desired Temperature And Mode; Using The Fan Button - Johnson Controls T9580 Owner's Manual And Installation Instructions

Quick Start -

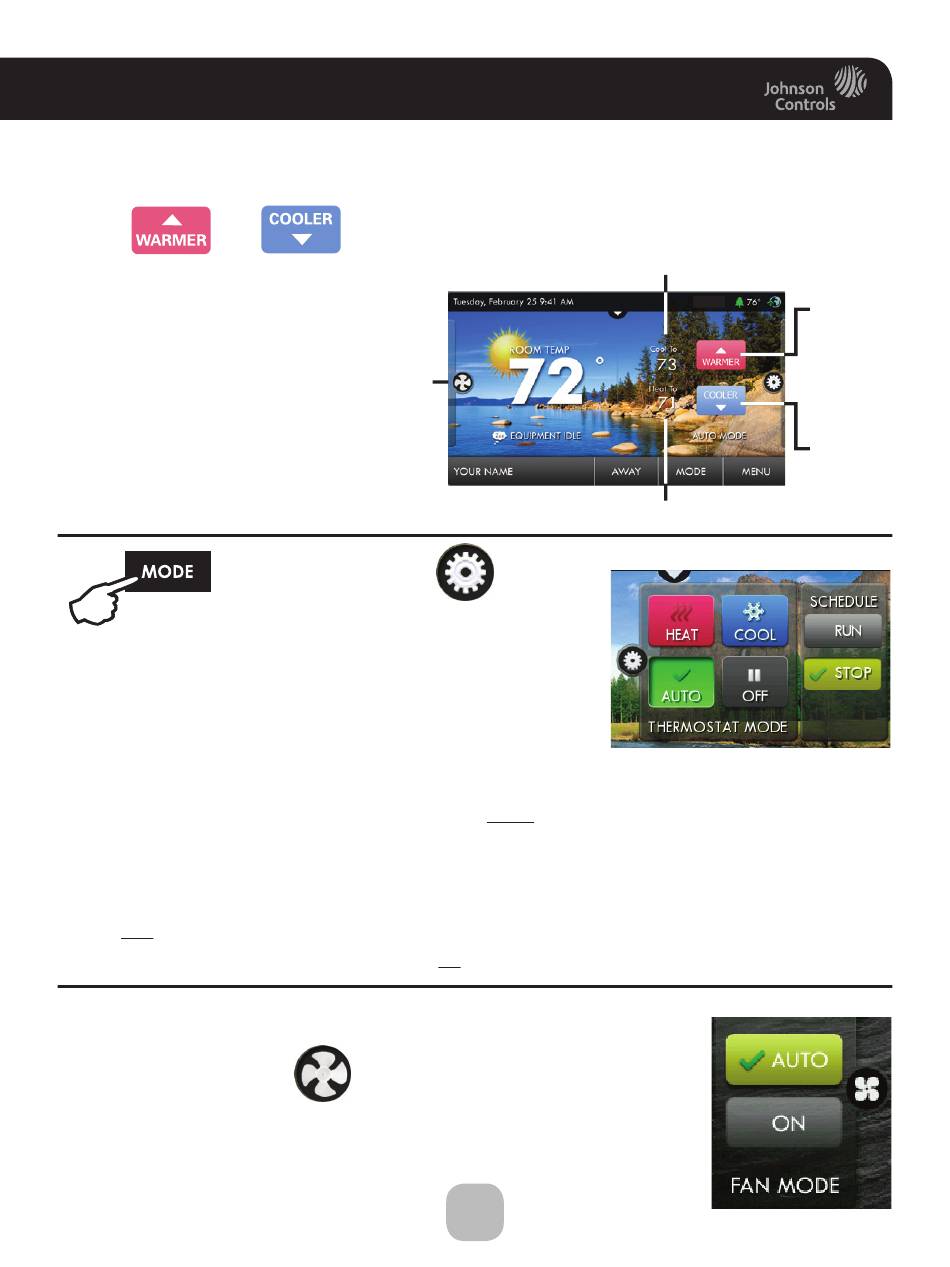

Selecting Your Desired Temperature and Mode

Press or
The Heat or Cool Setpoint
is the temperature the
room has to reach before
heating or cooling will
turn off.
Press or the MODE Icon
HEAT will allow only heat operation.
COOL will allow only cool operation.
AUTO will allow both Heat and Cool operation.
OFF - heating and cooling systems are turned off.
AUTO-CHANGEOVER MODE - Pressing the WARMER or
COOLER buttons in Auto mode will adjust both the heat and cool setpoints
simultaneously. To adjust heat and cool setpoints individually, choose HEAT mode
to adjust the heat setpoint and COOL mode to adjust the cool setpoint, then return
to AUTO mode.
HEAT OR COOL MODE - Pressing the WARMER or COOLER buttons in Heat or
Cool mode will adjust only the heat or cool setpoints.

Using the Fan Button

Press the FAN Icon
FAN ON fan runs constantly even in OFF Mode.
FAN AUTO fan only runs with a heating or cooling demand.
Temperature, Modes & Fan
to adjust temperature
Fan
6
Cool Setpoint
Heat Setpoint
Warmer
Button
Cooler
Button
