Instructions - Parts
24N319 Round Spray Kit

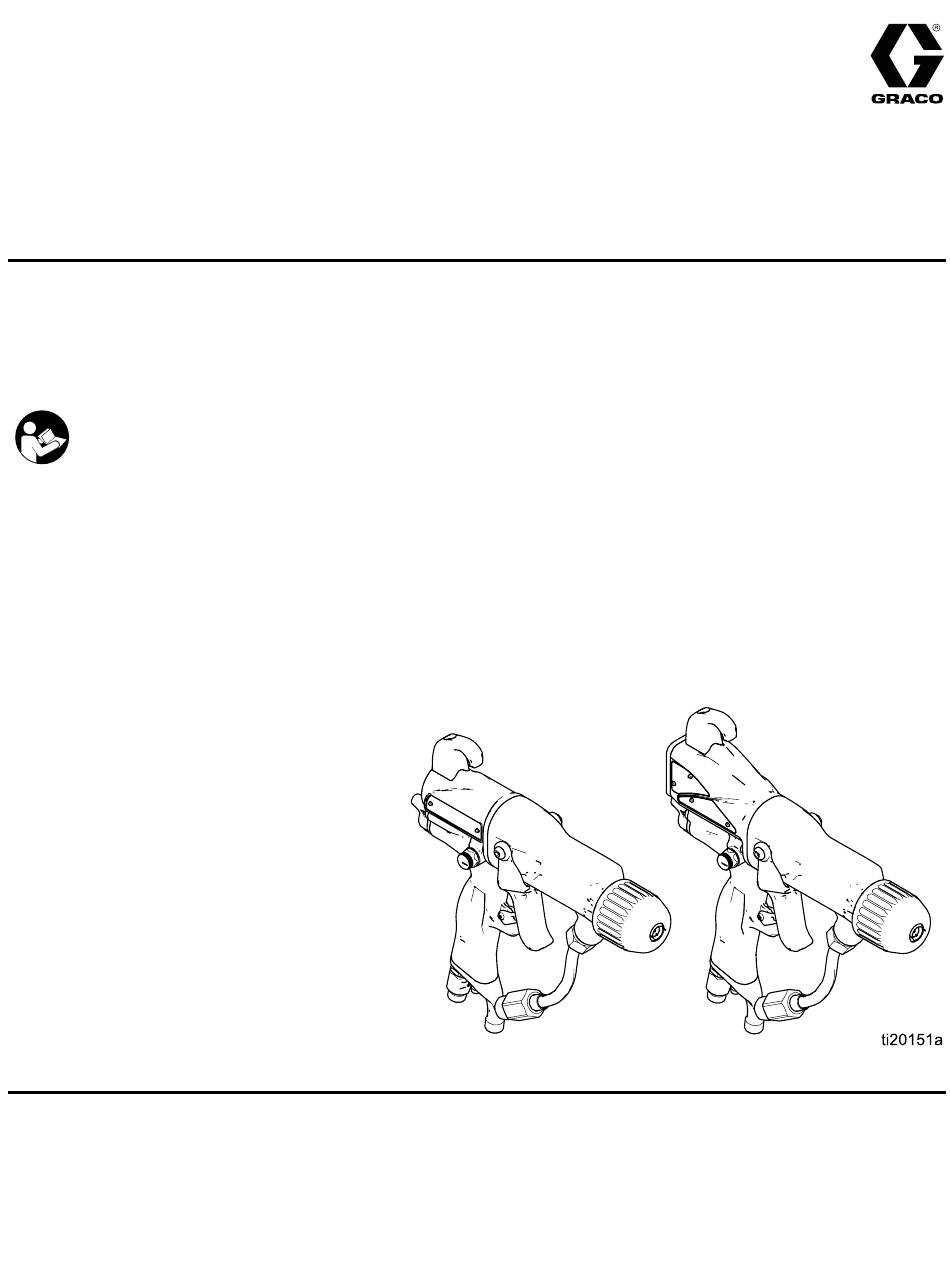

To convert a Pro Xp™
Electrostatic Air-Assisted Spray Gun to a round spray pattern. For professional use only.
Important Safety Instructions
Read all warnings and instructions in this manual and in your Pro Xp
Electrostatic Air-Assisted Spray Gun manual. Save these instructions.
3000 psi (21 MPa, 210 bar) Maximum
Fluid Working Pressure
100 psi (0.7 MPa, 7.0 bar) Maximum
Air Working Pressure
See page 4 for part numbers. Gun is
not included.
PROVEN QUALITY. LEADING TECHNOLOGY.
3A2499A
EN
Advertisement
Related Manuals for Graco Pro Xp 24N319
Summary of Contents for Graco Pro Xp 24N319
- Page 1 Instructions - Parts 24N319 Round Spray Kit 3A2499A To convert a Pro Xp™ Electrostatic Air-Assisted Spray Gun to a round spray pattern. For professional use only. Important Safety Instructions Read all warnings and instructions in this manual and in your Pro Xp Electrostatic Air-Assisted Spray Gun manual.
-
Page 2: Installation
Installation NOTICE Do not operate the gun with a damaged electrode (4a). Make sure the electrode is in place before installing the air cap/electrode To reduce the risk of injury, follow the Pressure assembly (4). Relief Procedure in your Pro Xp manual before installing this kit. - Page 3 Installation 6. Adjust the spray pattern as explained in the Gun NOTICE Setup Checklist of your Pro Xp gun manual. Overtightening the spray tip (5) can damage NOTE: The recommended spraying distance the tip and cause poor spray performance. from the front of the gun to the object being sprayed is 8–12 in.
- Page 4 Parts Parts Ref. Part No. Description 236768 DIFFUSER/SEAL ASSEMBLY; includes item 183459 SEAL; UHMWPE 24N315 RETAINER, large (shown) 24N316 RETAINER, small (not shown) 245294 AIR CAP/ELECTRODE ASSEMBLY; includes item 198748 ELECTRODE 236xxx TIP ASSEMBLY; customer’s choice; see Round Spray Tips, page 5 189780 WRENCH 3A2499A...
-
Page 5: Round Spray Tips
Round Spray Tips Round Spray Tips Part No. Size No. Approximate Flow Rates for Light to Medium Viscosity Coatings (20–40 centipoise)* 300 psi (2.1 MPa, 21 bar) 600 psi (4.2 MPa, 42 bar) 1200 psi (8.4 MPa, 84 bar) 236836 2.5 oz/min (73 cc/min) 4.1 oz/min (120 cc/min) 5.7 oz/min (170 cc/min) -
Page 6: Graco Standard Warranty
Graco to be defective. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s written recommendations. This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by faulty installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of non-Graco component parts.
