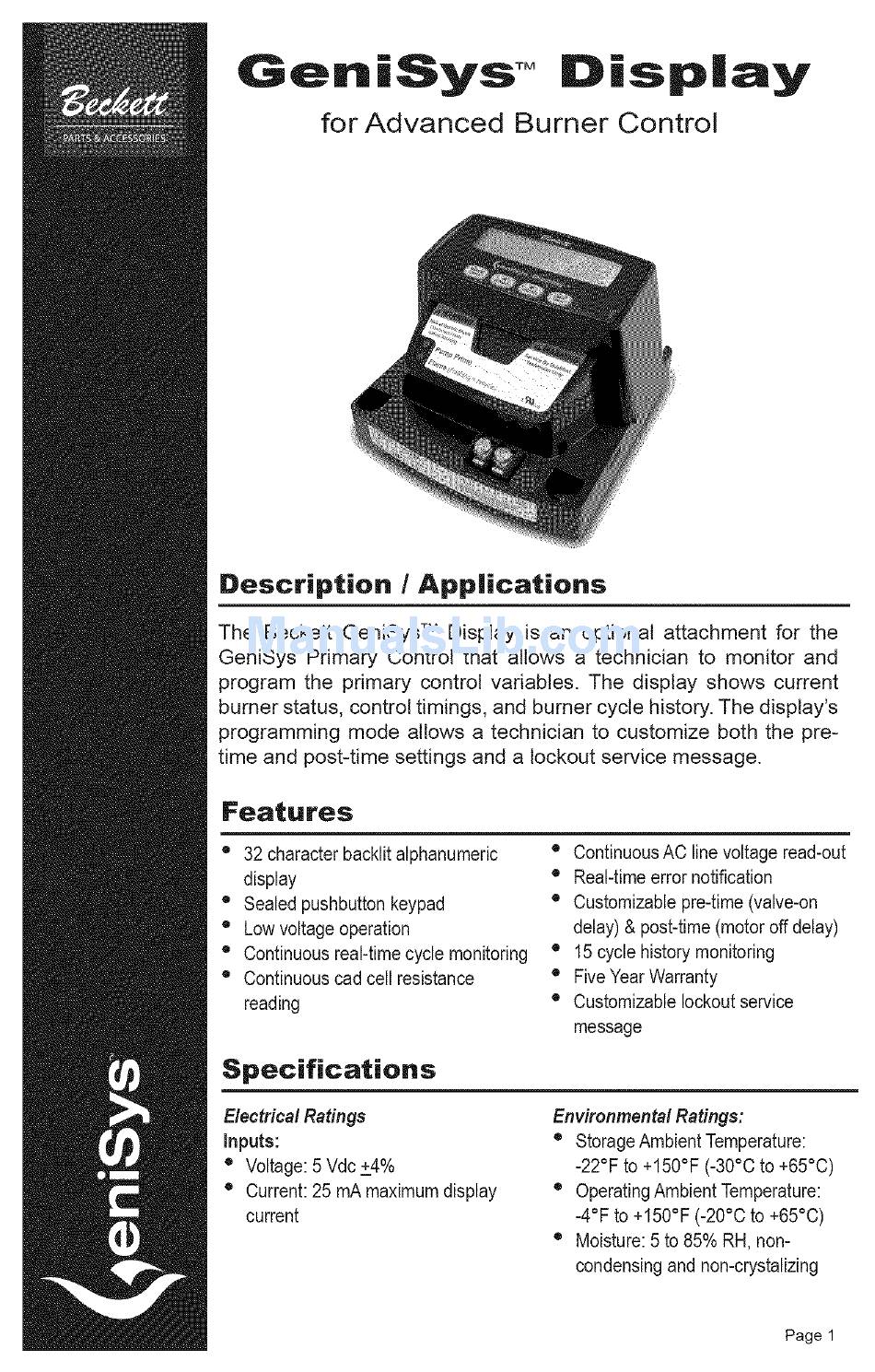

Beckett GeniSys Display User Manual

GeniSys
TM
Disp|ay
for Advanced Burner Control
Description / Applications
The Beckett GeniSys
TM
Display is an optional attachment for the
GeniSys Primary Control that allows a technician to monitor and
program the primary control variables. The display shows current
burner status, control timings, and burner cycle history. The disptay's
programming mode allows a technician to customize both the pre-
time and post-time settings and a lockout service message.
Features
o 32 character backlit alphanumeric
display
o Sealed pushbutton keypad
o Low voltage operation
o Continuous real-time cycle monitoring
o Continuous cad cell resistance
reading
o Continuous AC line voltage read-out
o Real-time error notification
o Customizable pre-time (valve-on
delay) & post-time (motor off delay)
o 15 cycle history monitoring
o Five Year Warranty
o Customizable lockout service
message
Specifications
Electrical Ratings
Inputs:
o Voltage: 5 Vdc +4%
o Current: 25 mA maximum display
current
Environmental Ratings:
o Storage Ambient Temperature:
-22°F to +150°F (-30°C to +65°C)
o Operating Ambient Temperature:
-4°F to +150°F (-20°C to +65°C)
o Moisture: 5 to 85% RH, non-
condensing and non-crystalizing
