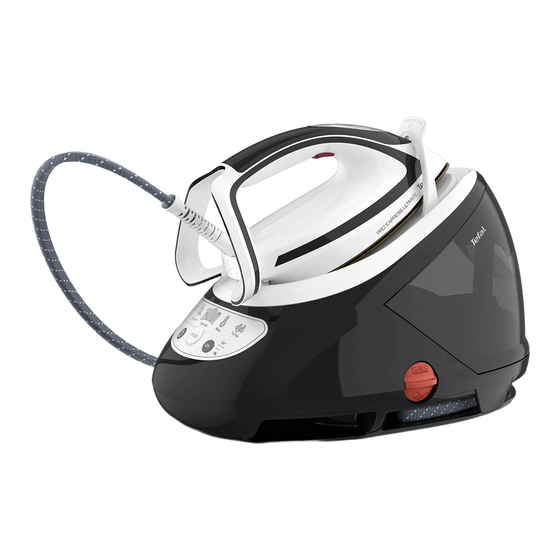

- Page 1 Pro Express Ultimate - GV9550...
-
Page 3: Table Of Contents
Summary Safety instructions ................04 USING YOUR APPLIANCE ..............12 2.1 Getting started ................12 2.2 Filling the water tank ............... 15 2.3 Transportation ................17 2.4 Settings ..................18 2.5 Vertical steaming ................ 20 2.6 Auto-off ..................21 MAINTENANCE AND STORAGE ............. 22 3.1 Emptying the calc collector ............ -
Page 4: Safety Instructions
Safety instructions Important recommendations • Please read these instructions carefully before first use. This product has been designed for domestic and indoor use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply. •... - Page 5 or persons with reduced or impaired physical, sensory or mental capabilities provided that they have been thoroughly instructed regarding use of the appliance, are supervised, and understand the risks involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
- Page 6 apertures that are under pressure, must not be opened during use. • The appliance must not be used if it has been dropped, if it has any visible damage, if it leaks, or if it functions abnormally in any way. Do not attempt to dismantle your appliance: have it examined at an Approved Service Centre to avoid any danger.
- Page 7 Connecting to the wrong voltage may cause irreparable damage to the appliance and will invalidate your guarantee. • Do not use an extension lead. If you accept liability for doing so, only use an extension lead which is in good condition, has a plug with an earth connection and is suited to the power rating of the appliance.
- Page 8 available and most of them can be used in the generator. However, some softeners (especially those that use chemicals such as salt) may cause white or brown streaks. This is often the case when using water from filtering jugs. If you experience this sort of problem, we suggest you try using untreated tap water or bottled water.
- Page 10 1 Steam trigger 2 Lock system 3 Water tank 4 Steam cord storage 5 Anti-calc collector 6 Electrical cord storage 7 Control panel...
- Page 11 CLICK www.tefal.com...
-
Page 12: Using Your Appliance
USING YOUR APPLIANCE • Principle of ironing : start your appliance and put the fabric you want to CLICK iron on the ironing board. When the appliance is ready to use, put the iron on the fabric and start moving it fom one side to the other. - Page 13 USING YOUR APPLIANCE • Press «ON-OFF» button on the control panel. • The «ON-OFF» and the «Normal» button light remains flashing while the appliance is warming • The steam generator is ready for use. The mode can still be switched even when the light flashes.
- Page 14 USING YOUR APPLIANCE • To obtain even more steam, press the steam trigger under the handle ×3 three times in quick succession for automatic sequential steam. During ironing, do not place directly the iron on the soleplate. Use the heel or the base.
-
Page 15: Filling The Water Tank
USING YOUR APPLIANCE 2.2 Filling the water tank • Fill the water tank before every use or when the « water tank empty » light flashes. • Switch off and unplug the appliance. • Remove the removable water tank using the handle located at the front of the steam generator... - Page 16 USING YOUR APPLIANCE • Plug in the appliance. • Press «ON-OFF» button to restart the appliance. • Red «water tank empty» light flashes on control panel. • Hold down the «OK» button for a few seconds to turn off the red light.
-
Page 17: Transportation
USING YOUR APPLIANCE 2.3 Transportation CLICK Your steam generator is equiped with a lock system to hold the iron onto the base for easy transport and storage. To transport your steam generator using handle of the iron: • Put the iron on the steam generator iron rest and raise the lock system over the iron until it locks... -
Page 18: Settings
USING YOUR APPLIANCE 2.4 Settings Changing modes • Press the « MODE » button located on the control panel to go from one setting to another. • When you press the MODE button to change mode, the light of the new mode flashes while the steam generator is adapting temperature... - Page 19 USING YOUR APPLIANCE Choosing the adapted mode DELICATE • Check garment label. According to the type NORMAL of fabric ironed, select the right setting on the appliance. TURBO • Depending on which mode select, Delicate Normal Turbo appliance will automatically adjust the temperature of the soleplate as well as the...
-
Page 20: Vertical Steaming
USING YOUR APPLIANCE 2.5 Vertical steaming As steam is very hot: never attempt remove creases from a garment while it is being worn, always hang garments on a coat hanger. • To use the vertical steam, put the appliance on "Normal"... -
Page 21: Auto-Off
USING YOUR APPLIANCE 2.6 Auto-off up to 8 min • The steam generator is fitted with an «AUTO- OFF» monitoring system, which activated automatically after approximately 8 minutes without use. The «ON-OFF» button flashes to indicate that the appliance is on standby. •... -
Page 22: Maintenance And Storage
MAINTENANCE AND STORAGE 3.1 Emptying the anti-calc collector • An orange «anti-calc» light located on the control panel starts flashing to inform that the anti-calc collector needs rinsing. • Switch off and unplug the appliance. Appliance has to be unplugged least 2 hours and be completely cool before continuing. - Page 23 MAINTENANCE AND STORAGE • To clean the collector, rinse it under running water to remove any calc it contains . • Place the collector in its housing by screwing it in completely to ensure it is watertight. • Plug the appliance. •...
-
Page 24: Rinsing The Boiler
MAINTENANCE AND STORAGE 3.2 Rinsing the boiler • In addition this regular maintenance, 2 X YEAR ** it is advisable to rinse the boiler tank out completely every months after approximately 25 uses, whichever is the sooner. • Switch off and unplug the appliance. - Page 25 MAINTENANCE AND STORAGE • Place steam generator on the edge of your sink and hold your steam generator in an inclined position. Use a jug to fill the boiler tank with 1/4 litre of untreated tap water. • Shake the base unit gently for a few seconds then empty...
-
Page 26: Cleaning
MAINTENANCE AND STORAGE 3.3 Cleaning Appliance has to be unplugged least 2 hours and be completely cool before continuing. • Clean soleplate with a soft damp cloth. Do not use detergent or descaling products for cleaning the soleplate. • Clean plastic parts of the appliance occasionally with a soft... -
Page 27: Storage
MAINTENANCE AND STORAGE 3.4 Storage • Switch off and unplug the appliance. • Store the power cord in its slide storage place. • Store the steam cord in its slide storage place without stretching it too much. • Put the iron on the steam generator iron rest and raise the retaining hoop over the iron until it locks... -
Page 28: Troubleshooting
TROUBLESHOOTING Problem Possible Causes Solutions Water runs out The water has Press the steam control of the holes in condensed in the button holding the iron the soleplate. pipes because you away from your ironing are using steam for board until the iron the first time or you produces steam. - Page 29 Problem Possible Causes Solutions Brown streaks You are using Never add any products come out of chemical descaling to the water tank (see the holes in products or additives section on "What water the soleplate in the ironing water. to use?" ). and stain the Over use of the laundry.
- Page 30 Problem Possible Causes Solutions The steam The "AUTO-OFF" Press the "ON-OFF" generator does system was activated restart button located not switch on after 38 minutes of on the control panel. or the iron non-use and has indicator light switched off your and the "ON- steam generator.
- Page 31 1820002810 - 24/19...
