Appearance View - Sharp R-937 Service Manual

OVEN
1. Grill heating element
2. Oven lamp
3. Control panel
4. Shelf runners
5. Waveguide cover
6. Oven cavity
7. Coupling
8. Door seals and sealing surfaces
9. Door opening handle
10.Air-vent openings
11.Outer cabinet
12.Power cord
13.Turntable
Digital display and indicators:
1. COOKING IN PROCESS indicator
2. GRIL indicator
3. CONVECTION indicator
4. MICROWAVE indicator
5. INFO indicator
Operating buttons:
6. INFORMATION button
7. LANGUAGE button
8. AUTO REHEAT button
9. EXPRESS DEFROST button
10. AUTO COOK button
11.COOKING MODE dial
Rotate the dial so that indicator points to appropriate
symbol.
for microwave cooking
for microwave cooking with GRILL
for microwave cooking with CONVECTION
for GRILL
for CONVECTION
12. CONVECTION buttonbutton
Press to change the convection temperature.
13. TIME/WEIGHT knob
Rotate the knob to enter either the cooking/defrosting
time or weight food.
14. 1 min / START button (See note)
NOTE:
This features is disabled after three minutes
when the oven is not in use. This feature is
automatically enabled when the door is
opened and closed or the STOP button is
pressed.
15. STOP button
16. CLOCK SETTING button
17. MICROWAVE POWER LEVEL button
Press to change the microwave power setting.
18. EXPRESS COOK button
19. LESS / MORE buttons

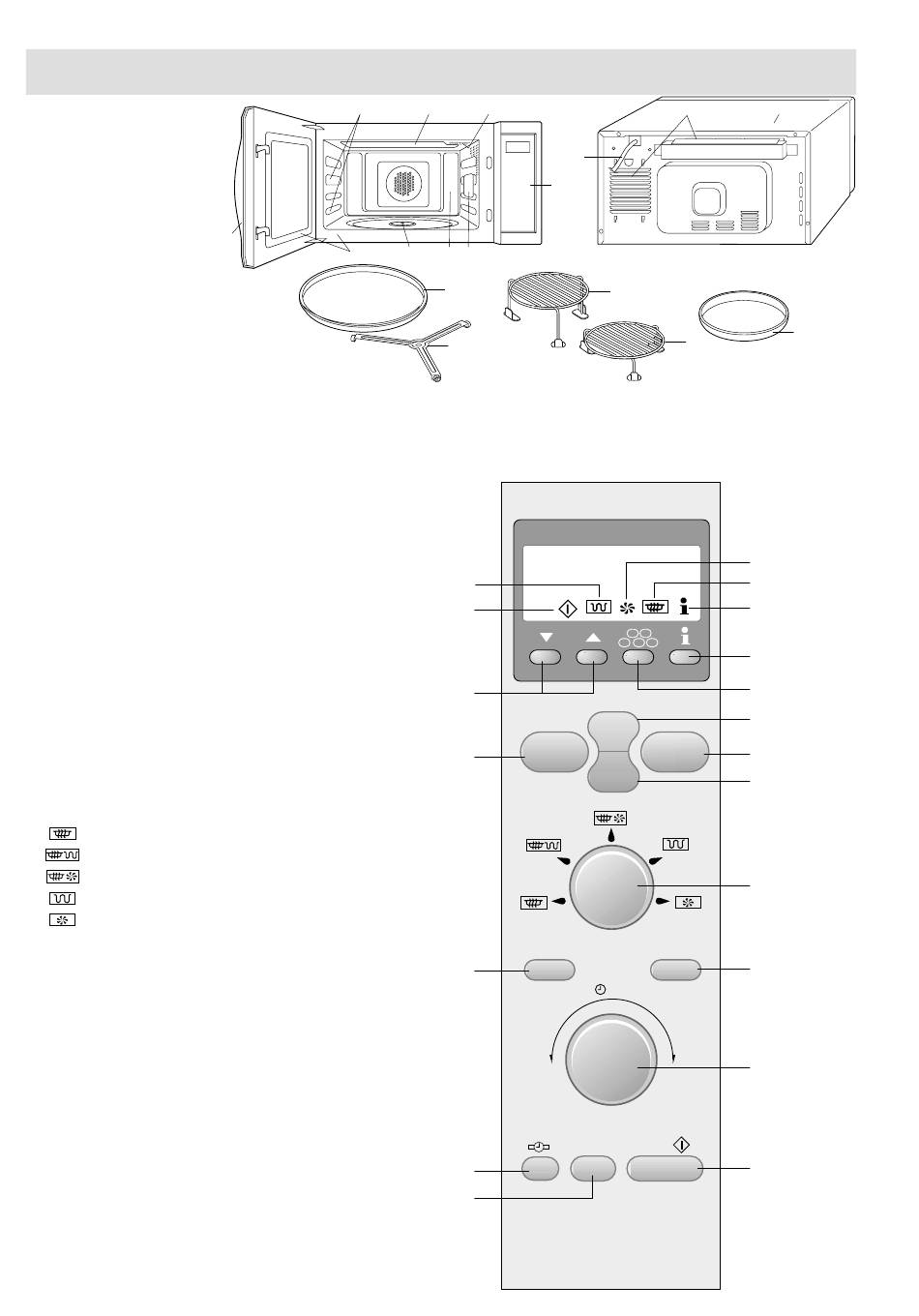

APPEARANCE VIEW

4
9
8
14.Turntable support
15.High Rack
16.Low Rack
17.Baking tin
1 2
12
3
7 6 5
13
14
CONTROL PANEL
2
1
19
Express
18
COOK
17
WATT
STOP
16
15
Grill . Hot Air
6
10
15
16
3
4
5
NL
D
F I E
6
7
8
AUTO
REHEAT
Express
9
DEFROST
AUTO
10
COOK
11
˚C 12
/KG
13
+
1
min
14
R-933
11
17
