Quick Installation Guide
5-Port 10/100/1000Mbps
Green Switch

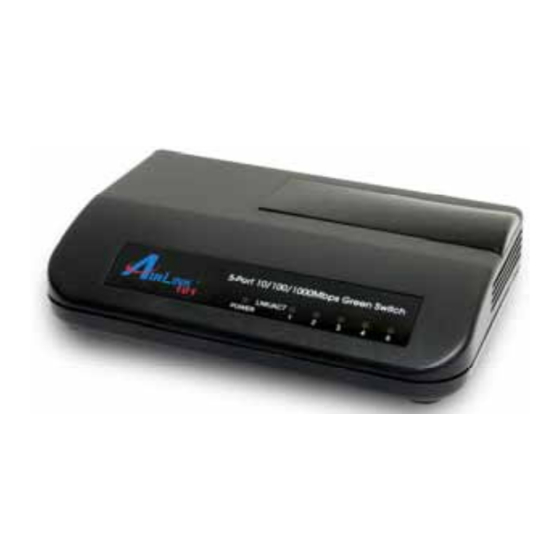

Model# AGSW502
Ver. 1A
Introduction
This Quick Installation Guide tells you how to install your 5-Port
10/100/1000Mbps Green Switch, and how to connect it to your Gigabit
Ethernet network.
The 5-Port 10/100/1000Mbps Green Switch is designed for energy saving,
easy installation and high performance in an environment where network
traffic and the number of users increase continuously. You can add other
Ethernet devices like computers, IP cameras, and Network Attached
Storage (NAS) onto your network quickly and easily. The green
technology of AGSW502 automatically reduces the power usage when a
connected port is detected inactive (idle or cable-unplugged) and
intelligently allocates less power for a port that connects with a shorter
Ethernet cable
Before you begin the installation, please check the items of your package:
Package Contents:
•
5-Port 10/100/1000Mbps Green Switch
•
Power Adapter
•
Quick Installation Guide
