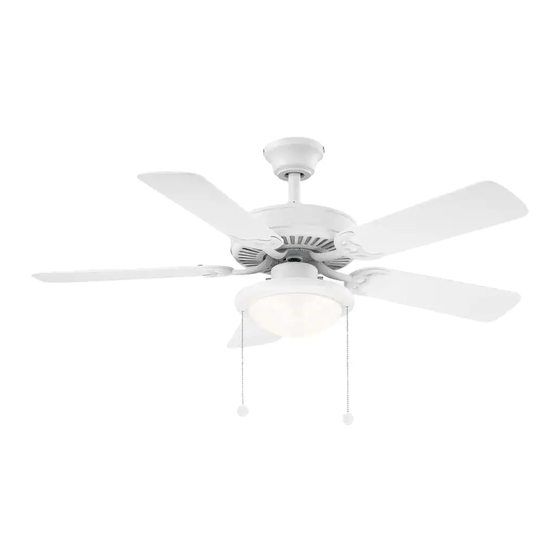

- Page 1 Item #1003 021 039 Model # YG269AP-MWH USE AND CARE GUIDE TRICE 44 INCH CEILING FAN Questions, problems, missing parts? Before returning to the store call Home Depot Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday 1-877-527-0313 HOMEDEPOT.COM...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ............Operation ..............Pull Chain Operating Instructions .......... Safety Information ............Reverse Switch Operating Instructions ........Warranty ................. Care and Cleaning ............Pre-installation .............. Troubleshooting ............Specifications ................Service Parts ............... Tools Required ................. Hardware Included .............. -
Page 3: Safety Information
Safety Information To reduce the risk of electric shock, ensure electricity has However, there is no guarantee that interference will not occur been turned off at the circuit breaker or fuse box before in a particular installation. If this equipment does cause harmful beginning. -
Page 4: Warranty
Warranty We warrant the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period of lifetime after the date of purchase by the original purchaser. We also warrant that all other fan parts, excluding any glass or acrylic blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of one year after the date of purchase by the original purchaser. -
Page 5: Hardware Included
Pre-Installation (continued) HARDWARE INCLUDED HARDWARE INCLUDED NOTE: Hardware shown to actual size unless noted otherwise in the table below. Part Part Description Description Quantity Quantity Plastic wire nut (not to scale) Canopy mounting screw with lock washer (preassembled) Blade attachment screw and fiber washer Blade arm screw and lock washer Clevis pin (preassembled) Cotter pin (preassembled) -
Page 6: Package Contents
Pre-Installation (continued) PACKAGE CONTENTS PACKAGE CONTENTS Part Description Quantity Part Description Quantity Mounting bracket (preassembled) Blade Canopy Blade arm Canopy bottom cover (preassembled) Light kit Hanger ball/downrod assembly Plastic shade Fan motor assembly... -
Page 7: Dual Mounting Instructions
Pre-Installation (continued) DUAL MOUNTING INSTRUCTIONS DUAL MOUNTING INSTRUCTIONS This ceiling fan is supplied with two types of hanging assemblies: the standard ceiling installation using the downrod with ball and socket mounting, and the "close-to-ceiling" mounting. The "close-to-ceiling" mounting is recommended in rooms with less than 8 ft. ceilings or in areas where additional space is desired from the floor to the fan blades. -
Page 8: Installation
Installation MOUNTING OPTIONS MOUNTING OPTIONS NOTE: WARNING: You may need a longer downrod to maintain proper To reduce the risk of fire, electric shock, or blade clearance when installing on a steep, sloped ceiling. personal injury, mount the fan to an outlet box marked The maximum angle allowable is 18°... -
Page 9: Assembly
Assembly — Standard Ceiling Mounting Preparing the canopy Preparing the motor □ □ Remove the cotter pin (FF), and clevis pin (EE), and Remove the two non-slotted canopy mounting screw loosen the two collar setscrews (GG) from the motor with lock washer (BB) from the canopy (B), and collar. -
Page 10: Close-To-Ceiling Mounting
Assembly — Close-to-Ceiling Mounting Preparing the canopy Preparing the motor □ □ Remove the mounting bracket (A) from the canopy (B) Remove three of the six collar mounting screws with by loosening the four canopy mounting screw with lock washers (HH) (every other one) from the collar lock washer (BB) on the top of the canopy (B). -
Page 11: Hanging The Fan
Assembly — Hanging the Fan Attaching the fan to the electrical box WARNING: To reduce the risk of fire, electric shock or other personal injury, mount the fan only to an outlet box or supporting system marked acceptable for fan support and use the mounting screws provided with the outlet box. - Page 12 Assembly — Hanging the Fan (continued) Making the electrical connections Ground Black White conductor WARNING: To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring. WARNING: Check to see that all connections are tight, including ground, and that no bare wire is visible at the wire nuts (except for the ground wire).
- Page 13 Assembly — Hanging the Fan (continued) Standard ceiling mounting Close-to-ceiling mounting WARNING: Locking slots of the canopy (B) are provided WARNING: Make sure the tab on the mounting bracket (A) only as an aid to mounting. Do not leave the fan assembly properly sits in the groove in the hanger ball (D) before unattended until all four canopy mounting screw with lock attaching the canopy (B) to the mounting bracket (A) by...
-
Page 14: Attaching The Fan Blades
Assembly — Attaching the Fan Blades Removing the rubber Attaching the blades to the packing mounts blade arms □ The fan motor assembly (E) is shipped with rubber NOTE: Your fan blades are reversible. Select the blade side packing mounts (PP) to prevent movement during finish which best accentuates your decor. - Page 15 Assembly — Attaching the Fan Blades (continued) Fastening the blade assemblies to the motor WARNING: To reduce the risk of personal injury, do not bend the blade arms (G) while installing, balancing the blades (F), or cleaning the fan. Do no insert foreign objects between rotating fan blades (F).
-
Page 16: Installing The Light Kit
Assembly — Installing the Light Kit Attaching the light kit to Mounting the light bulb and the switch housing installing the plastic shade □ Install one 9 watt LED bulb (KK) (included). CAUTION: Before starting the installation, disconnect the power by turning off the circuit breaker or removing the fuse □... - Page 17 Assembly — Installing the Light Kit (continued) Installing the fan without the light kit (optional) □ Disassemble the switch housing cover (RR) from the light kit (H). You can keep the light kit (H) for future use. □ Attach the plastic plug (MM) to the switch housing cover (RR).
-
Page 18: Operation
Operation PULL CHAIN OPERATING INSTRUCTIONS PULL CHAIN OPERATING INSTRUCTIONS Install two pull chains and fobs (LL) onto the pull chains located in the switch housing (QQ) and light kit (H). Turn on the power and check the operation of the fan. The pull chain controls the fan speed as follows: 1 pull - High, 2 pulls - Medium, 3 pulls - Low, and 4 pulls - Off. -
