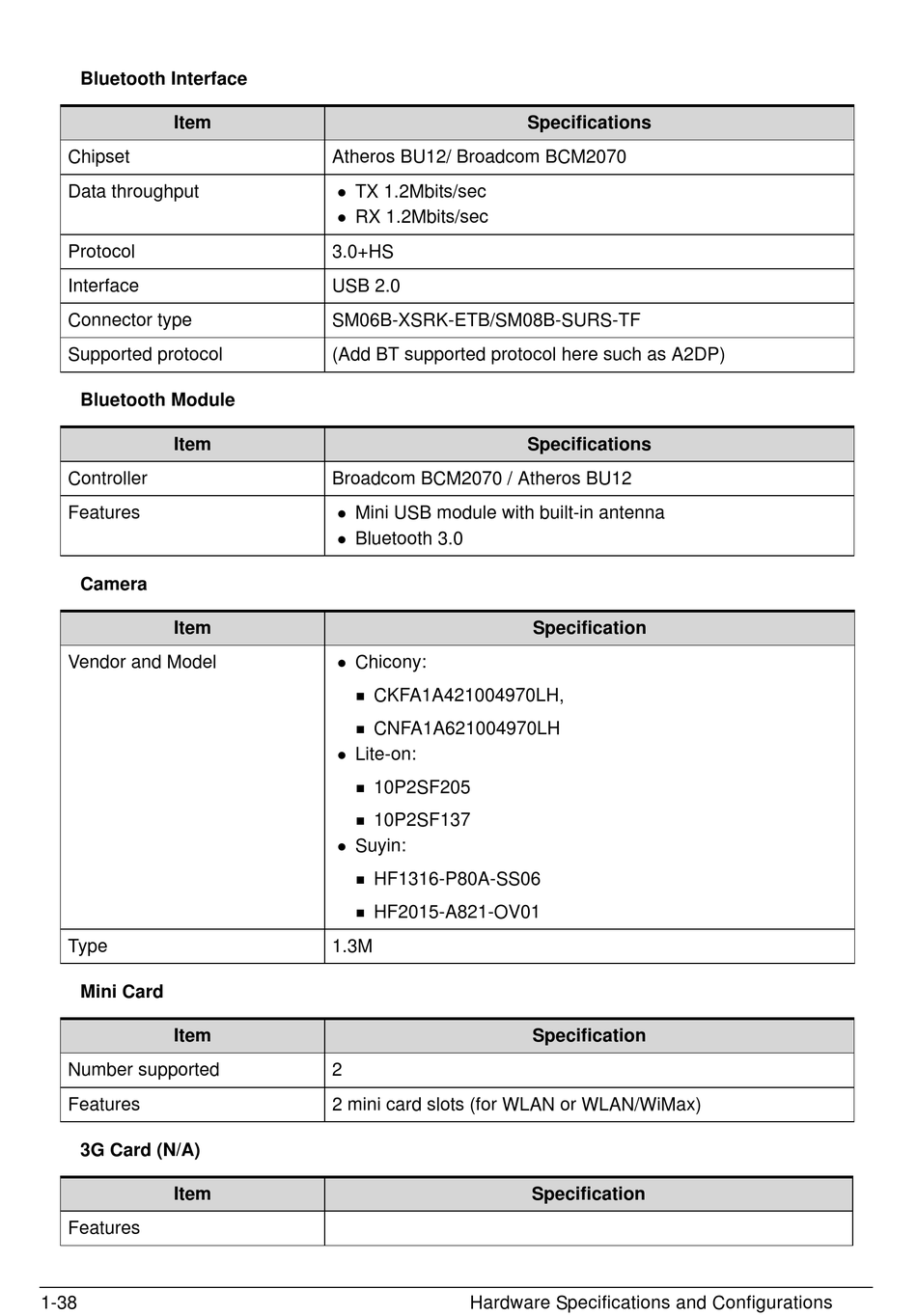

Bluetooth Interface

Item
Chipset
Data throughput
Protocol
Interface
Connector type
Supported protocol

Bluetooth Module

Item
Controller
Features

Camera

Item
Vendor and Model
Type

Mini Card

Item
Number supported
Features
3G Card (N/A)
Item
Features
1-38
Atheros BU12/ Broadcom BCM2070
TX 1.2Mbits/sec

RX 1.2Mbits/sec

3.0+HS
USB 2.0
SM06B-XSRK-ETB/SM08B-SURS-TF
(Add BT supported protocol here such as A2DP)
Broadcom BCM2070 / Atheros BU12
Mini USB module with built-in antenna

Bluetooth 3.0

Chicony:

CKFA1A421004970LH,

CNFA1A621004970LH

Lite-on:

10P2SF205

10P2SF137

Suyin:

HF1316-P80A-SS06

HF2015-A821-OV01

1.3M
2
2 mini card slots (for WLAN or WLAN/WiMax)
Hardware Specifications and Configurations
Specifications
Specifications
Specification
Specification
Specification
