Removing the eKey Board

1. Remove the Upper Cover. See "Removing the Upper Cover" on page 70.

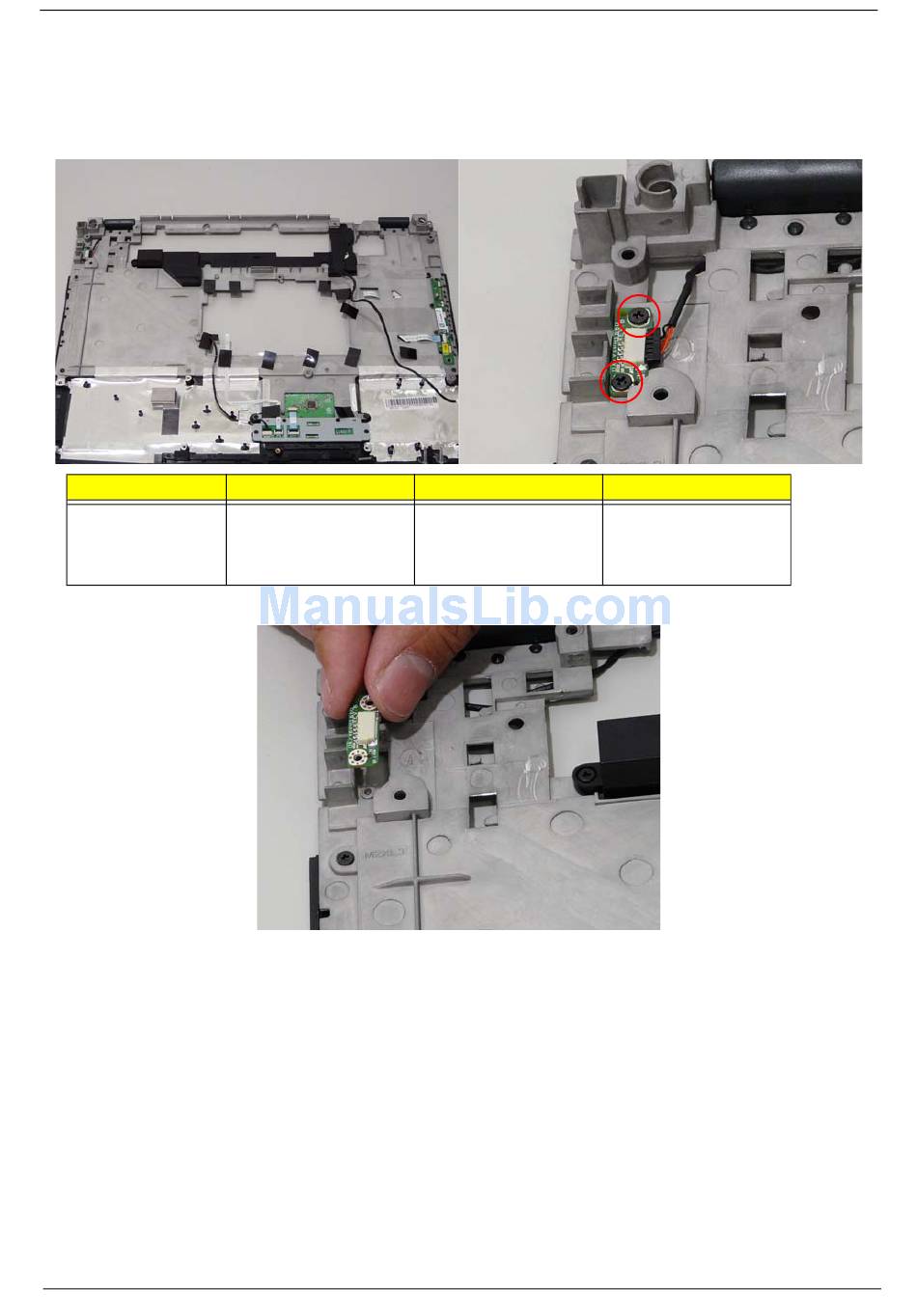

2. Turn the Upper Cover upside down and remove the two securing screws connecting the eKey board.
3. Disconnect the eKey Board cable.
Step
eKey Board
4. Remove the board as shown.
Chapter 3
Size
M2*3
Quantity
2
Screw Type
79
