Removing the LCD Panel

1. Remove the LCD Bezel. See "Removing the LCD Bezel" on page 90.

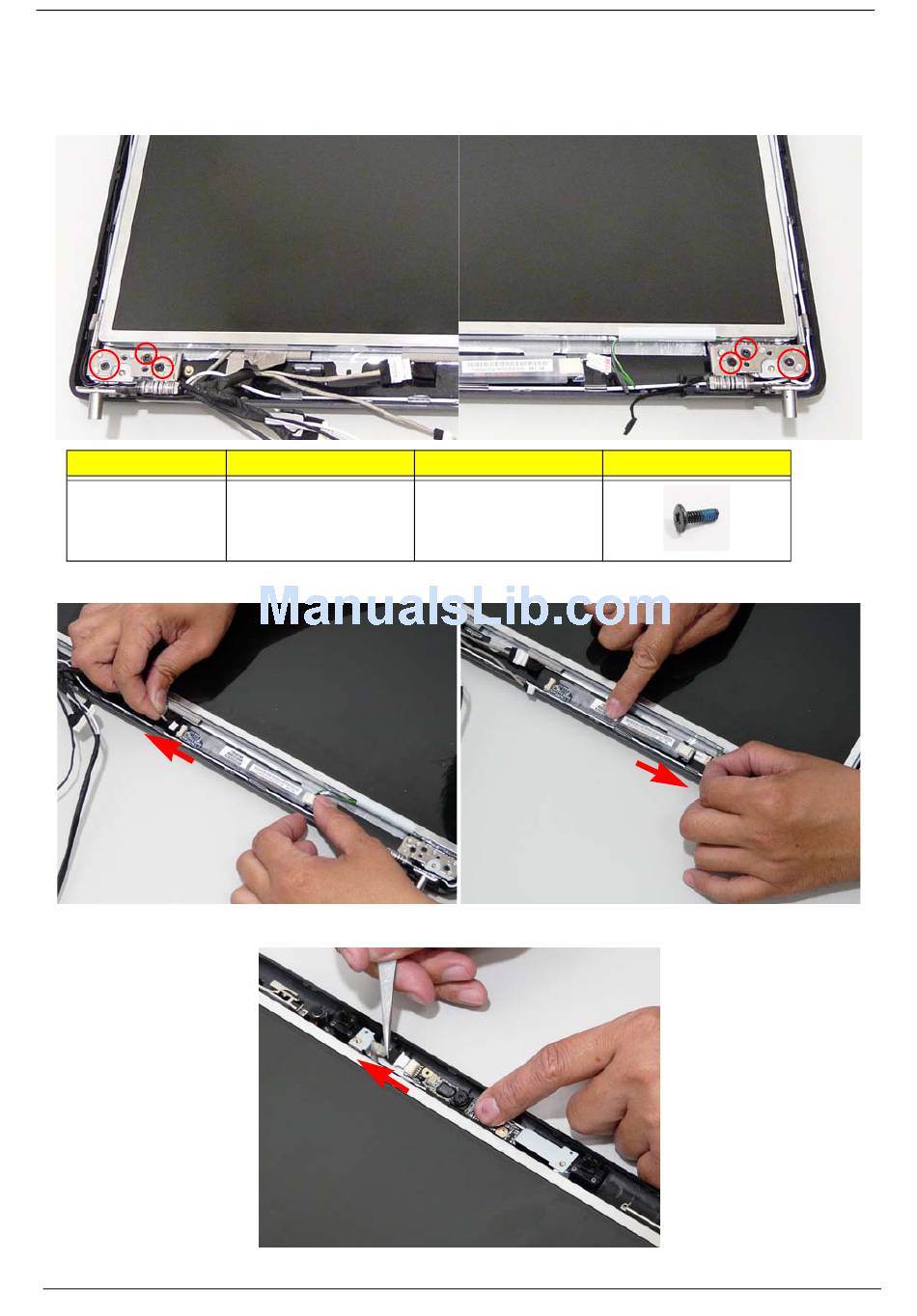

2. Remove the six securing screws from the LCD Module.
Step
LCD Panel
3. Disconnect the left and right sides of the Inverter cable.
4. Disconnect the Camera Module cable as shown.
94
Size
M2.5*6.5
Quantity
6
Screw Type
Chapter 3
