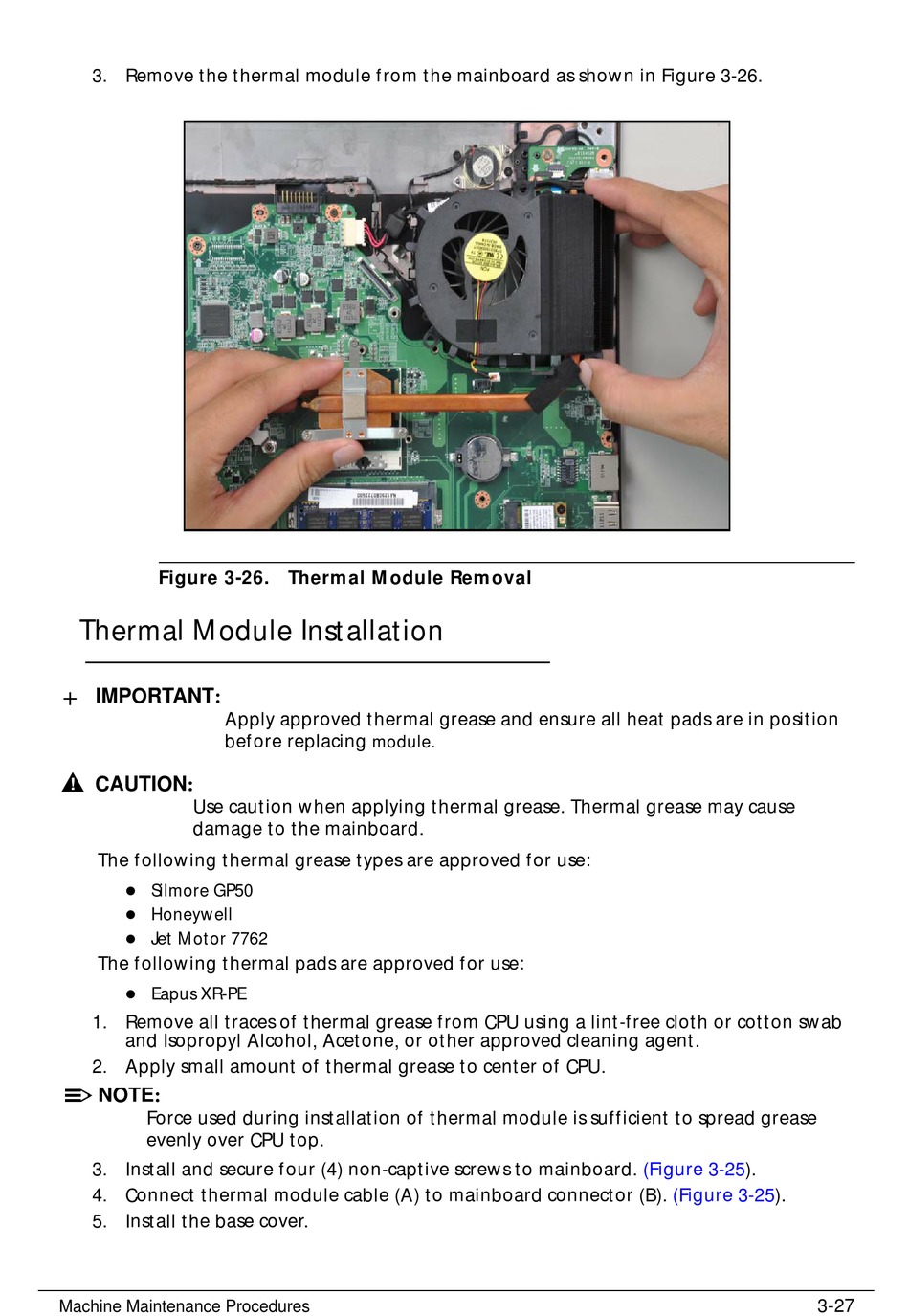

3. Remove the thermal module from the mainboard as shown in Figure 3-26.
Figure 3-26. Thermal Module Removal

Thermal Module Installation

+
IMPORTANT:
Apply approved thermal grease and ensure all heat pads are in position
before replacing
CAUTION:
!
Use caution when applying thermal grease. Thermal grease may cause
damage to the mainboard.
The following thermal grease types are approved for use:
 Silmore GP50
 Honeywell

Jet Motor 7762
The following thermal pads are approved for use:

Eapus XR-PE
1. Remove all traces of thermal grease from CPU using a lint-free cloth or cotton swab
and Isopropyl Alcohol, Acetone, or other approved cleaning agent.
2. Apply small amount of thermal grease to center of CPU.
NOTE: NOTE:
Force used during installation of thermal module is sufficient to spread grease
evenly over CPU top.
3. Install and secure four (4) non-captive screws to mainboard.
4. Connect thermal module cable (A) to mainboard connector (B).
5. Install the base cover.
