Lochinvar Crest w/RealTime O2 Trim 100 Series Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

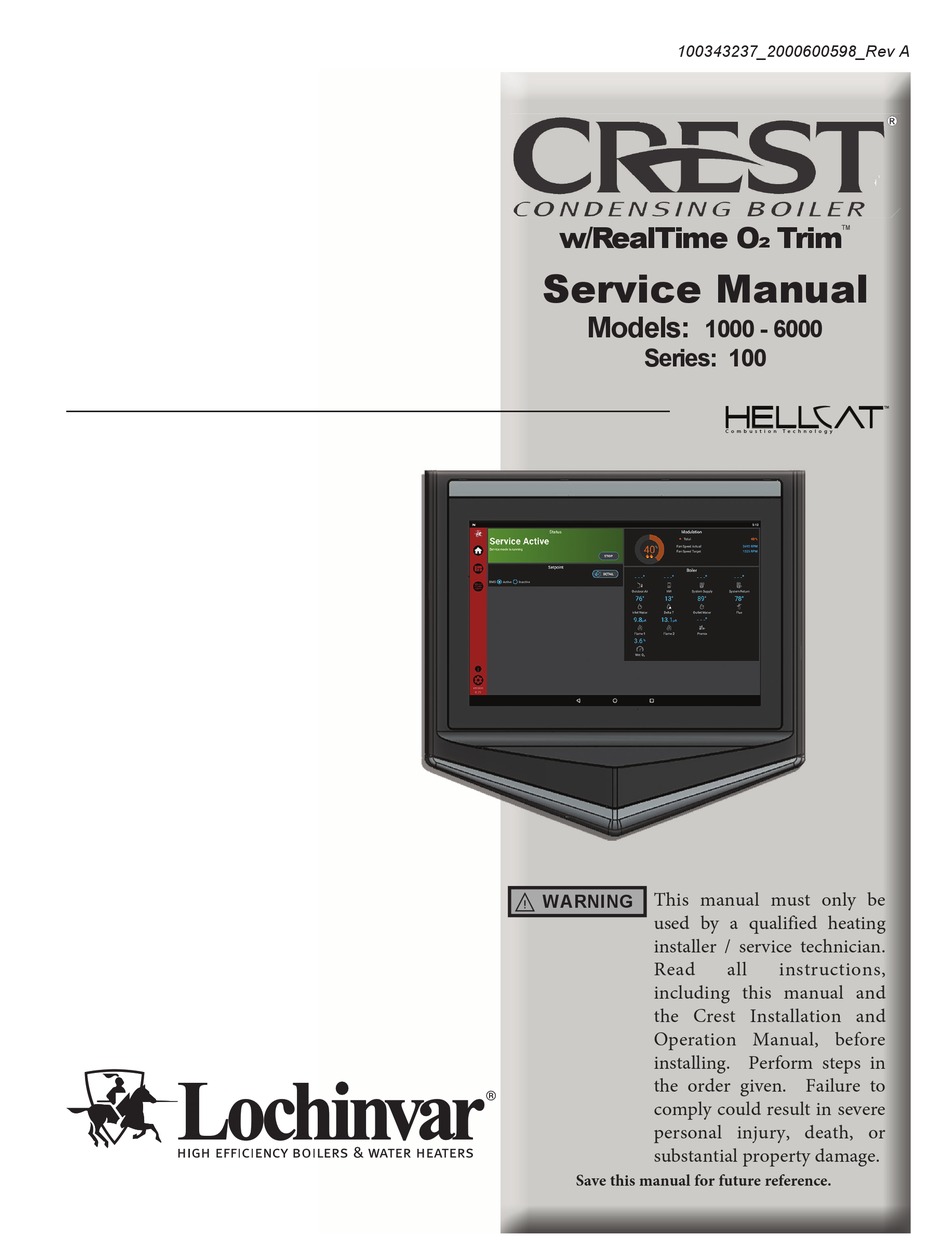

100343237_2000600598_Rev A
w/RealTime O2 Trim
TM
Service Manual
Models:
1000 - 6000
Series: 100
C o m b u s t i o n
T e c h n o l o g y
⚠ WARNING
This manual must only be
used by a qualified heating
installer / service technician.
Read
all
instructions,
including this manual and
the Crest Installation and
Operation Manual, before
installing. Perform steps in
the order given. Failure to
comply could result in severe
personal injury, death, or
substantial property damage.
Save this manual for future reference.
