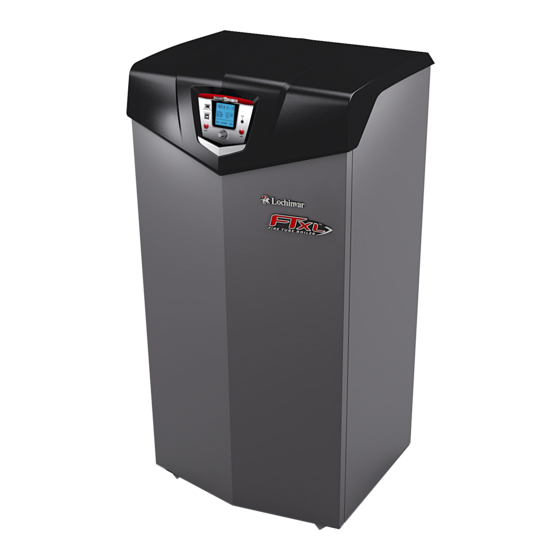

Lochinvar FTxl 400 Installation & Operation Manual
  1. Manuals
  2. Brands
  3. Lochinvar Manuals
  4. Boiler
  5. FTxl 400
  6. Installation & operation manual

Lochinvar FTxl 400 Installation & Operation Manual

Hide thumbs Also See for FTxl 400:
Table of Contents

Advertisement

Quick Links

See also: Service Manual , Operation & Installation Manual
FTXL-I-O Rev C
Installation & Operation Manual
Models: 400, 500, 600, 725,
& 850
This manual must only be used by
WARNING
a qualifi ed heating installer / service
technician. Read all instructions,
including this manual and the FTXL
Service Manual, before installing.
Perform steps in the order given.
Failure to comply could result in
severe personal injury, death, or
substantial property damage.
Save this manual for future reference.
