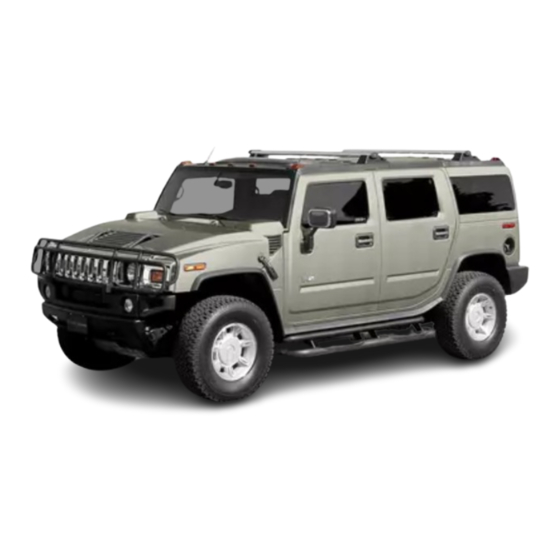

Page 1 2007 HUMMER H2 Owner Manual Seats and Restraint Systems ... 7 Front Seats ... 8 Rear Seats ... 15 Safety Belts ... 24 Child Restraints ... 46 Airbag System ... 77 Restraint System Check Features and Controls ... 93 Keys ...
Page 2 Bulb Replacement ... 441 Windshield Wiper Blade Replacement ... 447 Tires ... 448 Appearance Care ... 491 Vehicle Identiﬁcation ... 502 Electrical System ... 503 Capacities and Speciﬁcations Maintenance Schedule ... 513 Maintenance Schedule Customer Assistance Information ... 535 Customer Assistance and Information Reporting Safety Defects ...
Page 3 For vehicles ﬁrst sold in Canada, substitute the name “General Motors of Canada Limited” for HUMMER whenever it appears in this manual. This manual describes features that may be available in this model, but your vehicle may not have all of them.
Page 4: How To Use This Manual
How to Use This Manual Many people read the owner manual from beginning to end when they ﬁrst receive their new vehicle. If this is done, it can help you learn about the features and controls for the vehicle. Pictures and words work together in the owner manual to explain things.
Page 5 Vehicle Damage Warnings Also, in this manual you will ﬁnd these notices: Notice: These mean there is something that could damage your vehicle. A notice tells about something that can damage the vehicle. Many times, this damage would not be covered by your vehicle’s warranty, and it could be costly.
Page 6 These are some examples of symbols that may be found on the vehicle:...
Page 7: Table Of Contents
Section 1 Front Seats ... 8 Power Seats ... 8 Power Lumbar ... 9 Heated Seats ... 10 Memory Seat and Mirrors ... 10 Power Reclining Seatbacks ... 12 Head Restraints ... 14 Rear Seats ... 15 Heated Seats ... 15 60/40 Split Bench Seat ...
Page 8: Front Seats
Front Seats Power Seats The power seat controls are located on the outboard edge of the front seats. To adjust the seat, do any of the following: • Move the seat forward or rearward by sliding the horizontal control forward or rearward. •...
Page 9: Power Lumbar
Power Lumbar Your vehicle’s seats have power lumbar. You can increase or decrease lumbar support in an area of the lower seatback with this control, located on the outboard sides of the front seat(s). To increase support, press and hold the front of the control.
Page 10: Heated Seats
Heated Seats If your vehicle has this feature, the buttons are located on the front doors. The engine must be running for the heated seats to work. To heat the entire seat, press the horizontal button with the heated seat and seatback symbol. Press the button to cycle through the temperature settings of high, medium and low and to turn the heated seat off.
Page 11 To store the memory settings, do the following: 1. While the vehicle is in PARK (P), adjust the driver’s seat, including the seatback recliner, lumbar, and side wing area, and both outside mirrors to your preference. 2. Press and hold the 1 or 2 button of the memory control for three seconds.
Page 12: Power Reclining Seatbacks
To use the seat exit position, do one of the following: • Press the exit button on the memory control, • If this feature is activated in the DIC, removing the key from the ignition will move the seat to the exit position.
Page 13 CAUTION: Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle up, your safety belts cannot do their job when you are reclined like this. The shoulder belt cannot do its job. In a crash, you could go into it, receiving neck or other injuries.
Page 14: Head Restraints
Head Restraints Adjust the head restraint so that the top of the restraint is at the same height as the top of the occupant’s head. This position reduces the chance of a neck injury in a crash. Pull the head restraint up to raise it. Push the head restraint down to lower it.
Page 15: Rear Seats
Rear Seats Heated Seats If your vehicle has this feature, the buttons used to control this feature are located on the back of the center console. The engine must be running for the heated seat feature to work. To heat the seat cushion, press the button to cycle through the temperature settings of high and low.
Page 16 Notice: Folding a rear seat with the safety belts still fastened may cause damage to the seat or the safety belts. Always unbuckle the safety belts and return them to their normal stowed position before folding a rear seat. 3. Pull the seatback forward and fold it down until it is ﬂat.
Page 17: Third Row Seat (Suv)
To return the seat(s) to the upright position, do the following: 1. Lift the seatback up and push it rearward all the way. 2. Lower the seat cushion until it latches into position. 3. Pull forward on the seatback and up on the seat cushion to make sure the seat is securely in place.
Page 18 Unfolding the Seatback CAUTION: If the seatback is not locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always push and pull on the seatback to be sure it is locked. To return the seatback to the passenger position, do the following: 1.
Page 19 Returning the Seat from a Tilted to an Upright Position CAUTION: If the seatback is not locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always push and pull on the seatback to be sure it is locked.
Page 20 3. Let go of lever 3 and pull the seat completely down. 4. Push down on the seat ﬁrmly. Try pulling it up to be sure it is locked into place. 5. Pull up on the Removing the Seat To remove the seat, do the following: 1.
Page 21 3. To unlatch the rear of the seat from the ﬂoor, pull up on the release lever labeled 2, at the rear of the seat, and lift the rear of the seat up from the ﬂoor. 4. Squeeze the release handle while pulling the 5.
Page 22 Installing the Seat CAUTION: If the seatback is not locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always push and pull on the seatback to be sure it is locked. CAUTION: A seat that is not locked into place properly can move around in a collision or...
Page 23 To install the seat, do the following: 1. While holding the rear of the seat up, slide the front wheels into the slots on the ﬂoor. The front latches should lock into place. If the latches do not lock, try tilting the rear of the seat upward.
Page 24: Safety Belts
Safety Belts Safety Belts: They Are for Everyone This part of the manual tells you how to use safety belts properly. It also tells you some things you should not do with safety belts. CAUTION: Do not let anyone ride where he or she cannot wear a safety belt properly.
Page 25 In most states and in all Canadian provinces, the law says to wear safety belts. Here is why: They work. You never know if you will be in a crash. If you do have a crash, you do not know if it will be a bad one.
Page 26 Put someone on it. Get it up to speed. Then stop the vehicle. The rider does not stop.
Page 27 The person keeps going until stopped by or the instrument panel... something. In a real vehicle, it could be the windshield...
Page 28: Questions And Answers About Safety Belts
or the safety belts! With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That is why safety belts make such good sense. Questions and Answers About Safety Belts Will I be trapped in the vehicle after an...
Page 29: How To Wear Safety Belts Properly
If I am a good driver, and I never drive far from home, why should I wear safety belts? You may be an excellent driver, but if you are in an accident — even one that is not your fault — you and your passengers can be hurt. Being a good driver does not protect you from things beyond your control, such as bad drivers.
Page 30 3. Pick up the latch plate and pull the belt across you. Do not let it get twisted. The lap-shoulder belt may lock if you pull the belt across you very quickly. If this happens, let the belt go back slightly to unlock it. Then pull the belt across you more slowly.
Page 31 The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones. And you would be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen.
Page 32 What is wrong with this? The shoulder belt is too loose. It will not give nearly as much protection this way. CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury.
Page 33 What is wrong with this? The lap belt is too loose. It will not give nearly as much protection this way. CAUTION: You can be seriously hurt if your lap belt is too loose. In a crash, you could slide under the lap belt and apply force at your abdomen.
Page 34 What is wrong with this? The belt is buckled in the wrong place. CAUTION: You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen.
Page 35 What is wrong with this? The belt is over an armrest. CAUTION: You can be seriously injured if your belt goes over an armrest like this. The belt would be much too high. In a crash, you can slide under the belt. The belt force would then be applied at the abdomen, not at the pelvic bones, and that could cause serious or fatal injuries.
Page 36 What is wrong with this? The shoulder belt is worn under the arm. It should be worn over the shoulder at all times. CAUTION: You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury.
Page 37 What is wrong with this? The belt is twisted across the body. CAUTION: You can be seriously injured by a twisted belt. In a crash, you would not have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer to ﬁx it.
Page 38: Safety Belt Use During Pregnancy
To unlatch the belt, push the button on the buckle. The belt should go back out of the way. Before you close the door, be sure the belt is out of the way. If you slam the door on it, you can damage both the belt and your vehicle.
Page 39: Right Front Passenger Position
The best way to protect the fetus is to protect the mother. When a safety belt is worn properly, it is more likely that the fetus will not be hurt in a crash. For pregnant women, as for anyone, the key to making safety belts effective is wearing them properly.
Page 40 Lap-Shoulder Belt All rear seat positions have lap-shoulder belts. Here is how to wear one properly. 1. Pick up the latch plate and pull the belt across you. Do not let it get twisted. The shoulder belt may lock if you pull the belt across you very quickly.
Page 41 The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones. And you would be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen.
Page 42: Rear Safety Belt Comfort Guides
To unlatch the belt, push the button on the buckle. Rear Safety Belt Comfort Guides Rear shoulder belt comfort guides may provide added safety belt comfort for older children who have outgrown booster seats and for some adults. When installed on a shoulder belt, the comfort guide positions the belt away from the neck and head.
Page 43 1. Remove the guide from its storage clip on the trim panel near the side of the seatback or from the side of the seat. 2. Place the guide over the belt and insert the two edges of the belt into the slots of the guide.
Page 44 CAUTION: A safety belt that is not properly worn may not provide the protection needed in a crash. The person wearing the belt could be seriously injured. The shoulder belt should go over the shoulder and across the chest. These parts of the body are best able to take belt restraining forces.
Page 45: Safety Belt Extender
4. Buckle, position, and release the safety belt as described in Rear Seat Passengers on page 39. Make sure that the shoulder belt crosses the shoulder. To remove and store the comfort guide, squeeze the belt edges together so that you can take them out of the guide.
Page 46: Child Restraints
Child Restraints Older Children Older children who have outgrown booster seats should wear the vehicle’s safety belts. What is the proper way to wear safety belts? An older child should wear a lap-shoulder belt and get the additional restraint a shoulder belt can provide.
Page 47 CAUTION: Never do this. Here two children are wearing the same belt. The belt cannot properly spread the impact forces. In a crash, the two children can be crushed together and seriously injured. A belt must be used by only one person at a time.
Page 48 CAUTION: Never do this. Here a child is sitting in a seat that has a lap-shoulder belt, but the shoulder part is behind the child. If the child wears the belt in this way, in a crash the child might slide under the belt.
Page 49: Infants And Young Children
Infants and Young Children Everyone in a vehicle needs protection! This includes infants and all other children. Neither the distance traveled nor the age and size of the traveler changes the need, for everyone, to use safety restraints. In fact, the law in every state in the United States and in every Canadian province says children up to some age must be restrained while in a vehicle.
Page 50 CAUTION: People should never hold a baby in their arms while riding in a vehicle. A baby does not weigh much — until a crash. During a crash a baby will become so heavy it is not possible to hold it. For example, in a crash at only 25 mph (40 km/h), a 12 lb (5.5 kg) baby will suddenly become a 240 lb (110 kg) force...
Page 51 CAUTION: Children who are up against, or very close to, any airbag when it inﬂates can be seriously injured or killed. Airbags plus lap-shoulder belts offer protection for adults and older children, but not for young children and infants. Neither the vehicle’s safety belt system nor its airbag system is designed for them.
Page 52 What are the different types of add-on child restraints? Add-on child restraints, which are purchased by the vehicle’s owner, are available in four basic types. Selection of a particular restraint should take into consideration not only the child’s weight, height, and age but also whether or not the restraint will be compatible with the motor vehicle in which it will be used.
Page 53: Child Restraint Systems
CAUTION: The body structure of a young child is quite unlike that of an adult or older child, for whom the safety belts are designed. A young child’s hip bones are still so small that the vehicle’s regular safety belt may not remain low on the hip bones, as it should.
Page 54 A rear-facing infant seat (B) provides restraint with the seating surface against the back of the infant. The harness system holds the infant in place and, in a crash, acts to keep the infant positioned in the restraint. A forward-facing child seat (C-E) provides restraint for the child’s body with the harness and also sometimes with surfaces such as T-shaped or shelf-like shields.
Page 55 A booster seat (F-G) is a child restraint designed to improve the ﬁt of the vehicle’s safety belt system. Some booster seats have a shoulder belt positioner, and some high-back booster seats have a ﬁve-point harness. A booster seat can also help a child to see out the window.
Page 56 Securing an Add-on Child Restraint in the Vehicle CAUTION: A child can be seriously injured or killed in a crash if the child restraint is not properly secured in the vehicle. Make sure the child restraint is properly installed in the vehicle using the vehicle’s safety belt or LATCH system, following the instructions that came with that restraint,...
Page 57: Where To Put The Restraint
Securing the Child Within the Child Restraint There are several systems for securing the child within the child restraint. One system, the three-point harness, has straps that come down over each of the infant’s shoulders and buckle together at the crotch. The ﬁve-point harness system has two shoulder straps, two hip straps, and a crotch strap.
Page 58 Never put a rear-facing child restraint in the right front passenger seat unless the airbag is off. Here is why: CAUTION: A child in a rear-facing child restraint can be seriously injured or killed if the right front passenger’s airbag inﬂates. This is because the back of the rear-facing child restraint would be very close to the inﬂating airbag.
Page 59: Lower Anchors And Tethers For Children (Latch)
Lower Anchors and Tethers for Children (LATCH) The LATCH system holds a child restraint during driving or in a crash. This system is designed to make installation of a child restraint easier. The LATCH system uses anchors in the vehicle and attachments on the child restraint that are made for use with the LATCH system Make sure that a LATCH-compatible child restraint...
Page 60 Top Tether Anchor A top tether (A, C) anchors the top of the child restraint to the vehicle. A top tether anchor is built into the vehicle. The top tether attachment (B) on the child restraint connects to the top tether anchor in the vehicle in order to reduce the forward movement and rotation of the child restraint during driving or in a crash.
Page 61 Lower Anchor and Top Tether Anchor Locations Seating positions with top tether anchors. (Lower Anchor): Seating positions with two lower anchors. Second Row Seats — SUV Seating positions with top tether anchors. (Lower Anchor): Seating positions with two lower anchors. Second Row Seats —...
Page 62 For SUV models, the top tether anchors are located at the bottom rear of the seat cushion for each position in the second row. Be sure to use the anchor located nearest to the seating position where the child restraint will be placed. Second Row Seats —...
Page 63 For SUV models with third row seating, the top tether anchor is located at the bottom rear of the seat cushion for the seating position in the third row. Third Row Seat — SUV Do not secure a child restraint in the right front passenger’s position, or in the second row outboard positions of a SUT model, if a national or local law requires that the top tether be attached,...
Page 64 Securing a Child Restraint Designed for the LATCH System CAUTION: If a LATCH-type child restraint is not attached to anchors, the restraint will not be able to protect the child correctly. In a crash, the child could be seriously injured or killed.
Page 65 CAUTION: Children can be seriously injured or strangled if a shoulder belt is wrapped around their neck and the safety belt continues to tighten. Secure any unused safety belts behind the child restraint so children cannot reach them. Pull the shoulder belt all the way out of the retractor to set the lock, if your vehicle has one, after the child restraint has been...
Page 66 1.4. Route and attach, but do not tighten, the top tether according to your child restraint instructions and the following instructions: If your child restraint has a single tether, route the tether over the seatback. If your child restraint has a dual tether, route the tether over the seatback.
Page 67 CAUTION: If the seatback is not locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always push and pull on the seatback to be sure it is locked. 4. Push and pull the child restraint in different directions to be sure it is secure.
Page 68 If the position you are using does not have a head restraint and you are using a dual tether, route the tether over the seatback. If the position you are using has an adjustable head restraint and you are using a single tether, raise the head restraint and route the tether under the...
Page 69: Securing A Child Restraint In A Rear Seat Position
Securing a Child Restraint in a Rear Seat Position If your child restraint has the LATCH system, see Lower Anchors and Tethers for Children (LATCH) on page 59. If you have an SUT vehicle, there are no top tether anchors in the second row outside seating positions.
Page 70 4. Pull the rest of the shoulder belt all the way 5. To tighten the belt, push down on the child out of the retractor to set the lock. restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt, and feed the shoulder belt back into the retractor.
Page 71: Securing A Child Restraint In The Right Front Seat Position
6. If your child restraint manufacturer recommends using a top tether, and the position you are using has a top tether anchor, attach and tighten the top tether to the top tether anchor. Refer to the instructions that came with the child restraint and see Lower Anchors and Tethers for Children (LATCH) on page 59.
Page 72 Your vehicle has a right front passenger’s airbag. There is a switch on the instrument panel that you can use to turn off the right front passenger’s airbag. See Airbag Off Switch on page 84 for more on this, including important safety information.
Page 73 CAUTION: (Continued) can guarantee that an airbag will not deploy under some unusual circumstance, even though it is turned off. We recommend that rear-facing child restraints be secured in the rear seat, even if the airbag is off. If you secure a forward-facing child restraint in the right front seat, always move the front passenger seat as far back as it will go.
Page 74 You will be using a lap-shoulder belt to secure the child restraint in this position. Be sure to follow the instructions that came with the child restraint. Secure the child in the child restraint when and as the instructions say. 1.
Page 75 5. Pull the rest of the shoulder belt all the way out of the retractor to set the lock. 6. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt, and feed the shoulder belt back into the retractor.
Page 76 To remove the child restraint, just unbuckle the vehicle’s safety belt and let it go back all the way. The safety belt will move freely again and be ready to work for an adult or larger child passenger. If you had turned the airbag off with the switch, remember to be sure to use the airbag off switch to turn on the right front passenger’s airbag when you remove the child restraint from the vehicle...
Page 77: Airbag System
Airbag System Your vehicle has an airbag for the driver and an airbag for the right front passenger. Airbags are designed to supplement the protection provided by safety belts. Even though today’s airbags are also designed to help reduce the risk of injury from the force of an inﬂating bag, all airbags must inﬂate very quickly to do their job.
Page 78 CAUTION: Airbags inﬂate with great force, faster than the blink of an eye. If you are too close to an inﬂating airbag, as you would be if you were leaning forward, it could seriously injure you. Safety belts help keep you in position before and during a crash.
Page 79: Where Are The Airbags
There is an airbag readiness light on the instrument panel cluster, which shows the airbag symbol. The system checks the airbag electrical system for malfunctions. The light tells you if there is an electrical problem. See Airbag Readiness Light on page 207 for more information.
Page 80 The right front passenger’s airbag is in the instrument panel on the passenger’s side. CAUTION: If something is between an occupant and an airbag, the bag might not inﬂate properly or it might force the object into that person causing severe injury or even death.
Page 81: When Should An Airbag Inﬂate
When Should an Airbag Inﬂate? The driver’s and right front passenger’s frontal airbags are designed to inﬂate in moderate to severe frontal or near-frontal crashes. But they are designed to inﬂate only if the impact exceeds a predetermined deployment threshold. Deployment thresholds take into account a variety of desired deployment and non-deployment events and are used to predict how severe a crash is likely to be in...
Page 82: What Makes An Airbag Inﬂate
In any particular crash, no one can say whether an airbag should have inﬂated simply because of the damage to a vehicle or because of what the repair costs were. Inﬂation is determined by what the vehicle hits, the angle of the impact, and how quickly the vehicle slows down.
Page 83: What Will You See After An Airbag Inﬂates
What Will You See After an Airbag Inﬂates? After an airbag inﬂates, it quickly deﬂates, so quickly that some people may not even realize the airbag inﬂated. Some components of the airbag module — the steering wheel hub for the driver’s airbag or the instrument panel for the right front passenger’s bag —...
Page 84: Airbag Off Switch
In many crashes severe enough to inﬂate an airbag, windshields are broken by vehicle deformation. Additional windshield breakage may also occur from the right front passenger airbag. • Airbags are designed to inﬂate only once. After they inﬂate, you will need some new parts for the airbag system.
Page 85 This switch should only be turned to the off position if the person in the right front passenger’s position is a member of a passenger risk group identiﬁed by the national government as follows: Infant. An infant (less than 1 year old) must ride in the front seat because: •...
Page 86 Medical Condition. A passenger has a medical condition which, according to his or her physician: • causes the passenger airbag to pose a special risk for the passenger; and • makes the potential harm from the passenger airbag in a crash greater than the potential harm from turning off the airbag and allowing the passenger, even if belted, to hit the dashboard or windshield in a crash.
Page 87 CAUTION: If the airbag readiness light ever comes on when you have turned off the airbag, it means that something may be wrong with the airbag system. The right front passenger’s airbag could inﬂate even though the switch is off. If this ever happens, do not let anyone whom the national government has identiﬁed as a member of a passenger airbag risk group...
Page 88: Servicing Your Airbag-Equipped Vehicle
Servicing Your Airbag-Equipped Vehicle Airbags affect how your vehicle should be serviced. There are parts of the airbag system in several places around your vehicle. You do not want the system to inﬂate while someone is working on your vehicle. Your dealer and the service manual have information about servicing your vehicle and the airbag system.
Page 89: Adding Equipment To Your Airbag-Equipped Vehicle
Adding Equipment to Your Airbag-Equipped Vehicle Is there anything I might add to the front of the vehicle that could keep the airbags from working properly? Yes. If you add things that change your vehicle’s frame, bumper system, height, front end or side sheet metal, they may keep the airbag system from working properly.
Page 90: Restraint System Check
Restraint System Check Checking the Restraint Systems Now and then, make sure the safety belt reminder light and all your belts, buckles, latch plates, retractors and anchorages are working properly. Look for any other loose or damaged safety belt system parts. If you see anything that might keep a safety belt system from doing its job, have it repaired.
Page 91: Replacing Restraint System Parts After A Crash
Replacing Restraint System Parts After a Crash CAUTION: A crash can damage the restraint systems in your vehicle. A damaged restraint system may not properly protect the person using it, resulting in serious injury or even death in a crash. To help make sure your restraint systems are working properly after a crash, have them inspected and any necessary...
Page 92 NOTES...
Page 93: Features And Controls
Section 2 Keys ... 95 Remote Keyless Entry (RKE) System ... 96 Remote Keyless Entry (RKE) System Operation ... 97 Doors and Locks ... 100 Door Locks ... 100 Power Door Locks ... 101 Delayed Locking ... 102 Programmable Automatic Door Locks ... 102 Rear Door Security Locks ...
Page 94 Section 2 ® OnStar System ... 144 Universal Home Remote System ... 148 Universal Home Remote System (With Three Round LED) ... 148 Universal Home Remote System (With One Triangular LED) ... 149 Universal Home Remote System Operation (With Three Round LED) ... 150 Universal Home Remote System Operation (With One Triangular LED) ...
Page 95: Keys
Keys CAUTION: Leaving children in a vehicle with the ignition key is dangerous for many reasons. They could operate the power windows or other controls or even make the vehicle move. The children or others could be badly injured or even killed. Do not leave the keys in a vehicle with children.
Page 96: Remote Keyless Entry (Rke) System
Your vehicle has one double-sided key for the ignition and all door locks. If you ever lose your keys, your dealer will be able to assist you with obtaining replacements. In an emergency contact roadside assistance. See Roadside Assistance Program on page 542. Remote Keyless Entry (RKE) System Your Remote Keyless Entry (RKE) system...
Page 97: Operation
At times you may notice a decrease in operating range. This is normal for any RKE system. If the transmitter does not work or if you have to stand closer to your vehicle for the transmitter to work, try this: •...
Page 98: Battery Replacement
(Lock): Press this button once to lock all of the doors. Pressing lock again within three seconds may cause the horn to chirp for lock conﬁrmation. You can choose different feedback options for each press of the lock button. See “Lock Feedback” and “Unlock Feedback”...
Page 99 To replace the battery in the RKE transmitter, do the following: 1. Insert a thin object, such as a coin, in the slot between the covers of the transmitter housing near the key ring hole. Remove the bottom by twisting the coin. 2.
Page 100: Doors And Locks
Doors and Locks Door Locks CAUTION: Unlocked doors can be dangerous. • Passengers, especially children, can easily open the doors and fall out of a moving vehicle. When a door is locked, the handle will not open it. You increase the chance of being thrown out of the vehicle in a crash if the doors are not locked.
Page 101: Power Door Locks
There are several ways to lock and unlock your vehicle. To unlock the door from the outside, use the keyless entry system or the key. To unlock or lock the door from the inside, slide the manual lever forward or rearward.
Page 102: Delayed Locking
Delayed Locking When locking the doors with the power lock switch or the keyless entry transmitter and a door or the liftgate (if equipped) is open, the delayed locking feature will delay locking the doors until ﬁve seconds after the last door is closed. You will hear three chimes to signal that the delayed locking feature is in use.
Page 103: Lockout Protection
To use the security locks, do the following: 1. Open one of the rear doors. 2. Turn the lock 3. Close the door. 4. Do the same to the other rear door. If you want to open the rear door while the security lock is engaged, unlock and open the door from the outside.
Page 104: Liftgate (Suv)
Liftgate (SUV) CAUTION: It can be dangerous to drive with the liftgate open because carbon monoxide (CO) gas can come into your vehicle. You can not see or smell CO. It can cause unconsciousness and even death. If you must drive with the liftgate open or if electrical wiring or other cable connections must pass through the seal between the body and the liftgate:...
Page 105: Midgate (Sut)
® Midgate (SUT) CAUTION: It can be dangerous to drive with the cargo area covered and the tailgate and ® the Midgate open because carbon monoxide (CO) gas can come into your vehicle. You can not see or smell CO. It can cause unconsciousness and even death.
Page 106 ® Lowering the Midgate ® The Midgate window must be completely lowered ® for the Midgate to be lowered. See “Midgate Window” under Power Windows on page 112. ® Both the Midgate and the Midgate can be lowered while the ignition is in either RUN or ACCESSORY, or while in Retained Accessory Power (RAP) mode.
Page 107 3. Press either one of the two power Midgate latch release buttons. The Midgate slightly forward from its closed position. The latch release buttons operate while the ignition is in RUN, ACCESSORY, in RAP mode, or up to ten minutes after removing the key.
Page 108: Tailgate/Spare Tire Carrier
Tailgate/Spare Tire Carrier Opening the Spare Tire Carrier To open the spare tire carrier, do the following: 1. Press the button on the pin (B), which is attached to the cable (A), to remove the pin from the latch nut (C). 2.
Page 109 CAUTION: If you drive with the spare tire carrier unlatched, you could injure pedestrians or damage the vehicle. Make sure the carrier is secure before driving. SUT Model Spare Tire Carrier shown, SUV Model similar 3. Swing the spare tire carrier to the side. Opening the Tailgate Lift the release handle while pulling the tailgate toward you.
Page 110 Closing the Spare Tire Carrier To close the spare tire carrier, do the following: 1. Swing the tailgate up until it latches ﬁrmly into place. CAUTION: The spare tire carrier must be secured so that it does not strike and injure someone. Always close it into the latch forcefully.
Page 111: Windows
Windows CAUTION: Leaving children, helpless adults, or pets in a vehicle with the windows closed is dangerous. They can be overcome by the extreme heat and suffer permanent injuries or even death from heat stroke. Never leave a child, a helpless adult, or a pet alone in a vehicle, especially with the windows closed in warm or hot weather.
Page 112: Power Windows
Power Windows A power window switch is located on the armrest of each side door. The switches operate while the ignition is in RUN or ACCESSORY or while Retained Accessory Power (RAP) is active. See Retained Accessory Power (RAP) on page 121. The driver’s door also has a switch for each of the passenger’s windows.
Page 113 Global Window Feature The global window up and express-down buttons are located on the driver’s door. This feature allows all side windows and midgate window, if equipped, to be opened or closed at the same time. (Window Express-Down): Press the express-down button to lower all side windows and midgate window, if equipped, without stopping.
Page 114 (Midgate Window): Press the bottom of the switch to express-down the window. Press the top of the switch to express-up the window. Press the top or bottom of the switch a second time to stop the window. The window switch will operate while the ignition is in RUN or ACCESSORY, or while Retained Accessory Power (RAP) is active.
Page 115: Sun Visors
Midgate Window Error/Jog Mode If the midgate window has sensed conditions which may lead to damage or malfunction of the window system, the window will automatically go into Error/Jog mode. In this mode, window express functions will not work. The window can only be operated manually by pressing the midgate window switch or the global window button.
Page 116: Content Theft-Deterrent
Content Theft-Deterrent Your vehicle is equipped with a content theft-deterrent alarm system. With this system, the security light in the instrument panel cluster will ﬂash as you open the door if your ignition is off. This light reminds you to activate the theft-deterrent system.
Page 117 Here is how to avoid setting off the alarm by accident: • If you do not want to activate the theft-deterrent system, the vehicle should be locked with the door key after the doors are closed. • Always unlock a door with a key, or use the remote keyless entry transmitter.
Page 118: Passlock
® Passlock Your vehicle is equipped with the Passlock theft-deterrent system. ® Passlock is a passive theft-deterrent system. ® Passlock enables fuel if the ignition lock cylinder is turned with a valid key. If a correct key is not used or the ignition lock cylinder is tampered with, the fuel system is disabled and the vehicle will not start.
Page 119: Starting And Operating Your Vehicle
Starting and Operating Your Vehicle New Vehicle Break-In Notice: Your vehicle does not need an elaborate break-in. But it will perform better in the long run if you follow these guidelines: • Keep your speed at 55 mph (88 km/h) or less for the ﬁrst 500 miles (805 km).
Page 120: Ignition Positions
Ignition Positions Use the key to turn the ignition switch to four different positions. A (LOCK): This position locks the ignition and transmission. It is a theft-deterrent feature. You will only be able to remove the key when the ignition is turned to LOCK.
Page 121: Retained Accessory Power (Rap)
Key In the Ignition Never leave your vehicle with the keys inside, as it is an easy target for joy riders or thieves. If you leave the key in the ignition and park your vehicle, a chime will sound, when you open the driver’s door.
Page 122 Your vehicle has a Computer-Controlled Cranking System. This feature assists in starting the engine and protects components. If the ignition key is turned to the START position, and then released when the engine begins cranking, the engine will continue cranking for a few seconds or until the vehicle starts.
Page 123: Engine Coolant Heater
Engine Coolant Heater Your vehicle may be equipped with an engine coolant heater. In very cold weather, 0°F ( 18°C) or colder, the engine coolant heater can help. You will get easier starting and better fuel economy during engine warm-up. Usually, the coolant heater should be plugged in a minimum of four hours prior to starting your vehicle.
Page 124: Automatic Transmission Operation
Automatic Transmission Operation Your vehicle is equipped with an automatic transmission and features an electronic shift position indicator located within the instrument panel cluster. There are several different positions for your shift lever. PARK (P): This position locks your drive wheels. It is the best position to use when you start your engine because your vehicle cannot move easily.
Page 125 CAUTION: Shifting the transfer case to NEUTRAL can cause your vehicle to roll even if the transmission is in PARK (P). You or someone else could be seriously injured. Be sure to set the parking brake before placing the transfer case in NEUTRAL. See Parking Brake on page 133.
Page 126 DRIVE (D): This position is for normal driving. It provides the best fuel economy for your vehicle. If you need more power for passing, and you are: • Going less than about 35 mph (55 km/h), push your accelerator pedal about halfway down.
Page 127: Tow/Haul Mode
FIRST (1): This position reduces vehicle speed even more than SECOND (2) without using your brakes. You can use it on very steep hills, or in deep snow or mud. If the shift lever is put in FIRST (1) while the vehicle is moving forward, the transmission will not shift into ﬁrst gear until the vehicle is going slowly enough.
Page 128: Full-Time Four-Wheel Drive
Full-Time Four-Wheel Drive The transfer case on your Full-Time Four-Wheel Drive vehicle is designed to constantly send your engine’s driving power to all four wheels for extra traction. To get the most out of Full-Time Four-Wheel Drive, you must be familiar with its operation.
Page 129 (Four-Wheel-High Lock): Use this mode when you need extra traction in most off-road situations such as sand, mud, snow, or level, rocky trails. (Four-Wheel-Low Lock): This mode delivers extra torque to all four wheels and is used for extreme off-road conditions. You might choose Four-Wheel-Low Lock if you are driving off-road in deep sand, mud, or snow and climbing or descending steep hills.
Page 130 Indicator lights in the buttons show which mode you are in. The indicator lights will come on brieﬂy when you turn on the ignition and one will stay on. If the lights do not come on, you should take your vehicle to your dealer for service.
Page 131 If the Four-Wheel-Low Lock button is pressed when your vehicle is in gear and/or moving, the Four-Wheel Low Lock indicator light will ﬂash for 15 seconds and not complete the shift unless your vehicle is moving less than 3 mph (5 km/h) and the transmission is in NEUTRAL (N).
Page 132 Shifting into NEUTRAL To shift the transfer case to NEUTRAL, do the following: 1. Make sure the vehicle is parked so that it will not roll. 2. Set the parking brake. 3. Start the vehicle or turn the ignition to RUN. 4.
Page 133: Parking Brake
Parking Brake To set the parking brake, hold the regular brake pedal down with your right foot. Push down the parking brake pedal with your left foot. A chime will activate and the warning light will ﬂash when the parking brake is applied and the vehicle is moving at least 3 mph (5 km/h) for at least three seconds.
Page 134: Shifting Into Park (P)
Shifting Into Park (P) CAUTION: It can be dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set. Your vehicle can roll. If you have left the engine running, the vehicle can move suddenly.
Page 135: Shifting Out Of Park (P)
If you have to leave your vehicle with the engine running, be sure your vehicle is in PARK (P) and the parking brake is ﬁrmly set before you leave it. After you move the shift lever into PARK (P), hold the regular brake pedal down. Then, see if you can move the shift lever away from PARK (P) without ﬁrst pulling it toward you.
Page 136: Parking Over Things That Burn
Parking Over Things That Burn CAUTION: Things that can burn could touch hot exhaust parts under your vehicle and ignite. Do not park over papers, leaves, dry grass, or other things that can burn.
Page 137: Engine Exhaust
Engine Exhaust CAUTION: Engine exhaust can kill. It contains the gas carbon monoxide (CO), which you cannot see or smell. It can cause unconsciousness and death. You might have exhaust coming in if: • Your exhaust system sounds strange or different. •...
Page 138: Running The Engine While Parked
Running the Engine While Parked It is better not to park with the engine running. But if you ever have to, here are some things to know. CAUTION: Idling the engine with the climate control system off could allow dangerous exhaust into your vehicle.
Page 139: Mirrors
CAUTION: Full-time four-wheel drive vehicles with the transfer case in NEUTRAL will allow the vehicle to roll, even if your shift lever is in PARK (P). So, be sure the transfer case is in a drive gear — not in NEUTRAL. Always set your parking brake.
Page 140 Automatic Dimming Mirror Operation To turn the automatic dimming feature on or off, press and hold the compass/temperature button until the indicator light located to the left of the button turns on or off. This shows that the automatic dimming feature is activated. Once the mirror is turned off, it will remain off until it is turned back on, or until the vehicle is restarted.
Page 141 Compass Variance The mirror is set in zone eight upon leaving the factory. It will be necessary to adjust the compass to compensate for compass variance if you live outside zone eight. Under certain circumstances, as during a long distance cross-country trip, it will be necessary to adjust for compass variance.
Page 142: Outside Power Mirrors
Outside Power Mirrors The controls are located on the driver’s door armrest. Move the upper selector switch to the left or right to choose the mirror to be adjusted, then press the dots, located below the selector switch on the four-way control pad, to adjust the direction of each mirror.
Page 143: Outside Convex Mirror
Outside Convex Mirror CAUTION: A convex mirror can make things (like other vehicles) look farther away than they really are. If you cut too sharply into the right lane, you could hit a vehicle on your right. Check your inside mirror or glance over your shoulder before changing lanes.
Page 144: Outside Automatic Dimming Mirror With Curb View Assist
Outside Automatic Dimming Mirror with Curb View Assist If the vehicle has this feature, the driver’s outside mirror adjusts for the glare of the headlamps behind you. See Automatic Dimming Rearview Mirror with Compass and Temperature Display on page 139. The vehicle’s outside mirrors can also perform a curb view assist mirror function.
Page 145 ® OnStar service is provided to you subject to the ® OnStar Terms and Conditions. You may ® cancel your OnStar service at any time by ® contacting OnStar as provided below. A complete ® OnStar Owners Guide and the OnStar and Conditions are included in the vehicle’s ®...
Page 146 Available Services with Safe & Sound • Automatic Notiﬁcation of Airbag Deployment • Advanced Automatic Crash Notiﬁcation (AACN) (If equipped) • Link to Emergency Services • Roadside Assistance • Stolen Vehicle Location Assistance • AccidentAssist • Remote Door Unlock/Vehicle Alert ®...
Page 147 ® OnStar Steering Wheel Controls Your vehicle may have a Talk/Mute button that can be used to interact with OnStar Calling. See Audio Steering Wheel Controls on page 296 for more information. On some vehicles, you may have to hold the button for a few seconds and give the command “ONSTAR”...
Page 148: Universal Home Remote System
® OnStar service cannot work unless your vehicle ® is in a place where OnStar has an agreement with a wireless service provider for service in that ® area. OnStar service also cannot work unless you are in a place where the wireless service ®...
Page 149: Universal Home Remote System (With One Triangular Led)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. The FCC Grant of Equipment Authorization Certiﬁcate number is KOBGTE05A.
Page 150: Universal Home Remote System Operation (With Three Round Led)
This device complies with RSS-210 of Industry Canada. Operation is subject to the following two conditions: 1. This device may not cause interference. 2. This device must accept any interference received, including interference that may cause undesired operation of the device. The Canadian Registration ID number is 2791021849A.
Page 151 Do not use the this system with any garage door opener that does not have the stop and reverse feature. This includes any garage door opener model manufactured before April 1, 1982. Read the instructions completely before attempting to program the transmitter. Because of the steps involved, it may be helpful to have another person available to assist you in programming the transmitter.
Page 152 Programming Universal Home Remote — Fixed Code Fixed Code garage door openers are used for garage doors produced prior to 1996. Fixed code uses the same coded signal every time, which is manually programmed by setting DIP switches for a unique personal code. Follow these steps to program up to three channels: 1.
Page 153 Example 4. The indicator light will blink slowly. In order from left to right, and within two and one-half minutes, enter each switch setting into the Universal Home Remote System. Push one button for each switch as follows: • Left button = “on” switch position. •...
Page 154 Programming Universal Home Remote — Rolling Code Rolling code garage door openers are used for garage doors produced after 1996 and are code protected. Rolling code means the coded signal is changed every time your remote control garage door opener is used. Programming a rolling code garage door opener involves time-sensitive actions, so read the entire procedure before you begin.
Page 155 3. Press and hold the button you would like to use to control the garage door until the garage door moves. The indicator light, above the selected button, should slowly blink. You may need to hold the button from ﬁve to 20 seconds.
Page 156: Universal Home Remote System Operation (With One Triangular Led)
Universal Home Remote System Operation (With One Triangular LED) Your vehicle may have the Universal Home Remote System. If there is one triangular Light Emitting Diode (LED) above the Universal Home Remote buttons, follow the instructions below. If your vehicle has three round LED above the Universal Home Remote buttons, follow the instructions under Universal Home Remote System Operation (with three round LED).
Page 157 Programming Universal Home Remote Follow these steps to program up to three channels: 1. Press and hold down the two outside Universal Home Remote buttons, releasing only when the Universal Home Remote indicator light begins to ﬂash, after 20 seconds. Do not hold down the buttons for longer than 30 seconds and do not repeat this step to program a second and/or third hand-held transmitter to the remaining...
Page 158 6. Locate in the garage, the garage door opener receiver (motor-head unit). Locate the “Learn” or “Smart” button. This can usually be found where the hanging antenna wire is attached to the motor-head unit. 7. Firmly press and release the “Learn” or “Smart”...
Page 159 Using Universal Home Remote Press and hold the appropriate Universal Home Remote button for at least half of a second. The indicator light will come on while the signal is being transmitted. Erasing Universal Home Remote Buttons To erase programming from the three Universal Home Remote buttons do the following: 1.
Page 160: Storage Areas
Storage Areas Glove Box Open the glove box by pulling the bottom of the handle upward. Center Overhead Console Your vehicle is equipped with either a short or long overhead console. To open a door on the console, push on the rear edge of the door and let it swing open.
Page 161 Adjusting the Crossrails Adjust the crossrails to ﬁt your load by doing the following: 1. Loosen the lock knobs on the crossrail supports by turning the knobs counterclockwise. Only loosen them enough to allow the crossrails to slide easily. 2. Slide the crossrails to the desired position, being sure to align the lines in the side rails with the arrows on the crossrail supports.
Page 162 Stop Tabs If your vehicle has a sunroof, it will have a crossrail stop tab placed in the siderail in the location labeled SUNROOF STOP. This tab prevents you from moving the crossrails past the opening of the sunroof and loading cargo too far forward.
Page 163 Crossrail Channels Notice: If you drive your vehicle through an automatic car wash that does not have enough clearance for any roof-mounted accessories (such as off-road lamps or a roof basket) on your vehicle, you can damage your vehicle. To avoid damaging your vehicle in a car wash, remove any roof-mounted accessories if you can, and do not use an automatic car wash while roof-mounted accessories are on...
Page 164: Rear Seat Armrest
2. Pull the end cap 3. Peel back the rub strip from the crossrail. 4. Slide the accessory you are using into the crossrail channel and secure it as the accessory instructions direct. 5. Place the crossrail endcap back on and lock it with the key.
Page 165: Cargo Tie Downs (Sut)
Cargo Tie Downs (SUT) There are four oval shaped openings (A) in the cargo bed that allow access to four tie downs. You can use these tie downs to secure cargo. All-Weather Cargo Area Your vehicle has features to help it resist the elements and protect cargo inside the cargo area.
Page 166 Side Rail Channels The side rail channels are located on top of both sides of the roof and the cargo area. You may want to ﬂush them out with clean water if you notice any debris collecting inside of them. When loading cargo into the cargo area, be careful not to damage the rails.
Page 167: Tonneau Cover (Sut)
The cargo mat has cutouts for the drains. You can ﬂush the drains through the cutouts, but if the cargo area is extremely dirty you can lift up the edges of the cargo ﬂoor mat or take the whole mat out and ﬂush the drains with water.
Page 168: Sunroof
You will be able to open the cover by turning the cover release latch in a clockwise direction, which will allow you to lift the cover with the assistance of the struts. Sunroof The vehicle may have a power sliding sunroof. The ignition must be on or in the accessory position, or...
Page 169 Express-Open/Close Sunroof The sunroof has a feature which allows the sunroof panel to be opened or closed without continuously pressing the switch. The express-open can be stopped at any time by pushing the front of the switch a second time. The sunroof has four positions: •...
Page 170 Anti-Pinch Protection Feature If something gets caught between the glass panel and roof frame while the sunroof is closing, the glass panel will stop and open half way, and the deﬂector will raise fully. If something gets caught between the glass panel and the roof frame during the tilt down operation, the glass panel will stop and open fully.
Page 171 Section 3 Instrument Panel Overview ... 174 Hazard Warning Flashers ... 176 Other Warning Devices ... 177 Horn ... 177 Tilt Wheel ... 177 Turn Signal/Multifunction Lever ... 178 Turn and Lane-Change Signals ... 178 Headlamp High/Low-Beam Changer ... 179 Flash-to-Pass ...
Page 172 Section 3 Traction Off Light ... 212 Engine Coolant Temperature Gage ... 213 Transmission Temperature Gage ... 213 Malfunction Indicator Lamp ... 215 Oil Pressure Gage ... 218 Security Light ... 219 Cruise Control Light ... 220 Highbeam On Light ... 220 Tow/Haul Mode Light ...
Page 173 NOTES...
Page 174: Instrument Panel Overview
Instrument Panel Overview...
Page 175 The main components of your instrument panel are the following: A. Air Outlets. See Outlet Adjustment on page 203. B. Exterior Lamps Control. See Exterior Lamps on page 186. C. Heated Windshield Washer Control (If Equipped). See Windshield Washer on page 181.
Page 176: Hazard Warning Flashers
S. Cigarette Lighter or Accessory Power Outlet (If Equipped). See Ashtray(s) and Cigarette Lighter on page 197 or Accessory Power Outlet(s) on page 196. T. Shift Lever. See Automatic Transmission Operation on page 124. U. Accessory Power Outlets. See Accessory Power Outlet(s) on page 196.
Page 177: Other Warning Devices
Other Warning Devices If you carry reﬂective triangles, you can set them up at the side of the road about 300 feet (100 m) behind your vehicle. Horn Press on or near the horn symbols on the steering wheel pad to sound the horn. Tilt Wheel The tilt steering wheel allows you to adjust the steering wheel before you drive.
Page 178: Turn Signal/Multifunction Lever
Turn Signal/Multifunction Lever The lever on the left side of the steering column includes the following: • Turn and Lane Change Signals. Turn and Lane-Change Signals on page 178. • Headlamp High/Low-Beam Changer. Headlamp High/Low-Beam Changer on page 179. • Flash-to-Pass Feature.
Page 179: Headlamp High/Low-Beam Changer
An arrow on the instrument panel cluster will ﬂash in the direction of the turn or lane change. As you signal a turn or a lane change, if the arrows ﬂash more quickly than normal, a signal bulb may be burned out and other drivers will not see your turn signal.
Page 180: Flash-To-Pass
Flash-to-Pass This feature lets you use your high-beam headlamps to signal a driver in front of you that you want to pass. It works even if your headlamps are in the automatic position. To use it, pull the turn signal lever toward you, then release it.
Page 181: Windshield Washer
Windshield Washer CAUTION: In freezing weather, do not use your washer until the windshield is warmed. Otherwise the washer ﬂuid can form ice on the windshield, blocking your vision. (Washer Fluid): There is a paddle marked with the windshield washer symbol at the top of the multifunction lever.
Page 182: Rear Window Wiper/Washer (Suv)
Rear Window Wiper/Washer (SUV) If your vehicle has a rear window washer/wiper, the control knob is located on the instrument panel to the left of the steering wheel. CAUTION: In freezing weather, do not use your washer until the windshield is warmed. Otherwise the washer ﬂuid can form ice on the windshield, blocking your vision.
Page 183: Cruise Control
Cruise Control turns the system off. (On): This position activates the system. + (Resume/Accelerate): Push the lever to this symbol to make the vehicle accelerate or resume to a previously set speed. (Set): Press this button to set the speed. With cruise control, you can maintain a speed of about 25 mph (40 km/h) or more without keeping your foot on the accelerator.
Page 184 Setting Cruise Control CAUTION: If you leave your cruise control on when you are not using cruise, you might hit a button and go into cruise when you do not want to. You could be startled and even lose control. Keep the cruise control switch off until you want to use cruise control.
Page 185 Increasing Speed While Using Cruise Control There are two ways to go to a higher speed: • Use the accelerator pedal to get to the higher speed. Press the set button at the end of the lever, then release the button and the accelerator pedal.
Page 186: Exterior Lamps
Using Cruise Control on Hills How well your cruise control will work on hills depends upon your speed, load and the steepness of the hills. When going up steep hills, you may want to step on the accelerator pedal to maintain your speed.
Page 187 The exterior lamp control has four positions: (Off): Turn the knob to this position to turn off all exterior lamps including the DRL. This control will spring back to AUTO when released. AUTO (Automatic): Turn the control to this position to put the system into automatic headlamp mode.
Page 188: Headlamps On Reminder
(Headlamps): Turn the control to this position to turn on the headlamps, together with the previously listed lamps and lights. When the vehicle is turned off and the headlamps are in AUTO, the headlamps may automatically remain on for a set time. You can change this delay time using the DIC.
Page 189: Automatic Headlamp System
To turn off the DRL lamps, turn the exterior lamps control to the OFF position and then release. For vehicles ﬁrst sold in Canada, the transaxle must be in the PARK (P) position, before the DRL lamps can be turned off. As with any vehicle, you should turn on the regular headlamp system when you need it.
Page 190: Off-Road Lamps
Off-Road Lamps Notice: If you drive your vehicle through an automatic car wash that does not have enough clearance for any roof-mounted accessories (such as off-road lamps or a roof basket) on your vehicle, you can damage your vehicle. To avoid damaging your vehicle in a car wash, remove any roof-mounted accessories if you can, and do not use an automatic car wash while roof-mounted accessories are on...
Page 191: Instrument Panel Brightness
Instrument Panel Brightness The thumbwheel for this feature is located next to the exterior lamps control. (Instrument Panel Lights): Turn the thumbwheel up or down to brighten or dim the instrument panel lights and the radio display. This will only work if the headlamps or parking lamps are on.
Page 192: Reading Lamps
Reading Lamps Your vehicle has reading lamps located in the overhead console. Press the button located next to the lamp to turn it on. The lamps can be adjusted to point in the direction you want. Press the button again to turn the lamp off. These lamps will also come on with the dome lamps.
Page 193 To manually slide out the rear camera screen for cleaning, do the following: 1. Place the vehicle shift lever in (P) PARK. 2. Turn the ignition key to the ACCESSORY or RUN position. 3. Press and hold the right mirror button for ﬁve seconds.
Page 194 Area Displayed On Screen The image is provided by the camera located on the rear bumper. The camera uses a special lens. The distance of the image that appears on the screen differs from the actual distance. The area displayed by the camera is limited.
Page 195 When the System Does Not Seem To Work Properly The rear vision camera system may not work properly or display a clear image in the following situations: • In the dark. • When the sun or the beam of headlights is shining directly into the camera lens.
Page 196: Accessory Power Outlet(S)
Accessory Power Outlet(s) Your vehicle may be equipped with up to ﬁve accessory power outlets. The two front outlets, if equipped, are located under the OnStar on the instrument panel behind hinged doors. The two middle outlets, if equipped, are located on the back of the center console.
Page 197: Ashtray(S) And Cigarette Lighter
Ashtray(s) and Cigarette Lighter If your vehicle has an ashtray, it is removable and ﬁts into the front cupholder. Pull up on the ashtray door to open it. Notice: If you put papers, pins, or other ﬂammable items in the ashtray, hot cigarettes or other smoking materials could ignite them and possibly damage your vehicle.
Page 198 Driver’s Side Temperature Knob The driver’s side knob is used to adjust the temperature of the air coming through the system on the driver’s side. The temperature can be adjusted even if the system is turned off. This is possible since outside air will always ﬂow through the system as the vehicle is moving forward unless it is set to recirculation mode.
Page 199 Automatic Operation AUTO (Automatic): When automatic operation is active the system will control the inside temperature, the air delivery, and the fan speed. Use the steps below to place the entire system in automatic mode: 1. Press the AUTO button. When AUTO is selected, the display will change to show the current driver’s set temperature, delivery mode and fan speed.
Page 200 (Off): Press this button to turn off the entire climate control system. Outside air will still enter the vehicle, and will be directed to the ﬂoor. This direction can be changed by pressing the mode button. The temperature can also be adjusted using either temperature knob.
Page 201 Pressing this button also cancels the auto recirculation feature. To resume the auto recirculation function, press the AUTO button. Each time the vehicle is started, the system will revert to the auto recirculation function. If you select recirculation while in defrost, defog or ﬂoor, the light in the button will ﬂash and then go out to let you know that this is not allowed.
Page 202: Air Conditioning
Air Conditioning (Air Conditioning): Press this button to turn the air conditioning (A/C) compressor on and off. The snowﬂake symbol will appear on the display when the A/C is on. Pressing this button when the outside temperature is too cool for air conditioning to be effective will make the snowﬂake symbol ﬂash three times and then turn off to let you know that the air conditioning mode is not available.
Page 203: Outlet Adjustment
Defogging and Defrosting You can use either defog or front defrost to clear fog or frost from your windshield. Use the defog mode to clear the windows of fog or moisture. Use the front defrost button to defrost the front windshield. (Defog): Use this setting to clear the windows of fog or moisture.
Page 204: Warning Lights, Gages, And Indicators
Operation Tips • Keep the hood and front air inlets free of ice, snow, or any other obstruction (such as leaves). The heater and defroster will work far better, reducing the chance of fogging the inside of your windows. • Keep the air path under the front seats clear of objects.
Page 205: Instrument Panel Cluster
Instrument Panel Cluster Your instrument cluster is designed to let you know at a glance how your vehicle is running. You will know how fast you are going, about how much fuel you have and many other things you will need to know to drive safely and economically.
Page 206: Speedometer And Odometer
Speedometer and Odometer Your speedometer lets you see your speed in both miles per hour (mph) and kilometers per hour (km/h). Your vehicle’s odometer works together with the driver information center. You can set a Trip A and Trip B odometer. See “Trip Information” under DIC Operation and Displays on page 222.
Page 207: Airbag Readiness Light
Airbag Readiness Light There is an airbag readiness light on the instrument panel, which shows the airbag symbol. The system checks the airbag’s electrical system for malfunctions. The light tells you if there is an electrical problem. The system check includes the airbag sensors, the airbag modules, the wiring and the crash sensing and diagnostic module.
Page 208: Airbag Off Light
Airbag Off Light When you turn the right front passenger’s airbag off, this light will come on and stay on to remind you that the airbag has been turned off. This light will go off when you turn the airbag back on again. See Airbag Off Switch on page 84 for more on this, including important safety information.
Page 209: Charging System Light
CAUTION: If the airbag readiness light ever comes on when you have turned off the airbag, it means that something may be wrong with the airbag system. The right front passenger’s airbag could inﬂate even though the switch is off. If this ever happens, do not let anyone whom the national government has identiﬁed as a member of a passenger airbag risk group...
Page 210: Voltmeter Gage
Voltmeter Gage When your engine is not running, but the ignition is in RUN, this gage shows your battery’s state of charge in DC volts. When the engine is running, the gage shows the condition of the charging system. Readings between the low and high warning zones indicate the normal operating range.
Page 211: Brake System Warning Light
Brake System Warning Light With the ignition on, the brake system warning light will ﬂash when you set the parking brake. The light will ﬂash if the parking brake does not release fully. If you try to drive with the parking brake engaged, a chime will sound when the vehicle speed is greater than 3 mph (5 km/h).
Page 212: Anti-Lock Brake System Warning Light
Anti-Lock Brake System Warning Light With the Anti-Lock Brake System (ABS), this light will come on when you start your engine and may stay on for several seconds. That is normal. If the light does not come on then, have it ﬁxed so it will be ready to warn you if there is a problem.
Page 213: Engine Coolant Temperature Gage
Engine Coolant Temperature Gage United States This gage shows the engine coolant temperature. It also provides an indicator of how hard your vehicle is working. During a majority of the operation, the gage will read 210°F (100°C) or less. If you are pulling a load or going up hills, it is normal for the temperature to ﬂuctuate and approach the 250°F (122°C) mark.
Page 214 At approximately 265°F (130°C), the Driver Information Center (DIC) will display a TRANSMISSION HOT message and the transmission will enter a transmission protection mode. When the transmission enters the protection mode, you may notice a change in the transmission shifting patterns. The transmission will return to normal shifting patterns when the transmission ﬂuid temperature falls below 260°F (125°C).
Page 215: Malfunction Indicator Lamp
Malfunction Indicator Lamp Check Engine Light Your vehicle has a computer which monitors operation of the fuel, ignition, and emission control systems. This system is called OBD II (On-Board Diagnostics-Second Generation) and is intended to assure that emissions are at acceptable levels for the life of the vehicle, helping to produce a cleaner environment.
Page 216 This light should come on, as a check to show you it is working, when the ignition is on and the engine is not running. If the light does not come on, have it repaired. This light will also come on during a malfunction in one of two ways: •...
Page 217 If the Light Is On Steady You may be able to correct the emission system malfunction by considering the following: Did you recently put fuel into your vehicle? If so, reinstall the fuel cap, making sure to fully install the cap. See Filling the Tank on page 397. The diagnostic system can determine if the fuel cap has been left off or improperly installed.
Page 218: Oil Pressure Gage
Emissions Inspection and Maintenance Programs Some state/provincial and local governments have or may begin programs to inspect the emission control equipment on your vehicle. Failure to pass this inspection could prevent you from getting a vehicle registration. Here are some things you need to know to help your vehicle pass an inspection: Your vehicle will not pass this inspection if the check engine light is on or not working properly.
Page 219: Security Light
A reading in the low pressure zone may be caused by a dangerously low oil level or some other problem causing low oil pressure. Check your oil as soon as possible. See Engine Oil on page 404. CAUTION: Do not keep driving if the oil pressure is low.
Page 220: Cruise Control Light
Cruise Control Light The cruise light comes on whenever you set your cruise control. See “Cruise Control” under Turn Signal/Multifunction Lever on page 178. Highbeam On Light This light comes on when the high-beam headlamps are in use. See Headlamp High/Low-Beam Changer on page 179.
Page 221: Fuel Gage
Fuel Gage United States When the ignition is on, the fuel gage tells you about how much fuel you have left in your tank. The gage will ﬁrst indicate empty before you are out of fuel, and you should get more fuel as soon as possible.
Page 222: Driver Information Center (Dic)
Driver Information Center (DIC) The Driver Information Center (DIC) display is located on the instrument panel cluster, below the speedometer. The DIC buttons are located on the steering wheel. The DIC can display information such as the trip odometer, fuel economy, customization features and warning/status messages.
Page 223: Trip Information Button
Trip Information Button (Trip Information): Press the trip information button to scroll through the ODOMETER, TRIP A, TRIP B, TIMER, and ENGINE HOURS. Odometer: Press the trip information button until ODOMETER appears on the display. This mode shows the total distance the vehicle has been driven in either miles or kilometers.
Page 224 Engine Hours: Press the trip information button until ENGINE HOURS appears on the display. This mode shows the total number of hours the engine has run. Pressing and holding the reset stem located on the instrument cluster for about four seconds will also display the engine hour information after the odometer is displayed when the vehicle is off.
Page 225 Engine Oil Life System: Press the fuel information button until ENGINE OIL LIFE appears on the display. The engine oil life system shows an estimate of the oil’s remaining useful life. It will show 100% when the system is reset after an oil change.
Page 226: Dic Warnings And Messages
DIC Warnings and Messages Messages are displayed on the DIC to notify the driver that the status of the vehicle has changed and that some action may be needed by the driver to correct the condition. Multiple messages may appear one after another. Some messages may not require immediate action.
Page 227 CHARGING SYSTEM FAILURE On some vehicles, this message displays, a chime sounds, and the charging system light on the instrument panel cluster comes on if there is a problem with the generator and battery charging system. See Charging System Light on page 209 and Voltmeter Gage on page 210 for more information.
Page 228 ENGINE COOLANT HOT This message displays if the cooling system temperature gets hot. Turn off the air conditioning. If the message is still on, or if the engine coolant temperature gage continues to rise, pull the vehicle over when it is safe to do so. See Engine Coolant Temperature Gage on page 213 for more information.
Page 229 LEFT REAR DOOR AJAR This message displays and a chime sounds if the driver’s side rear door is not fully closed and the vehicle is in a drive gear. Stop and turn off the vehicle, check the door for obstructions, and close the door again.
Page 230 REDUCED ENGINE POWER This message displays when the cooling system temperature gets too hot and the engine further enters the engine coolant protection mode. See Engine Overheating on page 418 for further information. This message may also display when the vehicle determines that there is a problem with the electronic throttle control.
Page 231 SERVICE 4WD (Full-Time Four-Wheel Drive) This message displays if a problem occurs with the Full-Time Four-Wheel Drive system. If this message appears, stop as soon as possible and turn off the vehicle. Restart the vehicle and check for the message on the DIC display. If the message is still displayed, or appears again when you begin driving, there is a problem with the Full-Time Four-Wheel Drive system.
Page 232 TIGHTEN FUEL CAP This message may display along with the check engine light on the instrument panel cluster if the vehicle’s fuel cap is not tightened properly. See Malfunction Indicator Lamp on page 215. Reinstall the fuel cap, making sure to fully install the cap.
Page 233 TRANSMISSION HOT Notice: If you drive your vehicle while the transmission ﬂuid is overheating and the transmission temperature warning is displayed on the instrument panel cluster and/or DIC, you can damage the transmission. This could lead to costly repairs that would not be covered by your warranty.
Page 234: Dic Vehicle Customization
TURN SIGNAL ON This message displays and a chime sounds if a turn signal is left on for 3/4 of a mile (1.2 km). Move the turn signal/multifunction lever to the off position. Press any of the DIC buttons, or the trip stem, to acknowledge this message and clear it from the DIC display.
Page 235 Unlock Doors Press the customization button until UNLOCK DOORS appears in the display. To select your preference for automatic unlocking, press the select button while UNLOCK DOORS is displayed on the DIC. Pressing the select button will scroll through the following choices: UNLOCK DOORS: IN PARK (default): All of the doors will unlock when the vehicle is shifted into PARK (P).
Page 236 DOOR LOCK DELAY: ON: The doors will not lock until ﬁve seconds after the last door or the liftgate is closed. You will hear three chimes to signal that the delayed locking feature is in use. You can temporarily override delayed locking by pressing the lock button on the door or the RKE transmitter a second time.
Page 237 UNLOCK FEEDBACK: HORN: The horn will chirp the second time you press the button with the unlock symbol on the RKE transmitter. UNLOCK FEEDBACK: BOTH: The parking lamps will ﬂash each time you press the button with the unlock symbol on the RKE transmitter and the horn will chirp the second time you press the unlock button.
Page 238 Perimeter Lights Press the customization button until PERIMETER LIGHTS appears in the display. To select your preference for perimeter lighting, press the select button while PERIMETER LIGHTS is displayed on the DIC. Pressing the select button will scroll through the following choices: PERIMETER LIGHTS: ON (default): The headlamps and back-up lamps will come on for 40 seconds, if it is dark enough outside, when you...
Page 239 Curb View Press the customization button until CURB VIEW appears in the display. To select your preference for curb view, press the select button while CURB VIEW is displayed on the DIC. Pressing the select button will scroll through the following choices: CURB VIEW: OFF (default): Neither outside mirror will be tilted down when the vehicle is shifted into REVERSE (R).
Page 240 Language To select your preference for display language, press the select button while LANGUAGE is displayed on the DIC. Pressing the select button will scroll through the following languages: • ENGLISH • FRANCAIS (French) • ESPANOL (Spanish) Choose one of the available options and press the customization button while it is displayed on the DIC to select it.
Page 241: Audio System(S)
Audio System(s) Determine which radio your vehicle has and then read the pages following to familiarize yourself with its features. Driving without distraction is a necessity for a safer driving experience. See Defensive Driving on page 302. By taking a few moments to read this manual and get familiar with your vehicle’s audio system, you can use it with less effort, as well as take advantage of its features.
Page 242 While your vehicle is parked: • Familiarize yourself with all of its controls. • Familiarize yourself with its operation. • Set up your audio system by presetting your favorite radio stations, setting the tone, and adjusting the speakers. Then, when driving conditions permit, you can tune to your favorite radio stations using the presets and steering wheel controls if the vehicle has them.
Page 243: Setting The Time
Setting the Time The radio may have a button marked with an H or HR to represent hours and an M or MN to represent minutes. Press and hold the hour button until the correct hour appears on the display. Press and hold the minute button until the correct minute appears on the display.
Page 244 This system relies upon receiving speciﬁc information from these stations and only works when the information is available. In rare cases, a radio station can broadcast incorrect information that causes the radio features to work improperly. If this happens, contact the radio station. While the radio is tuned to an RDS station, the station name or call letters display instead of the frequency.
Page 245 AUTO VOL (Automatic Volume): With automatic volume, the audio system adjusts automatically to make up for road and wind noise as you drive by increasing the volume as vehicle speed increases. Set the volume at the desired level. Press this button to select LOW, MEDIUM, or HIGH.
Page 246 Setting Preset Stations Up to 30 stations (six FM1, six FM2, and six AM, six XM1 and six XM2 (if equipped), can be programed on the six numbered pushbuttons, by performing the following steps: 1. Turn the radio on. 2. Press BAND to select FM1, FM2, AM, or XM1 or XM2.
Page 247 Adjusting the Speakers (Balance/Fade) AUDIO: To adjust the balance between the right and the left speakers, push and release the AUDIO knob until BAL displays. Turn the knob to move the sound toward the right or the left speakers. To adjust the fade between the front and the rear speakers, push and release the AUDIO knob until FADE displays.
Page 248 SCAN: Scan the stations within a PTY by performing the following: 1. Press the TYPE button to activate program type select mode. TYPE and the last selected PTY displays. 2. Turn the TYPE knob or press and release the TYPE button to select a PTY. 3.
Page 249 RDS Messages INFO (Information): If the current station has a message, the information symbol displays. Press this button to see the message. The message can display the artist, song title, call in phone numbers, etc. If the entire message is not displayed, parts of the message appears every three seconds.
Page 250 If you hear nothing or hear a garbled sound, the tape might not be inserted properly. Press the eject button to remove the tape and start over. If the ignition and radio are off, press the eject button or the INFO knob to insert a tape. If the ignition is on and the radio is off, the tape can be inserted and begins playing.
Page 251 3 REV (Reverse): Press this pushbutton to quickly reverse the tape. The radio plays while the tape reverses. Press it again to return to playing speed. The station frequency and REV displays. Select stations during reverse operation by using TUNE and SEEK. 4 FWD (Forward): Press this pushbutton to quickly advance the tape.
Page 252 Cassette Tape Messages CHK TAPE (Check Tape): If this message appears on the display, the tape does not play due to one of the following errors: • The tape is tight and the player cannot turn the tape hubs. Remove the tape. Hold the tape with the open end down and try to turn the right hub counterclockwise with a pencil.
Page 253 Playing a CD Insert a CD partway into the slot, label side up. The player pulls it in and the CD should begin playing. If you want to insert a CD with the ignition off, ﬁrst press the eject button or the INFO knob. If the ignition or radio is turned off with the CD in the player, it stays in the player.
Page 254 1 PREV (Previous): Press this pushbutton to go to the beginning of the current track if more than eight seconds have played. TRACK and the track number appears on the display. If this pushbutton is held or pressed more than once, the player continues moving backward through the CD.
Page 255 © ¨ SCAN : Press and hold either the SCAN or the TYPE arrows for more than two seconds until SCAN displays and a beep sounds. The radio goes to the next track, plays for 10 seconds, then goes to the next track. Press either the SCAN or the TYPE arrows again, to stop scanning.
Page 256: Radio With Six-Disc Cd
Radio with Six-Disc CD Radio Data System (RDS) The audio system has a Radio Data System (RDS). RDS features are available for use only on FM stations that broadcast RDS information. With RDS, the radio can do the following: • Seek to stations broadcasting the selected type of programming •...
Page 257 XM™ Satellite Radio Service XM™ is a satellite radio service that is based in the 48 contiguous United States and Canada. XM™ offers a large variety of coast-to-coast channels including music, news, sports, talk, traffic/weather (U.S. subscribers), and children’s programming. XM™ provides digital quality audio and text information that includes song title and artist name.
Page 258 Finding a Station BAND: Press this button to switch between FM1, FM2, AM, or XM1 or XM2 (if equipped). The selection displays. TUNE: Turn this knob to select radio stations. © ¨ SEEK : Press either the SEEK or the TYPE arrows to go to the next or to the previous station and stay there.
Page 259 Setting the Tone (Bass/Midrange/Treble) AUDIO: Push and release the AUDIO knob until BASS, MID (midrange), or TREB (treble) displays. Turn the knob to increase or to decrease the tone. The display shows the bass, midrange, or treble level. If a station is weak or has static, decrease the treble.
Page 260 Finding a Program Type (PTY) Station (RDS and XM™) To select and ﬁnd a desired PTY perform the following: 1. Press the TYPE button to activate program type select mode. P-TYPE and the last selected PTY displays. 2. Turn the TYPE knob or press and release the TYPE button to select a PTY.
Page 261 Setting Preset PTYs (RDS Only) These pushbuttons have factory PTY presets. Up to 12 PTYs (six FM1 and six FM2), can be programmed on the six numbered pushbuttons, by performing the following steps: 1. Press BAND to select FM1 or FM2. 2.
Page 262 Radio Messages CAL ERR (Calibration Error): The audio system has been calibrated for your vehicle from the factory. If CAL ERR displays, it means that the radio has not been conﬁgured properly for the vehicle and must be returned to your dealer for service.
Page 263 Do not add any label to a CD, it could get caught in the CD player. If a CD is recorded on a personal computer and a description label is needed, try labeling the top of the recorded CD with a marking pen. Notice: If you add any label to a CD, insert more than one CD into the slot at a time, or attempt to play scratched or damaged CDs, you...
Page 264 Playing a Speciﬁc Loaded CD For every CD loaded, a number appears on the display. To play a speciﬁc CD, ﬁrst (if not in CD mode) press the CD AUX button, then press the numbered pushbutton that corresponds to the CD. A small bar appears under the CD number that is playing and the track number appears on the display.
Page 265 RPT (Repeat): With the repeat setting, one track or an entire CD can be repeated. To use repeat, do the following: • To repeat the track, press and release the RPT button. RPT displays. Press RPT again to turn off repeat play. •...
Page 266 To scan all loaded CDs, press and hold either SCAN arrow for more than four seconds until ALL CD SCAN displays and a beep sounds. Use this feature to listen to 10 seconds of the ﬁrst track of each loaded CD. Press either SCAN arrow again, to stop scanning.
Page 267 4. Press and hold the SONG LIST button to save the track into memory. When SONG LIST is pressed, one beep sounds. After two seconds of continuously pressing the SONG LIST button, two beeps sound to conﬁrm the track has been saved. 5.
Page 268 To delete the entire song list, perform the following steps: 1. Turn the CD player on. 2. Press the SONG LIST button to turn song list on. S-LIST displays. 3. Press and hold the SONG LIST button for more than four seconds. One beep sounds, followed by two beeps after two seconds, and a ﬁnal beep sounds after four seconds.
Page 269: Xm Radio Messages
XM Radio Messages Radio Display Message XL (Explicit Language XL on the radio display, Channels) after the channel name, indicates content with explicit language. Updating Updating encryption code The encryption code in the receiver is being updated, and No Signal Loss of signal Loading XM Acquiring channel audio...
Page 270 Radio Display Message No Info Category Name not available No Info No Text/Informational message available Not Found No channel available for the chosen category XM Locked Theft lock active Radio ID Radio ID label (channel 0) If tuned to channel 0, this message alternates with the Unknown Radio ID not known (should only be if...
Page 271: Navigation/Radio System
Navigation/Radio System Your vehicle may have a navigation radio system. The navigation system has built-in features intended to minimize driver distraction. Technology alone, no matter how advanced, can never replace your own judgment. See the Navigation System manual for some tips to help you reduce distractions while driving.
Page 272 Headphones Wireless Headphones The RSE system might include two sets of wireless headphones. Each headphone has an L marked on the left-side, for the left ear and an R marked on the right-side, for the right ear. The L and R marks are to show how the headphones should be worn.
Page 273 If there is a decreased audio signal during CD, MP3, or DVD play, there could be a soft hissing noise through the speakers and/or headphones. If the hissing sound in the wireless headphones seem excessive, make sure the headphone batteries are fully charged. A small amount of hissing is normal.
Page 274 Vehicle Speakers Only one audio source can be heard through the vehicle’s speakers at a time. The audio source being used is speciﬁed by the A/V (audio/video) source selected on the driver’s side head restraint monitor. The RSE system or an auxiliary device can be heard through all of the vehicle’s speakers when a DVD or auxiliary device is playing and the radio is tuned to one of eight frequencies selected...
Page 275 Each video screen can be powered on or off independently. Make sure the screens are off when not in use. Brieﬂy press the power button again to toggle between monitor and DVD control buttons. The appropriate toggle is monitor. Main menu function icons display.
Page 276 Infrared Remote Sensor: The infrared remote sensor receives light signals from the system’s remote control. The infrared remote sensor is located on the upper right side of the monitor. This sensor works as a line-of-sight signal as the transmitted signals are received. In order for the sensor to work properly, it must remain unobstructed at all times.
Page 277 To access the DVD player, press on the top center of the monitor (around the HUMMER name badge). The screen tilts outward exposing the DVD loading slot. The DVD player can be controlled by the buttons on the screen or by the buttons on the system’s...
Page 278 DVD Control Buttons To bring up the DVD control buttons, brieﬂy press the power button located on the face of the monitor. This toggles the on-screen soft key choices to either monitor or DVD control. If the power button is pressed for more than two seconds, the power could turn off.
Page 279 (Stop): Press the soft key button on the monitor, located under the stop symbol to stop playing, rewinding, or fast forwarding a disc. The disc position automatically stores in memory. There is a pre-stop feature for DVD and video CD only.
Page 280 Remote Control The system’s remote control combines the control of all monitor and DVD player functions. To use the system’s remote control, aim at the remote sensor located on the upper right side of the monitor and press the desired button on the remote control.
Page 281 SOURCE: Press this button to select between the available audio/video sources. Each video screen can be adjusted independently to switch between all audio/video sources. ZOOM: Press this button to toggle between the screen zoom selections available on the monitor’s main menu. Choose from ZOOM SCREEN, NORMAL SCREEN, or WIDE SCREEN.
Page 282 PLAY : Press this button to start playback of the DVD. PAUSE : Press this button to pause a viewed image. STOP : Press this button to stop playback of the DVD. PREV (Previous): Press this button to return to the beginning of the chapter or track that is currently playing.
Page 283 A-B: This button is used to repeat predeﬁned sections. Press this button once while the disc is playing to select the starting position. Press a second time to select the end position. Press a third time to turn the function off. GO: Press this button to access scenes directly by entering the time/title/chapter.
Page 284 Battery Replacement To change the remote control batteries, do the following: 1. Slide the battery door, located on the back of the remote control, down. 2. Replace the two AAA batteries in the compartment. Make sure they are installed correctly, using the diagram on the inside of the battery compartment.
Page 285 To use the RSE OSD menu while using a CD or an MP3, do the following: 1. Make sure a CD or an MP3 is loaded in the RSE system and that the system is not in auxiliary, then press the SETUP button on the system’s remote control.
Page 286 Displaying JPEG Images To use the RSE OSD menu for displaying JPEG images, do the following: 1. Insert a CD with JPEG images and then select it for playback from the RSE on-screen display menu. A slide show of the images, starting from the ﬁrst picture, automatically begins, or press PLAY on the system’s remote control to start.
Page 287 Displaying DVD Player Default Settings To display the DVD player default settings, do the following: 1. Press the SETUP button on the system’s remote control to display Language, Video, Audio, and Rating in the default setup menu. 2. Press the left and right directional arrows on the system’s remote control to select any one of the options on the default setup menu and then press ENTER.
Page 288 For the Video setup, select one of the four choices from the display menu: • TV Shape • 4:3 LB • TV System • Auto Audio: The type of audio that is output to the vehicle’s speakers for each type of audio programmed process can be set according to personal preferences.
Page 289 FM Modulator Control The FM Modulator Control is located on the right upper side of the system’s remote control. The FM Modulator can be controlled through an on-screen display on either head restraint screen. The FM Modulator lets DVD audio reproduce over the vehicle’s sound system by tuning the FM radio to one of eight frequencies.
Page 290 Tips and Troubleshooting Chart Problem Recommended Action Unit does not operate. • • • • • No picture is produced. Playback does not start. Turn the key to the on position. Press the power on, from the system’s remote control. Fuse blown, replace with a fuse of the same capacity.
Page 291 Problem Recommended Action Image sometimes • Clean or replace the stumbles or freezes. disc if it is scratched, dirty or damaged. • Load a known good disc. • Black and white monitor, Possible overheating. blank monitor, or frozen Turn the system monitor.
Page 292 Problem Recommended Action The fast forward, • fast reverse, previous, and next functions do not work. Picture color is poor. • Spots or dotted lines/stripes appear. • No system remote control Some commands that operation or unstable do one thing for operation.
Page 293: Dvd Distortion
Problem Recommended Action Distorted/Interference • DVD audio sound from vehicle radio. • DVD Messages The following errors display on the video monitor. Bad Disc: This message displays if a disc with an unsupported format is inserted into the DVD player, or if the disc is unreadable. Region Error: This message displays if the region code of the DVD is not compatible with the region code of the DVD player.
Page 294: Rear Seat Audio (Rsa)
Cleaning the Components Use care when directly touching or cleaning the components such as the DVD player and the discs that are used for your viewing entertainment, as damage may result. See Care of the CD and DVD Player on page 300 and Care of Your CDs and DVDs on page 299 in this manual for more information.
Page 295: Theft-Deterrent Feature
SEEK : When listening to FM1, FM2, AM, or XM1 or XM2 (if equipped), press the up or the down arrow to go to the next or to the previous station and stay there. This function is inactive if the front seat passengers are listening to the radio. When a cassette tape is playing, press the up or the down arrow to go to the next or the previous selection.
Page 296: Audio Steering Wheel Controls
Audio Steering Wheel Controls If your vehicle has this feature, some audio controls can be adjusted at the steering wheel. They include the following: ® (OnStar /Mute): Press this button to interact with the OnStar system. See the OnStar on page 144 in this manual for more information. PROG (Program): Press this button to play the stations that are programmed on the radio preset pushbuttons.
Page 297: Radio Reception
Radio Reception You may experience frequency interference and static during normal radio reception if items such as cellphone chargers, vehicle convenience accessories, and external electronic devices are plugged into the accessory power outlet. If there is interference or static, unplug the item from the accessory power outlet.
Page 298 The tape player should be cleaned regularly after every 50 hours of use. The radio may display CLEAN to indicate that the tape player has been used for 50 hours without resetting the tape clean timer. If this message appears on the display, the cassette tape player needs to be cleaned.
Page 299: Care Of Your Cds And Dvds
A non-scrubbing action, wet-type cleaner which uses a cassette with a fabric belt to clean the tape head can be used. This type of cleaning cassette will not eject on its own. A non-scrubbing action cleaner may not clean as thoroughly as the scrubbing type cleaner.
Page 300: Care Of The Cd And Dvd Player
Care of the CD and DVD Player The use of CD or DVD lens cleaners for CDs or DVDs are not advised, due to the risk of contaminating the lens of the CD optics with lubricants internal to the CD or DVD mechanism. Fixed Mast Antenna The ﬁxed mast antenna can withstand most car washes without being damaged.
Page 301: Driving Your Vehicle
Section 4 Your Driving, the Road, and Your Vehicle ... 302 Defensive Driving ... 302 Drunken Driving ... 303 Control of a Vehicle ... 306 Braking ... 306 Anti-Lock Brake System (ABS) ... 307 Braking in Emergencies ... 309 Traction Control System (TCS) ... 309 Locking Rear Axle ...
Page 302: Your Driving, The Road, And Your Vehicle
Your Driving, the Road, and Your Vehicle Defensive Driving The best advice anyone can give about driving is: Drive defensively. Please start with a very important safety device in your vehicle: Buckle up. See Safety Belts: They Are for Everyone on page 24. CAUTION: Defensive driving really means “Be ready for anything.”...
Page 303: Drunken Driving
Drunken Driving Death and injury associated with drinking and driving is a national tragedy. It is the number one contributor to the highway death toll, claiming thousands of victims every year. Alcohol affects four things that anyone needs to drive a vehicle: •...
Page 304 According to the American Medical Association, a 180 lb (82 kg) person who drinks three 12 ounce (355 ml) bottles of beer in an hour will end up with a BAC of about 0.06 percent. The person would reach the same BAC by drinking three 4 ounce (120 ml) glasses of wine or three mixed drinks if each had 1-1/2 ounces (45 ml) of liquors like whiskey, gin, or vodka.
Page 305 But the ability to drive is affected well below a BAC of 0.10 percent. Research shows that the driving skills of many people are impaired at a BAC approaching 0.05 percent, and that the effects are worse at night. All drivers are impaired at BAC levels above 0.05 percent.
Page 306: Control Of A Vehicle
Control of a Vehicle You have three systems that make your vehicle go where you want it to go. They are the brakes, the steering, and the accelerator. All three systems have to do their work at the places where the tires meet the road.
Page 307: Anti-Lock Brake System (Abs)
Avoid needless heavy braking. Some people drive in spurts — heavy acceleration followed by heavy braking — rather than keeping pace with traffic. This is a mistake. The brakes may not have time to cool between hard stops. The brakes will wear out much faster if you do a lot of heavy braking.
Page 308 Let us say the road is wet and you are driving safely. Suddenly, an animal jumps out in front of you. You slam on the brakes and continue braking. Here is what happens with ABS: A computer senses that wheels are slowing down. If one of the wheels is about to stop rolling, the computer will separately work the brakes at each front wheel and at both rear wheels.
Page 309: Braking In Emergencies
Remember: ABS does not change the time you need to get your foot up to the brake pedal or always decrease stopping distance. If you get too close to the vehicle in front of you, you will not have time to apply your brakes if that vehicle suddenly slows or stops.
Page 310 Another feature of this system is the Traction Control 2 (TC2) mode. TC2 should be selected for improved traction and system performance when the vehicle is on loose surfaces such as deep sand or mud. To enter this mode, press the TC2 button located on the instrument panel to the right of the steering...
Page 311: Locking Rear Axle
Locking Rear Axle The locking rear axle can give your vehicle additional traction from the rear wheels when traveling in off-road situations such as mud, snow, sand, steep hills and uneven terrain. The button used to turn this feature on or off is located above the transfer case buttons to the right of the...
Page 312: Steering
Steering Power Steering If you lose power steering assist because the engine stops or the system is not functioning, you can steer but it will take much more effort. Steering Tips It is important to take curves at a reasonable speed. A lot of the “driver lost control”...
Page 313 Steering in Emergencies There are times when steering can be more effective than braking. For example, you come over a hill and ﬁnd a truck stopped in your lane, or a car suddenly pulls out from nowhere, or a child darts out from between parked cars and stops right in front of you.
Page 314: Off-Road Recovery
Off-Road Recovery You may ﬁnd that your right wheels have dropped off the edge of a road onto the shoulder while you are driving. If the level of the shoulder is only slightly below the pavement, recovery should be fairly easy. Ease off the accelerator and then, if there is nothing in the way, steer so that your vehicle straddles the edge of the pavement.
Page 315 • Watch for traffic signs, pavement markings, and lines. If you can see a sign up ahead that might indicate a turn or an intersection, delay your pass. A broken center line usually indicates it is all right to pass, providing the road ahead is clear.
Page 316: Loss Of Control
Loss of Control Let us review what driving experts say about what happens when the three control systems — brakes, steering, and acceleration — do not have enough friction where the tires meet the road to do what the driver has asked. In any emergency, do not give up.
Page 317: Off-Road Driving
Of course, traction is reduced when water, snow, ice, gravel, or other material is on the road. For safety, you will want to slow down and adjust your driving to these conditions. It is important to slow down on slippery surfaces because stopping distance will be longer and vehicle control more limited.
Page 318 Before You Go Off-Roading There are some things to do before you go out. For example, be sure to have all necessary maintenance and service work done. Check to make sure all underbody shields are properly attached. Remove any removable side steps. See Assist Steps on page 338.
Page 319 There are some important things to remember about how to load your vehicle. • The heaviest things should be on the load ﬂoor and forward of your rear axle. Put heavier items in the rear area, as far forward as you can. •...
Page 320 But you will want to know how to use it properly. High Mobility Characteristics The HUMMER H2 has a 10 inch (25.4 cm) running ground clearance (A) and a 9 inch (22.8 cm) axle to ground clearance (B) while maintaining a low silhouette and a low center of gravity.
Page 321 The HUMMER H2 has an approximate approach angle (A) of 42° and a departure angle (B) of 37°, depending on suspension packages. Design speciﬁcations required a minimum gradeability of 60% (31°) slope, with the vehicle fully loaded, on high friction surfaces at 6 mph (9.7 km/h).
Page 322 Also, your vehicle should be able to traverse a 40% (22°) side slope at 6 mph (9.7 km/h) while fully loaded on high friction surfaces. Your vehicle can climb a 16 inch (40.6 cm) vertical step. Step climbing is best done by approaching the step at an angle rather than straight on.
Page 323 Brake and Accelerator Operation Techniques for Off-Road Driving For logs, walls, rocks, severe ditches, hills, sand, etc. 1. Bring the vehicle to a complete stop. Do not rev the engine. 2. Select the proper transmission and transfer case gear range; usually FIRST (1) gear, 4LO LOCK for such obstacles.
Page 324 Getting Familiar with Off-Road Driving It is a good idea to practice in an area that is safe and close to home before you go into the wilderness. Off-road driving does require some new and different skills. Here is what we mean. Tune your senses to different kinds of signals.
Page 325 Surface Obstacles: Unseen or hidden obstacles can be hazardous. A rock, log, hole, rut, or bump can startle you if you are not prepared for them. Often these obstacles are hidden by grass, bushes, snow, or even the rise and fall of the terrain itself.
Page 326 Crossing Obstacles Approach Angle — a Key to Mobility If you encounter a large dip in the terrain, do not enter straight on; enter at an angle — 15° minimum approach (A), 75° maximum approach angle (B). For very large dips, ditches or small washes, coast in, using the engine as a brake (transmission and transfer case lowest gears).
Page 327 Log Crossing Using the proper technique, your vehicle will cross logs up to 10 inches (25.4 cm) in diameter. Approach the log at approximately a 15° angle (A) with the transmission in FIRST (1) and the transfer case in 4LO LOCK and “walk” your vehicle over, one tire at a time.
Page 328: Driving Uphill
Approaching a Hill When you approach a hill, you need to decide if it is one of those hills that is just too steep to climb, descend, or cross. Steepness can be hard to judge. On a very small hill, for example, there may be a smooth, constant incline with only a small change in elevation where you can easily see all the way to the top.
Page 329 • Do not continue if the vehicle shudders or exhibits suspension hopping. This can cause damage to the driveline or suspension components. Improper driving technique is not covered by your vehicle warranty. • Try to drive straight up the hill if at all possible. If the path twists and turns, you might want to ﬁnd another route.
Page 330 What should I do if my vehicle stalls, or is about to stall, and I cannot make it up the hill? If this happens, there are some things you should do, and there are some things you must not do. First, here is what you should do: •...
Page 331 Suppose, after stalling, I try to back down the hill and decide I just cannot do it. What should I do? Set the parking brake, put your transmission in PARK (P) and turn off the engine. Leave the vehicle and go get some help. Exit on the uphill side and stay clear of the path the vehicle would take if it rolled downhill.
Page 332 Driving Downhill When off-roading takes you downhill, you will want to consider a number of things: • How steep is the downhill? Will I be able to maintain vehicle control? • What is the surface like? Smooth? Rough? Slippery? Hard-packed dirt? Gravel? •...
Page 333 Are there some things I should not do when driving down a hill? Yes! These are important because if you ignore them you could lose control and have a serious accident: • When driving downhill, avoid turns that take you across the incline of the hill. A hill that is not too steep to drive down may be too steep to drive across.
Page 334: Driving Across An Incline
Driving Across an Incline Sooner or later, an off-road trail will probably go across the incline of a hill. If this happens, you have to decide whether to try to drive across the incline. Here are some things to consider: •...
Page 335 What if I am driving across an incline that is not too steep, but I hit some loose gravel and start to slide downhill. What should I do? If you feel your vehicle starting to slide sideways, turn downhill. This should help straighten out the vehicle and prevent the side slipping.
Page 336 Driving in Mud, Sand, Snow, or Ice When you drive in mud, snow, or sand, your wheels will not get good traction. You cannot accelerate as quickly, turning is more difficult, and you will need longer braking distances. It is best to use a low gear when you are in mud —the deeper the mud, the lower the gear.
Page 337 Driving in Water Heavy rain can mean ﬂash ﬂooding, and ﬂood waters demand extreme caution. Find out how deep the water is before you drive through it. If it is deep enough to cover your wheel hubs, axles, or exhaust pipe, do not try it — you probably will not get through.
Page 338: Assist Steps
After Off-Road Driving Remove any brush or debris that has collected on the underbody, chassis, or under the hood. These accumulations can be a ﬁre hazard. After operation in mud or sand, have the brake linings cleaned and checked. These substances can cause glazing and uneven braking.
Page 339 Use the pins as follows: • Driver Side: Look at the side step with the HUMMER logo facing you. You will use the pins which are on the right side of each side step bracket. This works for the front or rear of the vehicle.
Page 340 4. Thread the knob through the remaining hole — ﬁrst into the rocker panel protector and then into the threaded hole in the side step bracket. Notice: Threading the knob into the side step and then into the rocker panel will not secure the step.
Page 341 6. Once the knob is This will help prevent the knob from coming completely loose and falling out. Tubular Side Steps torqued, install the cotter pin through the hole in the end of the knob’s threaded shaft. The driver’s side of the vehicle is shown with the body removed for clarity.
Page 342: Driving At Night
To install a step: 1. Before installing the bolts: • Remove all traces of the original adhesive patch. • Clean the threads of the bolts with denatured alcohol or equivalent and allow threads to dry. • Apply Threadlocker (GM Part No. 12345382, in Canada 10953489) or equivalent.
Page 343 No one can see as well at night as in the daytime. But as we get older these differences increase. A 50-year-old driver may require at least twice as much light to see the same thing at night as a 20-year-old.
Page 344: Driving In Rain And On Wet Roads
Driving in Rain and on Wet Roads Rain and wet roads can mean driving trouble. On a wet road, you cannot stop, accelerate, or turn as well because your tire-to-road traction is not as good as on dry roads. And, if your tires do not have much tread left, you will get even less traction.
Page 345 CAUTION: Wet brakes can cause accidents. They may not work as well in a quick stop and may cause pulling to one side. You could lose control of the vehicle. After driving through a large puddle of water or a car wash, apply your brake pedal lightly until your brakes work normally.
Page 346 Driving Through Deep Standing Water Notice: If you drive too quickly through deep puddles or standing water, water can come in through your engine’s air intake and badly damage your engine. Never drive through water that is slightly lower than the underbody of your vehicle.
Page 347: City Driving
City Driving One of the biggest problems with city streets is the amount of traffic on them. You will want to watch out for what the other drivers are doing and pay attention to traffic signals. Here are ways to increase your safety in city driving: •...
Page 348: Freeway Driving
Freeway Driving Mile for mile, freeways — also called thruways, parkways, expressways, turnpikes, or superhighways — are the safest of all roads. But they have their own special rules. The most important advice on freeway driving is: Keep up with traffic and keep to the right. Drive at the same speed most of the other drivers are driving.
Page 349: Before Leaving On A Long Trip
Once you are moving on the freeway, make certain you allow a reasonable following distance. Expect to move slightly slower at night. When you want to leave the freeway, move to the proper lane well in advance. If you miss your exit, do not, under any circumstances, stop and back up.
Page 350: Highway Hypnosis
Highway Hypnosis Is there actually such a condition as highway hypnosis? Or is it just plain falling asleep at the wheel? Call it highway hypnosis, lack of awareness, or whatever. There is something about an easy stretch of road with the same scenery, along with the hum of the tires on the road, the drone of the engine, and the rush of the wind against the vehicle that can make you sleepy.
Page 351: Hill And Mountain Roads
Hill and Mountain Roads Driving on steep hills or mountains is different from driving in ﬂat or rolling terrain. If you drive regularly in steep country, or if you are planning to visit there, here are some tips that can make your trips safer and more enjoyable. See Off-Road Driving on page 317 for information about driving off-road.
Page 352 CAUTION: Coasting downhill in NEUTRAL (N) or with the ignition off is dangerous. Your brakes will have to do all the work of slowing down. They could get so hot that they would not work well. You would then have poor braking or even none going down a hill.
Page 353: Winter Driving
Winter Driving Here are some tips for winter driving: • Have your vehicle in good shape for winter. • You may want to put winter emergency supplies in your vehicle. Also see Tires on page 448. Include an ice scraper, a small brush or broom, a supply of windshield washer ﬂuid, a rag, some winter outer clothing, a small shovel, a ﬂashlight, a red cloth, and a couple of reﬂective...
Page 354 Driving on Snow or Ice Most of the time, those places where the tires meet the road probably have good traction. However, if there is snow or ice between the tires and the road, you can have a very slippery situation.
Page 355 The Anti-Lock Brake System (ABS) improve your vehicle’s stability when you make a hard stop on a slippery road. Even though you have ABS, you will want to begin stopping sooner than you would on dry pavement. See Anti-Lock Brake System (ABS) on page 307.
Page 356 You can run the engine to keep warm, but be careful. CAUTION: Snow can trap exhaust gases under your vehicle. This can cause deadly CO (carbon monoxide) gas to get inside. CO could overcome you and kill you. You cannot see it or smell it, so you might not know it is in your vehicle.
Page 357: If Your Vehicle Is Stuck In Sand, Mud
You will need a well-charged battery to restart the vehicle, and possibly for signaling later on with your headlamps. Let the heater run for a while. Then, shut the engine off and close the window almost all the way to preserve the heat. Start the engine again and repeat this only when you feel really uncomfortable from the cold.
Page 358: Rocking Your Vehicle To Get It Out
Rocking Your Vehicle to Get It Out First, turn the steering wheel left and right. That will clear the area around the front wheels. Your vehicle has a traction control system that will activate when the system senses that the wheels are spinning. See Traction Control System (TCS) on page 309 for more information.
Page 359 Front of Vehicle Your vehicle may have recovery loops at the front and rear of the vehicle. You may need to use them if you are stuck off-road and need to be pulled to some place where you can continue driving. Rear of Vehicle...
Page 360: First Aid Kit And Tool Kit
First Aid Kit and Tool Kit The ﬁrst aid and tool kit is located in the storage bin on top of the spare tire on SUV models. It is held in place with a hook and loop fastener strap. On SUT models, the kit is in the rear cargo compartment on the passenger side of the vehicle.
Page 361: Power Winch Platform
Never use the front mounted receiver to tow a trailer. You can use the front mounted receiver to tow your vehicle behind another. See Recreational Vehicle Towing on page 369. Power Winch Platform You can use the power winch platform (if equipped) with an aftermarket winch.
Page 362: Loading Your Vehicle
Notice: Driving your vehicle through an automatic car wash with the winch installed, can cause damage to your vehicle and the car wash. Always remove the winch from your vehicle before using an automatic car wash. See Washing Your Vehicle on page 495 for more information.
Page 363 Tire and Loading Information Label Label Example A vehicle speciﬁc Tire and Loading Information label is attached to the center pillar (B-pillar). With the driver’s door open, you will ﬁnd the label attached below the door lock post (striker). The tire and loading information label shows the number of occupant seating positions (A), and the maximum vehicle capacity weight (B) in kilograms and pounds.
Page 364 Steps for Determining Correct Load Limit 1. Locate the statement “The combined weight of occupants and cargo should never exceed XXX kg or XXX lbs” on your vehicle’s placard. 2. Determine the combined weight of the driver and passengers that will be riding in your vehicle.
Page 365 Example 1 Item Description Vehicle Capacity Weight for Example 1 Subtract Occupant Weight 150 lbs (68 kg) Available Occupant and Cargo Weight Total Item 1,000 lbs (453 kg) 300 lbs (136 kg) 700 lbs (317 kg) Example 2 Description Vehicle Capacity 1,000 lbs (453 kg) Weight for Example 2 Subtract...
Page 366 Example 3 Item Description Vehicle Capacity Weight for Example 3 Subtract Occupant Weight 200 lbs (91 kg) Available Cargo Weight Refer to your vehicle’s tire and loading information label for speciﬁc information about your vehicle’s capacity weight and seating positions. The combined weight of the driver, passengers and cargo should never exceed your vehicle’s capacity weight.
Page 367 The Certiﬁcation/Tire label also tells you the maximum weights for the front and rear axles, called Gross Axle Weight Rating (GAWR). To ﬁnd out the actual loads on your front and rear axles, you need to go to a weigh station and weigh your vehicle.
Page 368 If you put things inside your vehicle — like suitcases, tools, packages, or anything else — they go as fast as the vehicle goes. If you have to stop or turn quickly, or if there is a crash, they will keep going. CAUTION: Things you put inside your vehicle can strike and injure people in a sudden stop...
Page 369: Towing
Towing Towing Your Vehicle Consult your dealer or a professional towing service if you need to have your disabled vehicle towed. See Roadside Assistance Program on page 542. If you want to tow your vehicle behind another vehicle for recreational purposes (such as behind a motorhome), see “Recreational Vehicle Towing”...
Page 370 Dinghy Towing Use the following procedure to tow your vehicle: 1. Shift the transmission to PARK (P). 2. Turn the engine off, but leave the ignition in ACCESSORY. 3. Firmly set the parking brake. 4. Securely attach the vehicle being towed to the tow vehicle.
Page 371: Selectable Extended Rear Ride Height
Selectable Extended Rear Ride Height If your vehicle has this feature it comes as part of the electronically controlled air suspension system. The selectable rear ride height allows you to raise the rear of the vehicle about 2 inches (5 cm) over the normal ride height.
Page 372: System
To lower the vehicle to the normal ride height, press the button again. The light in the button will ﬂash as the suspension lowers. When the light in the button stops ﬂashing and goes out, the suspension has reached the normal ride height.
Page 373 You may also hear the release of air similar to a hissing sound during suspension operation. This is normal. Load leveling will not function normally with the inﬂator hose attached to the inﬂator outlet. Remove the inﬂater hose from the outlet when it is not in use.
Page 374: Towing A Trailer
Towing a Trailer CAUTION: If you do not use the correct equipment and drive properly, you can lose control when you pull a trailer. For example, if the trailer is too heavy, the brakes may not work well — or even at all. You and your passengers could be seriously injured.
Page 375 If You Do Decide To Pull A Trailer If you do, here are some important points: • There are many different laws, including speed limit restrictions, having to do with trailering. Make sure your rig will be legal, not only where you live but also where you’ll be driving.
Page 376 Tow/Haul Mode Tow/haul mode is used when using your vehicle to pull a large or heavy load or trailer. Tow/haul is also useful while pulling a load in rolling terrain, in stop-and-go traffic, or when you need improved low-speed control, such as when parking. The purpose of the tow/haul mode is to do the following: •...
Page 377: Weight Of The Trailer
Weight of the Trailer How heavy can a trailer safely be? It depends on how you plan to use your rig. For example, speed, altitude, road grades, outside temperature and how much your vehicle is used to pull a trailer are all important. It can also depend on any special equipment that you have on your vehicle, and the amount of tongue weight the vehicle can carry.
Page 378 Weight of the Trailer Tongue The tongue load (A) of any trailer is an important weight to measure because it affects the total gross weight of your vehicle. The Gross Vehicle Weight (GVW) includes the curb weight of the vehicle, any cargo you may carry in it, and the people who will be riding in the vehicle.
Page 379 Your spare tire carrier is behind the tailgate. If your hitch extension is too short, the spare tire may interfere with trailer coupling or trailer tongue jack operation on some types of trailers. After you’ve loaded your trailer, weigh the trailer and then the tongue, separately, to see if the weights are proper.
Page 380 But let’s say your speciﬁc vehicle is equipped with some of the latest options and you have a front seat passenger and two rear seat passengers with some luggage and gear in the vehicle as well. You may add 300 lbs (136 kg) to the front axle weight and 400 lbs (181 kg) to the rear axle weight.
Page 381 Hitches It’s important to have the correct hitch equipment. Crosswinds, large trucks going by and rough roads are a few reasons why you’ll need the right hitch. Weight-Distributing Hitches and Weight Carrying Hitches (A) Body-to-Ground Distance (B) Front of Vehicle When using a weight-distributing hitch, the hitch must be adjusted so that the distance (A) remains the same both before and after coupling the...
Page 382 Trailer Brakes If your trailer weighs more than 2,000 lbs (900 kg) loaded, then it needs its own brakes – and they must be adequate. Be sure to read and follow the instructions for the trailer brakes so you’ll be able to install, adjust and maintain them properly.
Page 383 Following Distance Stay at least twice as far behind the vehicle ahead as you would when driving your vehicle without a trailer. This can help you avoid situations that require heavy braking and sudden turns. Passing You’ll need more passing distance up ahead when you’re towing a trailer.
Page 384 Driving On Grades Reduce speed and shift to a lower gear before you start down a long or steep downgrade. If you don’t shift down, you might have to use your brakes so much that they would get hot and no longer work well.
Page 385 When You Are Ready to Leave After Parking on a Hill 1. Apply your regular brakes and hold the pedal down while you: • start your engine, • shift into a gear, and • release the parking brake. 2. Let up on the brake pedal. 3.
Page 386 Adapter” later in this section. Instrument Panel Jumper Wiring Harness Notice: If your vehicle has factory or dealer-installed HUMMER off-road lamps, the place where an electric trailer brake connection must be made is already in use. Do not attempt to double-up or “piggyback” the connection,...
Page 387 This harness may be included with your vehicle as part of the heavy-duty trailer wiring package. CAUTION: Be sure to use only the correct trailer brake harness, the one intended for use on your vehicle. If you use some other trailer brake harness, even if it seems to ﬁt, your trailer brakes may not work at all.
Page 388: Trailer Recommendations
Connect the adapter with the tab pointing up. The ﬂip cap on the vehicle’s seven-wire harness will lock onto the tab (see arrow in the previous graphic) and help hold the adapter in place. Plug the four-way round pin connector onto the adapter.
Page 389: Service And Appearance Care
Section 5 Service ... 392 Accessories and Modiﬁcations ... 392 California Proposition 65 Warning ... 393 Doing Your Own Service Work ... 393 Adding Equipment to the Outside of Your Vehicle ... 394 Fuel ... 394 Gasoline Octane ... 394 Gasoline Speciﬁcations ...
Page 390 Section 5 Windshield Wiper Blade Replacement ... 447 Tires ... 448 Tire Sidewall Labeling ... 449 Tire Terminology and Deﬁnitions ... 453 Inﬂation - Tire Pressure ... 456 Tire Inspection and Rotation ... 457 When It Is Time for New Tires ... 459 Buying New Tires ...
Page 391 Section 5 Tires ... 499 Sheet Metal Damage ... 499 Finish Damage ... 499 Underbody Maintenance ... 500 Chemical Paint Spotting ... 500 Vehicle Care/Appearance Materials ... 501 Vehicle Identiﬁcation ... 502 Vehicle Identiﬁcation Number (VIN) ... 502 Service Parts Identiﬁcation Label ... 502 Service and Appearance Care Electrical System ...
Page 392: Service
Service Your dealer knows your vehicle best and wants you to be happy with it. We hope you will go to your dealer for all your service needs. You will get genuine GM parts and GM-trained and supported service people. We hope you will want to keep your GM vehicle all GM.
Page 393: California Proposition 65 Warning
California Proposition 65 Warning Most motor vehicles, including this one, contain and/or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Engine exhaust, many parts and systems (including some inside the vehicle), many ﬂuids, and some component wear by-products contain and/or emit these chemicals.
Page 394: Adding Equipment To The Outside Of Your Vehicle
Adding Equipment to the Outside of Your Vehicle Things you might add to the outside of your vehicle can affect the airﬂow around it. This may cause wind noise and affect windshield washer performance. Check with your dealer before adding equipment to the outside of your vehicle. Fuel Use of the recommended fuel is an important part of the proper maintenance of your vehicle.
Page 395: California Fuel
California Fuel If your vehicle is certiﬁed to meet California Emissions Standards, it is designed to operate on fuels that meet California speciﬁcations. See the underhood emission control label. If this fuel is not available in states adopting California emissions standards, your vehicle will operate satisfactorily on fuels meeting federal speciﬁcations, but emission control system performance may be affected.
Page 396: Fuels In Foreign Countries
Gasolines containing oxygenates, such as ethers and ethanol, and reformulated gasolines may be available in your area. General Motors recommends that you use these gasolines if they comply with the speciﬁcations described earlier. However, E85 (85% ethanol) and other fuels containing more than 10% ethanol must not be used in vehicles that were not designed for those fuels.
Page 397: Filling The Tank
Filling the Tank CAUTION: Fuel vapor burns violently and a fuel ﬁre can cause bad injuries. To help avoid injuries to you and others, read and follow all the instructions on the pump island. Turn off your engine when you are refueling.
Page 398 CAUTION: If you spill fuel and then something ignites it, you could be badly burned. Fuel can spray out on you if you open the fuel cap too quickly. This spray can happen if your tank is nearly full, and is more likely in hot weather.
Page 399: Filling A Portable Fuel Container
CAUTION: If a ﬁre starts while you are refueling, do not remove the nozzle. Shut off the ﬂow of fuel by shutting off the pump or by notifying the station attendant. Leave the area immediately. Notice: If you need a new fuel cap, be sure to get the right type.
Page 400: Checking Things Under The Hood
Checking Things Under the Hood CAUTION: Things that burn can get on hot engine parts and start a ﬁre. These include liquids like fuel, oil, coolant, brake ﬂuid, windshield washer and other ﬂuids, and plastic or rubber. You or others could be burned.
Page 401 3. Then go to the front of the vehicle and pull the assist handles toward you to lift the hood. 4. Pull the hood open until it is supported by the cables. Before closing the hood, be sure all ﬁller caps are on properly.
Page 402: Engine Compartment Overview
Engine Compartment Overview When you open the hood on the 6.0L V8 engine here is what you will see:...
Page 403 A. Coolant Surge Tank. See Cooling System on page 420 and Coolant Surge Tank Pressure Cap on page 418. B. Engine Air Cleaner/Filter and Air Filter Restriction Indicator (If Equipped). See Engine Air Cleaner/Filter on page 409. C. Windshield Washer Fluid Reservoir. See “Adding Washer Fluid”...
Page 404: Engine Oil
Engine Oil If the CHECK OIL LEVEL message appears on the Driver Information Center (DIC), it means you need to check the engine oil level right away. For more information, see CHECK OIL LEVEL under DIC Warnings and Messages on page 226. You should check the engine oil level regularly;...
Page 405 When to Add Engine Oil If the oil is below the cross-hatched area at the tip of the dipstick, you will need to add at least one quart/liter of oil. But you must use the right kind. This section explains what kind of oil to use.
Page 406 What Kind of Engine Oil to Use Look for two things: • GM6094M Your vehicle’s engine requires oil meeting GM Standard GM6094M. You should look for and use only an oil that meets GM Standard GM6094M. • SAE 5W-30 As shown in the viscosity chart, SAE 5W-30 is best for your vehicle.
Page 407: Engine Oil Life System
If you are in an area of extreme cold, where the temperature falls below 20°F ( 29°C), it is recommended that you use either an SAE 5W-30 synthetic oil or an SAE 0W-30 oil. Both will provide easier cold starting and better protection for the engine at extremely low temperatures.
Page 408 How to Reset the Engine Oil Life System The Engine Oil Life System calculates when to change your engine oil and ﬁlter based on vehicle use. Anytime your oil is changed, reset the system so it can calculate when the next oil change is required.
Page 409: Engine Air Cleaner/Filter
Engine Air Cleaner/Filter Notice: If you spray water into the engine air cleaner/ﬁlter intake and water enters the engine air cleaner/ﬁlter housing, as shown in the illustration, you could damage your vehicle’s engine. The repairs would not be covered by your warranty. Do not spray water into the engine air cleaner/ﬁlter intake and/or housing.
Page 410 How to Inspect the Engine Air Cleaner/Filter Vehicles With an Air Filter Restriction Indicator Locate the air ﬁlter restriction indicator on the engine air duct. When the indicator turns black or is in the red/orange change zone, replace the ﬁlter and reset the indicator. See “Inspecting the Engine Air Cleaner/Filter and Resetting the Air Filter Restriction Indicator”...
Page 411 2. Lift the cover upward and set it aside. 3. Pull the air cleaner/ﬁlter up and out from the air cleaner housing. Care should be taken to dislodge as little dirt as possible. 4. Clean the air cleaner/ﬁlter sealing surfaces and the housing.
Page 412: Automatic Transmission Fluid
Automatic Transmission Fluid When to Check and Change Automatic Transmission Fluid A good time to check your automatic transmission ﬂuid level is when the engine oil is changed. Change the ﬂuid and ﬁlter at the intervals listed in Additional Required Services on page 520, and be sure to use the transmission ﬂuid listed in Recommended Fluids and Lubricants on page 528.
Page 413 A cold ﬂuid check can be made after the vehicle has been sitting for eight hours or more with the engine off, but this is used only as a reference. Let the engine run at idle for ﬁve minutes if outside temperatures are 50°F (10°C) or more.
Page 414 3. Check both sides of the dipstick, and read the lower level. The ﬂuid level must be in the COLD area, below the cross-hatched area, for a cold check or in the HOT or cross-hatched area for a hot check. Be sure to keep the dipstick pointed down to get an accurate reading.
Page 415: Engine Coolant
Notice: Use of the incorrect automatic transmission ﬂuid may damage your vehicle, and the damages may not be covered by your warranty. Always use the automatic transmission ﬂuid listed in Recommended Fluids and Lubricants on page 528. • After adding ﬂuid, recheck the ﬂuid level as described under “How to Check Automatic Transmission Fluid,”...
Page 416 What Kind of Coolant to Use Use a mixture of one-half clean, drinkable water ® and one-half DEX-COOL coolant which will not damage aluminum parts. If you use this coolant mixture, you do not need to add anything else. CAUTION: Adding only plain water to your cooling system can be dangerous.
Page 417 Checking Coolant The coolant surge tank is located in the engine compartment on the passenger’s side of the vehicle. See Engine Compartment Overview on page 402 for more information on location. CAUTION: Turning the surge tank pressure cap when the engine and radiator are hot can allow steam and scalding liquids to blow out and burn you badly.
Page 418: Coolant Surge Tank Pressure Cap
Coolant Surge Tank Pressure Cap Notice: If the pressure cap is not tightly installed, coolant loss and possible engine damage may occur. Be sure the cap is properly and tightly secured. The coolant surge tank pressure cap must be fully installed on the coolant surge tank.
Page 419 Notice: If your engine catches ﬁre because you keep driving with no coolant, your vehicle can be badly damaged. The costly repairs would not be covered by your warranty. See Overheated Engine Protection Operating Mode on page 420 for information on driving to a safe place in an emergency.
Page 420: Overheated Engine Protection Operating Mode
Overheated Engine Protection Operating Mode If an overheated engine condition exists and the REDUCED ENGINE POWER message is displayed, an overheat protection mode which alternates ﬁring groups of cylinders helps prevent engine damage. In this mode, you will notice a loss in power and engine performance.
Page 421 Check the coolant level after the system cools down. Some amount of coolant may be lost due to overheating. The coolant level should be at or above the FULL COLD mark. If it is not, you may have a leak at the pressure cap or in the radiator hoses, heater hoses, radiator, water pump, or somewhere else in the cooling system.
Page 422 How to Add Coolant to the Coolant Surge Tank If you have not found a problem yet, check to see if coolant is visible in the surge tank. If coolant is visible but the coolant level is not at or above the FULL COLD mark, add a 50/50 mixture of clean, drinkable water and DEX-COOL at the coolant surge tank, but be sure the...
Page 423 Notice: In cold weather, water can freeze and crack the engine, radiator, heater core and other parts. Use the recommended coolant and the proper coolant mixture. CAUTION: You can be burned if you spill coolant on hot engine parts. Coolant contains ethylene glycol and it will burn if the engine parts are hot enough.
Page 424 4. Fill the coolant surge tank with the proper mixture, to the FULL COLD mark. 5. With the coolant surge tank pressure cap off, start the engine and let it run until you can feel the upper radiator hose getting hot. Watch out for the engine cooling fan.
Page 425: Power Steering Fluid
Power Steering Fluid See Engine Compartment Overview on page 402 for reservoir location. When to Check Power Steering Fluid It is not necessary to regularly check power steering ﬂuid unless you suspect there is a leak in the system or you hear an unusual noise. A ﬂuid loss in this system could indicate a problem.
Page 426: Windshield Washer Fluid
Windshield Washer Fluid What to Use When you need windshield washer ﬂuid, be sure to read the manufacturer’s instructions before use. If you will be operating your vehicle in an area where the temperature may fall below freezing, use a ﬂuid that has sufficient protection against freezing.
Page 427: Brakes
Brakes Brake Fluid Your brake master cylinder reservoir is ﬁlled with DOT-3 brake ﬂuid. See Engine Compartment Overview on page 402 for the location of the reservoir. There are only two reasons why the brake ﬂuid level in the reservoir might go down. The ﬁrst is that the brake ﬂuid goes down to an acceptable level during normal brake lining wear.
Page 428 Checking Brake Fluid You can check the brake ﬂuid without taking off the cap. Look at the brake ﬂuid reservoir. The ﬂuid level should be above MIN. If it is not, have your brake system checked to see if there is a leak. After work is done on the brake hydraulic system, make sure the level is above the MIN but not over the MAX mark.
Page 429 Notice: • Using the wrong ﬂuid can badly damage brake system parts. For example, just a few drops of mineral-based oil, such as engine oil, in the brake system can damage brake system parts so badly that they will have to be replaced. Do not let someone put in the wrong kind of ﬂuid.
Page 430 Some driving conditions or climates may cause a brake squeal when the brakes are ﬁrst applied or lightly applied. This does not mean something is wrong with your brakes. Properly torqued wheel nuts are necessary to help prevent brake pulsation. When tires are rotated, inspect brake pads for wear and evenly tighten wheel nuts in the proper sequence to GM torque speciﬁcations.
Page 431: Battery
Battery Your vehicle has a maintenance free battery. When it is time for a new battery, get one that has the replacement number shown on the original battery’s label. We recommend an ACDelco replacement battery. See Engine Compartment Overview on page 402 for battery location. Warning: Battery posts, terminals, and related accessories contain lead and lead compounds, chemicals known to the State of California...
Page 432: Jump Starting
Jump Starting If your vehicle’s battery has run down, you may want to use another vehicle and some jumper cables to start your vehicle. Be sure to use the following steps to do it safely. CAUTION: Batteries can hurt you. They can be dangerous because: •...
Page 433 To avoid the possibility of the vehicles rolling, set the parking brake ﬁrmly on both vehicles involved in the jump start procedure. Put an automatic transmission in PARK (P) or a manual transmission in NEUTRAL before setting the parking brake. Notice: If you leave your radio or other accessories on during the jump starting procedure, they could be damaged.
Page 434 The remote negative ( ) terminal is located on the engine accessory drive bracket and is marked GND (Ground). See Engine Compartment Overview on page 402 for more information on the location of the remote terminals. CAUTION: Using a match near a battery can cause battery gas to explode.
Page 435 5. Check that the jumper cables do not have loose or missing insulation. If they do, you could get a shock. The vehicles could be damaged too. Before you connect the cables, here are some basic things you should know. Positive (+) will go to positive (+) or to a remote positive terminal (+) if the vehicle has one.
Page 436 9. Connect the other end of the negative ( ) cable at least 18 inches (45 cm) away from the dead battery, but not near engine parts that move. The electrical connection is just as good there, and the chance of sparks getting back to the battery is much less.
Page 437: Rear Axle
To disconnect the jumper cables from both vehicles do the following: 1. Disconnect the black negative ( ) cable from the vehicle that had the dead battery. 2. Disconnect the black negative ( ) cable from the vehicle with the good battery. 3.
Page 438: Four-Wheel Drive
How to Check Lubricant To get an accurate reading, the vehicle should be on a level surface. When the differential is cold, the proper level is from 5/8 inch to 1-5/8 inch (15 mm to 40 mm) below the bottom of the ﬁller plug hole, located on the rear axle.
Page 439 How to Check Lubricant A. Filler Plug B. Drain Plug 1. Remove the ﬁller plug (A). The ﬂuid level should be just below the bottom of the ﬁller plug hole located on the transfer case. To get an accurate reading, the vehicle should be on a level surface.
Page 440: Front Axle
Front Axle When to Check and Change Lubricant It is not necessary to regularly check front axle ﬂuid unless you suspect there is a leak or you hear an unusual noise. A ﬂuid loss could indicate a problem. Have it inspected and repaired. How to Check Lubricant To get an accurate reading, the vehicle should be on a level surface.
Page 441: Bulb Replacement
Bulb Replacement For the proper type of replacement bulbs, see Replacement Bulbs on page 446. For any bulb changing procedure not listed in this section, contact your dealer. Halogen Bulbs CAUTION: Halogen bulbs have pressurized gas inside and can burst if you drop or scratch the bulb.
Page 442: Front Turn Signal And Parking Lamps
5. Unplug the electrical 6. Push the new bulb socket into the headlamp assembly making sure to align the splines on the bulb socket with the splines in the headlamp housing. Use care not to touch the bulb with your ﬁngers or hands. 7.
Page 443: Daytime Running Lamps (Drl)
Daytime Running Lamps (DRL) To replace a daytime running lamp bulb, do the following: 1. Locate the lamp 2. Turn the bulb socket counterclockwise and remove it from the lamp housing. 3. Remove the bulb from the bulb socket. 4. Install the new bulb into the bulb socket. 5.
Page 444: Taillamps, Turn Signal, Stoplamps And Back-Up Lamps
Center Roof Marker Lamps To replace one of these bulbs, do the following: 1. Push in on the notch with a ﬂat tool and pull the lamp out. 2. Turn the bulb socket counterclockwise and remove it from the lamp housing. 3.
Page 445 2. If your vehicle is equipped with a taillamp guard, you will need to remove it in order to access the taillamp. To do this, remove the four screws retaining the taillamp guard making sure not to remove the plastic retainers.
Page 446: Replacement Bulbs
Your vehicle may have a taillamp in the bumper. To replace it, do the following: 1. Locate the affected 2. Turn the bulb socket counterclockwise and remove it from the lamp housing. 3. Remove the bulb from the bulb socket. 4.
Page 447: Windshield Wiper Blade Replacement
Windshield Wiper Blade Replacement Windshield wiper blades should be inspected for wear and cracking. See Scheduled Maintenance on page 517 for more information. Replacement blades come in different types and are removed in different ways. For proper type and length, see Normal Maintenance Replacement Parts on page 530.
Page 448: Tires
Tires Your new vehicle comes with high-quality tires made by a leading tire manufacturer. If you ever have questions about your tire warranty and where to obtain service, see your GM Warranty booklet for details. For additional information refer to the tire manufacturer’s booklet included with your vehicle.
Page 449: Tire Sidewall Labeling
Tire Sidewall Labeling Useful information about a tire is molded into the sidewall. The following illustrations are examples of a typical P-Metric and a LT-Metric tire sidewall. Passenger (P-Metric) Tire (A) Tire Size: The tire size code is a combination of letters and numbers used to deﬁne a particular tire’s width, height, aspect ratio, construction type, and service description.
Page 450 (D) Tire Identiﬁcation Number (TIN): The letters and numbers following DOT code are the Tire Identiﬁcation Number (TIN). The TIN shows the manufacturer and plant code, tire size, and date the tire was manufactured. The TIN is molded onto both sides of the tire, although only one side may have the date of manufacture.
Page 451 (B) TPC Spec (Tire Performance Criteria Speciﬁcation): Original equipment tires designed to GM’s speciﬁc tire performance criteria have a TPC speciﬁcation code molded onto the sidewall. GM’s TPC speciﬁcations meet or exceed all federal safety guidelines. (C) Dual Tire Maximum Load: Maximum load that can be carried and the maximum pressure needed to support that load when used in a dual conﬁguration.
Page 452: Tire Size
Tire Size The following examples show the different parts of a tire size. Passenger (P-Metric) Tire Light Truck (LT-Metric) Tire (A) Passenger (P-Metric) Tire: The United States version of a metric tire sizing system. The letter P as the ﬁrst character in the tire size means a passenger vehicle tire engineered to standards set by the U.S.
Page 453: Tire Terminology And Deﬁnitions
Tire Terminology and Deﬁnitions Air Pressure: The amount of air inside the tire pressing outward on each square inch of the tire. Air pressure is expressed in pounds per square inch (psi) or kilopascal (kPa). Accessory Weight: This means the combined weight of optional accessories.
Page 454 Intended Outboard Sidewall: The side of an asymmetrical tire, that must always face outward when mounted on a vehicle. Kilopascal (kPa): The metric unit for air pressure. Light Truck (LT-Metric) Tire: A tire used on light duty trucks and some multipurpose passenger vehicles.
Page 455 Radial Ply Tire: A pneumatic tire in which the ply cords that extend to the beads are laid at 90 degrees to the centerline of the tread. Rim: A metal support for a tire and upon which the tire beads are seated. Sidewall: The portion of a tire between the tread and the bead.
Page 456: Inﬂation - Tire Pressure
Inﬂation - Tire Pressure Tires need the correct amount of air pressure to operate effectively. Notice: Do not let anyone tell you that under-inﬂation or over-inﬂation is all right. It is not. If your tires do not have enough air (under-inﬂation), you can get the following: •...
Page 457: Tire Inspection And Rotation
How to Check Use a good quality pocket-type gage to check tire pressure. You cannot tell if your tires are properly inﬂated simply by looking at them. Radial tires may look properly inﬂated even when they’re underinﬂated. Check the tire’s inﬂation pressure when the tires are cold.
Page 458 When rotating your vehicle’s tires, always use one of the correct rotation pattern shown here. The ﬁve-tire rotation pattern includes a full-size spare tire and wheel assembly that matches the regular road tires and wheels in size, type, and brand. After the tires have been rotated, adjust the front and rear inﬂation pressures as shown on the tire and loading information label.
Page 459: When It Is Time For New Tires
CAUTION: Rust or dirt on a wheel, or on the parts to which it is fastened, can make wheel nuts become loose after time. The wheel could come off and cause an accident. When you change a wheel, remove any rust or dirt from places where the wheel attaches to the vehicle.
Page 460: Buying New Tires
Buying New Tires GM has developed and matched speciﬁc tires for your vehicle. The original equipment tires installed on your vehicle, when it was new, were designed to meet General Motors Tire Performance Criteria Speciﬁcation (TPC spec) system rating. If you need replacement tires, GM strongly recommends that you get tires with the same TPC Spec rating.
Page 461: Different Size Tires And Wheels
If you must replace your vehicle’s tires with those that do not have a TPC Spec number, make sure they are the same size, load range, speed rating, and construction type (radial and bias-belted tires) as your vehicle’s original tires. Your vehicle’s original equipment tires are listed on the Tire and Loading Information label.
Page 462: Uniform Tire Quality Grading
Uniform Tire Quality Grading Quality grades can be found where applicable on the tire sidewall between tread shoulder and maximum section width. For example: Treadwear 200 Traction AA Temperature A The following information relates to the system developed by the United States National Highway Traffic Safety Administration (NHTSA), which grades tires by treadwear, traction, and temperature performance.
Page 463: Wheel Alignment And Tire Balance
Temperature – A, B, C The temperature grades are A (the highest), B, and C, representing the tire’s resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a speciﬁed indoor laboratory test wheel. Sustained high temperature can cause the material of the tire to degenerate and reduce tire life, and excessive temperature can lead to sudden tire failure.
Page 464: Wheel Replacement
Wheel Replacement Replace any wheel that is bent, cracked, or badly rusted or corroded. If wheel nuts keep coming loose, the wheel, wheel bolts, and wheel nuts should be replaced. If the wheel leaks air, replace it (except some aluminum wheels, which can sometimes be repaired).
Page 465: Tire Chains
Used Replacement Wheels CAUTION: Putting a used wheel on your vehicle is dangerous. You cannot know how it has been used or how far it has been driven. It could fail suddenly and cause a crash. If you have to replace a wheel, use a new GM original equipment wheel.
Page 466: Accessory Inﬂator
Accessory Inﬂator Your vehicle may have an accessory inﬂator system. You can inﬂate things like basketballs and bicycle tires. You can also use it to bring your tire pressure up to the proper pressure. The engine must be running and the gearshift lever must be in PARK (P) for the inﬂator to operate.
Page 467 The accessory inﬂator hose also has a built-in air pressure gage. As soon as you start to inﬂate an object it will automatically read the current pressure. 4. Press and release the switch to turn the accessory inﬂator on. The indicator light will remain on while the inﬂator is running.
Page 468: If A Tire Goes Flat
If a Tire Goes Flat It is unusual for a tire to blowout while you are driving, especially if you maintain your vehicle’s tires properly. If air goes out of a tire, it is much more likely to leak out slowly. But if you should ever have a blowout, here are a few tips about what to expect and what to do: If a front tire fails, the ﬂat tire will create a drag...
Page 469 CAUTION: Changing a tire can be dangerous. The vehicle can slip off the jack and roll over or fall on you or other people. You and they could be badly injured or even killed. Find a level place to change your tire. To help prevent the vehicle from moving: 1.
Page 470: Removing The Spare Tire And Tools (Suv)
Removing the Spare Tire and Tools (SUV) Removing the Tools (SUV) The equipment you need is located under the driver’s side second row seat. To remove the equipment, do the following: 1. Locate the tools by lifting the driver’s side second row seat up to expose the ﬂoor.
Page 471 3. Open the tool bag. The following tools needed to remove the spare tire and ﬂat tire are inside the tool bag: A. Jack Handle D. Wheel Wrench B. Jack Handle Extensions (2) E. Wheel Blocks (2) C. Wheel Wrench Before proceeding, be sure to set the wheel blocks at the appropriate tires as previously shown.
Page 472 Removing the Jack (SUV) The jack is stored behind the driver’s side second row seat. 1. Fold the driver’s side second row seat down to access the jack. See 60/40 Split Bench Seat on page 15 for more information. 2. Insert the wheel wrench (A) into the hole (B) and turn it counterclockwise to release it.
Page 473 3. Pull off the license plate holder from the spare tire. 4. Attach the wheel wrench to the wheel wrench extender to remove the wheel nuts. Turn the wheel wrench with the wheel wrench extender counterclockwise to loosen the wheel nuts. 5.
Page 474: Removing The Spare Tire And Tools (Sut)
Removing the Spare Tire and Tools (SUT) The jack is stored in the rear cargo compartment on the passenger’s side of the vehicle. The tools for the jack are stored under the rear passenger’s seat. To remove the tools, do the following: 1.
Page 475 3. Open the tool bag. You will ﬁnd the following tools needed to remove the spare tire and ﬂat tire: A. Jack Handle D. Wheel Wrench B. Jack Handle Extensions (2) E. Wheel Blocks C. Wheel Wrench To access the jack, ﬁrst remove the tonneau cover on the rear cargo compartment.
Page 476 Release the jack by inserting the wheel wrench (A) into the hole (B) and turn counterclockwise. Before proceeding, be sure to set the wheel blocks at the appropriate tires as previously shown. Remove the wheel blocks from the tool bag. Then lift the wheel block as shown to lock it into place.
Page 477 3. Pull off the license plate holder from the spare tire. 4. Attach the wheel wrench to the wheel wrench extender to remove the wheel nuts. 5. Turn the wheel wrench with the wheel wrench extender counterclockwise to loosen the wheel nuts.
Page 478: Removing The Flat Tire And Installing The Spare Tire
Removing the Flat Tire and Installing the Spare Tire Jack (SUV and SUT) 1. To remove the 2. Attach the wheel wrench to the extender. center cap, place the ﬂat end of the wheel wrench in the slot on the wheel and carefully pry the center cap out.
Page 479 4. Assemble the jack and tools as follows: Front Flat Tire: Attach the jack handle with the hook end connected to the hole on the jack. Slide the wheel wrench onto the jack handle extension. Rear Flat Tire: Assemble the jack together with the jack handle and the jack handle extensions.
Page 480 Front Flat Tire – Jack 6. Front Flat Tire: Position the jack under the vehicle on the front lower control arm behind the ﬂat tire. Rear Flat Tire – Jack Rear Flat Tire: Place the jack under the curved rear axle pad. Make sure the jack head is positioned so that the rear axle pad is resting securely on the jack head.
Page 481 CAUTION: Raising your vehicle with the jack improperly positioned can damage the vehicle and even make the vehicle fall. To help avoid personal injury and vehicle damage, be sure to ﬁt the jack lift head into the proper location before raising the vehicle.
Page 482 CAUTION: Rust or dirt on the wheel, or on the parts to which it is fastened, can make the wheel nuts become loose after time. The wheel could come off and cause an accident. When you change a wheel, remove any rust or dirt from the places where the wheel attaches to the vehicle.
Page 483 CAUTION: Never use oil or grease on studs or nuts. If you do, the nuts might come loose. Your wheel could fall off, causing a serious accident. 10. Install the spare tire. 11. Put the wheel nuts back on with the rounded end of the nuts toward the wheel.
Page 484 CAUTION: Incorrect wheel nuts or improperly tightened wheel nuts can cause the wheel to come loose and even come off. This could lead to an accident. Be sure to use the correct wheel nuts. If you have to replace them, be sure to get new GM original equipment wheel nuts.
Page 485: Storing A Flat Or Spare Tire And Tools (Suv)
Storing a Flat or Spare Tire and Tools (SUV) Storing the Flat or Spare Tire Use the following art and text to help store the spare or ﬂat tire back into its proper location when done changing a tire. To store the ﬂat or spare tire on the tire carrier, do the following: 1.
Page 486 6. Slide the license plate holder onto the spare or ﬂat tire. Secure it from the back of the tire carrier with the wing nut. If you choose not to reinstall the spare or ﬂat tire on the vehicle, you still need to reinstall the license plate holder on the spare tire carrier.
Page 487 4. Push and pull on the jack and retighten if necessary to make sure the jack is secure. 5. Place the wheel blocks in the tool bag. 6. Place the remaining tools in the tool bag. 7. Make sure nothing is located under or in front of the seat and then lift the rear driver’s seat so that the ﬂoor is exposed.
Page 488: Storing A Flat Or Spare Tire And Tools (Sut)
Storing a Flat or Spare Tire and Tools (SUT) Storing the Flat or Spare Tire Use the following art and text to help you store the spare or ﬂat tire back into its proper location when you are done. To store the ﬂat or spare tire on the tire carrier, do the following: 1.
Page 489 5. Slide the license plate holder onto the spare or ﬂat tire. Secure it from the back of the tire carrier with the wing nut. If you choose not to reinstall the spare or ﬂat tire on the vehicle, you will still need to reinstall the license plate holder on the spare tire carrier.
Page 490 4. Push and pull on the jack and retighten if necessary to make sure the jack is secure. 5. Place the wheel blocks in the tool bag. 6. Place the remaining tools in the tool bag. 7. Make sure nothing is located under or in front of the seat and then lift the rear driver’s seat so that the ﬂoor is exposed.
Page 491: Spare Tire
Spare Tire Your vehicle, when new, had a fully-inﬂated spare tire. A spare tire may lose air over time, so check its inﬂation pressure regularly. See Inﬂation - Tire Pressure on page 456 and Loading Your Vehicle on page 362 for information regarding proper tire inﬂation and loading your vehicle.
Page 492 When cleaning your vehicle’s interior, only use cleaners speciﬁcally designed for the surfaces being cleaned. Permanent damage may result from using cleaners on surfaces for which they were not intended.Use glass cleaner only on glass. Remove any accidental over-spray from other surfaces immediately.
Page 493: Fabric/Carpet
Fabric/Carpet Use a vacuum cleaner with a soft brush attachment frequently to remove dust and loose dirt. A canister vacuum with a beater bar in the nozzle may only be used on ﬂoor carpet and carpeted ﬂoor mats. For soils, always try to remove them ﬁrst with plain water or club soda.
Page 494: Leather
Leather A soft cloth dampened with water may be used to remove dust. If a more thorough cleaning is necessary, a soft cloth dampened with a mild soap solution can be used. Allow the leather to dry naturally. Do not use heat to dry. Never use steam to clean leather.
Page 495: Wood Panels
Wood Panels Use a clean cloth moistened in warm, soapy water (use mild dish washing soap). Dry the wood immediately with a clean cloth. Speaker Covers Vacuum around a speaker cover gently, so that the speaker will not be damaged. Clean spots with just water and mild soap.
Page 496 HUMMER H2 are similar to current General Motors’ full-size light duty trucks. This means a HUMMER H2 should ﬁt in a standard car wash. But, if your vehicle has added accessories like roof-mounted lamps or a roof basket, it might not ﬁt properly in a standard...
Page 497: Cleaning Exterior Lamps/Lenses
Cleaning Exterior Lamps/Lenses Use only lukewarm or cold water, a soft cloth and a car washing soap to clean exterior lamps and lenses. Follow instructions under Washing Your Vehicle on page 495. Finish Care Occasional waxing or mild polishing of the vehicle by hand may be necessary to remove residue from the paint ﬁnish.
Page 498: Windshield, Backglass, And Wiper Blades
Windshield, Backglass, and Wiper Blades If the windshield is not clear after using the windshield washer, or if the wiper blade chatters when running, wax, sap or other material may be on the blade or windshield. Clean the outside of the windshield with a full-strength glass cleaning liquid.
Page 499: Tires
Notice: If you drive your vehicle through an automatic car wash that has silicone carbide tire cleaning brushes, you could damage the aluminum or chrome-plated wheels. The repairs would not be covered by your warranty. Never drive a vehicle equipped with aluminum or chrome-plated wheels through an automatic car wash that uses silicone carbide tire cleaning brushes.
Page 500: Underbody Maintenance
Underbody Maintenance Chemicals used for ice and snow removal and dust control can collect on the underbody. If these are not removed, corrosion and rust can develop on the underbody parts such as fuel lines, frame, ﬂoor pan, and exhaust system even though they have corrosion protection.
Page 501: Vehicle Care/Appearance Materials
Vehicle Care/Appearance Materials Description Polishing Cloth Interior and exterior Wax-Treated polishing cloth. Tar and Road Removes tar, road oil, Oil Remover and asphalt. Chrome Cleaner Use on chrome or and Polish stainless steel. White Sidewall Removes soil and black Tire Cleaner marks from whitewalls.
Page 502: Vehicle Identiﬁcation
Vehicle Identiﬁcation Vehicle Identiﬁcation Number (VIN) This is the legal identiﬁer for your vehicle. It appears on a plate in the front corner of the instrument panel, on the driver’s side. You can see it if you look through the windshield from outside your vehicle.
Page 503: Electrical System
Electrical System Add-On Electrical Equipment Notice: Do not add anything electrical to your vehicle unless you check with your dealer ﬁrst. Some electrical equipment can damage your vehicle and the damage would not be covered by your warranty. Some add-on electrical equipment can keep other components from working as they should.
Page 504: Fuses And Circuit Breakers
Fuses and Circuit Breakers The wiring circuits in your vehicle are protected from short circuits by a combination of fuses, circuit breakers and fusible thermal links. This greatly reduces the chance of ﬁres caused by electrical problems. Look at the silver-colored band inside the fuse. If the band is broken or melted, replace the fuse.
Page 505 Fuses RR Wiper Rear Window Wiper Switch Special Equipment Option SEO ACCY Accessory WS WPR Windshield Wipers Truck Body Controller TBC ACCY Accessory IGN 3 Rear Heated Seats Module Fuses HTR A/C LOCK HVAC 1 L DOOR CRUISE UNLOCK RR FOG LP BRAKE Usage DRIVER UNLOCK...
Page 506: Center Instrument Panel Fuse Block
Fuses Left Turn Signals and LT TRN Sidemarkers Vehicle Stoplamps, Brake VEH STOP Module, Electronic Throttle Control Module RT TRLR ST/TRN Right Turn Signal/Stop Trailer Right Turn Signals and RT TRN Sidemarkers BODY Harness Connector Driver Door Module Rear Doors and Liftgate LOCKS Power Lock Relay Feed Liftgate...
Page 507: Underhood Fuse Block
Device BODY Body Wiring Connector DEFOG Rear Defogger Relay HDLNR 1 Headliner Wiring Connector 1 SPARE RELAY Not Used Driver and Passenger Seat CB SEAT Module Circuit Breaker Rear Right Power Window, CB RT DOOR Passenger Door Module SPARE Not Used INFO Not Used Underhood Fuse Block...
Page 509 *1 — Gasoline Engine and Fuel Injection Rail #2. *2 — Gasoline Engine and Fuel Injection Rail *3 — Gasoline Engine; Oxygen Sensors. *4 — Gasoline Engine; Oxygen Sensors. *5 — Ignition 1 *6 — Powertrain Control Module, Fuel Pump. *7 —...
Page 510 Fuses PARK LP Parking Lamps Relay STRTR Starter Relay INTPARK Roof Marker Lamps STOP LP Stoplamps Truck Body Controller TBC BATT Battery Feed SEO B2 Off-Road Lamps Not Used Instrument Panel Outlets, AUX PWR Rear Cargo Area Power Outlets, Console PCM 1 Powertrain Control Module Electronic Throttle Control,...
Page 511 Fuses Regulated Voltage Control Instrument Panel Cluster/ IPC/DIC Driver Information Center Climate Control HVAC/ECAS Controller/Electronically Controlled Air Suspension CIG LTR Cigarette Lighter Passenger’s Side High Beam HI HDLP-RT Headlamp HDLP-LOW Headlamp Low Beam Relay Air Conditioning A/C COMP Compressor Relay A/C COMP Air Conditioning Compressor TCMB...
Page 512: Capacities And Speciﬁcations
Capacities and Speciﬁcations The following approximate capacities are given in English and metric. Please refer to Recommended Fluids and Lubricants on page 528 for more information. Application Air Conditioning Refrigerant R134a Cooling System Engine Oil with Filter Fuel Tank Transfer Case Fluid Wheel Nut Torque After reﬁll, the level must be rechecked.
Page 513 Section 6 Maintenance Schedule ... 514 Introduction ... 514 Maintenance Requirements ... 514 Your Vehicle and the Environment ... 515 Using the Maintenance Schedule ... 515 Scheduled Maintenance ... 517 Additional Required Services ... 520 Maintenance Footnotes ... 521 Owner Checks and Services ... 523 Maintenance Schedule At Each Fuel Fill ...
Page 514: Maintenance Schedule
Maintenance Schedule Introduction Important: Keep engine oil at the proper level and change as recommended. Have you purchased the GM Protection Plan? The Plan supplements your new vehicle warranties. See your Warranty and Owner Assistance booklet or your dealer for details. Maintenance Requirements Notice: Maintenance intervals, checks, inspections, replacement parts, and...
Page 515: Your Vehicle And The Environment
Your Vehicle and the Environment Proper vehicle maintenance not only helps to keep your vehicle in good working condition, but also helps the environment. All recommended maintenance is important. Improper vehicle maintenance can even affect the quality of the air we breathe.
Page 516 This schedule is for vehicles that: • carry passengers and cargo within recommended limits. You will ﬁnd these limits on the Tire and Loading Information label. See Loading Your Vehicle on page 362. • are driven on reasonable road surfaces within legal driving limits.
Page 517: Scheduled Maintenance
If you want to purchase service information, see Service Publications Ordering Information on page 553. Owner Checks and Services on page 523 tells you what should be checked, when to check it, and what you can easily do to help keep your vehicle in good condition.
Page 518 If the engine oil life system is ever reset accidentally, you must service your vehicle within 3,000 miles (5 000 km) since your last service. Remember to reset the oil life system whenever the oil is changed. See Engine Oil Life System on page 407 for information on the Engine Oil Life System and resetting the system.
Page 519 Scheduled Maintenance Service Maintenance I Maintenance II Change engine oil and ﬁlter. See Engine Oil on page 404. Reset oil life system. See Engine Oil Life System on page 407. An Emission Control Service. Lubricate chassis components. See footnote #. Visually check for any leaks or damage.
Page 520: Additional Required Services
Additional Required Services The following services should be performed at the ﬁrst maintenance service (I or II) after the indicated miles (kilometers) shown for each item. Service and Miles (Kilometers) Inspect fuel system for damage or leaks. Inspect exhaust system for loose or damaged components.
Page 521: Maintenance Footnotes
Service and Miles (Kilometers) Engine cooling system service (or every ﬁve years, whichever occurs ﬁrst). An Emission Control Service. See footnote (i). Inspect engine accessory drive belt. An Emission Control Service. See footnote (k). Maintenance Footnotes # Lubricate the front suspension, steering linkage, transmission shift linkage, and parking brake cable guides.
Page 522 (d) Visually inspect wiper blades for wear or cracking. Replace wiper blades that appear worn or damaged or that streak or miss areas of the windshield. (e) Make sure the safety belt reminder light and all your belts, buckles, latch plates, retractors, and anchorages are working properly.
Page 523: Owner Checks And Services
(i) Drain, ﬂush, and reﬁll cooling system. This service can be complex; you should have your dealer perform this service. See Engine Coolant on page 415 for what to use. Inspect hoses. Clean radiator, condenser, pressure cap, and ﬁller neck. Pressure test the cooling system and pressure cap.
Page 524: At Each Fuel Fill
At Each Fuel Fill It is important to perform these underhood checks at each fuel ﬁll. Engine Oil Level Check Check the engine oil level and add the proper oil if necessary. See Engine Oil on page 404 for further details. Notice: It is important to check your oil regularly and keep it at the proper level.
Page 525: At Least Once A Year
At Least Once a Year Starter Switch Check CAUTION: When you are doing this inspection, the vehicle could move suddenly. If the vehicle moves, you or others could be injured. 1. Before you start, be sure you have enough room around the vehicle. 2.
Page 526 Automatic Transmission Shift Lock Control System Check CAUTION: When you are doing this inspection, the vehicle could move suddenly. If the vehicle moves, you or others could be injured. 1. Before you start, be sure you have enough room around the vehicle. It should be parked on a level surface.
Page 527 Parking Brake and Automatic Transmission Park (P) Mechanism Check CAUTION: When you are doing this check, your vehicle could begin to move. You or others could be injured and property could be damaged. Make sure there is room in front of your vehicle in case it begins to roll.
Page 528: Recommended Fluids And Lubricants
Recommended Fluids and Lubricants Fluids and lubricants identiﬁed below by name, part number, or speciﬁcation can be obtained from your dealer. Usage Fluid/Lubricant Engine oil which meets GM Standard GM6094M and displays the American Petroleum Institute Certiﬁed for Gasoline Engines Engine Oil starburst symbol.
Page 529 Usage Fluid/Lubricant Spline Lubricant, Special Lubricant Front Axle (GM Part No. U.S. 12345879, Propshaft in Canada 10953511) or lubricant Spline meeting requirements of GM 9985830. Multi-Purpose Lubricant, Superlube Hood Hinges (GM Part No. U.S. 12346241, in Canada 10953474). Outer Tailgate Multi-Purpose Lubricant, Superlube Handle Pivot (GM Part No.
Page 530: Normal Maintenance Replacement Parts
Normal Maintenance Replacement Parts Replacement parts identiﬁed below by name, part number or speciﬁcation can be obtained from your GM dealer. Part Engine Air Cleaner/Filter Engine Oil Filter Spark Plugs Wiper Blades Front – 17.0 inches (43.0 cm) Rear – 11.0 inches (28.0 cm) GM Part Number ACDelco 10389652...
Page 531: Engine Drive Belt Routing
Engine Drive Belt Routing (A) Belt routing for A/C option shown. Dotted line represents routing for non A/C option.
Page 532: Maintenance Record
Maintenance Record After the scheduled services are performed, record the date, odometer reading, who performed the service, and the type of services performed in the boxes provided. See Maintenance Requirements on page 514. Any additional information from Owner Checks and Services on page 523 can be added on the following record pages.
Page 533 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II...
Page 534 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II...
Page 535: Customer Assistance Information
Section 7 Customer Assistance and Information ... 536 Customer Satisfaction Procedure ... 536 Online Owner Center ... 539 Customer Assistance for Text Telephone (TTY) Users ... 540 Customer Assistance Offices ... 540 GM Mobility Reimbursement Program ... 541 Roadside Assistance Program ... 542 Courtesy Transportation ...
Page 536: Customer Assistance And Information
Information Customer Satisfaction Procedure Your satisfaction and goodwill are important to your dealer and to HUMMER. Normally, any concerns with the sales transaction or the operation of your vehicle will be resolved by your dealer’s sales or service departments. Sometimes, however, despite the best intentions of all concerned, misunderstandings can occur.
Page 537 When contacting HUMMER, please remember that your concern will likely be resolved at a dealer’s facility. That is why we suggest you follow Step One ﬁrst if you have a concern. STEP THREE — U.S. Owners: Both General Motors and your dealer are committed to making sure you are completely satisﬁed with your...
Page 538 STEP THREE — Canadian Owners: In the event that you do not feel your concerns have been addressed after following the procedure outlined in Steps 1 and 2, General Motors of Canada Limited wants you to be aware of its participation in a no-charge Mediation/Arbitration Program.
Page 539: Online Owner Center
Online Owner Center Online Owner Center (United States only) The Owner Center is a resource for your GM ownership needs. Speciﬁc vehicle information can be found in one place. The Online Owner Center allows you to: • Get e-mail service reminders. •...
Page 540: Customer Assistance For Text
1-800-263-3830.) Customer Assistance Offices HUMMER encourages customers to call the toll-free number for assistance. However, if a customer wishes to write or e-mail HUMMER, refer to the addresses below. United States – Customer Assistance HUMMER Customer Assistance Center P.O. Box 33177 Detroit, MI 48232-5177 www.HUMMER.com...
Page 541: Gm Mobility Reimbursement Program
Overseas – Customer Assistance Please contact the local General Motors Business Unit. Mexico, Central America and Caribbean Islands/Countries (Except Puerto Rico and U.S. Virgin Islands) – Customer Assistance General Motors de Mexico, S. de R.L. de C.V. Customer Assistance Center Paseo de la Reforma # 2740 Col.
Page 542: Roadside Assistance Program
Roadside Assistance Program As the owner of a new HUMMER vehicle, you are automatically enrolled in the HUMMER Roadside Assistance program. This value-added service is intended to provide peace of mind as you drive in the city or travel the open road. In the U.S.,...
Page 543 While we hope you never have the occasion to use our service, it is added security while traveling for you and your family. Remember, we are only a phone call away. In the U.S., call HUMMER Roadside Assistance: 1-866-HUMMER6 (486-6376), text telephone (TTY) users, call 1-888-889-2438.
Page 544: Courtesy Transportation
Courtesy Transportation To enhance your ownership experience, we and our participating dealers are proud to offer Courtesy Transportation, a customer support program for new vehicles. The Courtesy Transportation program is offered to customers in conjunction with the Bumper-to-Bumper (U.S.) or Base Warranty (Canada) coverage provided by the New Vehicle Limited Warranty.
Page 545 Public Transportation or Fuel Reimbursement If your vehicle requires warranty repairs, reimbursement of public transportation expenses may be available. In addition, for U.S. customers, should you arrange transportation through a friend or relative, reimbursement for reasonable fuel expenses may be available, up to a ﬁve-day maximum.
Page 546: Vehicle Data Collection And Event Data Recorders
Vehicle Data Collection and Event Data Recorders Your vehicle, like other modern motor vehicles, has a number of sophisticated computer systems that monitor and control several aspects of the vehicle’s performance. Your vehicle uses on-board vehicle computers to monitor emission control components to optimize fuel economy, to monitor conditions for airbag deployment and, if so equipped, to provide anti-lock braking and to help the driver control the...
Page 547: Collision Damage Repair
In addition, once GM collects or receives data, GM may: • use the data for GM research needs, • make it available for research where appropriate conﬁdentiality is to be maintained and need is shown, or • share summary data which is not tied to a speciﬁc vehicle with non-GM organizations for research purposes.
Page 548 Recycled original equipment parts may also be used for repair. These parts are typically removed from vehicles that were total losses in prior accidents. In most cases, the parts being recycled are from undamaged sections of the vehicle. A recycled original equipment GM part, may be an acceptable choice to maintain your vehicle’s originally designed appearance and safety performance, however, the history of these parts...
Page 549 If such insurance coverage is not available from your current insurance carrier, consider switching to another insurance carrier. If your vehicle is leased, the leasing company may require you to have insurance that assures repairs with Genuine GM Original Equipment Manufacturer (OEM) parts or Genuine Manufacturer replacement parts.
Page 550 • Gather the important information you will need from the other driver. Things like name, address, phone number, driver’s license number, vehicle license plate, vehicle make, model and model year, Vehicle Identiﬁcation Number (VIN), insurance company and policy number, and a general description of the damage to the other vehicle.
Page 551 Managing the Vehicle Damage Repair Process In the event that your vehicle requires damage repairs, GM recommends that you take an active role in its repair. If you have a pre-determined repair facility of choice, take your vehicle there, or have it towed there.
Page 552: Reporting Safety Defects
Reporting Safety Defects to General Motors In addition to notifying NHTSA (or Transport Canada) in a situation like this, we certainly hope you’ll notify us. Please call us at 1-866-HUMMER6 (486-6376), or write: HUMMER Customer Assistance Center P.O. Box 33177 Detroit, MI 48232-5177...
Page 553: Service Publications Ordering
In Canada, please call us at 1-800-263-3777 (English) or 1-800-263-7854 (French). Or, write: General Motors of Canada Limited Customer Communication Centre CA1-163-005 1908 Colonel Sam Drive Oshawa, Ontario L1H 8P7 Service Publications Ordering Information Service Manuals Service Manuals have the diagnosis and repair information on engines, transmission, axle suspension, brakes, electrical, steering, body, etc.
Page 554 Owner Information Owner publications are written speciﬁcally for owners and intended to provide basic operational information about the vehicle. The owner manual will include the Maintenance Schedule for all models. In-Portfolio: Includes a Portfolio, Owner Manual, and Warranty Booklet. RETAIL SELL PRICE: $35.00 (U.S.) plus Processing fee Without Portfolio: Owner Manual only.
Page 555 Accessories and Modiﬁcations ... 392 Accessory Inﬂator ... 466 Accessory Power Outlet(s) ... 196 Adding Equipment to Your Airbag-Equipped Vehicle ... 89 Additives, Fuel ... 395 Add-On Electrical Equipment ... 503 Air Cleaner/Filter, Engine ... 409 Air Conditioning ... 197 Air Suspension ...
Page 556 Appearance Care (cont.) Tires ... 499 Underbody Maintenance ... 500 Vehicle Care/Appearance Materials ... 501 Washing Your Vehicle ... 495 Weatherstrips ... 495 Windshield, Backglass, and Wiper Blades ... 498 Wood Panels ... 495 Ashtray(s) ... 197 Assist Steps ... 338 Audio System(s) ...
Page 557 Bulb Replacement ... 441 Daytime Running Lamps ... 443 Front Turn Signal and Parking Lamps ... 442 Halogen Bulbs ... 441 Headlamps ... 441 Replacement Bulbs ... 446 Roof Marker Lamps ... 443 Taillamps, Turn Signal, Stoplamps and Back-up Lamps ... 444 Buying New Tires ...
Page 558 Cleaning Aluminum Wheels ... 498 Exterior Lamps/Lenses ... 497 Fabric/Carpet ... 493 Finish Care ... 497 Inside of Your Vehicle ... 491 Instrument Panel, Vinyl, and Other Plastic Surfaces ... 494 Leather ... 494 Speaker Covers ... 495 Tires ... 499 Underbody Maintenance ...
Page 559 Daytime Running Lamps ... 188 Defensive Driving ... 302 Delayed Locking ... 102 Doing Your Own Service Work ... 393 Dome Lamp Override ... 191 Dome Lamps ... 191 Door Delayed Locking ... 102 Locks ... 100 Power Door Locks ... 101 Programmable Automatic Door Locks ...
Page 560 Electrical System (cont.) Underhood Fuse Block ... 507 Windshield Wiper Fuses ... 503 Electronically Controlled Air Suspension System ... 372 Engine Air Cleaner/Filter ... 409 Battery ... 431 Check and Service Engine Soon Light ... 215 Coolant ... 415 Coolant Heater ... 123 Coolant Temperature Gage ...
Page 561 Fuel (cont.) Filling Your Tank ... 397 Fuels in Foreign Countries ... 396 Gage ... 221 Gasoline Octane ... 394 Gasoline Speciﬁcations ... 394 Low Warning Light ... 221 Fuses Center Instrument Panel Fuse Block ... 506 Fuses and Circuit Breakers ... 504 Instrument Panel Fuse Block ...
Page 562 Highway Hypnosis ... 350 Hill and Mountain Roads ... 351 Hood Checking Things Under ... 400 Release ... 400 Horn ... 177 How to Use This Manual ... 4 How to Wear Safety Belts Properly ... 29 Ignition Positions ... 120 Infants and Young Children, Restraints ...
Page 563 Light (cont.) Highbeam On ... 220 Low Fuel Warning ... 221 Malfunction Indicator ... 215 Safety Belt Reminder ... 206 Security ... 219 Tow/Haul Mode ... 220 Traction Off ... 212 Lighting Entry/Exit ... 191 Loading Your Vehicle ... 362 Locking Rear Axle ...
Page 564 Mirrors Automatic Dimming Rearview with Compass and Temperature Display ... 139 Outside Automatic Dimming Mirror with Curb View Assist ... 144 Outside Convex Mirror ... 143 Outside Heated Mirrors ... 143 Outside Power Mirrors ... 142 MyGMLink.com ... 539 Navigation/Radio System, see Navigation Manual ...
Page 565 Paint, Damage ... 499 Park Aid ... 192 Park (P) Shifting Into ... 134 Shifting Out of ... 135 Parking Brake ... 133 Over Things That Burn ... 136 Passing ... 314 ® Passlock ... 118 Power Accessory Outlet(s) ... 196 Door Locks ...
Page 566 Rear Safety Belt Comfort Guides ... 42 Rear Seat Armrest ... 164 Rear Seat Audio (RSA) ... 294 Rear Seat Entertainment System ... 271 Rear Seat Passengers, Safety Belts ... 39 Rear Vision Camera ... 192 Rear Windshield Washer/Wiper ... 182 Rearview Mirror, Automatic Dimming with Compass and Temperature Display ...
Page 567 Safety Belts (cont.) Rear Safety Belt Comfort Guides ... 42 Rear Seat Passengers ... 39 Right Front Passenger Position ... 39 Safety Belt Extender ... 45 Safety Belt Use During Pregnancy ... 38 Safety Belts Are for Everyone ... 24 Safety Warnings and Symbols ...
Page 568 Starting Your Engine ... 121 Steering ... 312 Steering Wheel Controls, Audio ... 296 Steering Wheel, Tilt Wheel ... 177 Storage Areas All-Weather Cargo Area ... 165 Center Console Storage Area ... 160 Center Overhead Console ... 160 Glove Box ... 160 Luggage Carrier ...
Page 569 Tires (cont.) Uniform Tire Quality Grading ... 462 Wheel Alignment and Tire Balance ... 463 Wheel Replacement ... 464 When It Is Time for New Tires ... 459 Tonneau Cover ... 167 Tool Kit ... 360 Tow/Haul Mode ... 127 Tow/Haul Mode Light ...
Page 570 Warning Lights, Gages and Indicators ... 204 Warnings DIC Warnings and Messages ... 226 Hazard Warning Flashers ... 176 Other Warning Devices ... 177 Safety and Symbols ... 4 Vehicle Damage ... 5 Wheels Alignment and Tire Balance ... 463 Different Size ...

Hummer 2007 H2 Owner's Manual

Section 1 Seats and Restraint Systems

Seats and Restraint Systems

Front Seats

Rear Seats

Safety Belts

Child Restraints

Airbag System

Restraint System Check

Section 2 Features and Controls

Features and Controls

Keys

Doors and Locks

Windows

Theft-Deterrent Systems

Starting and Operating Your Vehicle

Mirrors

Onstar System

Universal Home Remote System

Storage Areas

Sunroof

Section 3 Instrument Panel

Instrument Panel Overview

Instrument Panel

Climate Controls

Warning Lights, Gages, and Indicators

Driver Information Center (DIC)

Audio System(S)

Section 4 Driving Your Vehicle

Driving Your Vehicle

Your Driving, the Road, and Your Vehicle

Towing

Section 5 Service and Appearance Care

Service and Appearance Care

Service

Fuel

Checking Things under the Hood

Rear Axle

Four-Wheel Drive

Front Axle

Bulb Replacement

Windshield Wiper Blade Replacement

Tires

Appearance Care

Vehicle Identiﬁcation

Electrical System

Capacities and Speciﬁcations

Quick Links

Chapters

Related Manuals for Hummer 2007 H2

Summary of Contents for Hummer 2007 H2
