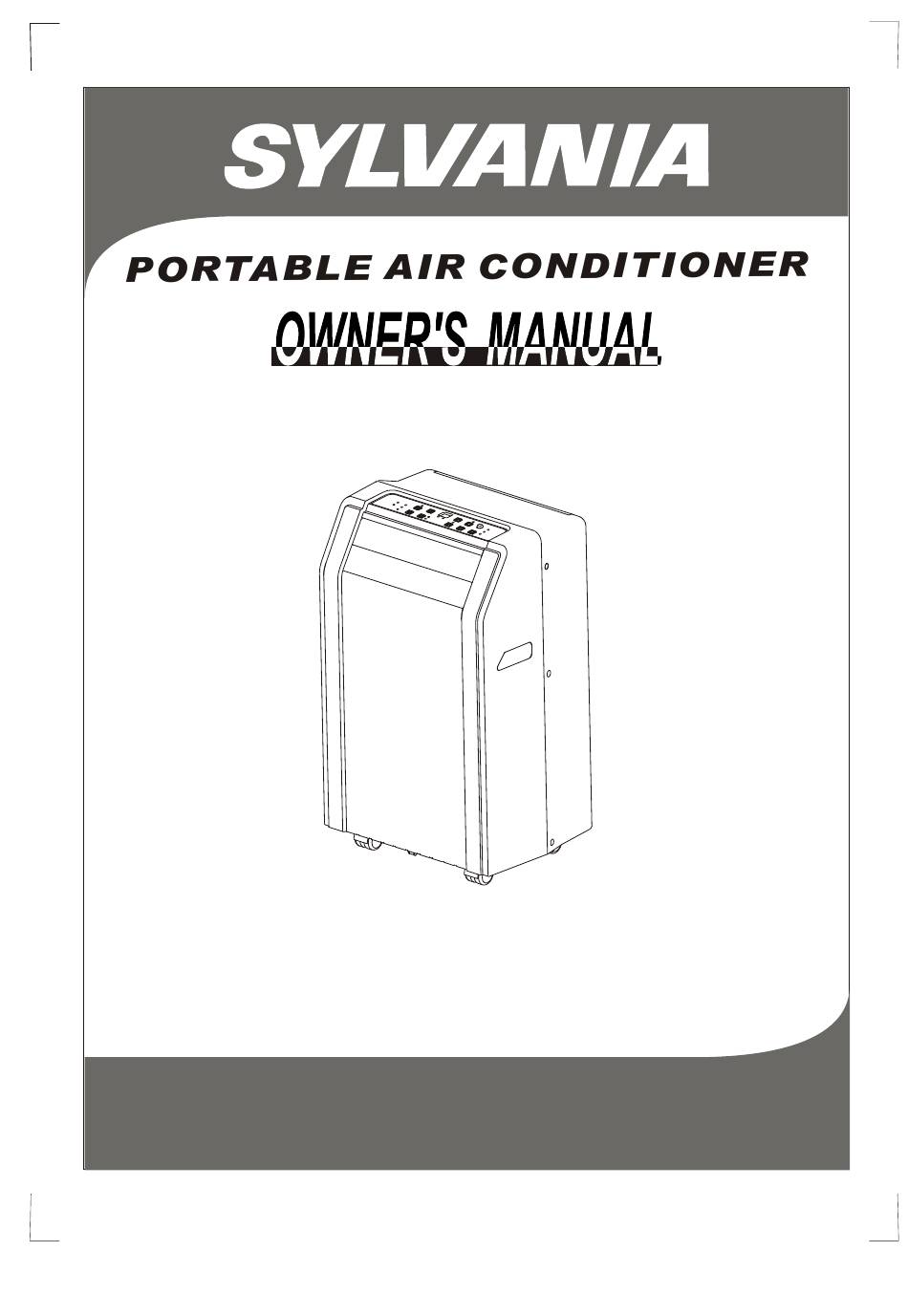

SYL-08PE
SERVICE NUMBER (1-866-277-7878)
Inside you will find many helpful hints on how to use and maintain your air conditioner properly. Just
a little preventative care on your part can save you a great deal of time and money over the life of
your air conditioner. Before operating this product, please read the instructions carefully and save this
manual for future use.
Advertisement
Table of Contents
Related Manuals for Sylvania SYL-08PE
Summary of Contents for Sylvania SYL-08PE
- Page 1 SYL-08PE SERVICE NUMBER (1-866-277-7878) Inside you will find many helpful hints on how to use and maintain your air conditioner properly. Just a little preventative care on your part can save you a great deal of time and money over the life of your air conditioner.
-
Page 2: Table Of Contents
CONTENTS SOCIABLE REMARK Sociable remark..........................2 SAFETY PRECAUTIONS Safety rules ............................3 Operating condition ...........................3 Electrical information .........................4 IDENTIFICATION OF PARTS Accessories ............................4 Names of parts...........................5 AIR CONDITIONER FEATURES Electronic control operating instructions ...................6 OPERATING INSTRUCTIONS Operating instructions ........................7 INSTALLATION INSTRUCTIONS Location ............................9 Window kit installation ........................9 Exhaust hose installation ........................13 Water drainage ..........................14... -
Page 3: Sociable Remark
SOCIABLE REMARK When using this air conditioner in the European countries, the following information must be followed: Separate DISPOSAL: Do not dispose this product as unsorted municipal waste. collection of such waste for special treatment is necessary. It is prohibited to dispose of this appliance in domestic household waste. For disposal, there are several possibilities: A) The municipality has established collection systems, where electronic waste can be disposed of at least free of charge to the user. -
Page 4: Safety Precautions Safety Rules
SAFETY PRECAUTIONS Safety rules To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. Always do this Never do this Do not operate your air conditioner in a wet room such as a bathroom or laundry room. -
Page 5: Electrical Information
IDENTIFICATION OF PARTS WARNING For your safety Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. Avoid fire hazard or electric shock. Do not use an extension cord or an adaptor plug. Do not remove any prong from the power cord. -
Page 6: Names Of Parts
IDENTIFICATION OF PARTS NAMES OF PARTS Front Operation Panel Horizontal Louver Blade (swing automatically) Caster Carrying Handle (both side) Fig.1 Model A Operation Panel Horizontal Louver Blade (manually) Remote signal receptor Caster Carrying Handle (both side) Model B Fig.2 Rear Upper Air Filter (Behind the grille) Air Outlet... -
Page 7: Air Conditioner Features
AIR CONDITIONER FEATURES ELECTRONIC CONTROL OPERATING INSTRUCTIONS Before you begin, thoroughly familiarize yourself with the control panel and remote controller and all its functions, then follow the symbol for the functions you desire. The unit can be controlled by the unit control panel alone or with the remote controller . NOTE: This manual does not include Remote Controller Operations, see the <<Remote Controller Instruction>>... -
Page 8: Operating Instructions
OPERATING INSTRUCTIONS ION button(optional) The air conditioner will control room temperature automatically around the Press the ION button, the ion generator temperature point set by you. is energized and will help to remove Under AUTO mode, you can not pollen and impurities from the air, select the fan speed. - Page 9 OPERATING INSTRUCTIONS Other features Power Outage In the case of a power outage or interruption, the unit will automatically re-start after the power is restored. Wait 3 minutes before resuming operation After the unit has stopped, it can not restart Adjust manually operation in the first 3 minutes.
-
Page 10: Installation Instructions Location
INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS Location The air conditioner should be placed on a firm foundation to minimize noise and vibration. For safe and secure positioning, place the unit on a smooth, level floor strong enough to support the unit. The unit has casters to aid placement, but it should only be rolled on smooth, flat surfaces. - Page 11 INSTALLATION INSTRUCTIONS Installation in a double-hung sash windows Foam seal A (adhesive type) 1. Cut the foam seal(adhesive type) to the proper length and attach it to the window sill. Fig.10 2. Attach the window slider kit to the window sill. Adjust the Fig.10 length of the window slider kit according to the width of shorten and adjust the window kit if the width of...
- Page 12 INSTALLATION INSTRUCTIONS Installation in a sliding sash windows Foam seal A 1. Cut the foam seal(adhesive type) to the proper length and (adhesive type) attach it to the window frame. See Fig.14. 2. Attach the window slider kit to the window sill. Adjust the length of the window slider kit according to the width of shorten and adjust the window kit if the width of Fig.14...
- Page 13 INSTALLATION INSTRUCTIONS NOTE: Please seal the gap with white foam seal (supplied) between the window kit and the window sill when there is the gap between them as shown below: Window kit Window kit Seal the white foam seal White foam seal Window sill Window sill...
-
Page 14: Exhaust Hose Installation
INSTALLATION INSTRUCTIONS Exhaust hose installation: The exhaust hose and adaptor must be installed or removed in accordance with the usage mode. Fig.18a Fig.18b COOL mode Install Remove FAN or DEHUMIDIIFY mode 1. Install the window Exhaust adaptor B onto the exhaust hose as shown in Fig.18a. -
Page 15: Water Drainage
INSTALLATION INSTRUCTIONS Water drainage: During dehumidifying modes, remove the drain Remove the plug from the back of the unit, install the drain drain plug connector(5/8 universal female mender) with 3 4 hose(locally purchased). For the models without drain connector, just attach the drain hose to the hole. -
Page 16: Care And Maintenance
CARE AND MAINTENANCE CARE AND MAINTENANCE Air filter (slide out) IMPORTANT: 1) Be sure to unplug the unit before cleaning or servicing. 2) Do not use gasoline, thinner or other chemicals to clean the unit. 3) Do not wash the unit directly under a tap or using a hose. It may cause electrical danger. -
Page 17: Troubleshooting Tips
