Meridian M2008ORB Manual

white wire
black wire
wire Connector
ground wire
screw
pillar
safety cable

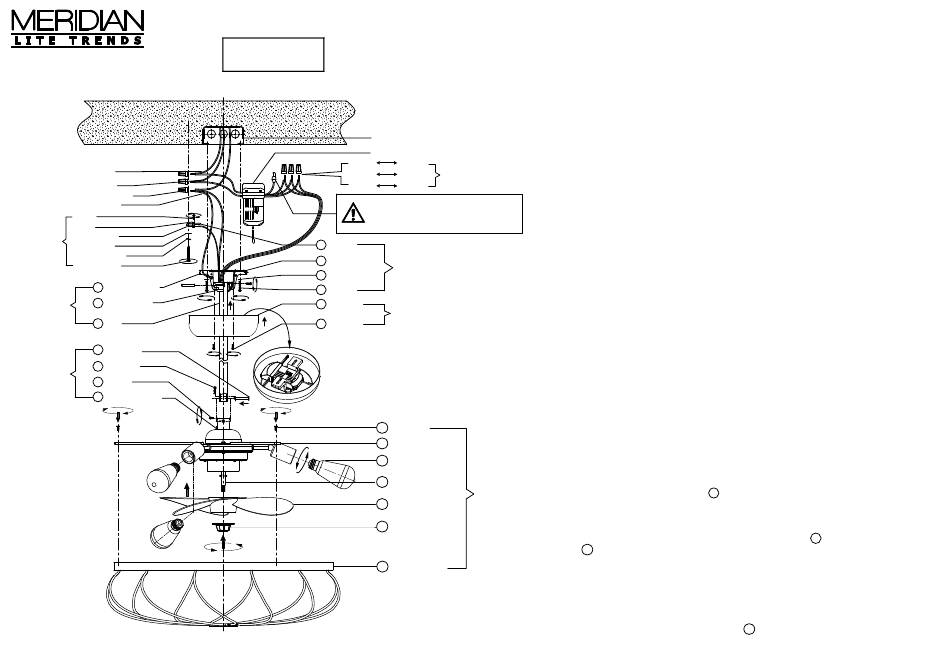

Figure 1
flat washer
spring washer
safety screw
hanger frame
A
downrod ball
C
(3)
B rod
F hitch pin
lock pin
G
(2)
screw
H
E center column
Caution- The max wattage
This product
for this fan is 300w. Lamps
supports dimming
exceeding this wattage could
damage the control and receiver.
junction box
controller
black black
white white
blue blue
WARNING:
This product has no air guide function.
This gray line is redundant. Do not remove
the insulation terminal to avoid electric shock.
1 cable
2
hanger frame
(4)
3 washer
4 screw
canopy
5
(6)
6 screw
screw
O
Support
M
L bulb
motor
J
I fan blade
Plastic fastener
K
N protective net
CEILING FAN LIGHT
READ AND SAVE THESE INSTRUCTIONS
CAUTION:
1. Be certain that no bare wire strands are exposed outside of the wire connectors
2.Disconnect power at main circuit breaker to prevent possible injury from electrical shock.
3.To reduce the risk of fire, electric shock, or personal injury, mount to outlet box marked
and use mounting screws provided with the outlet box.
4. Warning - to reduce the risk of electric shock, this fan must be installed with an
isolating wall control/switch
5. Warning - to reduce the risk of fire, electric shock, or personal injury, mount
to outlet box marked acceptable for fan support of 22.7 kg or less,
(5)
and use mounting screws provided with the outlet box
ASSEMBLY & INSTALLATION INSTRUCTIONS
Notice:
1.This product contains chemicals known to the state of California to
cause cancer, birth defects and / or other reproductive harm. Thoroughly wash
hands after installing, handling, cleaning, or otherwise touching this product.
2.Before using this product and doing maintenance, please read these instructions carefully
and save them for future use.
3.This product is suitable for use with solid-state speed controls
4. The installation is to be in accordance with the national electrical code,
ANSI/NFPA 70 and local codes.
5.After being wired, the ungrounded wire and grounded/grounding wire must be separated in
two side of the outlet box
6.The splices, after being made, should be turned upward and pushed carefully up into
the outlet box.
7. The remote controller is suitable for ceiling fan use.
8.This unit is packed completely for ceiling fan use.
Disconnect the power before installation.
Use and Installation:
Remove all fixture components and the parts bag from the carton.
1: (I) The groove of the fan blade is aligned with the bolt on the axis of (J) motor,
and then the (K) plastic fastener is screwed into the middle axis of the motor to
tighten and fix the fan blade.
(L) Rotate the bulb into the lamp holder, (N) The teeth of the protective net mesh are
tightened with (O) screw to align the strip holes of the (M) support.
2: Pass fixture,safety cable(1) and canopy 5 through the rod(B).place the rod
(1)
into the center column(E),align the holes at the bottom of the rod with the center
column and carefully insert hitch pin(F) through,theninsert the lock pin(G) through
the holes near the end of the hitch pin.Tighten the screws(H) with provided tool.
3: Secure the hanger bracket(A) to the junction box with the screws 4 and
washers 3 ,then place the downrod ball(C) into the hanger bracket.
4: An additional safety support is provided to prevent the fan from falling. Secure the
safety cable to the ceiling joist with screw and washer,as illustrated in Figure 1.
5: Connect main power wire from junction box with the wires of the controller, black
with black, white with white and attach fixture ground wire and ground wire from outlet
box with wire nut. Connect the output wires from controller and fixture wires with wire
connector, colors: black with black, white with white, blue with blue.
6:Secure the canopy to hanger bracket with screws 6 .
M2008ORB
