Chamberlain ELITE Series Wiring Diagram

• DISCONNECT power BEFORE installing or servicing operator.
• Replace ONLY with fuse of same type and rating.
• To be compliant with UL325 and industry safety guidelines, qualified monitored
external entrapment protection devices such as photoelectric sensors or edge
sensors are required to be installed with this operator at each entrapment zone.
Use ONLY LiftMaster approved entrapment protection devices (refer to the
accessory page of manual).
• See manual regarding maintenance and required safety testing prior to servicing.
Diagnostic Codes
TO VIEW THE CODES:
Press and hold ...then press and ...then press and hold OPEN
STOP... hold CLOSE... until "Er" shows.
The operator will show the code sequence number followed by the code number:
A SECOND LATER....
CODE SEQUENCE NUMBER CODE NUMBER
The first number shown is the most recent The second number shown after the code
code (example: "01"). The display will show sequence number is the code itself
the sequence of codes that occurred starting (31-99, example" "31").
with "01" and going up to code "20".
TO SCROLL THROUGH THE SAVED CODES:
Press the OPEN button to cycle to the most recent code ("01"). Press the CLOSE button
to cycle to the oldest code (up to "20").
CODE COLOR KEY:
LiftMaster System External Entrapment Protection
Installed System Inherent Entrapment Protection
Informational
MEANING SOLUTION
Main control board has Disconnect all power, wait 15 seconds, then reconnect power
31 experienced an internal (reboot). If issue continues, replace main control board.
failure.
Max-Run-Time Exceeded Attempt to run and review for duration and obstructions.
35 Error Max-Run-Time can be re-measured by saving one or both of
the limits again.
Product ID Error Was the control board just replaced? If so, erase limits, enter
limit setup mode and set limits. If not, disconnect all power,
36
wait 15 seconds, then reconnect power before changing
product ID harness.
Product ID Failure Unplug product ID harness then plug back in. Disconnect all
37 power, wait 15 seconds, then reconnect power before
replacing product ID harness.
43 Failure or missing EXIT loop Check loop wiring throughout connection. May be a short in
the loop, or an open connection in the loop (LiftMaster Plug-
Failure or missing SHADOW
44 in Loop Detector only).
loop
Failure or missing
45
INTERRUPT loop
46 Wireless edge battery low Replace batteries in wireless edge.
Power board fault Relay fault detected in the power board. Replace the power
47
board.
Run-Distance Error Limits are less than 4 feet apart or longer than what was
50 learned. Check limit positions and proper switch function.
Run-distance can be re-learned by setting the handing again.
Brownout occurred AC/DC board supply dipped below allowable level. Review
53 power supply and wiring. If rebooting, ensure enough time
for discharge of power to force a fresh boot.
Wireless Second Operator Check the second operator for power. If OFF, restore power
54 Communication Error and try to run the system. If powered, deactivate the wireless
feature and then re-learn the second operator.
55 System AC Overvoltage Call utility.
56 System AC Undervoltage Check wiring and wire gauge to operator.
Limit Error - Stuck Switch Check switch for proper operation. Check harness for shorts.
57
Replace if defective.
58 Limit Error - Wrong Switch Check motor wiring.
Missing Power Board Check harness for shorts. Check for presence of power
59
board.
Minimum number of Review monitored entrapment protection device connections.
monitored entrapment
60
protection devices (one) not
installed.
CLOSE EYE/INTERRUPT held Check wired input on main board; check for alignment or
61
more than 3 minutes obstruction.
CLOSE EDGE held more than
62
3 minutes
OPEN EYE/EDGE held more
63
than 3 minutes
CLOSE EYE/INTERRUPT held Check wired input on expansion board; check for alignment
64
more than 3 minutes or obstruction.
CLOSE EYE/EDGE held more
65
than 3 minutes
OPEN EYE/EDGE held more
66
than 3 minutes
Wireless edge triggered more Check wired input for wiring issue or obstruction.
67
than 3 minutes
Wireless edge loss of Check wireless edge inputs.
68
monitoring
Wireless edge triggered IF an obstruction occurred, no action required. If an
69
obstruction did NOT occur, check inputs and wiring.
CLOSE EYE/INTERRUPT IF an obstruction occurred, no action required. If an
triggered, causing reversal, obstruction did NOT occur, check alignment, inputs, and
70
preventing close, or resetting wiring on main board.
TTC
CLOSE EDGE triggered,
71 causing reversal, preventing
close, or canceling TTC
OPEN EYE/EDGE triggered,
72 causing reversal or
preventing opening
CLOSE EYE/INTERRUPT IF an obstruction occurred, no action required. If an
triggered, causing reversal, obstruction did NOT occur, check alignment, inputs, and
73
preventing close, or resetting wiring on expansion board.
TTC
CLOSE EYE/EDGE triggered,
causing reversal and
74
preventing close or canceling
TTC
OPEN EYE/EDGE triggered,
75 causing reversal or
preventing opening
Close input (EYE/EDGE) Check inputs and communication method between operators,
80 communication fault from either wired bus or radio. Ensure operator is powered. May
other operator have to erase the wireless communication and reprogram the
two operators.
Open input (EYE/EDGE)
81 communication fault from
other operator
Close input (EYE/EDGE) Check the connections between the main board and the
82 communication fault expansion board.
(expansion board)
Open input (EYE/EDGE)
83 communication fault
(expansion board)
Force Reversal Look for obstruction, if no obstruction, check that the
mechanical assembly is engaged and free to move. Refer to
91
manual for Limit and Force Adjustment, and Obstruction
Test.
RPM / STALL Reversal Check for obstruction. If no obstruction, check the operator
93 cable wiring and that the operator arm is engaged and free to
move. Replace RPM assembly.
AC motor no start condition Motor failed to start. Check for an obstructed gate or binding
95
mechanism. Check start capacitor connections and condition.
99 Normal Operation No action required
For more information, please visit www.devancocanada.com or call toll free at 855-931-3334
CONTROL BOARD
BIPART
DELAY
4
2 6
8
OPEN OPEN
RIGHT
LEFT
HANDING
ANTENNA CURRENT MOTOR DRIVE RPM & LIMITS ALARM EXP. 24 VAC IN
SENSOR ID RESET BOARD
ANTENNA
MOTOR DRIVE RPM & LIMITS ALARM EXP.
CURRENT
ID RESET
SENSOR BOARD
2 1 4 3 2 1
2 1 10 9 8 7 6 5 4 3 2 1 4 3 2 1
Red
Blue
Orange
Yellow
Green
Gray
Purple
Black
White
RESET
BUTTON
Red
Black
PRODUCT ID
SL585U - Blue
SL595U - Black
Yellow
Yellow
Yellow
1 2 3 4 5 6 7 8 9 1 2
J8
J10
CURRENT
SENSOR SWITCH
(ORANGE)
White
COMM
(WHITE)
SWITCH Black
(YELLOW) 120V
(BLACK) Red
PWR IN HOT
208V
(BLACK)
(RED) Orange
(BLACK)
120V
240V
OUTLET (ORANGE)
(WHITE)
TRANSFORMER
120V 240V
3
J11 J12
12
120V 240V MOTOR
HARNESS
PWR IN
NEUTRAL
(WHITE) J1
POWER BOARD
SINGLE PHASE
White
Black
EXPANSION BOARD
PLUG-IN LOOP DETECTOR
Model LOOPDETLM
SHADOW INTERUPT EXIT
INTERRUPT LOOP
SHADOW LOOP
AUXILIARY
RELAY 1
EXIT LOOP
Jumper
3-BUTTON CONTROL STATION
N.C.
FIRE DEPARTMENT
N.C.
COM
N.O.
ACCESSORY POWER
24 Vac 500 mA Maximum
24 VAC IN
OPTIONAL ACCESSORY
WIRING
EXIT
ACCESSORY POWER
24VAC 2.2 AMPS MAX
Blue
Yellow
Blue
Black
Red
ALARM
COM
120
208
24 VAC SOLENOID BRAKE
240
3.15A FUSE
480
TRANSFORMER
Blue
To configure the motor for
208V, swap the orange and
red wires and plug motor
White
into the 240V position.
Blue
12
Yellow
RUN 1
11
Yellow/Black
10
Orange
9
White
RUN 2
8
Red
7
Purple
6
1
5
Yellow/Black
4
Purple
3 THERMAL SWITCH
2
10
Black
1
START
HORSE POWER ID
ACCESSORY POWER OUTLET
1/2 HP - Yellow
1 HP - Purple
Attach to 1 1/2 HP - Blue
metal chassis
AC POWER SWITCH
These switches determine if the corresponding
photoelectric sensor or edge sensor will function
for the OPEN or CLOSE cycle.
POWER
EYE
1 PHOTOELECTRIC SENSORS
ONLY
EYE/
2 PHOTOELECTRIC SENSORS
EDGE
EYE/
3
EDGE or EDGE SENSORS
COM
SBC SINGLE BUTTON CONTROL STATION
OPN
3-BUTTON CONTROL
CLS
STP STATION
N.C.
COM
Jumper
These switches control how the Auxiliary Relays will function.
SWITCH SETTINGS
1 2 3 RELAY 1 RELAY 2
OFF OFF OFF Relay always off Relay always off
OFF OFF ON Energizes at open limit Energizes at open limit
OFF ON OFF Energizes when not at Energizes when not at
AUXILIARY
close limit close limit
RELAY 2
OFF ON ON Energizes when motor is on Energizes when motor is on
Energizes 3 seconds prior Energizes 3 seconds prior
ON OFF OFF
and during gate motion and during gate motion
ON ON OFF Not used Not used
ON OFF ON Energizes when gate is Energizes when gate is
tampered with tampered with
ON ON ON LEDs will blink cycle count Not used

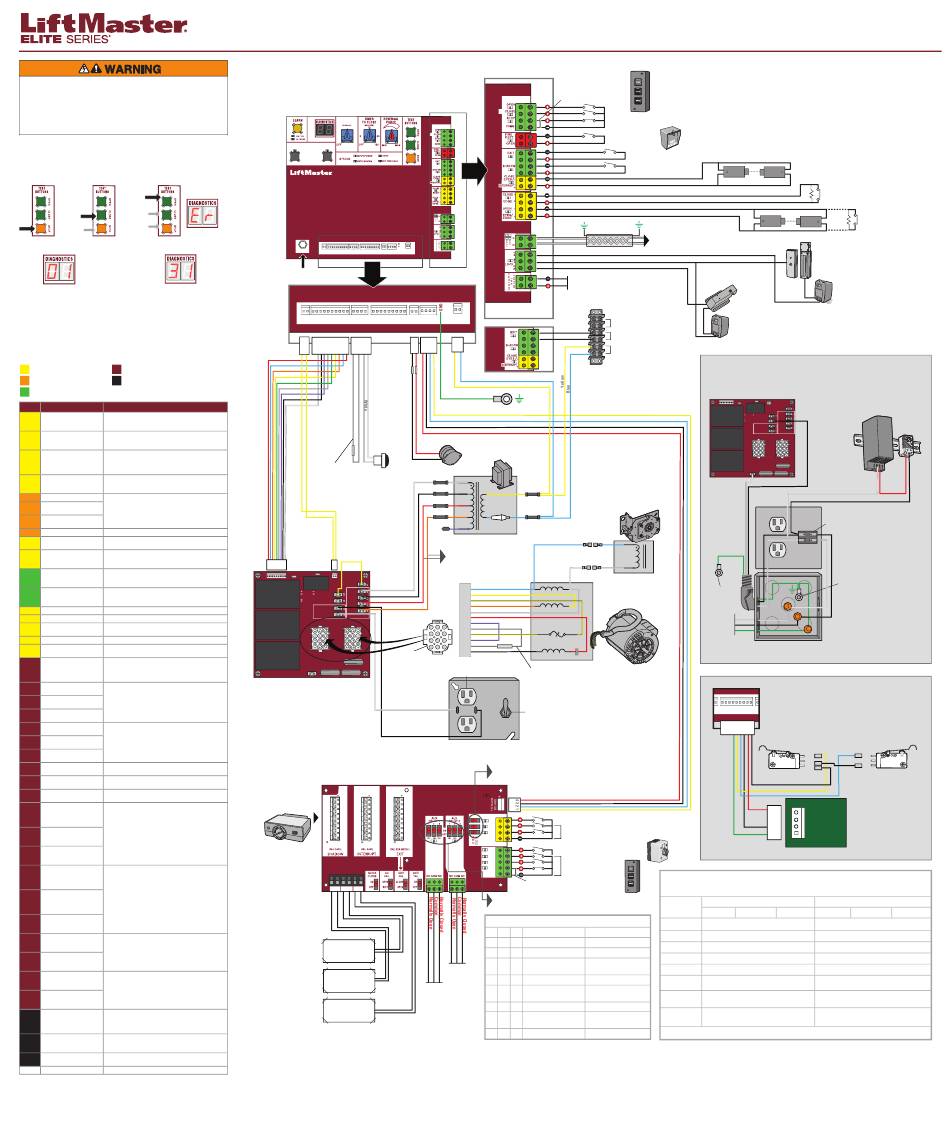

SINGLE PHASE WIRING DIAGRAM
