Page 2: Emergency Towing
Every 2001 DeVille under warranty is backed with the following services: Courtesy Transportation 1-800-882-1112 1-800-882-1112 that provides in an emergency: Free lockout assistance Free dead-battery assistance Free out-of-fuel assistance Free flat-tire change Emergency towing...
Page 4 Seats and Seat Controls Section Safety Belts Windows Section Keys and Door Locks Remote Keyless Entry System Trunk Release Automatic Transaxle Parking Brake Tilt Wheel Turn Signal/Multifunction Lever Windshield Wipers Cruise Control Exterior and Interior Lamps Mirrors Table of Contents Seats and Restraint Systems Air Bag Systems Restraint Systems for Children...
Page 5 Heating and Air Conditioning Section Setting the Radio Clock Radio/Cassette Player/CD Player Defensive Driving Section Drunken Driving Control of a Vehicle Braking Hazard Warning Flashers Section Jump Starting Towing Your Vehicle Table of Contents (cont'd) Comfort Controls and Audio Systems Radio Theft-Deterrent Feature Steering Wheel Controls Your Driving and the Road...
Page 6 Fuel Section Checking Fluids and Lubricants GM Oil Life System™ Engine Air Cleaner/Filter Passenger Compartment Air Filter Brakes Bulb Replacement Scheduled Maintenance Owner Checks and Services Periodic Maintenance Inspections Table of Contents (cont'd) Service and Appearance Care Windshield Wiper Blade Replacement Tires and Wheels Appearance Care Electrical System/Fuses and Circuit Breakers...
Page 7 Customer Satisfaction Procedures Section Customer Assistance Offices Roadside Assistance and Courtesy Transportation In the Index you will find an alphabetical listing of almost every subject in this manual. Section Please refer to the last page of this manual for your Table of Contents (cont'd) Customer Assistance Information Warranty Information (See Warranty Manual)
Page 8 For vehicles first sold in Canada, substitute the name “General Motors of Canada Limited” for Cadillac Motor Car Division whenever it appears in this manual. Please keep this manual in your vehicle, so it will be there if you ever need it when you’re on the road.
Page 9: How To Use This Manual
How to Use this Manual Many people read their owner’s manual from beginning to end when they first receive their new vehicle. If you do this, it will help you learn about the features and controls for your vehicle. In this manual, you’ll find that pictures and words work together to explain things quickly.
Page 10: Vehicle Damage Warnings
Vehicle Damage Warnings Also, in this book you will find these notices: NOTICE: These mean there is something that could damage your vehicle. viii In the notice area, we tell you about something that can damage your vehicle. Many times, this damage would not be covered by your warranty, and it could be costly.
Page 11: Vehicle Symbols
Vehicle Symbols These are some of the symbols you may find on your vehicle. Also see “Warning Lights and Gages” in the Index. For example, These symbols these symbols are important for are used on an you and your original battery: passengers whenever your vehicle is driven:...
Page 12 a More Detailed Look at What's Under the Hood See Section 6 Hood Release See Section 6 Windshield Washer Fluid See Section 6 Service Station Guide Tire Pressure Cooling System See Section 6 See Section 5 Engine Oil Dipstick Remote Fuel See Section 6 Door Release See Section 6...
Page 13: Table Of Contents
Section 1 Seats and Restraint Systems Here you’ll find information about the seats in your vehicle and how to use your safety belts properly. You can also learn about some things you should not do with air bags and safety belts. Seats and Seat Controls Safety Belts: They’re for Everyone Here Are Questions Many People Ask About...
Page 14: Seats And Seat Controls
Seats and Seat Controls This section tells you about the power seats adjust them, and also about the reclining front seatbacks, memory seats, lumbar adjustments and heated seats. Power Seats The power seat controls are located on the outboard side of the front seat cushions.
Page 15 Massaging Lumbar (If Equipped) Push the top of the lumbar control located on the outboard side of the seat where it is marked AUTO briefly to activate the massage feature. The massage cycle will run continuously for up to 10 minutes and can be interrupted by pushing the lumbar control down briefly.
Page 16 Adaptive Seat Control (Option) The adaptive seat control is located on the outboard side of the driver’s seat. Use the power seat control first to get the proper position. When the ignition is turned to ON, press the top of the power lumbar control where it is marked AUTO to activate the adaptive feature.
Page 17 Memory Seat, Mirrors and Steering Wheel (Option) The controls for these features are located on the driver’s door panel, and are used to program and recall memory settings for the driver’s seating positions. Adjust the driver’s seat (including the seatback recliner, lumbar and shoulder belt height adjustments), both the outside mirrors and steering wheel to a comfortable position and then press the MEMORY SET button.
Page 18 If you use the remote keyless entry transmitter to enter Heated Seats (If Equipped) your vehicle, automatic seat and mirror movement will occur. The numbers on the back of the transmitters, 1 and 2, correspond to the numbers on the buttons on the door panel.
Page 19: Reclining Front Seatbacks
Your vehicle may have heated front and rear seats. The buttons are located on the armrests. The HEAT/OFF button controls the temperature settings HI, MED and LO. The other button is to choose BACK ONLY heating. The LO setting warms the seatback and cushion until the seat approximates body temperature.
Page 20 But don’t have a seatback reclined if your vehicle is moving. CAUTION: Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle up, your safety belts can’t do their job when you’re reclined like this. The shoulder belt can’t do its job.
Page 21: Safety Belts: They're For Everyone
Head Restraints Slide the head restraint up or down so that the top of the restraint is closest to the top of your ears. This position reduces the chance of a neck injury in a crash. The head restraints tilt forward and rearward also. The rear seat head restraints in your vehicle may be adjustable.
Page 22 CAUTION: It is extremely dangerous to ride in a cargo area, inside or outside of a vehicle. In a collision, people riding in these areas are more likely to be seriously injured or killed. Do not allow people to ride in any area of your vehicle that is not equipped with seats and safety belts.
Page 23: Why Safety Belts Work
Why Safety Belts Work When you ride in or on anything, you go as fast as it goes. Put someone on it. Take the simplest vehicle. Suppose it’s just a seat on wheels. 1-11...
Page 24 Get it up to speed. Then stop the vehicle. The rider doesn’t stop. 1-12 The person keeps going until stopped by something. In a real vehicle, it could be the windshield ...
Page 25 or the instrument panel ... or the safety belts! With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That’s why safety belts make such good sense. 1-13...
Page 26: Here Are Questions Many People Ask About Safety Belts -- And The Answers
Here Are Questions Many People Ask About Safety Belts and the Answers Won’t I be trapped in the vehicle after an accident if I’m wearing a safety belt? You could be whether you’re wearing a safety belt or not. But you can unbuckle a safety belt, even if you’re upside down.
Page 27: How To Wear Safety Belts Properly
How to Wear Safety Belts Properly Adults This part is only for people of adult size. Be aware that there are special things to know about safety belts and children. And there are different rules for smaller children and babies. If a child will be riding in your vehicle, see the part of this manual called “Children.”...
Page 28 4. Push the latch plate into the buckle until it clicks. Be sure to use the correct buckle when buckling your shoulder belt. If you find that the latch plate will not go fully into the buckle, see if you are using the buckle for the center passenger position.
Page 29 Shoulder Belt Height Adjuster Before you begin to drive, move the shoulder belt adjuster to the height that is right for you. To move it down, press down on the power seat recliner control and move the height adjuster to the desired position.
Page 30 What’s wrong with this? The shoulder belt is too loose. It won’t give nearly as much protection this way. 1-18 CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury.
Page 31 What’s wrong with this? The belt is buckled in the wrong place. CAUTION: You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen. The belt forces would be there, not at the pelvic bones.
Page 32 What’s wrong with this? The shoulder belt is worn under the arm. It should be worn over the shoulder at all times. 1-20 CAUTION: You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury.
Page 33 What’s wrong with this? The belt is twisted across the body. CAUTION: You can be seriously injured by a twisted belt. In a crash, you wouldn’t have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer to fix it.
Page 34: Safety Belt Use During Pregnancy
To unlatch the belt, just push the button on the buckle. The belt should go back out of the way. Before you close the door, be sure the belt is out of the way. If you slam the door on it, you can damage both the belt and your vehicle.
Page 35: Right Front Passenger Position
The best way to protect the fetus is to protect the mother. When a safety belt is worn properly, it’s more likely that the fetus won’t be hurt in a crash. For pregnant women, as for anyone, the key to making safety belts effective is wearing them properly.
Page 36 Here are the most important things to know about the air bag systems: CAUTION: You can be severely injured or killed in a crash if you aren’t wearing your safety belt have air bags. Wearing your safety belt during a crash helps reduce your chance of hitting things inside the vehicle or being ejected from it.
Page 37 CAUTION: Both frontal and side impact air bags inflate with great force, faster than the blink of an eye. If you’re too close to an inflating air bag, as you would be if you were leaning forward, it could seriously injure you. Safety belts help keep you in position for air bag inflation before and during a crash.
Page 38 United States Canada (Analog Only) There is an air bag readiness light on the instrument panel, which shows the words AIR BAG or an air bag symbol. The system checks the air bag electrical system for malfunctions. The light tells you if there is an electrical problem.
Page 39 The right front passenger’s frontal air bag is in the instrument panel on the passenger’s side. The driver’s side impact air bag is in the side of the driver’s seatback closest to the door. 1-27...
Page 40 The right front passenger’s side impact air bag is in the side of the passenger’s seatback closest to the door. 1-28 The side impact air bags for the rear seat outboard passenger positions are in the sides of the rear seatback closest to the doors.
Page 41 CAUTION: If something is between an occupant and an air bag, the bag might not inflate properly or it might force the object into that person. The path of an inflating air bag must be kept clear. Don’t put anything between an occupant and an air bag, and don’t attach or put anything on the steering wheel hub or on or near any other air bag covering and don’t let seat covers block...
Page 42 In any particular crash, no one can say whether an air bag should have inflated simply because of the damage to a vehicle or because of what the repair costs were. For frontal air bags, inflation is determined by the angle of the impact and how quickly the vehicle slows down in frontal and near frontal impacts.
Page 43 CAUTION: When an air bag inflates, there is dust in the air. This dust could cause breathing problems for people with a history of asthma or other breathing trouble. To avoid this, everyone in the vehicle should get out as soon as it is safe to do so. If you have breathing problems but can’t get out of the vehicle after an air bag inflates, then get fresh air by opening a window or a door.
Page 44 NOTICE: If you damage the covering for the driver’s or the right front passenger’s air bag, or the air bag covering on the driver’s, right front passenger’s or rear seatback, the bag may not work properly. You may have to replace the air bag module in the steering wheel, both the air bag module and the instrument panel for the right front passenger’s air bag, or both the air bag module...
Page 45: Safety Belt Pretensioners
Safety Belt Pretensioners Your vehicle has safety belt pretensioners. You’ll find them on the buckle end of the safety belts for the driver and right front passenger. They help the safety belts reduce a person’s forward movement in a moderate to severe crash in which the front of the vehicle hits something.
Page 46: Rear Seat Passengers
To make the belt shorter, pull its free end as shown until the belt is snug. Buckle, position and release it the same way as the lap part of a lap shoulder belt. If the belt isn’t long enough, see “Safety Belt Extender” at the end of this section. Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.
Page 47 Shoulder Belt All three rear seating positions have lap Here’s how to wear one properly. 1. Pick up the latch plate and pull the belt across you. Don’t let it get twisted. The shoulder belt may lock if you pull the belt across you very quickly.
Page 48 3. To make the lap part tight, pull down on the buckle The lap part of the belt should be worn low and snug on end of the belt as you pull up on the shoulder part. the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones.
Page 49 The safety belt locks if there’s a sudden stop or a crash, or if you pull the belt very quickly out of the retractor. CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury.
Page 50: Rear Safety Belt Comfort Guides For Children
Rear Safety Belt Comfort Guides for Children and Small Adults Rear shoulder belt comfort guides will provide added safety belt comfort for older children who have outgrown booster seats and for small adults. When installed on a shoulder belt, the comfort guide better positions the belt away from the neck and head.
Page 51 2. Slide the guide under and past the belt. The elastic cord must be under the belt. Then, place the guide over the belt, and insert the two edges of the belt into the slots of the guide. 3. Be sure that the belt is not twisted and it lies flat. The elastic cord must be under the belt and the guide on top.
Page 52: Children
4. Buckle, position and release the safety belt as described in “Rear Seat Passenger Positions” earlier in this section. Make sure that the shoulder belt crosses the shoulder. To remove and store the comfort guides, squeeze the belt edges together so that you can take them out from the guides.
Page 53 CAUTION: People should never hold a baby in their arms while riding in a vehicle. A baby doesn’t weigh much until a crash. During a crash a baby will become so heavy it is not possible to hold it. CAUTION: (Continued) CAUTION: (Continued) For example, in a crash at only 25 mph (40 km/h), a 12...
Page 54 CAUTION: Children who are up against, or very close to, any air bag when it inflates can be seriously injured or killed. Air bags plus lap shoulder belts offer outstanding protection for adults and older children, but not for young children and infants. Neither the vehicle’s safety belt system nor its air bag system is designed for them.
Page 55 CAUTION: Newborn infants need complete support, including support for the head and neck. This is necessary because a newborn infant’s neck is weak and its head weighs so much compared with the rest of its body. In a crash, an infant in a rear facing seat settles into the restraint, so the crash forces can be distributed across the...
Page 56: Restraint Systems For Children
Restraint Systems for Children An infant car bed (A), a special bed made for use in a motor vehicle, is an infant restraint system designed to restrain or position a child on a continuous flat surface. Make sure that the infant’s head rests toward the center of the vehicle.
Page 57 A forward facing child seat (C E) provides restraint for the child’s body with the harness and also sometimes with surfaces such as T shaped or shelf A booster seat (F to improve the fit of the vehicle’s safety belt system. like shields.
Page 58: Where To Put The Restraint
How do child restraints work? A child restraint system is any device designed for use in a motor vehicle to restrain, seat, or position children. A built in child restraint system is a permanent part of the motor vehicle. An add child restraint system is a portable one, which is purchased by the vehicle’s owner.
Page 59 CAUTION: A child in a rear facing child restraint can be seriously injured or killed if the right front passenger’s air bag inflates. This is because the back of the rear facing child restraint would be very close to the inflating air bag. Always secure a rear facing child restraint in a rear seat.
Page 60: Top Strap
Top Strap Some child restraints have a top strap, or “top tether.” It can help restrain the child restraint during a collision. For it to work, a top strap must be properly anchored to the vehicle. If the child restraint does not have a top strap, one can be obtained, in kit form, for many child restraints.
Page 61 Anchor the top strap to one of these anchor points. Be sure to use an anchor point located on the same side of the vehicle as the seating position where the child restraint will be placed. If you have an adjustable head restraint, raise the head restraint and route the top strap under it.
Page 62 You’ll be using the lap shoulder belt. See the earlier part about the top strap if the child restraint has one. Be sure to follow the instructions that came with the child restraint. Secure the child in the child restraint when and as the instructions say.
Page 63 3. Buckle the belt. Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if you ever had to. 4. To tighten the belt, pull up on the shoulder belt while you push down on the child restraint. If you’re using a forward facing child restraint, you may find it helpful to use your knee to push down on the child...
Page 64: Securing A Child Restraint In The
Securing a Child Restraint in the Right Front Seat Position Your vehicle has a right front passenger air bag. Never put a rear facing child restraint in this seat. Here’s why: CAUTION: A child in a rear facing child restraint can be seriously injured or killed if the right front passenger’s air bag inflates.
Page 65 4. Buckle the belt. Make sure the release button is 5. Pull the rest of the lap belt all the way out of the positioned so you would be able to unbuckle the retractor to set the lock. safety belt quickly if you ever had to. 1-53...
Page 66 1-54 6. To tighten the belt, feed the lap belt back into the retractor while you push down on the child restraint. You may find it helpful to use your knee to push down on the child restraint as you tighten the belt. 7.
Page 67: Older Children
Older Children Older children who have outgrown booster seats should wear the vehicle’s safety belts. If you have the choice, a child should sit next to a window so the child can wear a lap get the additional restraint a shoulder belt can provide. What is the proper way to wear safety belts? If possible, an older child should wear a shoulder belt and get the additional restraint...
Page 68 1-56 CAUTION: Never do this. Here two children are wearing the same belt. The belt can’t properly spread the impact forces. In a crash, the two children can be crushed together and seriously injured. A belt must be used by only one person at a time. What if a child is wearing a lap but the child is so small that the shoulder belt is very close to the child’s face or neck?
Page 69 If the child is so small that the shoulder belt is still very close to the child’s face or neck, you might want to place the child in the center seat position, the one that has only a lap belt. CAUTION: Never do this.
Page 70: Safety Belt Extender
Safety Belt Extender If the vehicle’s safety belt will fasten around you, you should use it. But if a safety belt isn’t long enough to fasten, your dealer will order you an extender. It’s free. When you go in to order it, take the heaviest coat you will wear, so the extender will be long enough for you.
Page 71 Section 2 Features and Controls Here you can learn about the many standard and optional features on your vehicle, and information on starting, shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything is working properly and what to do if you have a problem.
Page 72 Windows CAUTION: Leaving children in a vehicle with the windows closed is dangerous. A child can be overcome by the extreme heat and can suffer permanent injuries or even death from heat stroke. Never leave a child alone in a vehicle, especially with the windows closed in warm or hot weather.
Page 73: Power Windows
Power Windows The power window controls are located on the armrest near each window. Press the up or down arrows on the controls to raise or lower the windows. Express Down Window All power windows have this feature. Pressing the control rearward to the second detent then releasing it, will lower a window completely.
Page 74 Keys CAUTION: Leaving children in a vehicle with the ignition key is dangerous for many reasons. A child or others could be badly injured or even killed. They could operate the power windows or other controls or even make the vehicle move. If they turned the ignition to ON and moved the shift lever out of PARK (P), that would release the parking brake.
Page 75 Master Key There is a master key that works all of the lock cylinders (driver’s door, trunk, ignition and glove box). There is also a VALET key which only operates the driver’s door and the ignition. Your vehicle has the PASS system.
Page 76: Door Locks
Door Locks CAUTION: Unlocked doors can be dangerous. Passengers especially children easily open the doors and fall out of a moving vehicle. When a door is locked, the handle won’t open it. You increase the chance of being thrown out of the vehicle in a crash if the doors aren’t locked.
Page 77 Central Door Unlocking System Your vehicle has a central door unlocking mode and a theft deterrent system. When unlocking the driver’s door, you can unlock the other doors by holding the key in the turned position for a few seconds or by quickly turning the door key twice in the lock cylinder.
Page 78: Rear Door Security Locks
Rear Door Security Locks Your vehicle is equipped with rear door security locks that help prevent passengers from opening the rear doors of your vehicle from the inside. To use this lock: 1. Turn the knob on the passenger’s side rear door clockwise all the way down to the ENGAGED position.
Page 79: Leaving Your Vehicle
Leaving Your Vehicle If you are leaving the vehicle, open the door, set the locks from the inside, get out and close the door. Remote Keyless Entry System With this feature, you can lock and unlock your doors or unlock your trunk from about 3 feet (1 m) up to 30 feet (9 m) away using the remote keyless entry transmitter supplied with your vehicle.
Page 80 Operation When you press this symbol to unlock the driver’s door, the parking lamps on your vehicle will flash twice. You can program your vehicle so the parking lamps will not flash. (For more information, see “Lock/Unlock Confirmation” in the Index.) The parking lamps will also not flash if they have been turned on manually.
Page 81: Battery Replacement
Matching Transmitter(s) to Your Vehicle Each remote keyless entry transmitter is coded to prevent another transmitter from unlocking your vehicle. If a transmitter is lost or stolen, a replacement can be purchased through your dealer. Remember to bring any remaining transmitters with you when you go to your dealer.
Page 82 1. Use a coin to pry open the transmitter. 2. Once the transmitter is separated, use a pencil (or similar object) to remove the old battery. Do not use a metal object. 2-12 3. Replace the battery. Insert the new battery as the instructions under the cover indicate.
Page 83: Trunk Lock Release
Trunk CAUTION: It can be dangerous to drive with the trunk lid open because carbon monoxide (CO) gas can come into your vehicle. You can’t see or smell CO. It can cause unconsciousness and even death. If you must drive with the trunk lid open or if electrical wiring or other cable connections must pass through the seal between the body and the trunk lid:...
Page 84 Rear Seat Pass-Through Door (If Equipped) The rear seat pass release button is located in the trunk. To release the pass through door, press the PUSH button located in the center of the trunk panel. The rear seat armrest must be down for the pass through door to open.
Page 85 Trunk Lid Tie Down CAUTION: Driving with the trunk lid open can allow dangerous CO (carbon monoxide) gas to come into your vehicle. You can’t see or smell CO. It can cause unconsciousness and even death. If you ever need to drive with your trunk lid open, then: Make sure all windows, the rear seat pass...
Page 86 Trunk Release Handle (If Equipped) NOTICE: The trunk release handle was not designed to be used to tie down the trunk lid or as an anchor point when securing items in the trunk. Improper use of the trunk release handle could damage it. 2-16 There is a glow dark trunk release handle...
Page 87: Theft Deterrent System
Parking at Night Park in a lighted spot, close all windows and lock your vehicle. Remember to keep your valuables out of sight. Put them in a storage area, or take them with you. Parking Lots Even if you park in a lot where someone will be watching your vehicle, it’s still best to lock it up and take your keys.
Page 88: Testing The Alarm
Remember, the theft deterrent system won’t activate if you lock the doors with a key or use the manual door lock. It activates only if you use a power door lock button or the remote keyless entry transmitter. To avoid activating the alarm by accident, do the following: Always unlock a door with a known key or use the remote keyless entry transmitter.
Page 89: Valet Lockout Switch
Valet Lockout Switch The valet lockout switch is located inside the glovebox. Pushing the VALET lockout switch to ON will disable the use of the power trunk, fuel door and garage door openers. Pushing the switch to OFF again will make these features reusable.
Page 90 This device complies with RSS 210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device.
Page 91 Canadian Owners: If you lose or damage your keys, only a GM dealer can service PASS keys made. To program additional keys you will require two current driver’s keys (black in color). You must add a step to the following procedure. After Step 2 repeat Steps 1 and 2 with the second current driver’s key.
Page 92: Ignition Positions
New Vehicle “Break In” NOTICE: Your vehicle doesn’t need an elaborate “break But it will perform better in the long run if you follow these guidelines: Don’t drive at any one speed slow for the first 500 miles (805 km). Don’t make full throttle starts.
Page 93 NOTICE: If your key seems stuck in OFF and you can’t turn it, be sure you are using the correct key; if so, is it all the way in? If it is, then turn the steering wheel left and right while you turn the key hard.
Page 94: Starting Your Engine
Starting Your Engine Move your shift lever to PARK (P) or NEUTRAL (N). Your engine won’t start in any other position safety feature. To restart when you’re already moving, use NEUTRAL (N) only. NOTICE: Don’t try to shift to PARK (P) if your vehicle is moving.
Page 95 3. If your engine still won’t start (or starts but then stops), it could be flooded with too much gasoline. Try pushing your accelerator pedal all the way to the floor and holding it there as you hold the key in START for about three seconds.
Page 96: Automatic Transaxle Operation
To Use the Engine Coolant Heater 1. Turn off the engine. 2. Open the hood and unwrap the electrical cord. The electrical cord is located on the driver’s side of the engine, behind the transaxle dipstick/fluid fill location (C) and next to the engine. 3.
Page 97 Column Shifter (Digital and Analog Cluster similar) PARK (P): This position locks the front wheels. It’s the best position to use when you start the engine because your vehicle can’t move easily. CAUTION: It is dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake firmly set.
Page 98 REVERSE (R): Use this gear to back up. NOTICE: Shifting to REVERSE (R) while your vehicle is moving forward could damage your transaxle. Shift to REVERSE (R) only after your vehicle has stopped. Also use this gear to rock your vehicle back and forth to get out of snow, ice or sand without damaging your transaxle.
Page 99 DRIVE (D): This position is for normal driving. If you need more power for passing, and you’re: Going less than 35 mph (55 km/h), push the accelerator pedal about halfway down. Going about 35 mph (55 km/h) or more, push the accelerator all the way down.
Page 100 FIRST (1): This position gives you even more power than SECOND (2). You can use it on very steep hills, or in deep snow or mud. (If the shift lever is put in FIRST (1), the transaxle won’t shift into first gear until the vehicle is going slowly enough.) NOTICE: If your front wheels can’t turn, don’t try to drive.
Page 101: Parking Brake
Parking Brake Hold the regular brake pedal down with your right foot and push the parking brake pedal down with your left foot to set the parking brake. If the ignition is on, the BRAKE indicator light on the instrument panel cluster should come on. If it doesn’t, you need to have your vehicle serviced.
Page 102 Reach under the driver’s side of the instrument panel and pull on the manual release lever, which is located above the parking brake pedal. If the parking brake does not release, your vehicle needs service. 2-32 NOTICE: Driving with the parking brake on can cause your rear brakes to overheat.
Page 103 Shifting Into PARK (P) CAUTION: It can be dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake firmly set. Your vehicle can roll. If you have left the engine running, the vehicle can move suddenly.
Page 104 Move the lever up as far as it will go. 3. With your right foot still holding the brake pedal down, set the parking brake. 4. Turn the ignition key to OFF. 5. Remove the key and take it with you. If you can leave your vehicle with the ignition key in your hand, your vehicle is in PARK (P).
Page 105: Torque Lock
Leaving Your Vehicle With the Engine Running CAUTION: It can be dangerous to leave your vehicle with the engine running. Your vehicle could move suddenly if the shift lever is not fully in PARK (P) with the parking brake firmly set. And, if you leave the vehicle with the engine running, it could overheat and even catch fire.
Page 106: Shift Lock Release
Shifting Out of PARK (P) Your vehicle has an automatic transaxle shift lock control system. You have to fully apply your regular brakes before you can shift from PARK (P) when the ignition key is in ON. See “Automatic Transaxle Operation”...
Page 107 The following procedure allows the ignition to be turned to OFF and for key removal in case of a dead or low voltage battery. 1. Verify that the shift lever is in PARK (P). 2. Locate the override access slot underneath the steering column below the lock cylinder.
Page 108: Parking Over Things That Burn
4. Press the shift lock release toward the front of the vehicle and hold it there. 5. While applying the brakes, shift the transaxle from PARK (P) as needed. 6. Reinstall the shift lock release hole cover and the rubber mat. 2-38 Parking Over Things That Burn CAUTION:...
Page 109: Engine Exhaust
Engine Exhaust CAUTION: Engine exhaust can kill. It contains the gas carbon monoxide (CO), which you can’t see or smell. It can cause unconsciousness and death. You might have exhaust coming in if: Your exhaust system sounds strange or different. Your vehicle gets rusty underneath.
Page 110 CAUTION: It can be dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake firmly set. Your vehicle can roll. Don’t leave your vehicle when the engine is running unless you have to. If you’ve left the engine running, the vehicle can move suddenly.
Page 111 Power Tilt and Telescopic Wheel (If Equipped) The power tilt wheel control is located on the outboard side of the steering column. To operate the power tilt feature, push the control up and the steering wheel will tilt up. Push the control down and the steering wheel will go down.
Page 112: Turn And Lane Change Signals
Turn Signal/Multifunction Lever The lever on the left side of the steering column includes the following: Turn and Lane Change Signals Headlamp High/Low Beam Changer Flash Pass Windshield Wipers Windshield Washer 2-42 Turn and Lane Change Signals To signal a turn, move the lever all the way up or down. The lever returns automatically when the turn is complete.
Page 113: Windshield Wipers
Headlamp High/Low-Beam Changer Push forward to change the headlamps from low beam to high. Pull the lever back and then release it to change from high beam to low. This light located on the instrument panel cluster will come on to indicate high beam usage.
Page 114 DELAY: Turn the band to one of the DELAY positions to set the wiper speed for a long or a short delay between wipes. The closer you move it to LO, the shorter the delay. OFF: Turn the band to OFF to turn off the wipers. Be sure to clear ice and snow from the wiper blades before using them.
Page 115 The Rainsense system can be activated by turning the wiper band to one of the five sensitivity levels indicated on the wiper stalk. The position closest to OFF is the lowest sensitivity setting, level one. This allows more rain or snow to collect on the windshield between wipes. Turning the wiper band away from you to higher sensitivity levels increases the sensitivity of the system and frequency of wipes.
Page 116: Windshield Washer
Windshield Washer CAUTION: In freezing weather, don’t use your washer until the windshield is warmed. Otherwise the washer fluid can form ice on the windshield, blocking your vision. At the top of the turn signal/multifunction lever there is a paddle with the word PUSH on it. To spray washer fluid on the windshield, press and release this paddle.
Page 117 CAUTION: Cruise control can be dangerous where you can’t drive safely at a steady speed. So, don’t use your cruise control on winding roads or in heavy traffic. Cruise control can be dangerous on slippery roads. On such roads, fast changes in tire traction can cause needless wheel spinning, and you could lose control.
Page 118 Resuming a Set Speed Suppose you set your cruise control at a desired speed and then you apply the brake. This, of course, shuts off the cruise control. But you don’t need to reset it. Once the vehicle is traveling approximately 25 mph (40 km/h) or more, you can press the RES/ACC (resume/accelerate) button briefly to return to your desired preset speed.
Page 119 Reducing Speed While Using Cruise Control There are two ways to reduce your speed while using cruise control: Press the SET/CST button until you reach the lower speed you want, then release it. To slow down in very small amounts, push the SET/CST button briefly.
Page 120: Exterior Lamps
Exterior Lamps This control on the left side of the instrument panel operates the following: Headlamps Taillamps Parking Lamps Sidemarker Lamps License Plate Lamps 2-50 Parking Lamps Turn the knob clockwise to the first stop, to turn on the parking lamps, taillamps, sidemarker and license plate lamps.
Page 121: Lamps On Reminder
When the ignition is turned to OFF, the wiper headlamps will immediately turn off. The wiper activated headlamps will also turn off if the Twilight Sentinel or the windshield wipers are turned off. Lamps on Reminder If the manual headlamp control is left on and a door is opened, a warning chime will sound.
Page 122 If it’s dark enough outside and the Twilight Sentinel control is off, a HEADLAMPS SUGGESTED message will display on the Driver Information Center (DIC). This message informs the driver that turning on the exterior lamps is recommended even though the DRL are still illuminated (it’s become dark enough outside to require the headlamps and/or other exterior lamps).
Page 123: Cornering Lamps
Cornering Lamps The cornering lamps come on when the headlamps or parking lamps are on and you signal a turn with the multifunction lever. They provide more light for cornering. Twilight Sentinel This control is located next to the headlamp knob. It automatically switches the lamps on and off by sensing how dark...
Page 124: Exterior Lighting Battery Saver
Light Sensor The light sensor for the DRL and the Twilight Sentinel is located in the center of the front defogger grille. If you cover the sensor, it will read “dark” and the lamps or the HEADLAMPS SUGGESTED message will be on whenever the ignition is on. 2-54 Exterior Lighting Battery Saver If the headlamp or manual parking lamp control...
Page 125 Interior Lamps Instrument Panel Intensity/Brightness Control The displays automatically dim when it becomes dark outside and your lights are on. The displays automatically brighten when it becomes light outside. Backlighting will only remain active as long as the parking lamps are on and it is dark outside.
Page 126: Reading Lamps
Parade Dimming This feature prohibits dimming of the digital displays and backlighting during daylight hours when the key is in the ignition and the headlamps are on. This feature operates with the light sensor for the Twilight Sentinel and is fully automatic. When the light sensor reads darkness outside and the parking lamps are active, the digital displays can be adjusted by turning the lamp control knob counterclockwise to dim and clockwise to...
Page 127: Inadvertent Power Battery Saver
If the battery continues to discharge, even with the engine idling at a higher RPM setting, some electrical loads will automatically be reduced. When this occurs, the rear window defogger may take slightly longer to clear the glass, the heated seats may not get as warm as they usually do and the fan blower may cut back to a lower speed.
Page 128 This is the on/off button, located on the lower left side of the mirror for the electrochromic and compass functions of the rearview mirror. The mirror also includes an eight point compass display in the upper right corner of the mirror face. When on, the compass automatically calibrates as the vehicle is driven.
Page 129 Compass Variance The mirror is set in zone eight upon leaving the factory. It will be necessary to adjust the compass to compensate for compass variance if you live outside zone eight. Under certain circumstances, as during a long distance cross country trip, it will be necessary to adjust for compass variance.
Page 130 Power Remote Control Mirror (Heated) The control on the driver’s door armrest operates both outside rearview mirrors. Press (R) on the control switch to choose the right mirror or (L) to choose the left mirror. The center switch position is off and will not move the mirrors if the control pad is touched.
Page 131: Map Pocket
Convex Outside Mirror Your passenger’s side mirror is convex. A convex mirror’s surface is curved so you can see more from the driver’s seat. CAUTION: A convex mirror can make things (like other vehicles) look farther away than they really are. If you cut too sharply into the right lane, you could hit a vehicle on your right.
Page 132: Rear Storage Door Trim Armrest
Full Floor Console Storage (If Equipped) The full floor console has an upper and lower storage area. The lower storage area has two removable bins that can hold tapes and/or CDs. There is also a removable coinholder that attaches to the side of one of the bins. The upper storage area is available for the optional cellular telephone.
Page 133: Ashtrays And Cigarette Lighter
When not being used, the center seat lap belt can be stored in the underseat storage compartment as shown. Convenience Net The convenience net is located inside the back wall of the trunk. Put small loads, like grocery bags, behind the net.
Page 134: Cigarette Lighter
Cigarette Lighter The cigarette lighter is located near the ashtray. Press it all the way in and release. It will pop back out by itself when it’s ready to light. You may also have a lighter located at the rear seat air outlet. Cigarette lighters can be used to provide electrical power to accessories.
Page 135 Rear Power Sunshade (If Equipped) The rear power sunshade helps to reduce the amount of heat and light entering the rear window. The rear power sunshade is located in the rear shelf. To raise the power sunshade, press and release the REAR SHADE switch located on the front overhead console.
Page 136: Accessory Power Outlets
Cellular Telephone (Option) With this option, your vehicle is equipped with a portable cellular telephone system. The system has steering wheel telephone controls and information output through the Driver Information Center (DIC). Voice activation with remote record and hands operation are standard features. For more information, see the “Cellular Phone System Supplement.”...
Page 137 OnStar System (If Equipped) OnStar is a vehicle communications system that offers a variety of services and provides a hands communication link between you and the OnStar Center. A service subscription agreement and fee are required in order to receive OnStar service. Services are available 24 hours a day, 7 days a week.
Page 138 Volume Control: You can control the volume of the OnStar System using the steering wheel volume control. Telltale Light: This light will indicate the status of the system. A solid green light will come on when you start the vehicle to let you know that the system is on and is ready to make or receive calls.
Page 139 OnStar MED your personal medical history and provide it to emergency personnel if necessary. (Requires activation and additional fee.) Accident Assist An advisor can provide step step guidance following an accident. Remote Door Unlock To contact the center, call 1 ONSTAR.
Page 140: Assist Handles
OnStar System Limitations Complete limitations can be found on the Subscriber Services Agreement. OnStar Service is: available in the 48 contiguous United States, Alaska, Hawaii and Canada; available when the vehicle is within the operating range of a cellular provider; subject to limitations caused by atmospheric conditions, such as severe weather or topographical conditions, such as...
Page 141 Sunroof (Option) The two control switches to operate the sunroof are located on the overhead console and include VENT, ROOF, open and close. The control switches work only when the ignition is on or the Retained Accessory Power (RAP) is active. See “Retained Accessory Power”...
Page 142: Homelink Transmitter
HomeLink Transmitter (If Equipped) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 143 Your vehicle’s engine should be turned off while programming the transmitter. Follow these steps to program up to three channels: 1. If you have previously programmed a transmitter channel, proceed to Step 2. Otherwise, hold down the two outside buttons on the HomeLink Transmitter until the indicator light begins to flash rapidly (after 20 seconds).
Page 144 Operating the HomeLink Transmitter Press and release the appropriate button on the HomeLink Transmitter. The indicator light comes on while the signal is being transmitted. The HomeLink Transmitter is disabled when the VALET lockout switch inside the glove box is activated. For more information, see “Valet Lockout Switch”...
Page 145 3. Return to the HomeLink Transmitter in your vehicle and firmly press and release the HomeLink Transmitter button you have already programmed for two to three seconds. Press and release the button again (you may need to do this step up to three times) to make sure that the HomeLink Transmitter has been trained to the garage door opener motor head unit.
Page 146 The Instrument Panel Your Information System 2-76...
Page 147 The main components of the instrument panel are the following: A. Air Outlets B. Turn Signal/Multifunction Lever C. HVAC Steering Wheel Controls (or Cellular Telephone Controls, If Equipped) D. Instrument Panel Cluster E. Audio Steering Wheel Controls F. Driver Information Center Buttons G.
Page 148 Digital Cluster The instrument panel cluster is designed to let you know at a glance how your vehicle is running. You’ll know how fast you’re going, how much fuel you’re using and many of the other things you’ll need to know to drive safely and economically.
Page 149 Analog Cluster (If Equipped) United States version shown, Canada similar 2-79...
Page 150: Speedometer And Odometer
Speedometer and Odometer The speedometer lets you see your speed in both miles per hour (mph) and kilometers per hour (km/h). The odometer shows how far your vehicle has been driven, in either miles (used in the United States) or kilometers (used in Canada).
Page 151 Vehicle Speed Limiter This feature prevents your vehicle from exceeding speeds that the tires are not rated for. When this happens, the engine’s fuel supply is shut off. When the vehicle speed slows, the fuel supply will come on again. Tachometer (Analog Cluster Only) This gage indicates the engine speed in revolutions...
Page 152: Safety Belt Reminder Light
Warning Lights, Gages and Indicators This part describes the warning lights and gages that may be on your vehicle. The pictures will help you locate them. Warning lights and gages can signal that something is wrong before it becomes serious enough to cause an expensive repair or replacement.
Page 153: Air Bag Readiness Light
Air Bag Readiness Light There is an air bag readiness light on the instrument panel, which shows AIR BAG or the air bag symbol. The system checks the air bag’s electrical system for malfunctions. The light tells you if there is an electrical problem.
Page 154: Charging System Light
Charging System Light When you turn the key to ON, this light will come on briefly to show that the generator and battery charging systems are working. If this light stays on, you need service and you should take your vehicle to the dealer at once. To save your battery until you get there, turn off all accessories.
Page 155: Anti-Lock Brake System Warning Light
CAUTION: Your brake system may not be working properly if the brake system warning light is on. Driving with the brake system warning light on can lead to an accident. If the light is still on after you’ve pulled off the road and stopped carefully, have the vehicle towed for service.
Page 156: Engine Coolant Temperature Warning Light
Traction Control System Warning Light United States Canada (Analog Only) This warning light should come on briefly when the engine is started. If the warning light doesn’t come on then, have it fixed so it will be ready to warn you if there’s a problem. If it stays on, or comes on when you’re driving, there may be a problem with your traction control system and your vehicle may need service.
Page 157: Engine Coolant Temperature Gage
Engine Coolant Temperature Gage United States (Analog Only) (Analog Only) Digital Cluster That reading means the same thing as the warning Canada light the engine coolant has overheated. See “Engine Overheating” in the Index. This gage shows the engine coolant temperature.
Page 158 Malfunction Indicator Lamp (Service Engine Soon Light in the United States or Check Engine Light in Canada) United States Canada (Analog Only) Your vehicle is equipped with a computer which monitors operation of the fuel, ignition and emission control systems. 2-88 This system is called OBD II (On Board...
Page 159 NOTICE: Modifications made to the engine, transaxle, exhaust, intake or fuel system of your vehicle or the replacement of the original tires with other than those of the same Tire Performance Criteria (TPC) can affect your vehicle’s emission controls and may cause the SERVICE ENGINE SOON or CHECK ENGINE light to come on.
Page 160 If the Light Is Flashing The following may prevent more serious damage to your vehicle: Reducing vehicle speed. Avoiding hard accelerations. Avoiding steep uphill grades. If you are towing a trailer, reduce the amount of cargo being hauled as soon as it is possible. If the light stops flashing and remains on steady, see “If the Light Is On Steady”...
Page 161 Have you recently changed brands of fuel? If so, be sure to fuel your vehicle with quality fuel. See “Fuel” in the Index. Poor fuel quality will cause your engine not to run as efficiently as designed. You may notice this as stalling after start when you put the vehicle into gear, misfiring, hesitation on acceleration or stumbling on acceleration.
Page 162: Oil Pressure Light
Oil Pressure Light This light tells you if there could be a problem with your engine oil pressure. The light goes on when you turn your key to ON. It goes off once you start your engine. That’s a check to be sure the light works.
Page 163: Security Light
Security Light For information regarding this light, see “Theft Deterrent the Index. Fog Lamp Light (If Equipped) This light will come on when the fog lamp button is pressed. For more information about the fog lamps, see “Fog Lamps” in the Index.
Page 164: Fuel Gage
Fuel Gage Analog (United States) Analog (Canada) Digital 2-94 The fuel gage shows approximately how much fuel is in the tank. It works only when the ignition is in ON. If the fuel supply gets down to approximately three gallons (11.4 L) of fuel remaining in the tank, the FUEL LEVEL LOW message will appear on the Driver Information Center (DIC).
Page 165 Fuel Data Display (Digital Cluster) The fuel data display tells you all you about the fuel economy and how far you can travel with the fuel remaining. The average fuel economy (AVG) display shows the average miles per gallon. To reset the average fuel economy, press the INFO button until the MPG AVG is displayed on the Driver Information Center (DIC).
Page 166: Dic Controls And Displays
Driver Information Center (DIC) This display gives you the status of many of your vehicle’s systems. The DIC is also used to display driver personalization features and warning/status messages. DIC Controls and Displays 2-96 INFO: Pressing this button up or down will display the MILES RANGE (Analog Cluster), MPG AVG, MPG INST, GAL FUEL USED, AVG MPH, TIMER, BATTERY VOLTS, LF...
Page 167 MPG AVG (Reset): This message shows the approximate fuel economy you have averaged since the last time you reset the value. To reset the MPG AVG (Average Fuel Economy), press the INFO button to display the MPG AVG then press and hold the INFO RESET button until 0.0 MPG AVG is displayed.
Page 168 RR TIRE (If Equipped): On vehicles equipped with the Tire Pressure Monitor, this message shows the tire pressure for each tire (left front, right front, left rear and right rear). Pressing the INFO button will scroll through the tire pressure for each of the four tires, such as: 34 PSI LF TIRE OK or 234 kPa LF TIRE OK...
Page 169 Driver Information Center (DIC) Messages These messages will appear if there is a problem sensed in one of your vehicle’s systems. Vehicles that are first sold in Canada will have a number after each message. This number helps to identify the problem. You must then press INFO or INFO RESET to clear the display screen for further use.
Page 170 BATTERY VOLTAGE LOW 6: This message will appear when the electrical system is charging less than 10 volts or if the battery has been drained. If this message appears immediately after starting, it is possible that the generator can still recharge the battery. The battery should recharge while driving but may take a few hours to do so.
Page 171 CHECK OIL LEVEL 36: For correct operation of the low oil sensing system, your vehicle should be on a level surface. A false CHECK OIL LEVEL message may appear if the vehicle is parked on a grade. The oil level sensing system does not check for actual oil level if the engine has been off for a short period of time, and the oil level is never checked while the engine is running.
Page 172 Once the TPM system detects the low or high tire pressure condition, the message “CHECK TIRE PRESSURE” will be displayed whenever you start the engine or the ignition is in the ON position. To remove or clear the CHECK TIRE PRESSURE message, you will need to set the tire(s) to the proper tire pressure.
Page 173 ENGINE HOT AC OFF 16: This message displays when the engine coolant becomes hotter than the normal operating temperature. To avoid added strain on a hot engine, the air conditioning compressor is automatically turned off. When the coolant temperature returns to normal, the A/C operation will automatically resume.
Page 174 OIL PRESSURE LOW STOP ENGINE message appears while the engine is running, stop the engine and do not operate it until the cause of low oil pressure is corrected. Severe damage to the engine can result. A multiple chime will also sound when this message is displayed.
Page 175 SERVICE STABILITY SYS 54: If you ever see the SERVICE STABILITY SYS message, it means there may be a problem with your stability enhancement system. If you see this message, try to reset the system (stop; turn off the engine; then start the engine again). If the SERVICE STABILITY SYS message still comes on, it means there is a problem.
Page 176 SERVICE TPM SYSTEM 51: When this message is displayed, the Tire Pressure Monitor (TPM) system is not working properly. See your dealer for service. SERVICE TRANSMISSION 100: See your dealer for repair. SERVICE VEHICLE SOON 3: This message is displayed when a non emissions related powertrain malfunction occurs.
Page 177 TRACTION READY 90: This message informs the driver that the traction control system is available. This occurs when the traction control switch on the console has been returned to on (pressing the button once turns the traction control system off: pressing the button again turns the system back on).
Page 178 Vehicle Programming and Personalization Features (If Equipped) If your vehicle is equipped with personalization, you can program certain features to a preferred setting for up to two people. If your vehicle does not have personalization then some of the features on your vehicle have been programmed for all drivers.
Page 179 Key in Recall Memory (If Equipped) To enter feature programming, follow the instructions listed previously, then press the down arrow on the INFO button one or more times until the KEY IN RECALL MEMORY prompt appears on the DIC display. To turn the feature on, press the ON/OFF button until ON appears.
Page 180 Lights Flash at Lock To enter feature programming, follow the instructions listed previously, then press the down arrow on the INFO button one or more times until the LIGHTS FLASH AT LOCK prompt appears on the DIC display. To turn the feature on, press the ON/OFF button until ON appears.
Page 181 Driver Unlock in PARK (P) To enter feature programming follow the instructions listed previously, then press the down arrow on the INFO button one or more times until the DRIVER UNLOCK IN PARK (P) prompt appears. This feature will automatically unlock only the driver’s door when the vehicle is shifted into PARK (P).
Page 182 Mirror to Curb In Reverse (If Equipped) Press the down arrow on the INFO button one or more times until the MIRROR TO CURB IN REV prompts appears on the DIC display. This feature will move the passenger’s outside rearview mirror to a curb view position when the shifter is placed in REVERSE (R) and it will return the mirror to the last known driving position when the shifter is moved out of...
Page 183 Comfort Controls and Radio System Personalization These features allow both drivers to personalize their own climate control settings as well as their radio settings. For more information, see “Climate Control Personalization” and “Radio Personalization” in the Index. Continuous Variable Road Sensing Suspension (CVRSS) (If Equipped) The CVRSS automatically adjusts the ride of your vehicle.
Page 184 The DIC may display a CHANGE ENGINE OIL message. Always keep a written record of the mileage and date when you changed your oil. For more information, see the Maintenance Schedule booklet. If you see CHANGE ENGINE OIL, it means the oil life is gone and you should change the oil right away.
Page 185 Use this system as an aid to help you in seeing objects beyond the headlamps. Do this by occasionally glancing at the image as you would a rearview mirror. Do not stare at the image. The Night Vision System can be operated if: The brightness control is in any position except OFF it is dark enough outside, the headlamps or fog lamps (if equipped) are on and...
Page 186 Remember that the Night Vision System can only help you see objects that are warmer or colder than the surroundings. It can’t sense things like brake lights, turn signals or emergency flashers, traffic lights or signs. In dry, clear weather, the system can see pedestrians, animals and the direction of the road ahead.
Page 187 Navigation (Option) Navigation Display Controls The display screen is located in the center on the instrument panel. There are seven “hard” buttons and a touch sensitive screen. Your vehicle may be equipped with a turn by turn navigation guidance system that includes a CD ROM map media covering nine regional areas throughout the contiguous United States.
Page 188: Ultrasonic Rear Parking Assist
Ultrasonic Rear Parking Assist (URPA) (Option) Ultrasonic Rear Parking Assist can help you to determine how close an object is to your rear bumper within a given area, making parking easier. The URPA display is located inside the vehicle, above the rear window. It has three color lights that can be seen through the rearview mirror...
Page 189 A chime will sound the first time an object is detected. URPA can detect objects 3 inches (7.6 cm) and wider, and at least 10 inches (25.4 cm) tall, but it cannot detect objects that are above trunk level. In order for the rear sensors to recognize an object, it must be within operating range.
Page 190 Section 3 Comfort Controls and Audio Systems In this section, you’ll find out how to operate the comfort control and audio systems offered with your vehicle. Be sure to read about the particular systems supplied with your vehicle. Comfort Controls Climate Control Panel Electronic Solar Sensor Air Conditioning...
Page 191: Comfort Controls
Comfort Controls This section tells you how to make your air system work for you. With this system, you can control the heating, cooling and ventilation in your vehicle. Your vehicle also has a flow through ventilation system described later in this section.
Page 192 Outside Temperature Display The outside temperature is always displayed when your vehicle is running. You can change it from Fahrenheit to Celsius by pressing the ENG/MET (English/metric) button on the left side of the instrument panel cluster. The outside temperature sensor is located near the front grille.
Page 193 With the automatic setting, the air conditioning compressor automatically cycles when needed to cool the air. In cold weather, when the system senses the need for heat, the airflow will be directed out the floor outlets. As the interior temperature approaches a desired setting, the blower speed will decrease.
Page 194 DEFROST: Press this button to quickly remove fog or frost from the windshield. This setting sends most of the airflow to the windshield with only a small amount to the floor outlets. FAN SPEEDS: Press the AUTO. At this setting, the fan speed is automatically controlled.
Page 195: Air Conditioning
Electronic Solar Sensor The sensor monitors the sun’s solar radiation and is located on top of the instrument panel near the windshield. The ECC panel uses this information to automatically make the necessary temperature and airflow adjustments to maintain your comfort. Air Conditioning On hot days, open the windows long enough to let hot inside air escape.
Page 196 Defogging and Defrosting On cool, humid days, use defog HEATER/DEFROST to keep the windshield and side windows clear. Use defrost to remove fog or ice from the windshield quickly in extremely humid or cold conditions. Press the DEFROST button to select DEFROST. Adjust the fan speed by pressing the fan button up or down.
Page 197 Rear Climate Control Your vehicle is equipped with a rear climate control. With this system, the rear passengers can control the temperature of the air flow for his/her own zones. The climate control has three buttons: MODE: Press this button to adjust the direction of the airflow.
Page 198: Ventilation System
Ventilation System Your vehicle’s flow through ventilation system supplies outside air into the vehicle when it is moving. Outside air will also enter the vehicle when the heater or the air conditioning fan is running. The front outlets are located in the center and at each side of the instrument panel.
Page 199 HVAC Steering Wheel Controls (If Equipped) Some heating and cooling controls can be adjusted at the steering wheel. Other touch controls operate some audio controls. See “Audio Steering Wheel Controls” in the Index. FAN SPEED: Press the up arrow lever to increase the fan speed and the down arrow lever to decrease fan speed.
Page 200: Audio Systems
Audio Systems Your audio system has been designed to operate easily and give years of listening pleasure. You will get the most enjoyment out of it if you acquaint yourself with it first. Find out what your audio system can do and how to operate all its controls, to be sure you’re getting the most out of the advanced engineering that went into it.
Page 201 SOURCE: Press this button to select a source. Sources include cassette and compact disc. The audio source must be loaded to play. Available loaded sources are shown on the display. If a source is being used, it will be underlined on the display. If none of the audio sources are loaded, NO SOURCE LOADED will appear on the display.
Page 202 Setting the Tone TONE: Press and release this button until the desired tone control (BASS or TREBLE) is found. The radio keeps separate tone settings for each band, each preset and each source. LEVEL: After selecting the desired tone control, press the plus (+) or minus ( ) symbol on this button to select the desired level.
Page 203 RW: Press the left arrow to rewind the tape rapidly. The radio will play while the tape rewinds. You may use your station pushbuttons to tune to another radio station while in RW mode. Press the left arrow again to return to playing speed.
Page 204: Compact Disc Player
AM-FM Stereo with Cassette Tape and Compact Disc Player Playing the Radio PWR/VOL: Press this knob lightly to turn the system on. Press the knob again to turn the system off. To increase volume, turn the knob clockwise. Turn it counterclockwise to decrease volume.
Page 205 PUSHBUTTONS: The six numbered pushbuttons let you return to your favorite stations. You can set up to 18 stations (six AM, six FM1 and six FM2). Just: 1. Turn the radio on. 2. Press BAND to select AM, FM1 or FM2. 3.
Page 206 Cassette tapes may be loaded with the radio off but they will not start playing until the radio is on. If you want to insert a cassette tape when the ignition is off, first press the eject button. While the tape is playing, use the VOL, TONE, LEVEL, and SPEAKER controls just as you do for the radio.
Page 207 EJECT: Press the upward triangle button to the right of the cassette tape player to remove a tape. The radio will play. Eject may be activated with the radio off and/or the ignition off. CLEAN TAPE: If this message appears on the display, the cassette tape player needs to be cleaned.
Page 208 RW: Press and hold the left arrow to reverse the compact disc. Release it to return to playing speed. FF: Press and hold the right arrow to fast forward to another part of the compact disc. Release it to return to playing speed.
Page 209 HR or MN: Display the time with the ignition off by pressing this button. SOURCE: Press this button to select a source. Sources include cassette and compact disc. The audio source must be loaded to play. Available loaded sources are shown on the display.
Page 210 Using RDS Mode Your audio system is equipped with Radio Data Systems (RDS). RDS mode gives you many useful new features. When RDS is on, the radio can: seek only to stations with the types of programs you want to listen to, seek to stations with traffic announcements, receive announcements concerning local and national emergencies,...
Page 211 REGION: You can also use the RDS button to access the region function. When an RDS station becomes weak, this function searches for a stronger station within the same network. A network can span a great distance. One network can have stations spread across a country or continent.
Page 212 MSG (3): When RDS is on, if the current station has a message, MSG will appear on the display. Press the RDS SELECT button, followed by this button to see the message. If the whole message does not appear on the display, parts of the message will appear every three seconds until the message is completed.
Page 213 PUSHBUTTONS: The six numbered pushbuttons let you return to your favorite Program Types (PTYs). These buttons have factory PTY presets. See “Radio Data Systems (RDS) Program Type (PTY) Selections” in the Index. You can set up to 12 PTYs (six FM1 and six FM2).
Page 214 Setting the Tone TONE: Press and release this button until the desired tone control (BASS or TREBLE) is found. The radio keeps separate tone settings for each band, preset (except weather band presets) and source. LEVEL: After selecting the desired tone control, press the plus (+) or minus ( ) symbol on this button to select the desired level.
Page 215 Adjusting the Speakers TONE: Press and release this button until the desired BALANCE or FADE control is found. LEVEL: After selecting the desired BALANCE or FADE control, press the plus (+) or minus ( this button to select the desired level. Playing a Cassette Tape With the radio on, insert a cassette tape.
Page 216 TUNE SEEK: When this button is pressed, it has two positions. This button works the same, whether it is pressed to the first or second position. Press this button to seek to the next or previous selection on the tape. Your tape must have at least three seconds of silence between each selection for TUNE SEEK to work.
Page 217 Playing a Compact Disc Insert a disc partway into the slot, label side up. The player will pull it in. If the ignition and the radio are on and the underlined compact disc symbol appears on the display, the disc will begin playing. Compact discs may be loaded with the radio off but they will not start playing until the radio is on.
Page 218 AM-FM Stereo with Cassette Tape and MiniDisc Player with Radio Data Systems (RDS) and Digital Signal Processing (DSP) (If Equipped) Playing the Radio PWR/VOL: Press this knob lightly to turn the system on. Press the knob again to turn the system off. To increase volume, turn the knob clockwise.
Page 219 Finding a Station BAND: Press this button to select AM, FM1, FM2 or weather. TUNE SEEK: When this button is pressed it has two positions. Press this button to the first position to manually tune to higher or lower stations. If this button is held at the first position for a few seconds, the radio will continue tuning until this button is released.
Page 220 PRESET SCAN: Press and hold SCAN for more than two seconds until you hear a beep to listen to each of your preset stations for five seconds. The radio will go to the first preset station stored on your pushbuttons, stop for five seconds, then go on to the next preset station.
Page 221 REGION: You can also use the RDS button to access the region function. When an RDS station becomes weak, this function searches for a stronger station within the same network. A network can span a great distance. One network can have stations spread across a country or continent.
Page 222 MSG (3): When RDS is on, if the current station has a message, MSG will appear on the display. Press the RDS SELECT button, followed by this button to see the message. If the whole message does not appear on the display, parts of the message will appear every three seconds until the message is completed.
Page 223 PUSHBUTTONS: The six numbered pushbuttons let you return to your favorite Program Types (PTYs). These buttons have factory PTY presets. See “Radio Data Systems (RDS) Program Type (PTY) Selections” in the Index. You can set up to 12 PTYs (six FM1 and six FM2).
Page 224 Setting the Tone TONE: Press and release this button until the desired tone control (BASS, TREBLE or MIDRANGE) is found. The radio keeps separate tone settings for each band, preset (except weather band presets) and source. LEVEL: After selecting the desired tone control, press the plus (+) or minus ( ) symbol on this button to select the desired level.
Page 225 Playing a Cassette Tape With the radio on, insert a cassette tape. The tape will begin playing as soon as it is inserted. When one side of your cassette tape is done playing, auto reverse plays the other side of your cassette tape. Cassette tapes may be loaded with the radio off but they will not start playing until the radio is on.
Page 226 FF: Press the right arrow to fast forward to another part of the tape. The radio will play while the tape advances. You may use your station pushbuttons to tune to another radio station while in FF mode. Press the right arrow again to return to playing speed.
Page 227 Playing a MiniDisc Insert a disc partway into the slot, label side up. The player will pull it in. If the ignition and the radio are on and the underlined MiniDisc symbol appears on the display, the disc will begin playing. MiniDiscs may be loaded with the radio off but they will not start playing until the radio is on.
Page 228 Radio Data Systems (RDS) Program Type (PTY) Selections PTY List Adlt Hit ............. . . Classicl .
Page 229: Cd Adapter Kits
Navigation/Radio System (Option) Navigation/Radio Display and Controls The display screen is located in the center of the instrument panel. There are seven “hard” buttons and a touch sensitive screen. 3-40 Your vehicle may be equipped with an AM navigation radio system that includes digital sound processing (DSP), a Radio Data System (RDS) with program “type”...
Page 230 Glovebox-Mounted CD Changer (Option) With the compact disc changer, you can play up to 6 discs continuously. Normal size discs may be played using the trays supplied in the magazine. The smaller discs (8 cm) can be played only with specially designed trays.
Page 231 Close the door by sliding it all the way to the right. When the door is closed, the changer will begin checking for discs in the magazine. This will continue for up to one and a half minutes, depending on the number of discs loaded.
Page 232 TUNE SEEK: Press the upward arrow to the first detent to seek to the next selection on the compact disc. If playing last track of disc, pressing the upward arrow will seek to the first track of disc. Press the downward arrow to the first detent to seek to the previous selection on the compact disc.
Page 233 Radio Personalization with Home and Away Feature (If Equipped) If DRIVER 1 (HOME or AWAY) PRESETS or DRIVER 2 (HOME or AWAY) PRESETS appears in the display when the radio is first turned on, your vehicle is equipped with this feature. With this feature, your vehicle will recall the latest radio settings as adjusted the last time your vehicle was operated.
Page 234 Audio Steering Wheel Controls Some audio controls can be adjusted at the steering wheel. They include the following: VOL: Press the up arrow button to increase volume and the down arrow button to decrease volume. SEL: When listening to the radio, press the up or down arrow button to tune to the next or previous preset radio station.
Page 235: Understanding Radio Reception
Understanding Radio Reception The range for most AM stations is greater than for FM, especially at night. The longer range, however, can cause stations to interfere with each other. AM can pick up noise from things like storms and power lines. Try reducing the treble to reduce this noise if you ever get it.
Page 236: Care Of Your Cassette Tape Player
To help avoid hearing loss or damage: Adjust the volume control to the lowest setting. Increase volume slowly until you hear comfortably and clearly. NOTICE: Before you add any sound equipment to your vehicle like a tape player, CB radio, mobile telephone or two way radio be sure you can...
Page 237 When using a scrubbing action, non cassette, it is normal for the cassette to eject because your unit is equipped with a broken tape detection feature and a cleaning cassette may appear as a broken tape. To prevent the cleaning cassette from being ejected, use the following steps.
Page 238: Diversity Antenna System
Care of Your Compact Discs Handle discs carefully. Store them in their original cases or other protective cases and away from direct sunlight and dust. If the surface of a disc is soiled, dampen a clean, soft cloth in a mild, neutral detergent solution and clean it, wiping from the center to the edge.
Page 239 Section 4 Your Driving and the Road Here you’ll find information about driving on different kinds of roads and in varying weather conditions. We’ve also included many other useful tips on driving. Defensive Driving Drunken Driving Control of a Vehicle Braking Traction Control System Steering...
Page 240: Defensive Driving
Defensive Driving The best advice anyone can give about driving is: Drive defensively. Please start with a very important safety device in your vehicle: Buckle up. See “Safety Belts” in the Index. Defensive driving really means “be ready for anything.” On city streets, rural roads or freeways, it means “always expect the unexpected.”...
Page 241: Drunken Driving
Drunken Driving Death and injury associated with drinking and driving is a national tragedy. It’s the number one contributor to the highway death toll, claiming thousands of victims every year. Alcohol affects four things that anyone needs to drive a vehicle: Judgment Muscular Coordination Vision...
Page 242 It’s the amount of alcohol that counts. For example, if the same person drank three double martinis (3 ounces or 90 ml of liquor each) within an hour, the person’s BAC would be close to 0.12 percent. A person who consumes food just before or during drinking will have a somewhat lower BAC level.
Page 243 But the ability to drive is affected well below a BAC of 0.10 percent. Research shows that the driving skills of many people are impaired at a BAC approaching 0.05 percent, and that the effects are worse at night. All drivers are impaired at BAC levels above 0.05 percent.
Page 244: Control Of A Vehicle
Control of a Vehicle You have three systems that make your vehicle go where you want it to go. They are the brakes, the steering and the accelerator. All three systems have to do their work at the places where the tires meet the road. Sometimes, as when you’re driving on snow or ice, it’s easy to ask more of those control systems than the tires and road can provide.
Page 245: Anti-Lock Brakes (Abs)
Avoid needless heavy braking. Some people drive in spurts heavy acceleration followed by heavy braking rather than keeping pace with traffic. This is a mistake. Your brakes may not have time to cool between hard stops. Your brakes will wear out much faster if you do a lot of heavy braking.
Page 246 Here’s how anti lock works. Let’s say the road is wet. You’re driving safely. Suddenly an animal jumps out in front of you. You slam on the brakes and continue braking. Here’s what happens with ABS. A computer senses that wheels are slowing down. If one of the wheels is about to stop rolling, the computer will separately work the brakes at each front wheel and at both rear wheels.
Page 247: Traction Control System
Remember: Anti lock doesn’t change the time you need to get your foot up to the brake pedal or always decrease stopping distance. If you get too close to the vehicle in front of you, you won’t have time to apply your brakes if that vehicle suddenly slows or stops.
Page 248: Steering
The traction control system automatically comes on whenever you start your vehicle. To limit wheel spin, especially in slippery road conditions, you should always leave the system on. But you can turn the traction control system off if you ever need to. You should turn the system off if your vehicle ever gets stuck in sand, mud or snow and rocking the vehicle is required.
Page 249: Steering Tips
Steering Tips Driving on Curves It’s important to take curves at a reasonable speed. A lot of the “driver lost control” accidents mentioned on the news happen on curves. Here’s why: Experienced driver or beginner, each of us is subject to the same laws of physics when driving on curves.
Page 250: Steering In Emergencies
Steering in Emergencies There are times when steering can be more effective than braking. For example, you come over a hill and find a truck stopped in your lane, or a car suddenly pulls out from nowhere, or a child darts out from between parked cars and stops right in front of you.
Page 251: Off - Road Recovery
Road Recovery You may find that your right wheels have dropped off the edge of a road onto the shoulder while you’re driving. If the level of the shoulder is only slightly below the pavement, recovery should be fairly easy. Ease off the accelerator and then, if there is nothing in the way, steer so that your vehicle straddles the edge of the pavement.
Page 252 Do not get too close to the vehicle you want to pass while you’re awaiting an opportunity. For one thing, following too closely reduces your area of vision, especially if you’re following a larger vehicle. Also, you won’t have adequate space if the vehicle ahead suddenly slows or stops.
Page 253: Loss Of Control
Loss of Control Let’s review what driving experts say about what happens when the three control systems (brakes, steering and acceleration) don’t have enough friction where the tires meet the road to do what the driver has asked. In any emergency, don’t give up. Keep trying to steer and constantly seek an escape route or area of less danger.
Page 254: Driving At Night
Of course, traction is reduced when water, snow, ice, gravel or other material is on the road. For safety, you’ll want to slow down and adjust your driving to these conditions. It is important to slow down on slippery surfaces because stopping distance will be longer and vehicle control more limited.
Page 255 Here are some tips on night driving. Drive defensively. Don’t drink and drive. Adjust your inside rearview mirror to reduce the glare from headlamps behind you. Since you can’t see as well, you may need to slow down and keep more space between you and other vehicles.
Page 256: Driving In Rain And On Wet Roads
Driving in Rain and on Wet Roads Rain and wet roads can mean driving trouble. On a wet road, you can’t stop, accelerate or turn as well because your tire road traction isn’t as good as on dry roads. And, if your tires don’t have much tread left, you’ll get even less traction.
Page 257 Driving too fast through large water puddles or even going through some car washes can cause problems, too. The water may affect your brakes. Try to avoid puddles. But if you can’t, try to slow down before you hit them. CAUTION: Wet brakes can cause accidents.
Page 258: Driving Through Flowing Water
Hydroplaning usually happens at higher speeds. There just isn’t a hard and fast rule about hydroplaning. The best advice is to slow down when it is raining. Driving Through Deep Standing Water NOTICE: If you drive too quickly through deep puddles or standing water, water can come in through your engine’s air intake and badly damage your engine.
Page 259: City Driving
City Driving One of the biggest problems with city streets is the amount of traffic on them. You’ll want to watch out for what the other drivers are doing and pay attention to traffic signals. Here are ways to increase your safety in city driving: Know the best way to get to where you are going.
Page 260: Freeway Driving
Freeway Driving Mile for mile, freeways (also called thruways, parkways, expressways, turnpikes or superhighways) are the safest of all roads. But they have their own special rules. 4-22 The most important advice on freeway driving is: Keep up with traffic and keep to the right. Drive at the same speed most of the other drivers are driving.
Page 261: Before Leaving On A Long Trip
Of course, you’ll find experienced and able service experts in Cadillac dealerships all across North America. They’ll be ready and willing to help if you need it. Here are some things you can check before a trip:...
Page 262: Highway Hypnosis
Highway Hypnosis Is there actually such a condition as “highway hypnosis”? Or is it just plain falling asleep at the wheel? Call it highway hypnosis, lack of awareness, or whatever. There is something about an easy stretch of road with the same scenery, along with the hum of the tires on the road, the drone of the engine, and the rush of the wind against the vehicle that can make you sleepy.
Page 263 If you drive regularly in steep country, or if you’re planning to visit there, here are some tips that can make your trips safer and more enjoyable. Keep your vehicle in good shape. Check all fluid levels and also the brakes, tires, cooling system and transaxle.
Page 264: Winter Driving
Winter Driving Here are some tips for winter driving: Have your vehicle in good shape for winter. You may want to put winter emergency supplies in your trunk. 4-26 Include an ice scraper, a small brush or broom, a supply of windshield washer fluid, a rag, some winter outer clothing, a small shovel, a flashlight, a red cloth and a couple of reflective warning triangles.
Page 265: Driving On Snow Or Ice
Driving on Snow or Ice Most of the time, those places where your tires meet the road probably have good traction. However, if there is snow or ice between your tires and the road, you can have a very slippery situation. You’ll have a lot less traction or “grip”...
Page 266 Your anti lock brakes improve your vehicle’s stability when you make a hard stop on a slippery road. Even though you have the anti lock braking system, you’ll want to begin stopping sooner than you would on dry pavement. See “Anti Lock”...
Page 267 Tie a red cloth to your vehicle to alert police that you’ve been stopped by the snow. Put on extra clothing or wrap a blanket around you. If you have no blankets or extra clothing, make body insulators from newspapers, burlap bags, rags, floor mats anything you can wrap around yourself or tuck under your clothing to keep warm.
Page 268: Recreational Vehicle Towing
Then, shut the engine off and close the window almost all the way to preserve the heat. Start the engine again and repeat this only when you feel really uncomfortable from the cold. But do it as little as possible. Preserve the fuel as long as you can.
Page 269 The other label is the Certification label, found on the rear edge of the driver’s door. It tells you the gross weight capacity of your vehicle, called the Gross Vehicle Weight Rating (GVWR). The GVWR includes the weight of the vehicle, all occupants, fuel and cargo. Never exceed the GVWR for your vehicle or the Gross Axle Weight Rating (GAWR) for either the front or rear axle.
Page 270: Towing A Trailer
If you put things inside your vehicle tools, packages or anything else they will go as fast as the vehicle goes. If you have to stop or turn quickly, or if there is a crash, they’ll keep going. CAUTION: Things you put inside your vehicle can strike and injure people in a sudden stop or turn, or in a crash.
Page 271: If You Do Decide To Pull A Trailer
Your vehicle can tow a trailer if it is equipped with the proper trailer towing equipment. To identify what the vehicle trailering capacity is for your vehicle, you should read the information in “Weight of the Trailer” that appears later in this section. But trailering is different than just driving your vehicle by itself.
Page 272: Weight Of The Trailer
And, it can also depend on any special equipment that you have on your vehicle. You can ask your dealer for our trailering information or advice, or you can write us at: Cadillac Customer Assistance Center Cadillac Motor Car Division P.O. Box 33169 Detroit, MI 48232...
Page 273: Weight Of The Trailer Tongue
Weight of the Trailer Tongue The tongue load (A) of any trailer is an important weight to measure because it affects the total or gross weight of your vehicle. The Gross Vehicle Weight (GVW) includes the curb weight of the vehicle, any cargo you may carry in it, and the people who will be riding in the vehicle.
Page 274: Safety Chains
Hitches It’s important to have the correct hitch equipment. Crosswinds, large trucks going by and rough roads are a few reasons why you’ll need the right hitch. Here are some rules to follow: The rear bumper on your vehicle is not intended for hitches.
Page 275: Driving With A Trailer
Driving with a Trailer Towing a trailer requires a certain amount of experience. Before setting out for the open road, you’ll want to get to know your rig. Acquaint yourself with the feel of handling and braking with the added weight of the trailer.
Page 276: Making Turns
Making Turns NOTICE: Making very sharp turns while trailering could cause the trailer to come in contact with the vehicle. Your vehicle could be damaged. Avoid making very sharp turns while trailering. When you’re turning with a trailer, make wider turns than normal.
Page 277: Parking On Hills
Parking on Hills CAUTION: You really should not park your vehicle, with a trailer attached, on a hill. If something goes wrong, your rig could start to move. People can be injured, and both your vehicle and the trailer can be damaged. But if you ever have to park your rig on a hill, here’s how to do it: 1.
Page 278 Section 5 Problems on the Road Here you’ll find what to do about some problems that can occur on the road. Hazard Warning Flashers Other Warning Devices Jump Starting Towing Your Vehicle Engine Overheating Cooling System If a Tire Goes Flat Changing a Flat Tire Compact Spare Tire If You’re Stuck: In Sand, Mud, Ice or Snow...
Page 279: Hazard Warning Flashers
Hazard Warning Flashers Your hazard warning flashers let you warn others. They also let police know you have a problem. Your front and rear turn signal lamps will flash on and off. The hazard warning button is located on the center of the instrument panel between the two air vents.
Page 280: Other Warning Devices
Other Warning Devices If you carry reflective triangles, you can set one up at the side of the road about 300 feet (100 m) behind your vehicle. Jump Starting If you cannot start your vehicle and you are unable to remove your key from the ignition, see “Shift Lock Release”...
Page 281 2. Get the vehicles close enough so the jumper cables can reach, but be sure the vehicles aren’t touching each other. If they are, it could cause a ground connection you don’t want. You wouldn’t be able to start your vehicle and the bad grounding could damage the electrical systems.
Page 282 CAUTION: An electric fan can start up even when the engine is not running and can injure you. Keep hands, clothing and tools away from any underhood electric fan. 4. Lift and move the red positive (+) terminal cover away from the relay center.
Page 283 5. Check that the jumper cables don’t have loose or missing insulation. If they do, you could get a shock. The vehicles could also be damaged. Before you connect the cables, here are some basic things you should know. Positive (+) will go to positive (+) and negative ( ) will go to a heavy, unpainted metal engine part.
Page 284 8. Now connect the black negative ( to the good battery’s negative ( Don’t let the other end of the negative ( anything until the next step. The other end of the negative ( ) cable doesn’t go to the dead battery. ) cable ) terminal.
Page 285 11. Remove the cables in reverse order (as shown in the following procedure) to prevent electrical shorting. Take care that they don’t touch each other or any other metal. Return the red positive (+) remote terminal cover to its original position. Jumper Cable Removal Procedure A.
Page 286: Towing Your Vehicle
Towing Your Vehicle Consult your dealer or a professional towing service if you need to have your vehicle towed. See “Roadside Assistance” and “Recreational Vehicle Towing” in the Index. Engine Overheating You will find an ENGINE COOLANT HOT, IDLE ENGINE message or an ENGINE OVERHEATED, STOP ENGINE message on the Driver Information Center (DIC).
Page 287 If Steam Is Coming From Your Engine CAUTION: Steam from an overheated engine can burn you badly, even if you just open the hood. Stay away from the engine if you see or hear steam coming from it. Just turn it off and get everyone away from the vehicle until it cools down.
Page 288: If No Steam Is Coming From Your Engine
NOTICE: If your engine catches fire because you keep driving with no coolant, your vehicle can be badly damaged. The costly repairs would not be covered by your warranty. See “Overheated Engine Protection Operating Mode” in the Index. If No Steam Is Coming From Your Engine If you get an engine overheat warning but see or hear no steam, the problem may not be too serious.
Page 289: Cooling System
Cooling System When you decide it’s safe to lift the hood, here’s what you’ll see: A. Coolant Surge Tank with Pressure Cap B. Electric Engine Cooling Fans 5-12 CAUTION: An electric engine cooling fan under the hood can start up even when the engine is not running and can injure you.
Page 290 A low coolant level should be indicated by a CHECK COOLANT LEVEL message on the Driver Information Center. If it is, you may have a leak in the radiator hoses, heater hoses, radiator, water pump or somewhere else in the cooling system. CAUTION: Heater and radiator hoses, and other engine parts, can be very hot.
Page 291 If there seems to be no leak, with the engine on, check to see if the electric engine cooling fans are running. If the engine is overheating, both fans should be running. If they aren’t, your vehicle needs service. How to Add Coolant to the Coolant Surge Tank If you haven’t found a problem yet, but the coolant level isn’t at the proper level (2.5 inches (6.4 cm) below the...
Page 292 CAUTION: Adding only plain water to your cooling system can be dangerous. Plain water, or some other liquid like alcohol, can boil before the proper coolant mixture will. Your vehicle’s coolant warning system is set for the proper coolant mixture. With plain water or the wrong mixture, your engine could get too hot but you wouldn’t get the overheat warning.
Page 293 1. You can remove the coolant surge tank pressure cap 2. Then keep turning the cap, but now push down as when the cooling system, including the coolant surge you turn it. Remove the pressure cap. tank pressure cap and upper radiator hose, is no longer hot.
Page 294 3. Then fill the coolant surge tank with the proper 4. With the coolant surge tank pressure cap off, start mixture, to the base of the filler neck. the engine and let it run until you can feel the upper radiator hose getting hot.
Page 295: If A Tire Goes Flat
5. Then replace the pressure cap. Be sure the arrows on the pressure cap line up like this. Start the engine and allow it to warm up. If the CHECK COOLANT LEVEL message does not appear on the Driver Information Center, coolant is at the proper fill level.
Page 296: Changing A Flat Tire
Changing a Flat Tire If a tire goes flat, avoid further tire and wheel damage by driving slowly to a level place. Turn on your hazard warning flashers. CAUTION: Changing a tire can cause an injury. The vehicle can slip off the jack and roll over you or other people.
Page 297: Removing The Spare Tire And Tools
Removing the Spare Tire and Tools The equipment you’ll need is in the trunk. Instructions for changing your tires are on the inside of the tire cover located in your trunk. To gain access to the instructions, spare tire and jacking equipment, do the following: 5-20 1.
Page 298 3. Unscrew the wing nuts to remove the container that holds the wrench and jack. 4. Remove the wheel wrench, jack and spare tire from the trunk. See “Compact Spare Tire” later in this section for more information about the compact spare tire.
Page 299: Spare Tire
Removing the Wheel Cover Models with Center Wheel Cover For models having aluminum wheels with a center wheel cover, use the flat end of the wheel wrench to gently pry the wheel covers off. Be careful not to scratch the aluminum wheel edge and don’t try to remove it with your hands.
Page 300 2. Find the jacking location from the diagrams above and corresponding hoisting notches located in the plastic molding. The notches may be labeled “JACK” with an arrow pointing to the jacking location on the vehicle. 5-23...
Page 301 CAUTION: Getting under a vehicle when it is jacked up is dangerous. If the vehicle slips off the jack, you could be badly injured or killed. Never get under a vehicle when it is supported only by a jack. CAUTION: Raising your vehicle with the jack improperly positioned can damage the vehicle and even make the vehicle fall.
Page 302 7. Remove all wheel nuts and take off the flat tire. 8. Remove any rust or dirt from the wheel bolts, mounting surfaces and spare wheel. CAUTION: Rust or dirt on the wheel, or on the parts to which it is fastened, can make the wheel nuts become loose after a time.
Page 303 10. Put the wheel nuts back on with the rounded end of the nuts toward the wheel. Tighten each nut by hand until the wheel is held against the hub. 11. Lower the vehicle by turning the jack handle counterclockwise. Lower the jack completely. 5-26...
Page 304 12. Tighten the wheel nuts firmly in a crisscross sequence as shown. If your vehicle is equipped with wheel nut covers, screw them on with your fingers, then tighten quarter turn with the wheel wrench. CAUTION: Incorrect wheel nuts or improperly tightened wheel nuts can cause the wheel to become loose and even come off.
Page 305 NOTICE: Improperly tightened wheel nuts can lead to brake pulsation and rotor damage. To avoid expensive brake repairs, evenly tighten the wheel nuts in the proper sequence and to the proper torque specification. 13. Don’t try to put a wheel cover on your compact spare tire.
Page 306 Storing the Spare Tire and Tools CAUTION: Storing a jack, a tire or other equipment in the passenger compartment of the vehicle could cause injury. In a sudden stop or collision, loose equipment could strike someone. Store all these in the proper place. The compact spare is for temporary use only.
Page 307: Compact Spare Tire
Compact Spare Tire Although the compact spare tire was fully inflated when your vehicle was new, it can lose air after a time. Check the inflation pressure regularly. It should be 60 psi (420 kPa). After installing the compact spare on your vehicle, you should stop as soon as possible and make sure your spare tire is correctly inflated.
Page 308: If You're Stuck: In Sand, Mud, Ice Or Snow
If You’re Stuck: In Sand, Mud, Ice or Snow In order to free your vehicle when it is stuck, you will need to spin the wheels, but you don’t want to spin your wheels too fast. The method known as “rocking” can help you get out when you’re stuck, but you must use caution.
Page 309 Section 6 Service and Appearance Care Here you will find information about the care of your vehicle. This section begins with service and fuel information, and then it shows how to check important fluid and lubricant levels. There is also technical information about your vehicle, and a part devoted to its appearance care.
Page 310: Doing Your Own Service Work
Service Your dealer knows your vehicle best and wants you to be happy with it. We hope you’ll go to your dealer for all your service needs. You’ll get genuine GM parts and trained and supported service people. We hope you’ll want to keep your GM vehicle all GM. Genuine GM parts have one of these marks: Doing Your Own Service Work If you want to do some of your own service work, you’ll...
Page 311 CAUTION: You can be injured and your vehicle could be damaged if you try to do service work on a vehicle without knowing enough about it. Be sure you have sufficient knowledge, experience, the proper replacement parts and tools before you attempt any vehicle maintenance task.
Page 312 The malfunction indicator lamp on your instrument panel may turn on. If this occurs, return to your authorized Cadillac dealer for service. To provide cleaner air, all gasolines in the United States are now required to contain additives that will help...
Page 313: Fuels In Foreign Countries
NOTICE: Your vehicle was not designed for fuel that contains methanol. Don’t use it. It can corrode metal parts in your fuel system and also damage plastic and rubber parts. That damage wouldn’t be covered under your warranty. Fuels in Foreign Countries If you plan on driving in another country outside the United States or Canada, the proper fuel may be hard to find.
Page 314 The fuel door release button is located to the left of the steering wheel next to the headlamp knob. The button only works when the vehicle is in PARK (P) or NEUTRAL (N), when the key is in the ignition and the VALET lockout button is in OFF.
Page 315 CAUTION: If you get gasoline on yourself and then something ignites it, you could be badly burned. Gasoline can spray out on you if you open the fuel filler cap too quickly. This spray can happen if your tank is nearly full, and is more likely in hot weather.
Page 316: Checking Things Under The Hood
Filling a Portable Fuel Container CAUTION: Never fill a portable fuel container while it is in your vehicle. Static electricity discharge from the container can ignite the gasoline vapor. You can be badly burned and your vehicle damaged if this occurs.
Page 317: Hood Release
Hood Release Pull the lever inside the vehicle to open the hood. It is located on the lower left side of the instrument panel. With Night Vision Without Night Vision Then go to the front of the vehicle and find the secondary hood release lever.
Page 318: Engine Compartment Overview
Engine Compartment Overview When you open the hood, you’ll see: A. Windshield Washer Fluid Reservoir B. Engine Compartment Bussed Electrical Center C. Engine Coolant Surge Tank Before closing the hood, be sure all filler caps are on properly. Then pull the hood down and close it firmly. 6-10 D.
Page 319: Engine Oil
Underhood Lamp The underhood lamp will come on when the hood is opened and the parking lamps are turned on. Engine Oil If the CHECK OIL LEVEL message appears on the instrument panel, it means you need to check your engine oil level right away.
Page 320: When To Add Engine Oil
Pull out the dipstick and clean it with a paper towel or cloth, then push it back in all the way. Remove it again, keeping the tip down, and check the level. When to Add Engine Oil If the oil is at or below the ADD line, then you’ll need to add at least one quart of oil.
Page 321: What Kind Of Engine Oil To Use
What Kind of Engine Oil to Use Oils recommended for your vehicle can be identified by looking for the starburst symbol. This symbol indicates that the oil has been certified by the American Petroleum Institute (API). Do not use any oil which does not carry this starburst symbol.
Page 322: When To Change Engine Oil
As in the chart shown previously, SAE 5W your vehicle. However, you can use SAE 10W going to be 0 C) or above. These numbers on an oil container show its viscosity, or thickness. Do not use other viscosity oils, such as SAE 20W NOTICE: Use only engine oil with the American Petroleum Institute Certified For Gasoline Engines...
Page 323: What To Do With Used Oil
How to Reset the Oil Life Indicator After the oil has been changed, display the OIL LIFE message by pressing the INFO button. Then press and hold the RESET button until the display shows 100% ENGINE OIL LIFE. This resets the oil life index. The percentage of oil life remaining may be checked at any time by pressing the INFO button several times until the OIL LIFE message appears.
Page 324: Engine Air Cleaner/Filter
Engine Air Cleaner/Filter The engine air cleaner/filter is located on the driver’s side of the engine. Be sure the engine has cooled before following these steps to replace the air cleaner filter: For more information on location, see “Engine Compartment Overview” in the Index. 1.
Page 325 Follow these steps to reinstall the air cleaner cover to the engine air cleaner/filter housing: 1. When installing the engine air cleaner/filter cover, be sure to align the three tabs located on the back of the cover with the three slots on the back of the housing. 2.
Page 326 Passenger Compartment Air Filter Replacement The passenger compartment air filter traps most of the pollen from the air entering your vehicle. Like your vehicle’s air cleaner filter, it may need to be changed periodically. For how often to change the passenger compartment air filter, see your Maintenance Schedule booklet.
Page 327 2. Then, insert the flat tip of the screwdriver behind the push pin located on the inboard side of the air filter compartment to carefully pry the pin out. 3. To remove the air filter, insert the flat tip of the screwdriver between the air filter and the compartment wall on the outboard side of the vehicle.
Page 328: Automatic Transaxle Fluid
Automatic Transaxle Fluid When to Check and Change A good time to check your automatic transaxle fluid level is when the engine oil is changed. Change both the fluid and filter every 50,000 miles (83 000 km) if the vehicle is mainly driven under one or more of these conditions: In heavy city traffic where the outside temperature regularly reaches 90...
Page 329 Wait at least 30 minutes before checking the transaxle fluid level if you have been driving: When outside temperatures are above 90 At high speed for quite a while. In heavy traffic especially in hot weather. While pulling a trailer. To get the right reading, the fluid should be at normal operating temperature, which is 180 C to 93...
Page 330 Then, without shutting off the engine, follow these steps: The transaxle fluid cap is located next to the radiator hose and below the engine air cleaner/filter assembly on the driver’s side of the engine. See “Engine Compartment Overview” in the Index for more information on location.
Page 331: How To Add Fluid
How to Add Fluid Refer to the Maintenance Schedule to determine what kind of transaxle fluid to use. See “Recommended Fluids and Lubricants” in the Maintenance Schedule booklet. If the fluid level is low, add only enough of the proper fluid to bring the level into the cross the dipstick.
Page 332: Engine Coolant
Engine Coolant The cooling system in your vehicle is filled with COOL engine coolant. This coolant is designed to remain in your vehicle for 5 years or 150,000 miles (240 000 km), whichever occurs first, if you add only COOL extended life coolant.
Page 333 What to Use Use a mixture of one half clean, drinkable water and half DEX COOL coolant which won’t damage aluminum parts. If you use this coolant mixture, you don’t need to add anything else. CAUTION: Adding only plain water to your cooling system can be dangerous.
Page 334: Checking Coolant
Checking Coolant The surge tank is located on the passenger’s side of the engine. For more information on location, see “Engine Compartment Overview” in the Index. The cooling system is under a lot of pressure when it is hot. If the CHECK COOLANT LEVEL message appears on the Driver Information Center (DIC), you will need to add coolant.
Page 335: Power Steering Fluid
Adding Coolant If you need more coolant, add the proper DEX coolant mixture at the surge tank, but only when the engine is cool. CAUTION: You can be burned if you spill coolant on hot engine parts. Coolant contains ethylene glycol, and it will burn if the engine parts are hot enough.
Page 336: Windshield Washer Fluid
When to Check Power Steering Fluid It is not necessary to regularly check power steering fluid unless you suspect there is a leak in the system or you hear an unusual noise. A fluid loss in this system could indicate a problem. Have the system inspected and repaired.
Page 337: Adding Washer Fluid
Adding Washer Fluid The CHECK WASHER FLUID message will be displayed on the Driver Information Center (DIC) when the fluid is low. The windshield washer fluid reservoir is located in front of the fuse block relay center on the passenger’s side of the vehicle.
Page 338: Brake Fluid
Brakes Brake Fluid Your brake master cylinder reservoir is on the driver’s side of the engine compartment. See “Engine Compartment Overview” in the Index. It is filled with 3 brake fluid. There are only two reasons why the brake fluid level in the reservoir might go down.
Page 339 What to Add When you do need brake fluid, use only DOT fluid. Use new brake fluid from a sealed container only. Refer to “Recommended Fluids and Lubricants” in the Maintenance Schedule booklet. Always clean the brake fluid reservoir cap and the area around the cap before removing it.
Page 340: Brake Wear
Brake Wear Your vehicle has four wheel disc brakes. Disc brake pads have built in wear indicators that make a high pitched warning sound when the brake pads are worn and new pads are needed. The sound may come and go or be heard all the time your vehicle is moving (except when you are pushing on the brake pedal firmly).
Page 341: Replacing Brake System Parts
Replacing Brake System Parts The braking system on a vehicle is complex. Its many parts have to be of top quality and work well together if the vehicle is to have really good braking. Your vehicle was designed and tested with top quality GM brake parts.
Page 342: Vehicle Storage
To be sure the vent hose (A) is properly attached, the vent hose connectors (B) must be securely reattached to the vent outlets (C) on each side of the battery, and the vent assembly grommet (D) must be secured to the floor pan (E).
Page 343: Bulb Replacement
Bulb Replacement For the proper type of replacement bulb, see “Replacement Bulbs” in the Index. For any bulb changing procedure not listed in this section, contact your dealer’s service department. Halogen Bulbs CAUTION: Halogen bulbs have pressurized gas inside and can burst if you drop or scratch the bulb.
Page 344 2. Remove the two bolts at the top of the headlamp assembly. 3. Loosen the bolt at the bottom of the headlamp assembly to gain access to the bulb socket. 6-36 4. Use a screwdriver to help pry the headlamp assembly away from the vehicle.
Page 345 5. Firmly grasp the outboard side of the headlamp assembly with both hands and pull hard enough so that the whole assembly opens freely. 6. Use a screwdriver to remove the bulb socket dust cover. 7. Turn the headlamp housing socket counterclockwise to unlock the socket from the lamp housing.
Page 346 8. Pull the old bulb out of the socket. 9. Install the new bulb into the socket. Make sure that the bulb is locked firmly into the bulb socket. 10. Reinstall the headlamp housing socket back into the headlamp assembly. 11.
Page 347 Headlamp Aiming Your vehicle has a visual optical headlamp aiming system equipped with horizontal aim indicators. The aim has been pre set at the factory and should need no further adjustment. This is true even though your horizontal aim indicators may not fall exactly on the “0”...
Page 348 The vehicle should be properly prepared as follows: The vehicle should be placed so the headlamps are 25 ft. (7.6 m) from a light colored wall or other flat surface. The vehicle must have all four tires on a perfectly level surface which is level all the way to the wall or other flat surface.
Page 349 Headlamp Horizontal Aiming Turn the horizontal aiming screw (A) until the indicator (B) is lined up with zero. Once the horizontal aim is adjusted, then adjust the vertical aim. Headlamp Vertical Aiming 1. Find the aim dot on the lens of the lamps. 2.
Page 350 3. At the wall or other flat surface, measure from the floor to the recorded distance and draw a horizontal line the width of the vehicle. 4. Turn on the low beam headlamps and place a piece of cardboard or equivalent in front of the headlamp not being dimed.
Page 351 5. Turn the vertical aiming screw (C) until the headlamp beam is aimed to the horizontal tape line. Front Cornering Lamps 1. Follow Steps 1 through 4 in “Headlamps” described previously. 2. Disconnect the cornering lamp bulb by pulling the bulb out of the socket.
Page 352: Front Turn Signal Lamps
Front Turn Signal Lamps 1. The turn signal lamps are located beside the headlamps. To access, lift off the bulb socket dust cover. See Step 1 under “Headlamps” described previously. 2. Press the tab down and turn the housing socket clockwise to unlock the socket from the lamp housing.
Page 353: Windshield Wiper Blade Replacement
Windshield Wiper Blade Replacement Windshield wiper blades should be inspected at least twice a year for wear or cracking. See “Wiper Blade Check” in the Maintenance Schedule booklet under Part B “Owner Checks and Services” for more information. It’s a good idea to clean or replace the wiper blade assembly on a regular basis or when worn.
Page 354 Tires Your new vehicle comes with high a leading tire manufacturer. If you ever have questions about your tire warranty and where to obtain service, see your Vehicle Warranty booklet for details. CAUTION: Poorly maintained and improperly used tires are dangerous. Overloading your tires can cause overheating as a result of too much friction.
Page 355 Inflation -- Tire Pressure The Tire Loading Information label, which is located on the rear edge of the driver’s side rear door, shows the correct inflation pressures for your tires when they’re cold. “Cold” means your vehicle has been sitting for at least three hours or driven no more than 1 mile (1.6 km).
Page 356 When to Check Check your tires once a month or more. Don’t forget your compact spare tire. It should be at 60 psi (420 kPa). How to Check Use a good quality pocket type gage to check tire pressure. You can’t tell if your tires are properly inflated simply by looking at them.
Page 357 Changes or modifications to this system by other than an authorized service facility could void authorization to use this equipment. If the TPM system detects low tire pressure, below 24 psi (165 kPa), or high tire pressure, above 36 psi (248 kPa), a message, CHECK TIRE PRESSURE, will appear on the Driver Information Center (DIC) display.
Page 358: Tire Inspection And Rotation
Tire Inspection and Rotation Tires should be rotated every 6,000 to 8,000 miles (10 000 to 13 000 km). Any time you notice unusual wear, rotate your tires as soon as possible and check wheel alignment. Also check for damaged tires or wheels.
Page 359 When It’s Time for New Tires One way to tell when it’s time for new tires is to check the treadwear indicators, which will appear when your tires have only 1/16 inch (1.6 mm) or less of tread remaining. You need a new tire if any of the following statements are true: You can see the indicators at three or more places around the tire.
Page 360: Buying New Tires
Buying New Tires To find out what kind and size of tires you need, look at the Tire Loading Information label. The tires installed on your vehicle when it was new had a Tire Performance Criteria Specification (TPC Spec) number on each tire’s sidewall. When you get new tires, get ones with that same TPC Spec number.
Page 361: Uniform Tire Quality Grading
Uniform Tire Quality Grading Quality grades can be found where applicable on the tire sidewall between tread shoulder and maximum section width. For example: Treadwear 200 Traction AA Temperature A The following information relates to the system developed by the United States National Highway Traffic Safety Administration, which grades tires by treadwear, traction and temperature performance.
Page 362: Wheel Replacement
Temperature A, B, C The temperature grades are A (the highest), B, and C, representing the tire’s resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a specified indoor laboratory test wheel. Sustained high temperature can cause the material of the tire to degenerate and reduce tire life, and excessive temperature can lead to sudden tire failure.
Page 363 If you need to replace any of your wheels, wheel bolts or wheel nuts, replace them only with new GM original equipment parts. This way, you will be sure to have the right wheel, wheel bolts and wheel nuts for your vehicle. CAUTION: Using the wrong replacement wheels, wheel bolts or wheel nuts on your vehicle can be dangerous.
Page 364: Tire Chains
Tire Chains NOTICE: If your vehicle has P235/55R17 size tires, don’t use tire chains. They can damage your vehicle because there’s not enough clearance. Use another type of traction device only if its manufacturer recommends it for use on your vehicle and tire size combination and road conditions.
Page 365: Appearance Care
Appearance Care Remember, cleaning products can be hazardous. Some are toxic. Others can burst into flame if you strike a match or get them on a hot part of the vehicle. Some are dangerous if you breathe their fumes in a closed space. When you use anything from a container to clean your vehicle, be sure to follow the manufacturer’s warnings and instructions.
Page 366: Cleaning Leather
Here are some cleaning tips: Always read the instructions on the cleaner label. Clean up stains as soon as you can Carefully scrape off any excess stain. Use a clean cloth or sponge, and change to a clean area often. A soft brush may be used if stains are stubborn.
Page 367: Cleaning Glass Surfaces
Cleaning Wood Panels Use a clean cloth moistened in warm, soapy water (use mild dish washing soap). Dry the wood immediately with a clean cloth. Cleaning Speaker Covers Vacuum around a speaker cover gently, so that the speaker won’t be damaged. Clean spots with just water and mild soap.
Page 368: Cleaning The Outside Of Your Vehicle
Cleaning the Outside of the Windshield and Wiper Blades If the windshield is not clear after using the windshield washer, or if the wiper blade chatters when running, wax, sap or other material may be on the blade or windshield. Clean the outside of the windshield with GM Windshield Cleaner, Bon Ami Powder (non...
Page 369: Finish Care
Cleaning Exterior Lamps/Lenses Use only lukewarm or cold water, a soft cloth and a car washing soap to clean exterior lamps and lenses. Follow instructions under “Washing Your Vehicle.” Finish Care Occasional waxing or mild polishing of your vehicle by hand may be necessary to remove residue from the paint finish.
Page 370: Cleaning Tires
Cleaning Aluminum or Chrome Plated Wheels (If Equipped) Keep your wheels clean using a soft clean cloth with mild soap and water. Rinse with clean water. After rinsing thoroughly, dry with a soft clean towel. A wax may then be applied. The surface of these wheels is similar to the painted surface of your vehicle.
Page 371: Chemical Paint Spotting
Although no defect in the paint job causes this, Cadillac will repair, at no charge to the owner, the surfaces of new vehicles damaged by this fallout condition within 12 months or 12,000 miles (20 000 km) of purchase, whichever occurs first.
Page 372 GM Vehicle Care/Appearance Materials PART NUMBER SIZE 994954 23 in. x 25 in. 1050172 16 oz. (0.473 L) 1050173 16 oz. (0.473 L) 1050174 16 oz. (0.473 L) 1050214 32 oz. (0.946 L) 1050427 23 oz. (0.680 L) 1052918** 8 oz. (0.237 L) 1052925 16 oz.
Page 373: Engine Identification
Vehicle Identification Number (VIN) This is the legal identifier for your vehicle. It appears on a plate in the front corner of the instrument panel, on the driver’s side. You can see it if you look through the windshield from outside your vehicle. The VIN also appears on the Vehicle Certification and Service Parts labels and the certificates of title and registration.
Page 374: Electrical System
Electrical System Add-On Electrical Equipment NOTICE: Don’t add anything electrical to your vehicle unless you check with your dealer first. Some electrical equipment can damage your vehicle and the damage wouldn’t be covered by your warranty. Some add on electrical equipment can keep other components from working as they should.
Page 375: Fuses And Circuit Breakers
Fuses and Circuit Breakers The wiring circuits in your vehicle are protected from short circuits by a combination of fuses and circuit breakers. This greatly reduces the chance of fires caused by electrical problems. Look at the silver colored band inside the fuse. If the band is broken or melted, replace the fuse.
Page 376 Minifuses Usage Assembly Line Diagnostic Link Accessory Windshield Wipers Not Used 6-68 Minifuses Usage Headlamp Low Beam Left Headlamp Low Beam Right Instrument Panel Powertrain Control Module Battery Headlamp High Beam Right Headlamp High Beam Left Ignition 1 Transmission Cruise Control Coil Module Injector Bank #2 Not Used...
Page 377 Minifuses Usage Oxygen Sensor Injector Bank #1 Cigar Lighter #2 Cigar Lighter #1 Daytime Running Lamps Horn Air Conditioner Clutch Micro Relays Usage Headlamp High Beam Headlamp Low Beam Fog Lamps Daytime Running Lamps Horn Air Conditioner Clutch Mini Relays Usage Not Used Accessory...
Page 378 Removing the Rear Seat Cushion NOTICE: The battery and main fuse blocks are located under the rear seat cushion. The battery’s ground terminal and some relay wires are exposed. To help avoid damage to the battery and wires, be careful when removing or reinstalling the seat cushion.
Page 379 CAUTION: A safety belt that isn’t properly routed through the seat cushion or is twisted won’t provide the protection needed in a crash. If the safety belt hasn’t been routed through the seat cushion at all, it won’t be there to work for the next passenger.
Page 380 Minifuses Usage Fuel Pump Heater, Ventilation and Air Conditioning Battery Memory Seat, Tilt and Telescoping Steering 6-72 Minifuses Usage RR Lumbar, Antenna Driver Door Module Heated Seat Left Rear Power Tilt and Telescoping Steering Supplemental Inflation Restraint Not Used Lamps Park Right Fuel Tank Ventilation Solenoid Ignition 1 Interior Lamp Dimmer Module...
Page 381 Minifuses Usage Park/Reverse Audio Retained Accessory Power for Sunroof Lamps, Parking Left Night Vision Passenger Door Module Body Export Lights, Power Locks Rear HVAC Blower Ignition Switch Hazard Signal Reverse, Locks Continuous Variable Road Sensing Suspension Heating, Ventilation, Air Conditioning Minifuses Usage Ignition 3 Rear...
Page 382 Micro Relays Usage Reverse Lockout CVRSS Dampers Ignition 3 Fuel Tank Door Release Interior Lamps Trunk Release Not Used Lock, Cylinder Electronic Level Control Compressor Circuit Usage Breakers Power Seats Power Windows 6-74 Mini Relays Usage Cigar Lighter Right Rear Defog MaxiFuses Usage Park Brake...
Page 383: Engine Specifications
Replacement Bulbs Application Headlamps, Composite Inner High Beam ......Outer Low Beam ......Front Turn Signal .
Page 384: Wheel Nut Torque
Wheel Nut Torque 100 lb ft (140 N·m) Capacities Transaxle (4T80 ..Crankcase (Engine Oil with Filter Change) ....Engine Cooling System .
Page 385 Section 7 Customer Assistance Information Here you will find out how to contact Cadillac if you need assistance. This section also tells you how to obtain service publications and how to report any safety defects. Customer Satisfaction Procedure Customer Assistance for Text Telephone...
Page 386: Customer Satisfaction Procedure
Cadillac Customer Assistance Center, 24 hours a day, by calling 1-800-458-8006. In Canada, contact GM of Canada Customer Communication Centre in Oshawa by calling 1-800-263-3777 (English) or 1-800-263-7854 (French).
Page 387: Customer Assistance For Text Telephone
To assist customers who are deaf, hard of hearing, or speech impaired and who use Text Telephones (TTYs), Cadillac has TTY equipment available at its Customer Assistance Center. Any TTY user can communicate with Cadillac by dialing: 1 (TTY users in Canada can dial 1 free telephone CMCC (2622).
Page 388: Customer Assistance Offices
Customer Assistance Offices Cadillac encourages customers to call the toll-free number for assistance. If a U.S. customer wishes to write to Cadillac, the letter should be addressed to Cadillac’s Customer Assistance Center. United States Cadillac Customer Assistance Center Cadillac Motor Car Division P.O.
Page 389: Gm Mobility Program For Persons With Disabilities
All TTY users call 1 3830. Roadside Service Cadillac’s exceptional Roadside Service is more than an auto club or towing service. It provides every Cadillac owner with the advantage of contacting a Cadillac 9935. advisor and, where available, a Cadillac trained dealer 9935.
Page 390 1112, 24 hours a day, 365 days a year. This service is provided at no charge for any warranty covered situation and for a nominal charge if the Cadillac is no longer under warranty. Roadside Service is available only in the United States and Canada. Cadillac Owner Privileges...
Page 391: Roadside Service For The Hearing Or
Text Telephone (TTY) in the Roadside Service Center. Any customer who has access to a (TTY) or a conventional teletypewriter can communicate with Cadillac by dialing from the United States or Canada 2438 daily, 24 hours.
Page 392: Courtesy Transportation
Transportation Options Warranty service can generally be completed while you wait. However, if you are unable to wait Cadillac helps minimize your inconvenience by providing several transportation options. Depending on the circumstances,...
Page 393: Additional Program Information
Courtesy Rental Vehicle When your vehicle is unavailable due to warranty repairs, your dealer may arrange to provide you with a courtesy rental vehicle or reimburse you for a rental vehicle you obtained, at actual cost, up to a maximum of $37.00 per day supported by receipts.
Page 394: Warranty Information
General Motors reserves the right to unilaterally modify, change or discontinue Courtesy Transportation at any time and to resolve all questions of claim eligibility pursuant to the terms and conditions described herein at its sole discretion. Warranty Information Your vehicle comes with a separate warranty booklet that contains detailed warranty information.
Page 395: Reporting Safety Defects To
In addition to notifying NHTSA (or Transport Canada) in a situation like this, we certainly hope you’ll notify us. Please call us at 1 8006, or write: Cadillac Customer Assistance Center Cadillac Motor Car Division P.O. Box 33169 Detroit, MI 48232...
Page 396 2001 CADILLAC SERVICE PUBLICATIONS ORDERING INFORMATION The following publications covering the operation and servicing of your vehicle can be purchased by filling out the Service Publication Order Form in this book and mailing it in with your check, money order, or credit card information to Helm, Incorporated (address below.)
Page 397 ORDER TOLL FREE (NOTE: For Credit Card Holders Only) 1-800-551-4123 (Monday-Friday 8:00 AM – 6:00 PM EST) FAX Orders Only 1-313-865-5927 PUBLICATION FORM PUBLICATION FORM NUMBER NUMBER Service Manual Car & Light Truck Transmission Unit Repair Owner’s Manual NOTE: Dealers and Companies please provide dealer or company name, and also the name of the person to whose attention the shipment should be sent.

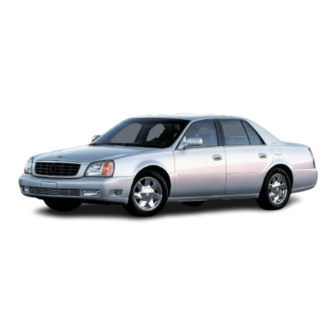

Cadillac 2001 DeVille Owner's Manual

Section 1 Seats and Restraint Systems

Section 4 Your Driving and the Road

Section 5 Problems on the Road

Section 7 Customer Assistance Information

Quick Links

Chapters

Related Manuals for Cadillac 2001 DeVille

Summary of Contents for Cadillac 2001 DeVille
