Installation and service instructions
for contractors

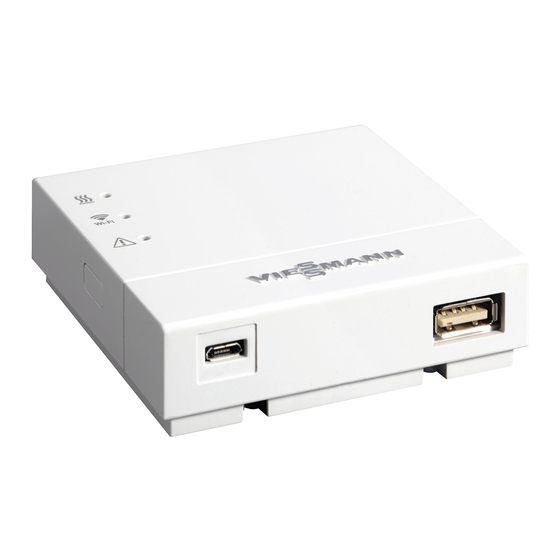

Vitoconnect 100
Type OPTO1
Communication interface for remote monitoring and control of heating systems via
the internet, for the following user interfaces:
■
ViCare app
Vitotrol Plus app
■
Vitoguide
■
For applicability, see the last page
VITOCONNECT 100
5785 665 GB
7/2016
VIESMANN
Please keep safe.
Advertisement
Table of Contents
Related Manuals for Viessmann VITOCONNECT 100
Summary of Contents for Viessmann VITOCONNECT 100
- Page 1 VIESMANN Installation and service instructions for contractors Vitoconnect 100 Type OPTO1 Communication interface for remote monitoring and control of heating systems via the internet, for the following user interfaces: ■ ViCare app Vitotrol Plus app ■ Vitoguide ■ For applicability, see the last page VITOCONNECT 100 Please keep safe.
- Page 2 These instructions are exclusively intended for author- For replacements, use only original spare parts ised contractors. supplied or approved by Viessmann. Work on electrical equipment must only be carried ■ out by a qualified electrician. Safety instructions for operating the system ■...
-
Page 3: Safety Instructions
Safety instructions Safety instructions (cont.) Extractors Operating appliances that extract air to the outside (cooker hoods, extractors, air conditioning units, etc.) can create negative pressure. If the boiler is operated at the same time, this can lead to reverse flow of the flue gas. -
Page 4: Parts Lists
Index Index 1. Safety and liability Operational reliability ................Liability ....................2. Information Symbols ....................Intended use ..................3. Preparing for installation System requirements ................Heating system ................... ■ Supported control units ............... ■ IP network ................... ■ Operation via apps ................. Functions .................... -
Page 5: Operational Reliability
The Vitotronic control units and the Vitoconnect 100 toring for water damage. ■ must be connected and configured correctly. ■ The Vitoconnect 100 is connected to the internet via a WLAN router. ■ Internet access must be available at all times. ■... -
Page 6: Symbol Meaning
Install and operate Vitoconnect products as intended, in conjunction with the electronic control units and con- trollers for the Viessmann heat and power generators designed for this system. In particular, observe the cur- rent and voltage specifications for connections and hook-ups. -
Page 7: System Requirements
Preparing for installation System requirements Heating system The Vitoconnect 100, type OPTO1 can be used for one single boiler system with Vitotronic control unit, without heating circuits downstream. Supported control units The Vitoconnect 100, type OPTO1, can be used in conjunction with the following Viessmann control units. - Page 8 Apple iOS, version 8 or higher Google Android, version 4.4 or higher ■ Operation via apps For remote control of Viessmann heating systems with Vitotronic control units via IP networks. Fig. 1 Heat generator with control unit Viessmann server Connecting lead Optolink/USB...
- Page 9 Forwarding messages Any pending messages from the heating system, e.g. sensor or burner faults, are transmitted to the Vitoconnect 100 via Optolink and USB. The Vitoconnect 100 transmits these messages to the Viessmann server. The ViCare app and Vitotrol Plus app regularly check the heating system status and display any messages.
-
Page 10: Installation Location
Installation Check system requirements. Heating contractor/IT expert Fit wall mounting bracket for Vitoconnect 100. Heating contractor Connect the Vitoconnect 100 to the heat generator. Heating contractor Insert the Vitoconnect 100 into the wall mounting Heating contractor bracket. Establish power supply. -
Page 11: Installation Sequence
Installation sequence Installation location (cont.) Range The range of WLAN connections can be reduced by WLAN signals are isolated by service ducts and lift ■ walls, ceilings and interior fixtures. These weaken the shafts. WLAN signal, which may result in poor reception. ■... - Page 12 Electrical connections Electrical connections At the Vitoconnect 100, view from below At the control unit of the heat generator For connecting lead Optolink/USB Micro USB for power supply from plug-in power supply unit For connecting lead Optolink/USB 1. Use the Optolink/USB connecting lead to connect the Vitoconnect 100 to the heat generator.
-
Page 13: Display And Controls
Interpreting the LED indicators Communication with the heat generator – Flashes yellow. Connection of Vitoconnect 100 to heat generator being established Illuminates green. Connection of Vitoconnect 100 to heat generator successfully established Flashes red. No connection to heat generator, see page 16. -
Page 14: Checking The Network Settings
LEDs , All illuminated white. Vitoconnect 100 is starting up. All illuminated yellow. The Vitoconnect 100 has been reset to the factory setting and can be recommis- sioned. Note Flashing: LED 0.5 s on and 0.5 s off Pulsating: LED 0.1 s on and 0.9 s off... - Page 15 Change back to Vitotrol Plus app. 7. Follow the instructions in the app. Set up the home network. ■ ■ Enter system name and location. ■ Accept data protection agreement and terms of use. The Vitoconnect 100 and the Vitotrol Plus app are set up.
- Page 16 Check password during WLAN commissioning. WLAN signal strength inadequate ■ – Change the installation location of the Vitoconnect 100, see page 10 WLAN connection established, but no internet connection ■ – Check the internet connection with other subscriber, e.g. laptop.
-
Page 17: Maintenance Mode
LEDs flash yellow. 2. Release the reset button. 3. Press the reset button again for more than 5 s, until all LEDs illuminate yellow. 4. Release the reset button. The Vitoconnect 100 has been restored to the fac- tory settings. -
Page 18: Ordering Parts
Parts lists Ordering parts The following details are required when ordering parts: ■ Part no. (see type plate ■ Position number of the part (from this parts list) Fig. 7 Parts list 0001 0002 0003 0004 Fig. 8 Pos. Part 0001 USB/Optolink connecting lead 0002... -
Page 19: Specification
Specification Specification Vitoconnect 100 Rated voltage ― WLAN frequency 2.4 GHz WLAN encryption Unencrypted or WPA2 Internet protocol IPv4 IP assignment DHCP Rated current Power consumption Protection class IP rating IP 30 to EN 60529; ensure through design/installation. Permissible ambient temperature Operation 5 to +40 °C... - Page 20 Certificates Declaration of conformity Vitoconnect 100, type OPTO1 We, Viessmann Werke GmbH & Co. KG, D-35107 Allendorf, declare as sole responsible body that the named product complies with the provisions of the following directives and regulations: 1999/5/EU R&TTE directive 2014/35/EU...
- Page 21 Keyword index Keyword index Ambient temperature..........11 Network................ 8 Network operator............5 Network settings............14 Commissioning.............13, 14 – Resetting..............17 Control device – For ViCare app............7 – For Vitotrol Plus app..........8 Operating system............. 7, 8 Controls..............13 Operation..............8 Control units Operational reliability............5 –...
- Page 24 Applicability Part no. 7571381 Viessmann Werke GmbH & Co. KG Viessmann Limited D-35107 Allendorf Hortonwood 30, Telford Telephone: +49 6452 70-0 Shropshire, TF1 7YP, GB Fax: +49 6452 70-2780 Telephone: +44 1952 675000 www.viessmann.com Fax: +44 1952 675040 E-mail: info-uk@viessmann.com...
