XC Hybrid

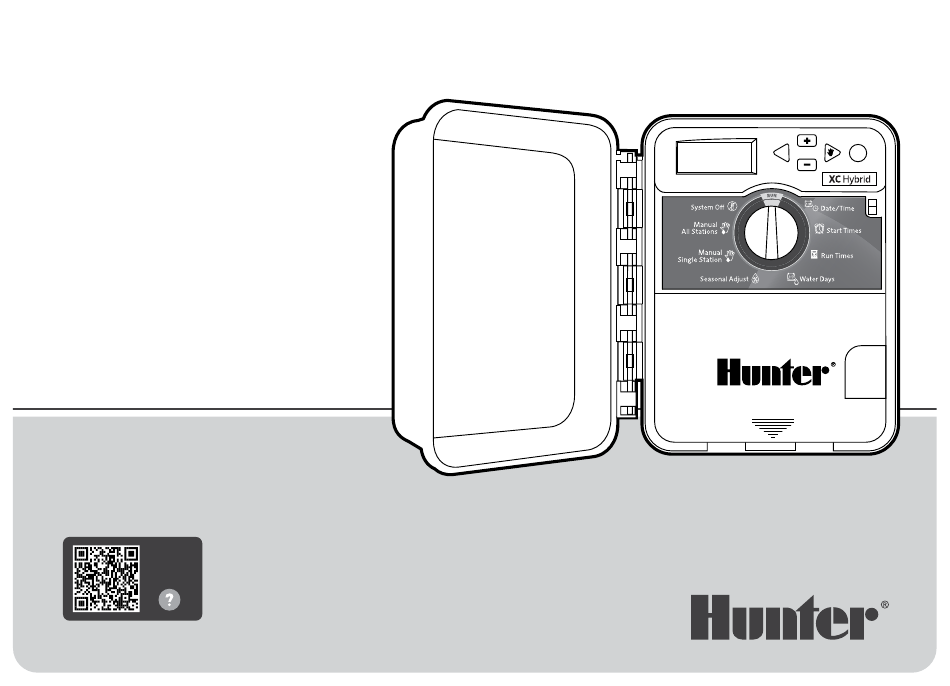

QUICK START GUIDE
XC Hybrid
Irrigation Controller Programming Guide
SCAN
for help
https:/ /hunter.help/XCHybrid
PRG
SENSOR BYPASS
ACTIVE

Advertisement

Table of Contents
loading

Related Manuals for Hunter XC Hybrid

Summary of Contents for Hunter XC Hybrid

  • Page 1 XC Hybrid QUICK START GUIDE SENSOR BYPASS ACTIVE XC Hybrid Irrigation Controller Programming Guide SCAN for help https:/ /hunter.help/XCHybrid...

  • Page 2: Table Of Contents

    Table of Contents XC Hybrid Components ..............3 Battery Installation and Solenoid Wiring ........4 Battery Power ................. 4 SENSOR BYPASS Setting the Current Date and Time ..........5 ACTIVE Setting a Program Start Time ............5 Eliminating a Program Start Time ............5 Setting a Station Run Time ..............5...

  • Page 3: Xc Hybrid Components

    XC Hybrid Components ① ② ③ ④ ⑤ ⑥ ➐ ➑ ⑨ Control buttons AM PM %24HR AM PM EVEN %24HR 2,4...30 MO TU WE TH FR SA SU ODD 1,3...29 EVEN 2,4...30 MO TU WE TH FR SA SU ODD 1,3...29...

  • Page 4: Battery Installation And Solenoid Wiring

    • The XC Hybrid stainless steel solar model comes out of the box ready to install and program. Place the controller in full sunlight. Turn the dial to the RUN position to activate solar charging.

  • Page 5: Setting The Current Date And Time

    Setup SETTING THE CURRENT DATE AND TIME SETTING A PROGRAM START TIME Turn the dial to the DATE/TIME position. Turn the dial to the START TIMES position. The current year will be flashing. Use the + and – buttons to Use the PRG button to select program (A, B, or C).

  • Page 6: Setting Water Days

    SEASONAL ADJUST from station to station manually. Changes all run times by a percentage for local conditions. Turn the dial to Seasonal Adjustment. Press + or – to change from 10% to 150% of original run times. https://hunter.help/XCHybrid...

  • Page 7: Test Program

    Setup TEST PROGRAM SENSOR BYPASS Runs all stations for a test run time. Overrides sensor shutdown to allow watering. Press and hold PRG for three seconds. Move sensor BYPASS switch to BYPASS position. Station 1 appears. Press + or – to enter run time. Return switch to ACTIVE to allow sensor shutdown.

  • Page 8: Troubleshooting

    Remove jumper wire on SEN terminals. Set sensor switch to STOP IRRIGATION switch in BYPASS position. Active position. CONTROLLER SEEMS TO Too many START TIMES. One Start Time operates all stations in a program. Remove WATER CONTINUOUSLY unnecessary Start Times. DISPLAY SHOWS “BATT” Batteries are low. Replace batteries. https://hunter.help/XCHybrid...

  • Page 9: Hidden Features And Optional Power

    +, –, ◄, ► together, then +. Checks all stations for wiring problems. INSTALLING THE TRANSFORMER (OPTIONAL) TRANSFORMER MODELS The XC Hybrid is designed to operate on batteries or a permanent VOLTAGE IN/OUT VERSION PART NUMBER plug-in transformer, if AC power is available. A 24 VAC output plug- 120/24 VAC U.S.

  • Page 10: Compliance Information

    Changes or modifications not expressly approved by Hunter Industries could void the user’s authority to operate this device. If necessary, consult a representative of Hunter Industries. or an experienced radio/television technician for additional suggestions. The following statement is applicable when irrigation controller is used with accessory Wi-Fi device: To satisfy FCC RF Exposure requirements for mobile and base station transmission devices, a separation distance of 7.9"...
