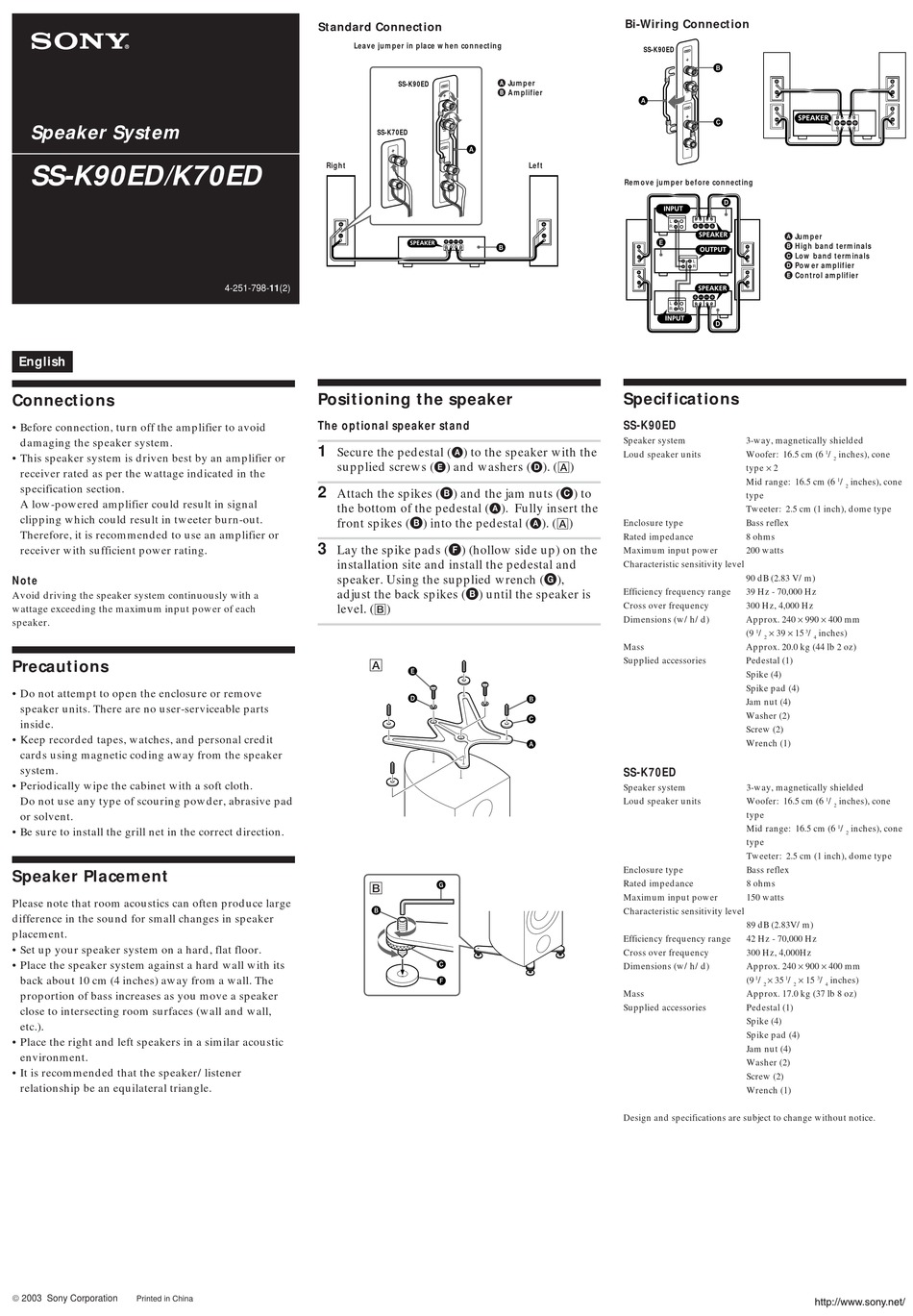

Sony SS-K70ED Instruction Manual

Speaker System
SS-K90ED/K70ED
English
Connections
• Before connection, turn off the amplifier to avoid
damaging the speaker system.
• This speaker system is driven best by an amplifier or
receiver rated as per the wattage indicated in the
specification section.
A low-powered amplifier could result in signal
clipping which could result in tweeter burn-out.
Therefore, it is recommended to use an amplifier or
receiver with sufficient power rating.
Note
Avoid driving the speaker system continuously with a
wattage exceeding the maximum input power of each
speaker.
Precautions
• Do not attempt to open the enclosure or remove
speaker units. There are no user-serviceable parts
inside.
• Keep recorded tapes, watches, and personal credit
cards using magnetic coding away from the speaker
system.
• Periodically wipe the cabinet with a soft cloth.
Do not use any type of scouring powder, abrasive pad
or solvent.
• Be sure to install the grill net in the correct direction.

Speaker Placement

Please note that room acoustics can often produce large
difference in the sound for small changes in speaker
placement.
• Set up your speaker system on a hard, flat floor.
• Place the speaker system against a hard wall with its
back about 10 cm (4 inches) away from a wall. The
proportion of bass increases as you move a speaker
close to intersecting room surfaces (wall and wall,
etc.).
• Place the right and left speakers in a similar acoustic
environment.
• It is recommended that the speaker/listener
relationship be an equilateral triangle.
2003 Sony Corporation
Printed in China
Standard Connection
Leave jumper in place when connecting
SS-K90ED
SS-K70ED
Right
4-251-798-11(2)

Positioning the speaker

The optional speaker stand
1
Secure the pedestal (
supplied screws (
2
Attach the spikes (B) and the jam nuts (C) to
the bottom of the pedestal (
front spikes (B) into the pedestal (
3
Lay the spike pads (F) (hollow side up) on the
installation site and install the pedestal and
speaker. Using the supplied wrench (G),
adjust the back spikes (B) until the speaker is
level. ( )
B
A
B
A Jumper
HIG H
B Amplifier
LO W
Left
) to the speaker with the
A
) and washers ( ). ( )
E D A
). Fully insert the
A
). ( )
A A
Bi-Wiring Connection
SS-K90ED
HIG H
LO W
Remove jumper before connecting
L
R
A Jumper
B High band terminals
C Low band terminals
L
D Power amplifier
R
E Control amplifier
L
R

Specifications

SS-K90ED
Speaker system 3-way, magnetically shielded
Loud speaker units Woofer: 16.5 cm (6
type 2
Mid range: 16.5 cm (6
type
Tweeter: 2.5 cm (1 inch), dome type
Enclosure type Bass reflex
Rated impedance 8 ohms
Maximum input power 200 watts
Characteristic sensitivity level
90 dB (2.83 V/m)
Efficiency frequency range 39 Hz - 70,000 Hz
Cross over frequency 300 Hz, 4,000 Hz
Dimensions (w/h/d) Approx. 240 990 400 mm
(9 1 / 39 15
2
Mass Approx. 20.0 kg (44 lb 2 oz)
Supplied accessories Pedestal (1)
Spike (4)
Spike pad (4)
Jam nut (4)
Washer (2)
Screw (2)
Wrench (1)
SS-K70ED
Speaker system 3-way, magnetically shielded
Loud speaker units Woofer: 16.5 cm (6
type
Mid range: 16.5 cm (6
type
Tweeter: 2.5 cm (1 inch), dome type
Enclosure type Bass reflex
Rated impedance 8 ohms
Maximum input power 150 watts
Characteristic sensitivity level
89 dB (2.83V/m)
Efficiency frequency range 42 Hz - 70,000 Hz
Cross over frequency 300 Hz, 4,000Hz
Dimensions (w/h/d) Approx. 240 900 400 mm
(9 1 / 35 1 /
2 2
Mass Approx. 17.0 kg (37 lb 8 oz)
Supplied accessories Pedestal (1)
Spike (4)
Spike pad (4)
Jam nut (4)
Washer (2)
Screw (2)
Wrench (1)
Design and specifications are subject to change without notice.
1 / inches), cone
2
1 / inches), cone
2
3 / inches)
4
1
/ inches), cone
2
1 / inches), cone
2
15 3 / inches)
4
