Sony SS-CN295 Service Manual

SS-CN295 / CR305 / SR305
SERVICE MANUAL
Ver 1.0 2001.02
SS-CR305 is composed of following models.
COMPONENT MODEL NAME FOR THESE SYSTEM
Center Speaker
Surround Speaker
• SS-CN295 is sold as single model too.
[SS-CN295]
Speaker system 2-way, magnetically shielded
Woofer: 12 cm, cone type × 2
Speaker units
Tweeter: 2.5 cm, balance drive type
Enclosure type Bass reflex
Rated impedance 8 ohms
Power handling capacity Maximum input power: 120 watts
Sensitivity level 89 dB (1 W, 1 m)
Frequency range 85 Hz - 20,000 Hz
Approx. 380 × 150 × 168 mm, not including
Dimensions (w/h/d)
front grill
Mass Approx. 3.5 kg
Supplied accessories Speaker cord 2.5 m (1)
Foot (4)
Sony Corporation
9-929-573-11
2001B0500-1 Audio Entertainment Group
C 2001.2 General Engineering Dept.

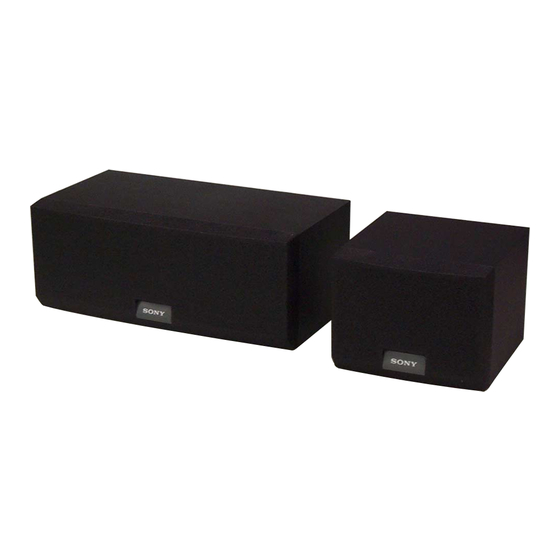

Photo: SS-CN295
SS-CR305
SS-CN295
SS-SR305
SPECIFICATIONS
[SS-SR305]
Speaker system
Speaker unit
Enclosure type
Rated impedance
Power handling capacity Maximum input power: 100 watts
Sensitivity level
Frequency range
Dimensions (w/h/d)
Mass
Supplied accessory
Design and specifications are subject to change without notice.
Canadian Model
Photo: SS-SR305
Full range
12 cm, cone type
Bass reflex
8 ohms
86 dB (1 W, 1 m)
85 Hz - 20,000 Hz
Approx. 190 × 150 × 168 mm, not including
front grill
Approx. 1.5 kg
Speaker cord 10 m (2)
SPEAKER SYSTEM
US Model
E Model
