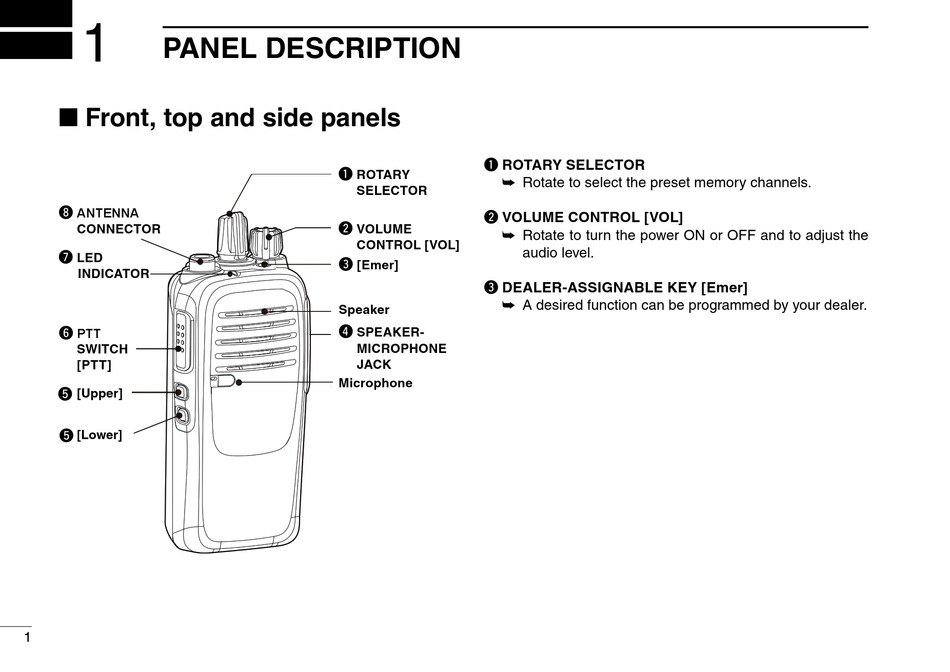

PANEL DESCRIPTION

■ Front, top and side panels

ANTENNA
i
CONNECTOR
u LED
INDICATOR
PTT
y
SWITCH
[PTT]
[Upper]
t
[Lower]
t
1
q ROTARY SELECTOR
ROTARY
q
➥
SELECTOR
w VOLUME CONTROL [VOL]
w VOLUME
➥
CONTROL [VOL]
e [Emer]
e DEALER-ASSIGNABLE KEY [Emer]
➥
Speaker
r SPEAKER-
MICROPHONE
JACK
Microphone
Rotate to select the preset memory channels.
Rotate to turn the power ON or OFF and to adjust the
audio level.
A desired function can be programmed by your dealer.
