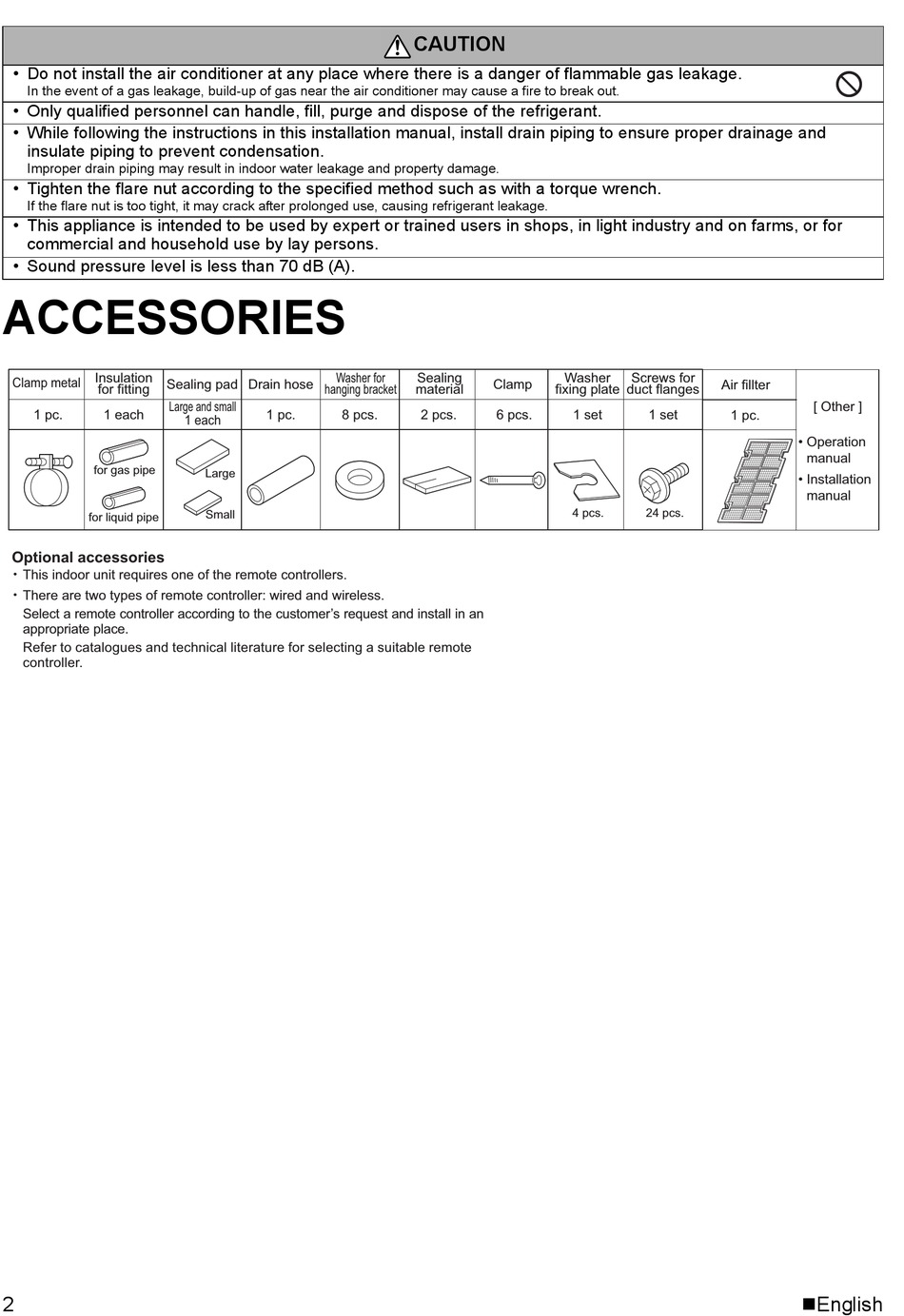

Daikin R32 Split Series Installation Manual page 4

• Do not install the air conditioner at any place where there is a danger of flammable gas leakage.
In the event of a gas leakage, build-up of gas near the air conditioner may cause a fire to break out.
• Only qualified personnel can handle, fill, purge and dispose of the refrigerant.
• While following the instructions in this installation manual, install drain piping to ensure proper drainage and
insulate piping to prevent condensation.
Improper drain piping may result in indoor water leakage and property damage.
• Tighten the flare nut according to the specified method such as with a torque wrench.
If the flare nut is too tight, it may crack after prolonged use, causing refrigerant leakage.
• This appliance is intended to be used by expert or trained users in shops, in light industry and on farms, or for
commercial and household use by lay persons.
• Sound pressure level is less than 70 dB (A).
ACCESSORIES
Insulation
Clamp metal
Sealing pad
for fitting
Large and small
1 pc. 1 each
for gas pipe
for liquid pipe
Optional accessories
・ This indoor unit requires one of the remote controllers.
・ There are two types of remote controller: wired and wireless.
Select a remote controller according to the customer's request and install in an
appropriate place.
Refer to catalogues and technical literature for selecting a suitable remote
controller.
2
Washer for
Drain hose
hanging bracket
1 pc. 8 pcs.
1 each
Large
Small
CAUTION
Sealing Washer
Clamp
material fixing plate
2 pcs. 6 pcs. 1 set
4 pcs.
Screws for
Air fillter
duct flanges
1 set 1 pc.
24 pcs.
[ Other ]
• Operation
manual
• Installation
manual
English
