EU10i
GENERATOR
OWNER'S MANUAL
4GZ40G00
00XTW-Z40-A000
Tai an Co
P
Tai an
–
– 1
SAFETY
DO NOT USE INSIDE HOUSE!
DO NOT USE IN WET CONDITION!
2018
–
– 2

Advertisement

Table of Contents
loading

Related Manuals for Honda EU10i

Summary of Contents for Honda EU10i

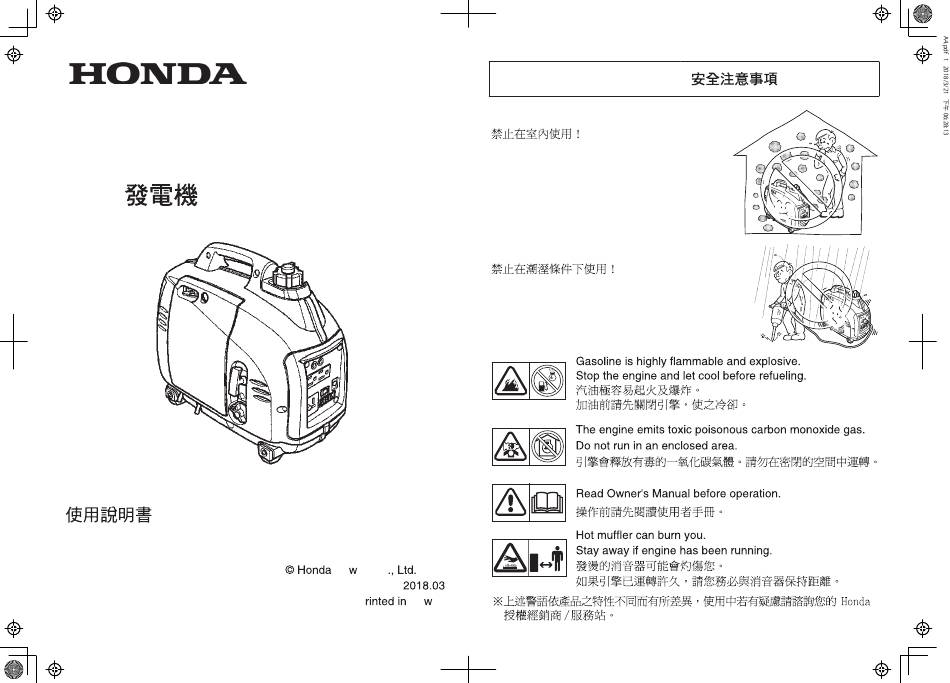

  • Page 1 SAFETY DO NOT USE INSIDE HOUSE! EU10i GENERATOR DO NOT USE IN WET CONDITION! OWNER'S MANUAL Tai an Co 2018 4GZ40G00 00XTW-Z40-A000 Tai an – – 1 – – 2...

  • Page 2: Pre-Operation Check

    DO NOT CONNECT TO PRE-OPERATION CHECK HOUSEHOLD CIRCUIT Before each use, look around and underneath the engine for signs of oil or gasoline leaks. KEEP AWAY FROM FLAMMABLE MATERIALS! 1. ENGINE OIL LEVEL Che k the oil le Recommended oil: 4-STROKE MOTOR OIL SAE 10W-30 API Service category SE or later WHEN REFUELING:...

  • Page 3: Fuel Level

    2. FUEL LEVEL o e the oil k the oil le e el is lo ty gasoline FUEL TANK CAPACITY: 2.1 L (0.55 US gal, 0.46 lmp gal) OIL FILLER CAP OIL FILLER NECK e el is lo UPPER LIMIT FUEL FILLER CAP UPPER LEVEL MARK 4 Install the oil...

  • Page 4: Air Cleaner

    3. AIR CLEANER STARTING THE ENGINE ent le NOTE: ent le ting the gene ato Che k th s lean an in goo ition FUEL FILLER CAP VENT LEVER AIR CLEANER ELEMENT AIR CLEANER COVER LATCH TAB 2 T n the engine s ENGINE SWITCH SEAL RUBBER LOWER TAB...

  • Page 5: Choke Lever

    ke le ke le o e it to the t the a ke le CHOKE LEVER CHOKE LEVER OPEN CLOSED Oil Alert system The Oil Ale e Be e el in the the Oil Ale CAUTION: k the oil le Do not allow the starter grip to snap back.

  • Page 6: Generator Use

    Eco Throttle System GENERATOR USE To k e the ollo : 900 VA ates To prevent electrical shock from faulty appliances, the generator should be grounded. OFF: ECO THROTTLE SWITCH GROUND TERMINAL 1 – – 1 1 – – 2...

  • Page 7: Output Indicator

    AC Application Output and Overload Indicators ing no ating 1 Sta When y t the engine ’s ollo No links: links: 1 link: 4 links: 2 links: 5 links: n estigate the OVERLOAD INDICATOR OUTPUT INDICATOR 1 – – 3 1 –...
  • Page 8 Parallel Operation ation to the t o EU10i gene to g o n the gene ato hen onne te eq ent is g o n Use only s o EU10i gene ato s allel the gene ation ation is: 1800 VA t the engine 1 –...

  • Page 9: Charging Cable

    DC Application 4. Con rm that the equipment to be used is switched off, and insert the plug of the equipment to be used into the receptacle of either unit A or B. The DC receptacle may be used for charging 12 volt automotive type batteries only.

  • Page 10: Stopping The Engine

    2. Make sure the DC circuit protector is ON. STOPPING THE ENGINE In emergency, turn the engine switch to the OFF position. DC CIRCUIT PROTECTOR In normal: 1. Switch off the connected equipment and pull out the plug. PUSH 3. Turn the Eco throttle switch to the OFF position. ECO THROTTLE SWITCH 2.

  • Page 11: Maintenance

    (1) Service more frequently when used in dusty areas. (2) These items should be serviced by your servicing dealer, unless you have the cient. Refer to the Honda shop manual for service procedures. (3) For commercial use, log hours of operation to determine proper maintenance intervals.

  • Page 12: Engine Oil Change

    ENGINE OIL CHANGE 1. Turn the engine switch and fuel ller cap vent lever to the OFF position. 2. Remove the maintenance cover (P. 4). 3. Remove the oil ller cap and drain the oil by tilting the generator toward the oil ller neck. 4.

  • Page 13: Air Cleaner Service

    AIR CLEANER SERVICE 4. Wash the air cleaner element in a solution of household detergent and warm water, then rise thoroughly. Or wash in non ammable or high ashpoint solvent. 1. Remove the maintenance cover (P. 4). Allow the air cleaner element to dry thoroughly. 2.

  • Page 14: Spark Plug Service

    SPARK PLUG SERVICE 3. Clean the spark plug with a wire brush. 4. Measure the plug gap. Correct as necessary by bending the side Recommended spark plug: LR4C-E (NGK) electrode. Spark plug gap: 0.6 - 0.7 mm (0.024 - 0.028 in) CAUTION: Never use a spark plug with an improper heat range.

  • Page 15: Troubleshooting

    STORAGE TROUBLESHOOTING Engine Does Not Start Gasoline is extremely ammable and is explosive under certain 1. Is there fuel in the tank? Refuel the tank. conditions. Do not smoke or allow ames or sparks in the area. 2. Is the engine switch in Turn the engine switch ON position? to the ON position.

  • Page 16: Specifications

    SPECIFICATIONS Model EU10i Type Rated Voltage 120 V Rated Frequency 60 Hz Rated Current 7.5 A Rated Output 900 VA Maximum Output 1000 VA Voltage 12 V Current 3 – – 1 3 – – 2...
