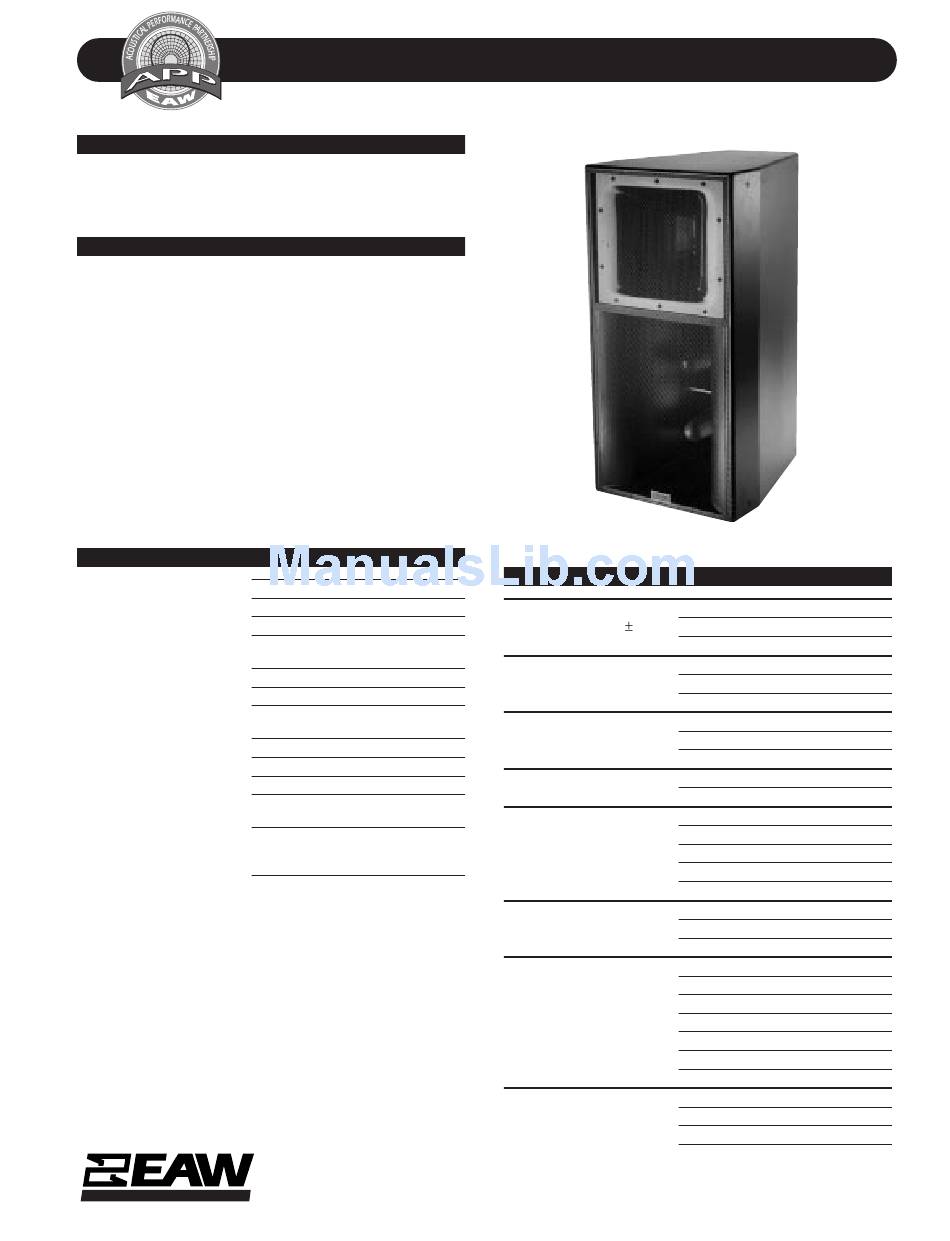

EAW MH662E Technical Specifications

DESCRIPTION
A 2-way biamp mid/high system in a trapezoidal enclosure.
Includes 2x horn-loaded 10-in midrange cone and a 2-in exit
compression driver on a 65 x 45 constant directivity horn.
APPLICATIONS
The MH662E Virtual Array mid/high loudspeaker is engineered
to combine with BH, BV or TD Series LF modules to create
true 3-way large format arrays. 3-way design dramatically
improves the quality of vocal reproduction while the cone-
driven large format midrange horn extends pattern control
into the lower octaves. It provides long throw and high out-
put in large scale permanent installations. Comprehensive
mounting/suspension points. Six year warranty.
Applications include:
Large Theaters
Concert Halls
Stadiums
Cathedrals
Large HOW's
Dance Clubs
DESCRIPTIVE DATA
Part Number 999086
Product Group M
MF Subsystem & Loading 2x 10-in Horn Loaded Cone
HF Subsystem & Loading 1x 2-in Exit Compression Driver on
Constant Directivity Horn
System Configuration 2-way, Mid/High
Powering Configuration(s) Biamp (MX Series Processors)
Recommended High-Pass
Frequency (24 dB/Octave) 120Hz
Cabinet Type (shape) Modified Trapezoid
Enclosure Materials Baltic Birch Plywood
Finish Black Catalyzed Polyurethane
Connectors 4-Terminal Barrier Strip
2x Neutrik NL4 Speakon
Suspension Hardware (16) 3/8"-16 threaded mounting/
suspension points (4 each top,
bottom and sides)
Grill Vinyl Coated Perforated Steel
EASTERN ACOUSTIC WORKS
One Main Street, Whitinsville, MA 01588 • (508) 234 - 6158 • FAX (508) 234 - 8251 • Email info@eaw.com • Web http://www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. • PUB# MH662E 999086 (A)/2p/3/14/97 • Printed In USA
TECHNICAL SPECIFICATIONS MH662E
NOMINAL DATA
Frequency Response (Hz)
Axial Sensitivity (dB SPL/1 Watt/1m)
Impedance (Ohm)
Power Handling (Watts)
Calculated Maximum Output (dB SPL, @ 1m)
Nominal Coverage Angle / -6 dB points (degrees)
Dimensions
Weights
3 db 160Hz to 19kHz
-10 dB 120Hz
MF 112
HF 112
MF 4
HF 5
HF AES Standard 200
MF Peak 147.0
HF Peak 141.0
MF Long Term 141.0
HF Long Term 135.0
Horizontal 60
Vertical 45
inches millimeters
Height 48.625 1235
Width 24.625 625
Width (Front) 24.625 625
Width (Rear) 12.75 324
Depth 29.5 749
Trapezoid Angle 15 degrees per side
pounds kilograms
Net Weight 199 90.5
Shipping Weight 212 96.5
