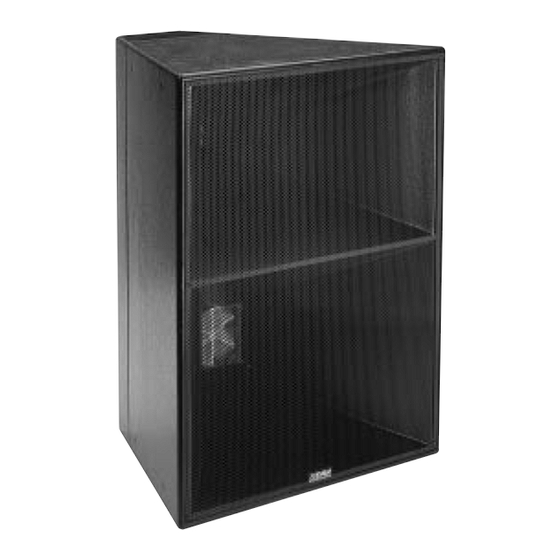

EAW MQ1364 Technical Specifications

DESCRIPTION
• Mid/High VA4 loudspeaker system
• Optimized for permanent installation only
• Horn-loaded 10-in cone with VA4 phase plug
• 2-in exit/75mm voice coil compression driver on
constant directivity horn
The new MQ Series represents the next generation of perma-
nent installation loudspeaker systems. Using VA4 Technol-
ogy developed for the new KF700 Series, the MQ range re-
places the MH and BV ranges of Virtual Array systems. The
Series comprises matched sets of mid/high and low frequency
enclosures that enjoy complementary dimensions and
trapeziod angles to facilitate the creation of optimized-cov-
erage arrays.
The MQ1364 uses a single, horn-loaded 10-in midrange cone
with a specially designed geometry that produces a time-
coherent wavefront through the upper portion of the midrange
that is critical to vocal articulation. A phase plug with radial
slots then serves to reduce the mechanical reactance of the
subsystem without affecting the directivity of the source,
allowing for flawless arraying of multiple MQ mid/high mod-
ules.
A high power 2-in exit/75mm voice coil high frequency com-
pression driver is mounted on a constant directivity horn for
consistent, accurate dispersal of HF information. The MQ1364
provides a nominal coverage pattern of 60 (h) x 40 (v).
APPLICATION
The MQ1364 mid/high module works with the MQ1312 triple
12-in low frequency module to create arrays for use in a
wide variety of permanently installed applications.
The most common array configuration is 2x MQ1364's sepa-
rated by a single MQ1312. In such an array, a certain amount
of splay must be provided to achieve optimal coverage. Rig-
ging systems currently available allow users up to 10 of
overlap between the mid/high enclosures.
All MQ Series enclosures feature a comprehensive system of
3/8"-16 threaded mounting points for maximum flexibility
when suspending arrays overhead.
Applications include:
Large House of Worship
Arena
Stadium
Theater
Performing Arts Center
Acoustic Performance Partnership
EASTERN ACOUSTIC WORKS
One Main Street, Whitinsville MA, 01588 USA • Phone 508/234-6158 • Toll Free 800/992-5013 • Fax 508/234-8251 • Web http://www.eaw.com • email info@eaw.com
One Main Street, Whitinsville, MA 01588 • (508) 234 - 6158 • FAX (508) 234 - 8251 • Email info@eaw.com • Web http://www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. • PUB# MQ1364-888141 (A) /2 pp/4/15/99 • Printed In USA
TECHNICAL SPECIFICATIONS MQ1364
DESCRIPTIVE DATA
Cabinet Type (shape)
Enclosure Materials
Suspension Hardware
Dimensions
Weights
Companion Systems
Eastern Acoustic Works
Configuration Mid/High
Powering Biamplified
MF Subsystem 1x 10-in Horn-Loaded Cone,
Radial Phase Plug
HF Subsystem 1x 2-in Exit/75mm Voice Coil
Compression Driver on Constant
Directivity Horn
Trapezoid
Baltic Birch Plywood
Finish Black Polyurethane
Connectors 4-Terminal Barrier Strip &
1x Neutrik NL4 Speakon
(16) 3/8"-16 Threaded Mounting
Suspension Points (4 each top,
bottom and sides)
Grill Powder Coated Perforated Steel
inches millimeters
Height 40.00 1016
Width (front) 32.00 813
Width (rear) 8.12 206
Depth 25.61 650
Trapezoid Angle 50
pounds kilograms
Net Weight 148 67.3
Shipping Weight 156 71.0
Sub Bass SB528, BH822e
LF MQ1312
MQ1364
