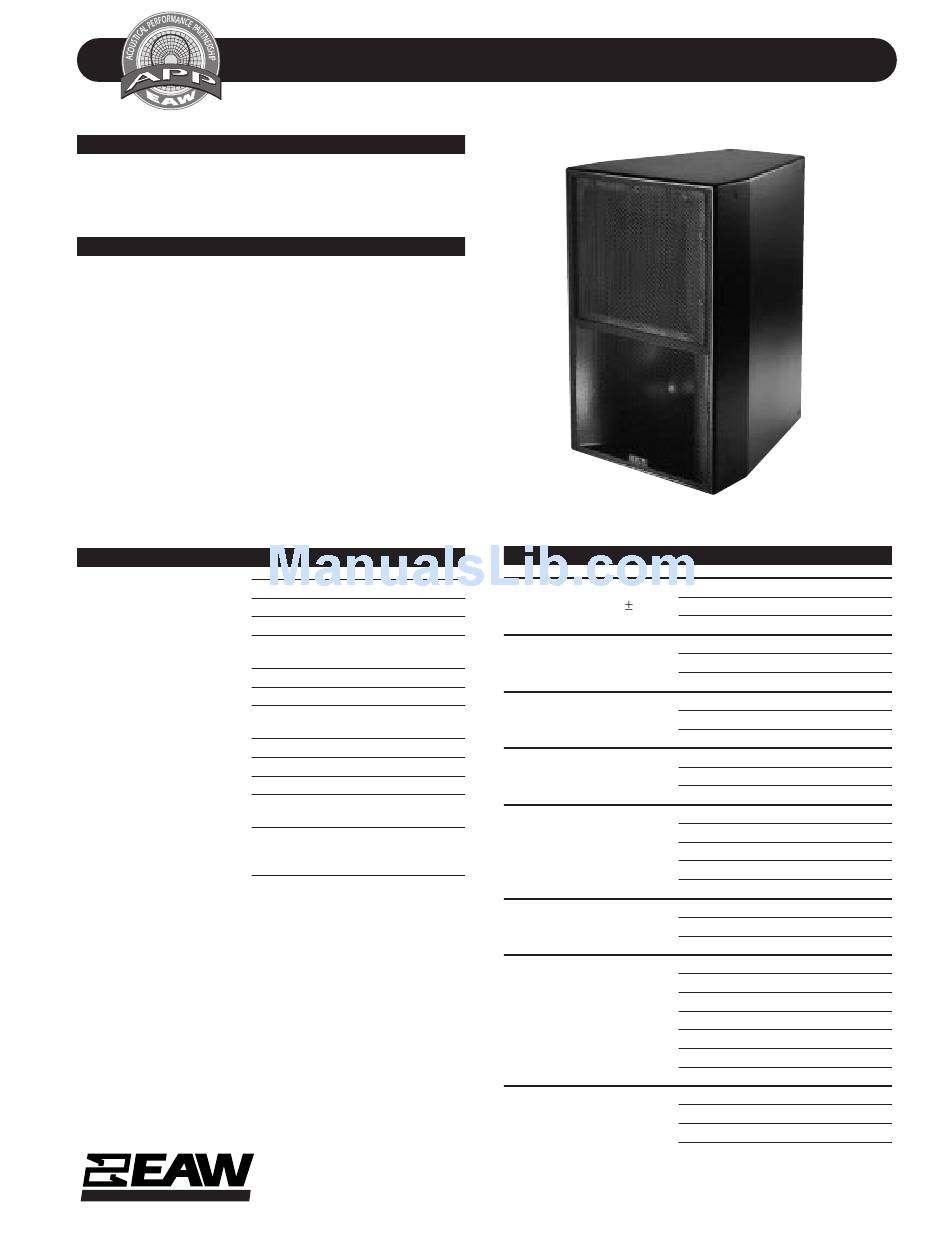

EAW MH660E Technical Specifications

DESCRIPTION

A 2-way biamp mid/high system in a trapezoidal enclosure.
Includes a horn-loaded 10-in midrange cone and a 2-in exit
compression driver on a 65 x 45 constant directivity horn.

APPLICATIONS

The MH660E Virtual Array mid/high loudspeaker is engineered
to combine with BH, BV or TD Series LF modules to create
true 3-way large format arrays. 3-way design dramatically
improves the quality of vocal reproduction while the cone-
driven large format midbass horn extends pattern control
into the lower octaves. An effective tool in large scale per-
manent installations. Comprehensive mounting/suspension
points. Six year warranty.
Applications include:
Large Theaters
Concert Halls
Stadiums
Cathedrals
Large HOW's
Dance Clubs

DESCRIPTIVE DATA

Part Number 999087
Product Group M
MF Subsystem & Loading 1x 10-in Horn Loaded Cone
HF Subsystem & Loading 1x 2-in Exit Compression Driver on
Constant Directivity Horn
System Configuration 2-way, Mid/High
Powering Configuration(s) Biamplified (MX Series Processor)
Recommended High-Pass
Frequency (24 dB/Octave) 200Hz
Cabinet Type (shape) Modified Trapezoid
Enclosure Materials Baltic Birch Plywood
Finish Black Catalyzed Polyurethane
Connectors 4-Terminal Barrier Strip
2X Neutrik NL4 Speakon
Suspension Hardware (16) 3/8"-16 Threaded Mounting/
Suspension Points (4 each top,
bottom and sides)
Grill Vinyl Coated Perforated Steel
EASTERN ACOUSTIC WORKS
One Main Street, Whitinsville, MA 01588 • (508) 234 - 6158 • FAX (508) 234 - 8251 • Email info@eaw.com • Web http://www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. • PUB# MH660E 999087 (A)/2p/3/14/97 • Printed In USA
TECHNICAL SPECIFICATIONS MH660E

NOMINAL DATA

Frequency Response (Hz)
Axial Sensitivity (dB SPL/1 Watt/1m)
Impedance (Ohm)
Power Handling (Watts)
Calculated Maximum Output (dB SPL, @ 1m)
Nominal Coverage Angle / -6 dB points (degrees)
Dimensions & Weights
Weights
3 db 200Hz to 19kHz
-10 dB 140Hz
MF 109
HF 112
MF 8
HF 10
MF AES Standard 400
HF AES Standard 200
MF Peak 141.0
HF Peak 141.0
MF Long Term 135.0
HF Long Term 135.0
Horizontal 60
Vertical 45
inches millimeters
Height 38.25 972
Width 24.56 624
Width (Front) 24.56 624
Width (Rear) 12.71 323
Depth 29.5 749
Trapezoid Angle 15 degrees per side
pounds kilograms
Net Weight 150 68.3
Shipping Weight 162 73.7
