Wyse 370 Quick Start Manual

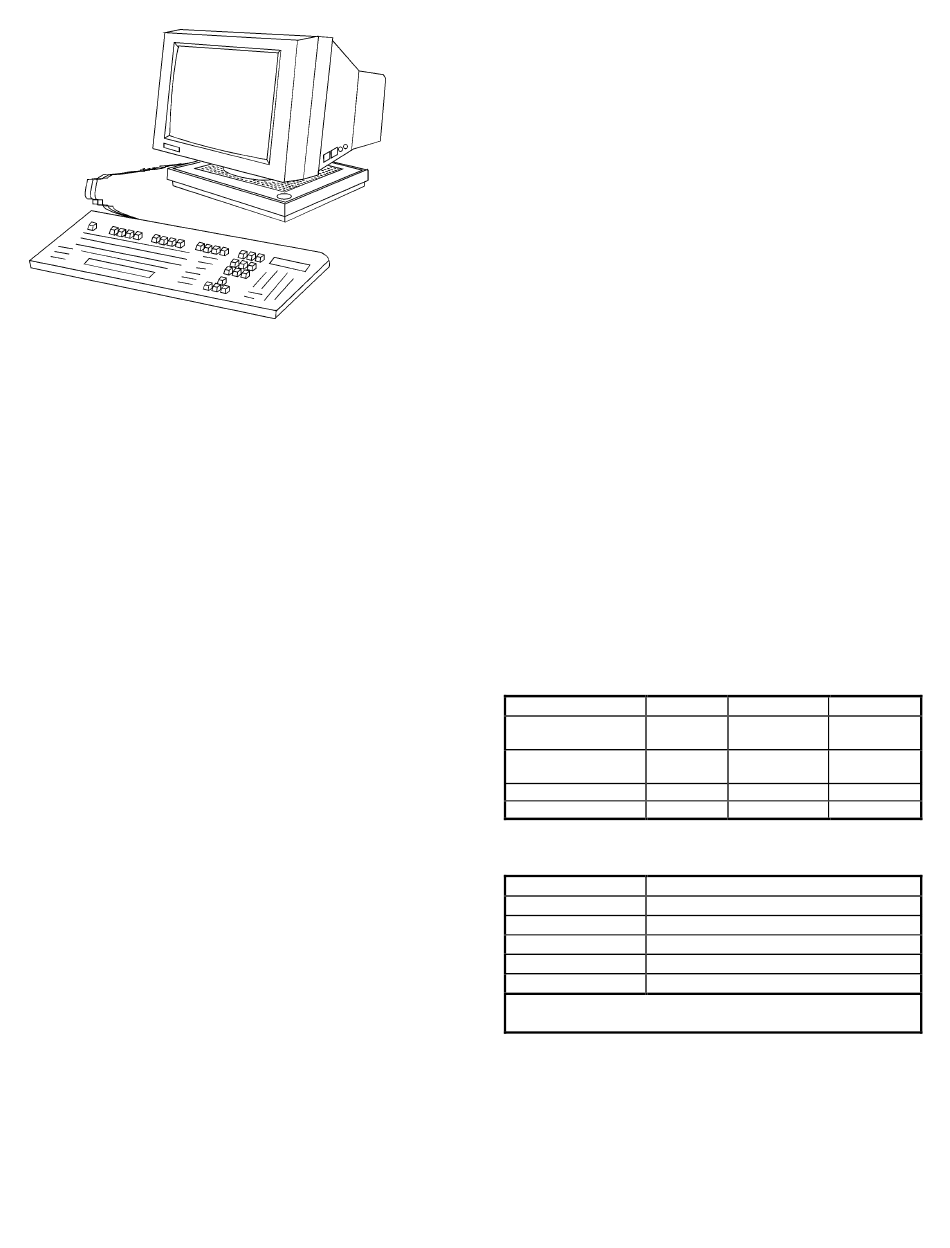

Figure 1: Wyse 370 Color Terminal
Specifications
Standard Features
• 64k display for 26 x (80, 132) with 2 row status
• 14" diagonal monitor with .28mm dot pitch
• Dual-session capability
• 64 independent screen colors for fore/back-ground
• Application Specific Integrated Circuit (ASIC) gate array
with a 8 Mhz 68000 processor chip.
• Pull-Down Setup Menus
• WyseWorks -- Integrated desktop applications such as:
Datebook / Calendar, Calculator, Alarm Clock
• Multi-Language Keyboards
• Variable Scroll Speed
• Screen Saver
• Two Serial Ports ( A & B )
• Refresh rates: 74Hz Alpha mode or 65Hz graphic mode
• Tilt and Swivel Base
Optional Features
• 256k display for 52 x 161 display or 8 page display
Operating Modes
• Setup
• On-Line
Full or Half Duplex
Block or Half-Block Mode
Printing: Normal, Auto Print, Controller Print
• Local or WyseWorks
Interfaces
• Port A:
RS-232 / RS-422, Female DB-25, 76.8 K
baud
• Port B:
RS-232, Female DB-25, 38.4 K baud
• Keyboard: ANSII, ANSI, EPC
• Cartridge Slot
Dimensions
• Footprint: 11.5" w X 11.0" d
• Display:
14.0" w X 14.5" d X 13.5" h
• Weight:
45 lb.
Power
• 120 VAC ± 10% @ 47-63 Hz.
IBM Document: Wyse
Page 1 of 2
Emulations
• ANSI
Wyse 370, ColorTrend 220
DEC VT52, VT100, VT220, VT320
• Graphics
Tektronics 4010, 4014
• ASCII
Wyse 350, TVI 950, Esprit III, ADDS A2
Special Notices
• Dual sessions are N/A with both Tektronix emulations.
• XMT handshake should never be used with ADDS, Data
General, and PC graphics personality terminals.
• Signal ground is always internally connected to the
frame ground on all Wyse terminals.
• Hardware handshaking for all terminals is always:
Busy = Low / Ready = High.
• If a printer uses a variable input buffer level, setup the
printer to handshake at the lowest level possible.
• All terminals utilize one start bit for operation.
• Maximum distance for serial cable is fifty feet but with
shielded cable it may exceed this distance.
Tools Recommended
• #1 Phillips Screwdriver
• Small straight-blade screwdriver
• Compressed air or vacuum cleaner
Keyboard Commands
Function ASCII
Enter Setup Mode Setup
Toggle Block Mode Ctrl / Shift
Break
Toggle Auto Print Ctrl / Print
Print Screen Print
Error Codes
Error Codes** Explanation
9 Battery-backed RAM checksum error
P Code ROM checksum error
G* Cartridge 1 ROM set error
H* Cartridge 2 ROM set error
u xx xxxxxx xx xx RAM error
* When optional cartridge installed, indicates malfunction
** To clear error messages enter "Setup Mode" then exit.
© Copyright International Business Machines, 1997
Wyse Terminal
370
ANSI EPC
F3 Select
Shift F5 Ctrl / Shift
Break
Ctrl / Shift F2 Ctrl / Print
F2 Print Screen
08/97 Doc # WYSE002
