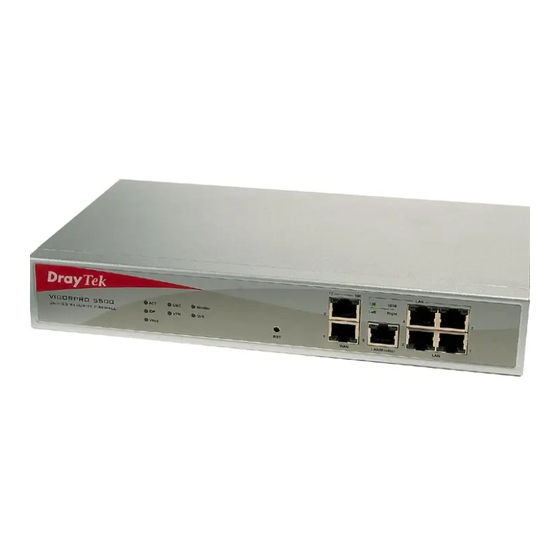

Vigorpro 5500 series unified security firewall
Hide thumbs Also See for VigorPro 5500:

Advertisement

Quick Links

VigorPro 5500 Series
Unified Security Firewall
Quick Start Guide
Version: 2.0
Date: 2007/05/02
Please visit www.draytek.com to get the newly updated manual at any time.
VigorPro 5500 Quick Start Guide
i

Advertisement

Table of Contents
loading

Summary of Contents for Draytek VigorPro 5500

  • Page 1 VigorPro 5500 Series Unified Security Firewall Quick Start Guide Version: 2.0 Date: 2007/05/02 Please visit www.draytek.com to get the newly updated manual at any time. VigorPro 5500 Quick Start Guide...
  • Page 2 Web registration is preferred. You can register your Vigor router via Owner http://www.draytek.com. Firmware & Tools Please consult the DrayTek web site for more information on newest firmware, Updates tools and documents. For more detailed information, please refer to http://www.draytek.com.
  • Page 3: Regulatory Information

    No. 26, Fu Shing Road, HuKou County, HsinChu Industrial Park, Hsin-Chu, Taiwan 303 Product: VigorPro 5500 DrayTek Corp. declares that VigorPro 5500 Series is in compliance with the following essential requirements and other relevant provisions of R&TTE Directive 1999/5/EEC. The product conforms to the requirements of Electro-Magnetic Compatibility (EMC) Directive 89/336/EEC by complying with the requirements set forth in EN55022/Class A and EN55024/Class A.
  • Page 4: Table Of Contents

    1. Introduction... 1 1.1 Panel Explanation ... 2 1.1.1 For VigorPro 5500 ... 2 1.1.2 For VigorPro 5500G ... 3 1.1.3 For VigorPro 5500i ... 4 1.1.4 For VigorPro 5500Gi... 5 1.2 Package Content... 6 2. Installing Your Vigor Router... 7 3.
  • Page 5: Introduction

    Unlike legacy proxy-based anti-virus anti-intrusion solution, which stores data in files format prior to scan the content in streaming, the VigorPro 5500 equips with hardware-based scan engine. VigorPro 5500 Series scans packet stream go through it in real-time before those specious content get into the network without performance downgrade.
  • Page 6: Panel Explanation

    Blinking The data is transmitting. The port is connected with 100Mbps. The port is disconnected. Blinking The data is transmitting. The port is connected with 1000Mbps. The port is disconnected. Blinking The data is transmitting. VigorPro 5500 Quick Start Guide...
  • Page 7: For Vigorpro 5500G

    Connecter for local networked devices. LAN (1-4) Connecter for local networked devices. Connecter for a power cord with 100-240VAC (inlet). Power Switch. “1” is ON; “0” is OFF. VigorPro 5500 Quick Start Guide Status Explanation Blinking The router is powered on and running normally.
  • Page 8: For Vigorpro 5500I

    Blinking The data is transmitting. The port is connected with 100Mbps. The port is disconnected. Blinking The data is transmitting. The port is connected with 1000Mbps. The port is disconnected. Blinking The data is transmitting. VigorPro 5500 Quick Start Guide...
  • Page 9: For Vigorpro 5500Gi

    LED on Connector (left LED) (right LED) LAN/Monitor (left LED) 1000 (right LED) VigorPro 5500 Quick Start Guide Status Explanation Blinking The router is powered on and running normally. The router is powered off. The anti-virus function is enabled. (Yellow) The anti-intrusion function is enabled.
  • Page 10: Package Content

    The type of the power cord depends on the country that the router will be installed: UK-type power cord USA/Taiwan-type power cord * The maximum power consumption is 12-15 Watt. RJ-45 to RJ-45 Cable for i models EU-type power cord AU/NZ-type power cord Antenna for G models VigorPro 5500 Quick Start Guide...
  • Page 11: Installing Your Vigor Router

    Ethernet cable (RJ-45). The WAN1/WAN2 LED (down/up) will light up according to the network card feature ((10Mpbs or 100Mpbs) of the device that it connected. Power Switch Power Cord (For the detailed information of LED status, please refer to section 1.1.) VigorPro 5500 Quick Start Guide Internet Cable/DSL Modem or Media Converter...
  • Page 12 This page is left blank for remark if necessary. VigorPro 5500 Quick Start Guide...
  • Page 13: Configuring Web

    If you fail to access to the web configuration, please go to “Trouble Shooting” for detecting and solving your problem. Now, the Main Screen will pop up. Click Quick Start Wizard. Note: The home page will change slightly in accordance with the router you have. VigorPro 5500 Quick Start Guide...
  • Page 14 On the next page as shown below, please select the appropriate Internet access type according to the information from your ISP. For example, you should select PPPoE mode if the ISP provides you PPPoE interface. Then click Next for next step. VigorPro 5500 Quick Start Guide...
  • Page 15 ISP. Then click Next for next step. Static IP: if you click Static IP, you will get the following page. Please type in all the information originally provided by your ISP. Then click Next for next step. VigorPro 5500 Quick Start Guide...
  • Page 16 Now you can see the following screen. It indicates that the setup is complete. Different types of connection modes will have different summary. Click Finish and then restart the router. Afterward, you will enjoy surfing on the Internet. VigorPro 5500 Quick Start Guide...
  • Page 17: Registration For The Router

    Please follow the steps below to create a new account. Open your browser with URL: www.vigorpro.com. Find the line of Not registered yet?. Then, click the link Click here! to access into next page. VigorPro 5500 Quick Start Guide...
  • Page 18 Check to confirm that you accept the Agreement and click Accept. Type your personal information in this page and then click Continue. VigorPro 5500 Quick Start Guide...
  • Page 19 Choose proper selection for your computer and click Continue. Now you have created an account successfully. Check to see the confirmation email with the title of from www.vigorpro.com. VigorPro 5500 Quick Start Guide New Account Confirmation Letter...
  • Page 20 UserName and Password. Then type the code in the box of AuthCode according to the value displayed on the right side of it. Now, click Login. Your account has been activated. VigorPro 5500 Quick Start Guide...
  • Page 21: Creating And Activating An Account From Router Web Configurator

    Do not type any word on the window and click OK. From the router’s web page, please open System Maintenance >>Signature Upgrade. You will see the following web page. Click the Activate link from the Signature Upgrade web page. VigorPro 5500 Quick Start Guide...
  • Page 22 Locate and click Create an account now link on the bottom of this page. You will access into the following page. Check the box below to confirm that you accept the Agreement and click Accept. VigorPro 5500 Quick Start Guide...
  • Page 23 Type your personal information in this page and then click Continue. Choose proper selection for your computer and click Continue. VigorPro 5500 Quick Start Guide...
  • Page 24 Check to see the confirmation email with the title of New Account Confirmation Letter from www.vigorpro.com. 10. Click the Activate my Account link to enable the account that you created. The following screen will be shown to verify the register process is finished. Please click Login. VigorPro 5500 Quick Start Guide...
  • Page 25 DrayTek will maintain a database of MAC address/serial number of shipped goods. Only products with shipping records can be registered. If your VigorPro 5500 cannot hook up to your account, please contact your reseller or DrayTek’s technical support. VigorPro 5500 Quick Start Guide...
  • Page 26: Registering Your Vigor Router

    Open a web browser on your PC and type http://192.168.1.1. A pop-up window will open to ask for username and password. From the router’s web page, please open System Maintenance >>Signature Upgrade. You will see the following web page. > > > > VigorPro 5500 Quick Start Guide...
  • Page 27 Click the Activate link from the Signature Upgrade web page. A Re-login page will be shown on the screen. Please type the account and password that you created previously. And click Login. VigorPro 5500 Quick Start Guide...
  • Page 28 When the following page appears, please type in Nick Name (for the router) and choose the right purchase date from the popup calendar (it appears when you click on the box of Purchase Date). After adding the basic information for the router, please click Submit. VigorPro 5500 Quick Start Guide...
  • Page 29 Open a web browser on your PC and type http://192.168.1.1. A pop-up window will open to ask for username and password. From the router’s web page, please open Anti-Spam>>Profile Setting. You will see the following web page. Click the Activate link from the Profile Setting web page. VigorPro 5500 Quick Start Guide...
  • Page 30 A Re-login page will be shown on the screen. Please type the account and password that you created previously. And click Login. The following page will be displayed after you logging in VigorPro server. From this page, please click Add. VigorPro 5500 Quick Start Guide...
  • Page 31: Activating Anti-Virus/Anti-Intrusion/Anti-Spam Service

    After registering your vigor router, you have to follow the steps listed below to activate anti-virus/anti-intrusion/anti-spam service to obtain full security for your computer. Open a web browser on your PC and type http://192.168.1.1. A pop-up window will open to ask for username and password.. VigorPro 5500 Quick Start Guide...
  • Page 32 From the router’s web page, please open System Maintenance >>Signature Upgrade. You will see the following web page. Click the Activate link from the Signature Upgrade web page. VigorPro 5500 Quick Start Guide...
  • Page 33 And click Login. On the web page of My Product, you can find a list of the devices that you add with the above steps. Currently, you just have added VigorPro 5500. Please click the serial number link.
  • Page 34 In this page, check the box of “I have read and accept the above Agreement”. The system will find out the date for you to activate this version of service. Then, click Register. Note: DT-DT means you can acquire the anti-intrusion and anti-virus services from DrayTek Corporation. VigorPro 5500 Quick Start Guide...
  • Page 35 Next, the DrayTek Service Activation screen will be shown as the following. (Above figure supposes you have not activated Anti-Spam yet.) Click Close. 10. Return to Signature Upgrade page of the router’s web configurator. The start date and expire date for the license are shown in this page.
  • Page 36: For Anti-Spam Service

    Click the Activate link from the Profile Setting web page. A Re-login page will be shown on the screen. Please type the account and password that you created previously. And click Login. VigorPro 5500 Quick Start Guide...
  • Page 37 On the web page of My Product, you can find a list of the devices that you add with the above steps. Currently, you just have added VigorPro 5500. Please click the serial number link. From the Device’s Service section, click the Activate buttons for AS (Anti-Spam) service.
  • Page 38 Note: CTCH means you can acquire anti-spam service from Commtouch. Next, the DrayTek Service Activation screen will be shown as the following. (Above figure supposes you have not activated Anti-Virus yet.) Click Close. Now, you have finished all the procedure for activating Anti-Spam service for your router.
  • Page 39 Click the Activate link from the Profile Setting web page. A Re-login page will be shown on the screen. Please type the account and password that you created previously. And click Login. VigorPro 5500 Quick Start Guide...
  • Page 40 On the web page of My Product, you can find a list of the devices that you add with the above steps. Currently, you just have added VigorPro 5500. Please click the serial number link. From the Device’s Service section, click the Upgrade buttons for AS (Anti-Spam) service.
  • Page 41 In this page, type the License Number stated on the Anti-Spam license card in the field of License Number. Then, click Add License. Now, the license number will be displayed on the page immediately. Click Apply. VigorPro 5500 Quick Start Guide...
  • Page 42 In this page, check the box of “I have read and accept the above Agreement”. The system will find out the date for you to activate this version of service. Then, click Comfirm. 10. Next, the DrayTek Service Activation screen will be shown as the following. (Above figure supposes you have not activated Anti-Virus yet.) 11.
  • Page 43: Backup And Upgrade Signature For Anti-Intrusion/Anti-Virus

    You can get the most updated signature from DrayTek’s server if the license key of anti-virus/anti-intrusion for the VigorPro 5500 is not expired. Before you upgrade the signature, please check the validation information either from WEB user interface of VigorPro 5500 or account information from www.vigorpro.com.
  • Page 44: Enabling Anti-Virus/Anti-Intrusion/Anti-Spam

    Enable for Anti-Intrusion and choose proper action (profile) from the drop down list of Anti-Virus/Anti-Spam. Next, click OK to finish the procedure of activation. VigorPro 5500 Quick Start Guide...
  • Page 45 If you do not check the Anti-Intrusion box and choose a proper profile for Anti-Virus/Anti-Spam, you still cannot use the Anti-Intrusion/Anti-Virus/Anti-Spam function even if you finished all the relational profiles configuration. VigorPro 5500 Quick Start Guide...
  • Page 46 VigorPro 5500 Quick Start Guide...
  • Page 47: Trouble Shooting

    Sometimes the link failure occurs due to the wrong network connection settings. After trying the above section, if the link is stilled failed, please do the steps listed below to make sure the network connection settings is OK. VigorPro 5500 Quick Start Guide...
  • Page 48 Go to Control Panel and then double-click on Network Connections. Right-click on Local Area Connection and click on Properties. Select Internet Protocol (TCP/IP) and then click Properties. VigorPro 5500 Quick Start Guide...
  • Page 49 Select Obtain an IP address automatically and Obtain DNS server address automatically. Double click on the current used MacOs on the desktop. Open the Application folder and get into Network. On the Network screen, select Using DHCP from the drop down list of Configure IPv4. VigorPro 5500 Quick Start Guide...
  • Page 50: Pinging The Router From Your Computer

    Open the Application folder and get into Utilities. Double click Terminal. The Terminal window will appear. Type ping 192.168.1.1 and press [Enter]. It the link is OK, the line of “64 bytes from 192.168.1.1: icmp_seq=0 ttl=255 time=xxxx ms” will appear. VigorPro 5500 Quick Start Guide...
  • Page 51 Click WAN>>Internet Access group and then check whether the ISP settings are set correctly. Check if the Enable option for PPPoE Link is selected. Check if Username and Password are entered with correct values that you got from your ISP. VigorPro 5500 Quick Start Guide...
  • Page 52 Check if the Enable option for PPTP Link is selected. And check the IP address for the PPTP Server. Check if IP Address and Subnet Mask are set correctly (must identify with the values from your ISP) if you choose Specify an IP address. VigorPro 5500 Quick Start Guide...
  • Page 53: Backing To Factory Default Setting If Necessary

    When you see the ACT LED blinks rapidly, please release the button. Then, the router will restart with the default configuration. After restore the factory default setting, you can configure the settings for the router again to fit your personal request. VigorPro 5500 Quick Start Guide...
  • Page 54: Contacting Your Dealer

    If the router still cannot work correctly after trying many efforts, please contact your dealer for further help right away. For any questions, please feel free to send e-mail to support@draytek.com. VigorPro 5500 Quick Start Guide...
