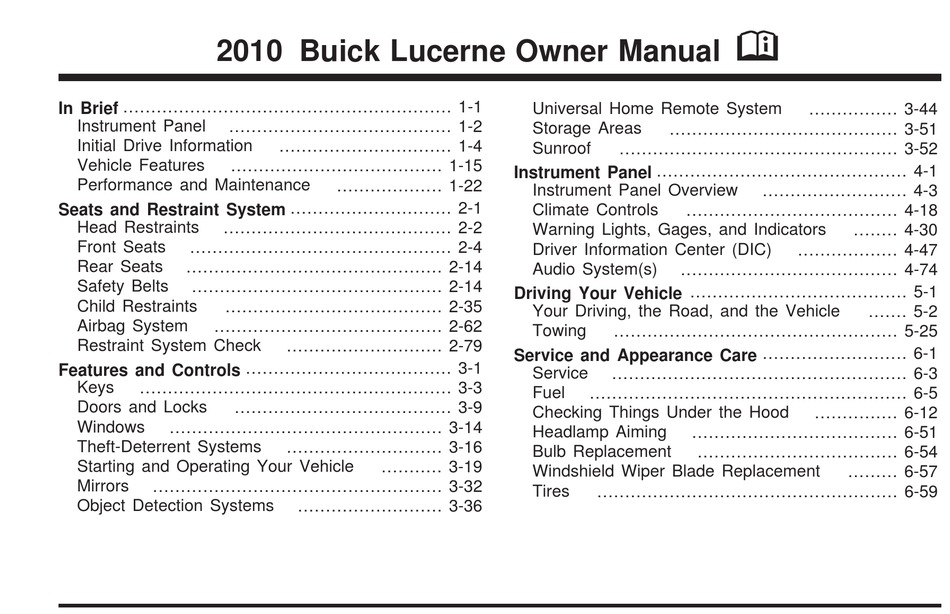

Page 1 2010 Buick Lucerne Owner Manual In Brief ... 1-1 Instrument Panel ... 1-2 Initial Drive Information ... 1-4 Vehicle Features ... 1-15 Performance and Maintenance Seats and Restraint System ... 2-1 Head Restraints ... 2-2 Front Seats ... 2-4 Rear Seats ...
Page 2 Appearance Care ... 6-100 Vehicle Identiﬁcation ... 6-108 Electrical System ... 6-108 Capacities and Speciﬁcations Maintenance Schedule ... 7-1 Maintenance Schedule ... 7-2 Customer Assistance Information ... 8-1 Customer Assistance and Information Reporting Safety Defects Vehicle Data Recording and Privacy ...
Page 3: Canadian Owners
GENERAL MOTORS, GM, the GM Emblem, BUICK, the BUICK Emblem, and the name LUCERNE are registered trademarks of General Motors Corporation. This manual describes features that may or may not be on your speciﬁc vehicle either because they are options that you did not purchase or due to changes subsequent to the printing of this owner manual.
Page 4: Vehicle Symbols
Safety Warnings and Symbols Warning Messages found on vehicle labels and in this manual describe hazards and what to do to avoid or reduce them. Danger indicates a hazard with a high level of risk which will result in serious injury or death. Warning or Caution indicates a hazard that could result in injury or death.
Page 5 Vehicle Symbol Chart Here are some additional symbols that may be found on the vehicle and what they mean. For more information on the symbol, refer to the index. : Airbag Readiness Light : Air Conditioning : Antilock Brake System (ABS) : Audio Steering Wheel Controls or OnStar : Brake System Warning Light "...
Page 6 ✍ NOTES...
Page 7: In Brief
Instrument Panel ...1-2 Initial Drive Information ...1-4 Remote Keyless Entry (RKE) System ...1-4 Remote Vehicle Start ...1-4 Door Locks ...1-5 Trunk Release ...1-5 Windows ...1-6 Seat Adjustment ...1-6 Heated Seats ...1-8 Heated and Ventilated Seats ...1-8 Head Restraint Adjustment ...1-9 Safety Belt ...1-9 Sensing System for Passenger Airbag ...1-9 Mirror Adjustment ...1-10...
Page 8: Instrument Panel
Instrument Panel...
Page 9 A. Outlet Adjustment on page 4-28. B. DIC Operation and Displays on page 4-47 (If Equipped). C. Turn Signal/Multifunction Lever on page 4-5. D. Instrument Panel Cluster on page 4-31. E. Hazard Warning Flashers on page 4-3. F. Audio System(s) on page 4-74. G.
Page 10: Initial Drive Information
Initial Drive Information This section provides a brief overview about some of the important features that may or may not be on your speciﬁc vehicle. For more detailed information, refer to each of the features which can be found later in this owner manual. Remote Keyless Entry (RKE) System The RKE transmitter is used to remotely lock and...
Page 11: Canceling A Remote Start
When the vehicle starts, the parking lamps will turn on and remain on as long as the engine is running. The doors will be locked and the climate control system may come on. The engine will continue to run for 10 minutes. Repeat the steps for a 10-minute time extension.
Page 12: Seat Adjustment
Windows On vehicles with power windows, the switches are on the driver door armrest. Each passenger door has a switch that controls only that window. Press the switch to lower the window. Pull the switch up to raise it. For more information, see Power Windows on page 3-15.
Page 13 Power Seats Move the seat forward or rearward by moving the control forward or rearward Raise or lower the seat by moving the control up or down. See Power Seats on page 2-5. Power Reclining Seatbacks To raise or recline the seatback, tilt the top of the control forward or rearward.
Page 14: Power Lumbar
Power Lumbar On vehicles equipped with either a two-way or four-way lumbar, the control is located on the outboard side of the seats. For a detailed operation description see Power Lumbar on page 2-5. Heated Seats On vehicles with heated seats, the controls are located on the front doors and the ignition must be on to use the feature.
Page 15: Head Restraint Adjustment
Head Restraint Adjustment Do not drive until the head restraints for all occupants are installed and adjusted properly. For more information see Head Restraints on page 2-2. Safety Belt Refer to the following sections for important information on how to use safety belts properly. •...
Page 16 Mirror Adjustment Exterior Mirrors Controls for the outside power mirrors are located on the driver door armrest. 1. Press the left or right side of the selector switch located beneath the control pad to choose the driver or passenger side mirror. 2.
Page 17: Steering Wheel Adjustment
Steering Wheel Adjustment The lever is located on the left side of the steering column. To adjust the lever: 1. Hold the wheel and pull the lever toward you. 2. Move the steering wheel up or down into a comfortable position. 3.
Page 18: Interior Lighting
Interior Lighting Courtesy Lamps When any door is opened, the interior lamps turn on to enter and exit the vehicle. Turn the instrument panel brightness control located on the left side of the steering wheel, completely clockwise to manually turn on these lamps. Front Reading Lamps The front reading lamps are located on the headliner.
Page 19: Windshield Wiper/Washer
: Manual operation of the parking lamps and other exterior lamps. : Manual operation of the headlamps and other exterior lamps. : Press to turn on the fog lamps. For more information, see: • Exterior Lamps on page 4-11. • Daytime Running Lamps (DRL) on page 4-12.
Page 20: Climate Controls
: Turns the wipers off. : Press and release this paddle, located at the top of the turn signal/multifunction lever, to spray washer ﬂuid on the windshield. See Windshield Wipers on page 4-6 and Windshield Washer on page 4-8. Climate Controls A.
Page 21: Vehicle Features
Vehicle Features Radio(s) Radio with CD (MP3) : Press to turn the system on and off. Turn to increase or decrease the volume. BAND: Press to choose between FM, AM, or XM™, if equipped. : Select radio stations. © ¨ : Seek or scan stations.
Page 22: Satellite Radio
Setting the Clock To set the time and date for the radio with CD (MP3): 1. Turn the ignition key to ACC/ACCESSORY or ON/RUN. 2. Press to turn the radio on. 3. Press and the HR, MIN, MM, DD, YYYY (hour, minute, month, day, and year) displays.
Page 23: Steering Wheel Controls
Steering Wheel Controls If equipped, these controls are located on the right side of the steering wheel. : Press to go to the next radio station stored as a favorite, or the next track, if a CD/DVD is playing. V b g : Press to silence the vehicle speakers only.
Page 24 Navigation System The vehicle’s navigation system provides detailed maps of most major freeways and roads throughout the United States and Canada. After a destination has been set, the system provides turn-by-turn instructions for reaching the destination. In addition, the system can help locate a variety of points of interest (POI), such as banks, airports, restaurants, and more.
Page 25 Vehicle Customization Some vehicle features can be programmed by using the DIC buttons on the instrument panel to the left of the steering wheel. These features include: • Language • Door Lock and Unlock Settings • Lighting • Chime Volume •...
Page 26: Ultrasonic Parking Assist
Lane Departure Warning (LDW) For vehicles with LDW, it is intended to help avoid lane change collisions. It provides a warning if the vehicle is crossing a lane without using a turn signal. LDW uses a camera to detect the lane markings. It only operates at speeds of 56 km (35 mph) or greater.
Page 27: Universal Remote System
Keep the sensors on the vehicle’s rear bumper clean to ensure proper operation. The system can be disabled through the Driver Information Center (DIC). See Ultrasonic Rear Parking Assist (URPA) on page 3-36 for more information. Power Outlets The accessory power outlets can be used to plug in electrical equipment, such as a cellular telephone.
Page 28: Performance And Maintenance
Performance and Maintenance Traction Control System (TCS) The traction control system limits wheel spin. The system turns on automatically every time the vehicle is started. • To turn off traction control, press and release front of the shift lever. illuminates and the appropriate DIC message is displayed.
Page 29: Resetting The Oil Life System
Note: The Tire Pressure Monitor can alert you about low tire pressure, but it does not replace normal monthly tire maintenance. It is the driver’s responsibility to maintain correct tire pressures. See Tire Pressure Monitor System on page 6-67 and Tire Pressure Monitor Operation on page 6-68.
Page 30 U.S.: 1-800-252-1112 TTY Users: 1-888-889-2438 Canada: 1-800-268-6800 As the owner of a new Buick, you are automatically enrolled in the Roadside Assistance program. This program provides technically trained advisors who are available 24 hours a day, 365 days a year, minor repair information or towing arrangements.
Page 31: How Onstar Service Works
Automatic Crash Response In a crash, built in sensors can automatically alert an OnStar advisor who is immediately connected to the vehicle to see if you need help. How OnStar Service Works : This blue button connects you to a specially trained OnStar advisor to verify your account information and to answer questions.
Page 32: Your Responsibility
Location information about the vehicle is only available if the GPS satellite signals are unobstructed and available. The vehicle must have a working electrical system, including adequate battery power, for the OnStar equipment to operate. There are other problems OnStar cannot control that may prevent OnStar from providing OnStar service at any particular time or place.
Page 33: Table Of Contents
Section 2 Head Restraints ...2-2 Front Seats ...2-4 Manual Seats ...2-4 Power Seats ...2-5 Power Lumbar ...2-5 Heated Seats ...2-6 Heated and Ventilated Seats ...2-7 Memory Seat and Mirrors ...2-8 Reclining Seatbacks ...2-10 Center Seat ...2-13 Rear Seats ...2-14 Rear Seat Pass-Through Door ...2-14 Safety Belts ...2-14 Safety Belts: They Are for Everyone ...2-14 How to Wear Safety Belts Properly ...2-19...
Page 34: Head Restraints
Head Restraints The vehicle’s front seats have adjustable head restraints in the outboard seating positions. WARNING: With head restraints that are not installed and adjusted properly, there is a greater chance that occupants will suffer a neck/spinal injury in a crash.
Page 35 Pull the head restraint up to raise it. To lower the head restraint, press the button, located on the top of the seatback, and push the restraint down. Push down on the head restraint after the button is released to make sure that it is locked in place. The head restraints are not designed to be removed.
Page 36: Front Seats
Front Seats Manual Seats WARNING: You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to.
Page 37: Power Seats
Power Seats To adjust a power seat, do any of the following: • Move the seat forward or rearward by sliding the control forward or rearward. • Raise or lower the front part of the seat cushion by moving the front of the control up or down. •...
Page 38 On vehicles with a four-way lumbar control, press the control forward or rearward to increase or decrease support in the lower seatback. Press the top or bottom of the control to raise or lower the support in the seatback. The lumbar support may need to be re-adjusted when changing the seating position.
Page 39 Heated and Ventilated Seats On vehicles with heated and ventilated seats, the ignition must be on to use the feature. The buttons are located on the front doors. Driver’s Side Buttons shown (Heated Seat Cushion and Seatback): Press this button to heat the seat cushion and seatback. (Heated Seatback): Press this button to heat the seatback.
Page 40: Memory Seat And Mirrors
When you press a button, the feature will turn on at the highest setting. Each time you press the button, the feature will decrease one temperature setting. To turn the feature off, keep pressing the button until the display lights turn off. If your vehicle has remote vehicle start and is started using the remote keyless entry transmitter, the front heated seats will be turned on to the high setting if it is...
Page 41: Easy Exit Seat
The vehicle must be in P (Park) to recall your memory positions. Press and release either button to recall the stored setting. Each time a memory button is pressed, a single beep sounds. If you use the remote keyless entry transmitter to enter your vehicle and the remote recall memory feature is on, automatic seat and mirror movement occurs.
Page 42: Reclining Seatbacks
Reclining Seatbacks Manual Reclining Seatbacks WARNING: You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to.
Page 43: Power Reclining Seatbacks
To recline the seatback, do the following: 1. Lift the recline lever. 2. Move the seatback to the desired position, then release the lever to lock the seatback in place. 3. Push and pull on the seatback to make sure it is locked.
Page 44 If the seats have power reclining seatbacks, the controls used to operate them are located on the outboard side of the seats. • Tilt the top of the control rearward to recline the seatback. • Tilt the top of the control forward to raise the seatback.
Page 45: Center Seat
WARNING: (Continued) The lap belt cannot do its job either. In a crash the belt could go up over your abdomen. The belt forces would be there, not at your pelvic bones. This could cause serious internal injuries. For proper protection when the vehicle is in motion, have the seatback upright.
Page 46: Rear Seats
Rear Seats Rear Seat Pass-Through Door Your vehicle has a pass-through door that provides access to the trunk from the rear seats. See “Rear Seat Pass-Through Door” under Trunk on page 3-12. Safety Belts Safety Belts: They Are for Everyone This section of the manual describes how to use safety belts properly.
Page 47: Why Safety Belts Work
In most states and in all Canadian provinces, the law requires wearing safety belts. Here is why: You never know if you will be in a crash. If you do have a crash, you do not know if it will be a serious one. A few crashes are mild, and some crashes can be so serious that even buckled up, a person would not survive.
Page 48 Put someone on it. 2-16 Get it up to speed. Then stop the vehicle. The rider does not stop.
Page 49 The person keeps going until stopped by something. In or the instrument panel... a real vehicle, it could be the windshield... 2-17...
Page 50: Questions And Answers About Safety Belts
or the safety belts! With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That is why safety belts make such good sense. 2-18 Questions and Answers About Safety Belts...
Page 51: How To Wear Safety Belts Properly
If I am a good driver, and I never drive far from home, why should I wear safety belts? You may be an excellent driver, but if you are in a crash — even one that is not your fault — you and your passenger(s) can be hurt.
Page 52 Sit up straight and always keep your feet on the ﬂoor in front of you. The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, 2-20 this applies force to the strong pelvic bones and you would be less likely to slide under the lap belt.
Page 53 What is wrong with this? The shoulder belt is too loose. It will not give as much protection this way. WARNING: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury.
Page 54 What is wrong with this? The lap belt is too loose. It will not give nearly as much protection this way. 2-22 WARNING: You can be seriously hurt if your lap belt is too loose. In a crash, you could slide under the lap belt and apply force on your abdomen.
Page 55 What is wrong with this? The belt is buckled in the wrong buckle. WARNING: You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen. The belt forces would be there, not on the pelvic bones.
Page 56 What is wrong with this? The belt is over an armrest. 2-24 WARNING: You can be seriously injured if your belt goes over an armrest like this. The belt would be much too high. In a crash, you can slide under the belt. The belt force would then be applied on the abdomen, not on the pelvic bones, and that could cause serious or fatal injuries.
Page 57 What is wrong with this? The shoulder belt is worn under the arm. It should be worn over the shoulder at all times. WARNING: You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury.
Page 58 What is wrong with this? The belt is behind the body. 2-26 WARNING: You can be seriously injured by not wearing the lap-shoulder belt properly. In a crash, you would not be restrained by the shoulder belt. Your body could move too far forward increasing the chance of head and neck injury.
Page 59 What is wrong with this? The belt is twisted across the body. WARNING: You can be seriously injured by a twisted belt. In a crash, you would not have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer/retailer to ﬁx it.
Page 60: Lap-Shoulder Belt
Lap-Shoulder Belt All seating positions in the vehicle have a lap-shoulder except for the center front passenger position (if equipped), which has a lap belt. See Lap Belt on page 2-34 for more information. The following instructions explain how to wear a lap-shoulder belt properly.
Page 61 4. If equipped with a shoulder belt height adjuster, move it to the height that is right for you. See “Shoulder Belt Height Adjustment” later in this section for instructions on use and important safety information. 5. To make the lap part tight, pull up on the shoulder belt.
Page 62 Shoulder Belt Height Adjuster The vehicle has a shoulder belt height adjuster for the driver and right front passenger seating positions. Adjust the height so that the shoulder portion of the belt is centered on the shoulder. The belt should be away from the face and neck, but not falling off the shoulder.
Page 63: Rear Safety Belt Comfort Guides
Rear Safety Belt Comfort Guides This vehicle may have rear shoulder belt comfort guides for each outside passenger position in the rear seat. If not, they are available through your dealer/retailer. The guides may provide added safety belt comfort for older children who have outgrown booster seats and for some adults.
Page 64 3. Be sure that the belt is not twisted and it lies ﬂat. The elastic cord must be under the belt and the guide on top. 2-32 WARNING: A safety belt that is not properly worn may not provide the protection needed in a crash. The person wearing the belt could be seriously injured.
Page 65: Safety Belt Use During Pregnancy
4. Buckle, position, and release the safety belt as described earlier in this section. Make sure that the shoulder belt crosses the shoulder. To remove and store the comfort guide, squeeze the belt edges together so that the safety belt can be removed from the guide.
Page 66: Lap Belt
Lap Belt This part is only for the lap belt. To learn how to wear a lap-shoulder belt, see Lap-Shoulder Belt on page 2-28. You vehicle may have a center seating position. When you sit in the center front seating position, you have a lap safety belt, which has no retractor.
Page 67: Safety Belt Extender
Safety Belt Extender If the vehicle’s safety belt will fasten around you, you should use it. But if a safety belt is not long enough, your dealer/retailer will order you an extender. When you go in to order it, take the heaviest coat you will wear, so the extender will be long enough for you.
Page 68 The manufacturer’s instructions that come with the booster seat, state the weight and height limitations for that booster. Use a booster seat with a lap-shoulder belt until the child passes the below ﬁt test: • Sit all the way back on the seat. Do the knees bend at the seat edge? If yes, continue.
Page 69 WARNING: Never do this. Never allow two children to wear the same safety belt. The safety belt can not properly spread the impact forces. In a crash, the two children can be crushed together and seriously injured. A safety belt must be used by only one person at a time. 2-37...
Page 70 WARNING: Never do this. Never allow a child to wear the safety belt with the shoulder belt behind their back. A child can be seriously injured by not wearing the lap-shoulder belt properly. In a crash, the child would not be restrained by the shoulder belt.
Page 71: Infants And Young Children
Infants and Young Children Everyone in a vehicle needs protection! This includes infants and all other children. Neither the distance traveled nor the age and size of the traveler changes the need, for everyone, to use safety restraints. In fact, the law in every state in the United States and in every Canadian province says children up to some age must be restrained while in a vehicle.
Page 72 WARNING: Never do this. Never hold an infant or a child while riding in a vehicle. Due to crash forces, an infant or a child will become so heavy it is not possible to hold it during a crash. For example, in a crash at only 40 km/h (25 mph), a 5.5 kg (12 lb) infant will suddenly become a 110 kg (240 lb) force on a person’s arms.
Page 73 WARNING: Never do this. Children who are up against, or very close to, any airbag when it inﬂates can be seriously injured or killed. Never put a rear-facing child restraint in the right front seat. Secure a rear-facing child restraint in a rear seat.
Page 74 What are the different types of add-on child restraints? Add-on child restraints, which are purchased by the vehicle’s owner, are available in four basic types. Selection of a particular restraint should take into consideration not only the child’s weight, height, and age but also whether or not the restraint will be compatible with the motor vehicle in which it will be used.
Page 75: Child Restraint Systems
WARNING: A young child’s hip bones are still so small that the vehicle’s regular safety belt may not remain low on the hip bones, as it should. Instead, it may settle up around the child’s abdomen. In a crash, the belt would apply force on a body area that is unprotected by any bony structure.
Page 76 A forward-facing child seat (B) provides restraint for the child’s body with the harness. 2-44 A booster seat (C-D) is a child restraint designed to improve the ﬁt of the vehicle’s safety belt system. A booster seat can also help a child to see out the window.
Page 77: Securing The Child Within The Child Restraint
Securing an Add-On Child Restraint in the Vehicle WARNING: A child can be seriously injured or killed in a crash if the child restraint is not properly secured in the vehicle. Secure the child restraint properly in the vehicle using the vehicle’s safety belt or LATCH system, following the instructions that came with that child restraint and the instructions in this manual.
Page 78: Where To Put The Restraint
Where to Put the Restraint According to accident statistics, children and infants are safer when properly restrained in a child restraint system or infant restraint system secured in a rear seating position. We recommend that children and child restraints be secured in a rear seat, including: an infant or a child riding in a rear-facing child restraint;...
Page 79 WARNING: (Continued) Secure rear-facing child restraints in a rear seat, even if the airbag is off. If you secure a forward-facing child restraint in the right front seat, always move the front passenger seat as far back as it will go. It is better to secure the child restraint in a rear seat.
Page 80: Lower Anchors And Tethers For Children (Latch)
Lower Anchors and Tethers for Children (LATCH) The LATCH system holds a child restraint during driving or in a crash. This system is designed to make installation of a child restraint easier. The LATCH system uses anchors in the vehicle and attachments on the child restraint that are made for use with the LATCH system.
Page 81: Top Tether Anchor
Top Tether Anchor A top tether (A, C) anchors the top of the child restraint to the vehicle. A top tether anchor is built into the vehicle. The top tether attachment (B) on the child restraint connects to the top tether anchor in the vehicle in order to reduce the forward movement and rotation of the child restraint during driving or in a crash.
Page 82 Lower Anchor and Top Tether Anchor Locations (Top Tether Anchor): Seating positions with top tether anchors. (Lower Anchor): Seating positions with two lower anchors. Rear Seat 2-50 To assist you in locating the lower anchors, each seating position with lower anchors has two labels, near the crease between the seatback and the...
Page 83 To assist you in locating the top tether anchors, the top tether anchor symbol is located on the cover. The top tether anchors are located under the covers on the rear seatback ﬁller panel. Flip open the cover to access the anchors. Be sure to use an anchor located on the same side of the vehicle as the seating position where the child restraint will be placed.
Page 84: Securing A Child Restraint Designed For The Latch System
Do not secure a child restraint in a position without a top tether anchor if a national or local law requires that the top tether be attached, or if the instructions that come with the child restraint say that the top tether must be attached.
Page 85 Notice: Do not let the LATCH attachments rub against the vehicle’s safety belts. This may damage these parts. If necessary, move buckled safety belts to avoid rubbing the LATCH attachments. Do not fold the empty rear seat with a safety belt buckled.
Page 86 If the position you are using does not have a headrest or head restraint and you are using a dual tether, route the tether over the seatback. If the position you are using has a ﬁxed headrest or head restraint and you are using a single tether, route the tether over the headrest or head...
Page 87: Securing A Child Restraint In A Rear Seat Position
Securing a Child Restraint in a Rear Seat Position When securing a child restraint in a rear seating position, study the instructions that came with the child restraint to make sure it is compatible with this vehicle. If the child restraint has the LATCH system, see Lower Anchors and Tethers for Children (LATCH) on page 2-48 for how and where to install the child restraint using LATCH.
Page 88 3. Push the latch plate into the buckle until it clicks. 4. Pull the rest of the shoulder belt all the way out of the retractor to set the lock. Position the release button on the buckle so that the safety belt could be quickly unbuckled if necessary.
Page 89 5. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor. When installing a forward-facing child restraint, it may be helpful to use your knee to push down on the child restraint as you tighten the belt.
Page 90: Securing A Child Restraint In The Center Front Seat Position
Securing a Child Restraint in the Center Front Seat Position WARNING: A child in a child restraint in the center front seat can be badly injured or killed by the frontal airbags if they inﬂate. Never secure a child restraint in the center front seat.
Page 91 WARNING: A child in a rear-facing child restraint can be seriously injured or killed if the right front passenger airbag inﬂates. This is because the back of the rear-facing child restraint would be very close to the inﬂating airbag. A child in a forward-facing child restraint can be seriously injured or killed if the right front passenger airbag inﬂates and the passenger seat is in a forward position.
Page 92 In Canada, the law requires that forward-facing child restraints have a top tether, and that the tether be attached. You will be using the lap-shoulder belt to secure the child restraint in this position. Follow the instructions that came with the child restraint. 1.
Page 93 5. Pull the rest of the shoulder belt all the way out of the retractor to set the lock. 6. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor.
Page 94: Airbag System
If a child restraint has been installed and the on indicator is lit, see “If the On Indicator is Lit for a Child Restraint ” under Passenger Sensing System on page 2-72 for more information. To remove the child restraint, unbuckle the vehicle safety belt and let it return to the stowed position.
Page 95 Here are the most important things to know about the airbag system: WARNING: You can be severely injured or killed in a crash if you are not wearing your safety belt — even if you have airbags. Airbags are designed to work with safety belts, but do not replace them.
Page 96 WARNING: Children who are up against, or very close to, any airbag when it inﬂates can be seriously injured or killed. Airbags plus lap-shoulder belts offer protection for adults and older children, but not for young children and infants. Neither the vehicle’s safety belt system nor its airbag system is designed for them.
Page 97: Where Are The Airbags
Where Are the Airbags? The driver frontal airbag is in the middle of the steering wheel. The right front passenger frontal airbag is in the instrument panel on the passenger side. 2-65...
Page 98 Driver Side shown, Passenger Side similar The seat-mounted side impact airbags for the driver and right front passenger are in the side of the seatbacks closest to the door. 2-66 Driver Side shown, Passenger Side similar The roof-rail airbags for the driver, right front passenger, and second row outboard passengers are in the ceiling above the side windows.
Page 99: When Should An Airbag Inﬂate
WARNING: If something is between an occupant and an airbag, the airbag might not inﬂate properly or it might force the object into that person causing severe injury or even death. The path of an inﬂating airbag must be kept clear. Do not put anything between an occupant and an airbag, and do not attach or put anything on the steering wheel hub or on or near any other airbag...
Page 100 Frontal airbags may inﬂate at different crash speeds. For example: • If the vehicle hits a stationary object, the airbags could inﬂate at a different crash speed than if the vehicle hits a moving object. • If the vehicle hits an object that deforms, the airbags could inﬂate at a different crash speed than if the vehicle hits an object that does not deform.
Page 101: What Makes An Airbag Inﬂate
Seat-mounted side impact and roof-rail airbags are not intended to inﬂate in frontal impacts, near-frontal impacts, rollovers, or rear impacts. A seat-mounted side impact airbag is intended to deploy on the side of the vehicle that is struck. Both roof-rail airbags will deploy when either side of the vehicle is struck.
Page 102: What Will You See After An Airbag Inﬂates
What Will You See After an Airbag Inﬂates? After the frontal airbags and seat-mounted side impact airbags inﬂate, they quickly deﬂate, so quickly that some people may not even realize an airbag inﬂated. Roof-rail airbags may still be at least partially inﬂated for some time after they deploy.
Page 103 WARNING: A crash severe enough to inﬂate the airbags may have also damaged important functions in the vehicle, such as the fuel system, brake and steering systems, etc. Even if the vehicle appears to be drivable after a moderate crash, there may be concealed damage that could make it difficult to safely operate the vehicle.
Page 104: Passenger Sensing System
Passenger Sensing System The vehicle has a passenger sensing system for the right front passenger position. The passenger airbag status indicator will be visible on the overhead console when the vehicle is started. United States The words ON and OFF, or the symbol for on and off, are visible during the system check.
Page 105 WARNING: A child in a rear-facing child restraint can be seriously injured or killed if the right front passenger airbag inﬂates. This is because the back of the rear-facing child restraint would be very close to the inﬂating airbag. A child in a forward-facing child restraint can be seriously injured or killed if the right front passenger airbag inﬂates and the passenger seat is in a forward...
Page 106 The passenger sensing system is designed to turn on (may inﬂate) the right front passenger frontal airbag and seat-mounted side impact airbag anytime the system senses that a person of adult size is sitting properly in the right front passenger seat. When the passenger sensing system has allowed the airbags to be enabled, the on indicator will light and stay lit to remind you that the airbags are active.
Page 107 If the On Indicator is Lit for a Child Restraint If a child restraint has been installed and the on indicator is lit: 1. Turn the vehicle off. 2. Remove the child restraint from the vehicle. 3. Remove any additional items from the seat such as blankets, cushions, seat covers, seat heaters, or seat massagers.
Page 108 If the Off Indicator is Lit for an Adult-Size Occupant If a person of adult-size is sitting in the right front passenger seat, but the off indicator is lit, it could be because that person is not sitting properly in the seat. 2-76 If this happens, use the following steps to allow the system to detect that person and enable the right front...
Page 109: Servicing Your Airbag-Equipped Vehicle
Additional Factors Affecting System Operation Safety belts help keep the passenger in position on the seat during vehicle maneuvers and braking, which helps the passenger sensing system maintain the passenger airbag status. See “Safety Belts” and “Child Restraints” in the Index for additional information about the importance of proper restraint use.
Page 110: Adding Equipment To Your Airbag-Equipped Vehicle
Adding Equipment to Your Airbag-Equipped Vehicle Is there anything I might add to or change about the vehicle that could keep the airbags from working properly? Yes. If you add things that change your vehicle’s frame, bumper system, height, front end or side sheet metal, they may keep the airbag system from working properly.
Page 111: Restraint System Check
Restraint System Check Checking the Restraint Systems Safety Belts Now and then, check that the safety belt reminder light, safety belts, buckles, latch plates, retractors, and anchorages are all working properly. Look for any other loose or damaged safety belt system parts that might keep a safety belt system from doing its job.
Page 112: Replacing Restraint System Parts After A Crash
Replacing Restraint System Parts After a Crash WARNING: A crash can damage the restraint systems in your vehicle. A damaged restraint system may not properly protect the person using it, resulting in serious injury or even death in a crash. To help make sure your restraint systems are working properly after a crash, have them inspected and any necessary replacements made as soon as...
Page 113: Features And Controls
Section 3 Keys ...3-3 Remote Keyless Entry (RKE) System ...3-4 Remote Keyless Entry (RKE) System Operation ...3-5 Remote Vehicle Start ...3-7 Doors and Locks ...3-9 Door Locks ...3-9 Power Door Locks ...3-10 Delayed Locking ...3-10 Programmable Automatic Door Locks ...3-10 Rear Door Security Locks ...3-11 Lockout Protection ...3-11 Trunk ...3-12...
Page 114 Section 3 Storage Areas ...3-51 Glove Box ...3-51 Cupholders ...3-51 Front Storage Area ...3-51 Center Console Storage ...3-51 Features and Controls Center Flex Storage Unit ...3-51 Rear Seat Armrest ...3-52 Convenience Net ...3-52 Sunroof ...3-52...
Page 115: Keys
Keys WARNING: Leaving children in a vehicle with the ignition key is dangerous for many reasons, children or others could be badly injured or even killed. They could operate the power windows or other controls or even make the vehicle move. The windows will function with the keys in the ignition and children could be seriously injured or killed if caught in the path of a closing window.
Page 116: Remote Keyless Entry (Rke) System
See your dealer/retailer if a replacement key or additional key is needed. Notice: If you ever lock your keys in the vehicle, you may have to damage the vehicle to get in. Be sure you have spare keys. If you are locked out of your vehicle, contact Roadside Assistance.
Page 117: Remote Keyless Entry (Rke) System Operation
Remote Keyless Entry (RKE) System Operation The Remote Keyless Entry (RKE) transmitter functions work up to 60 m (195 feet) away from the vehicle. There are other conditions which can affect the performance of the transmitter. See Remote Keyless Entry (RKE) System on page 3-4. With Remote Start Shown, Without Remote Start Similar...
Page 118: Battery Replacement
Press and hold for more than two seconds to activate the panic alarm. The turn signal lamps ﬂash and the horn sounds repeatedly for 30 seconds. The alarm turns off when the ignition is moved to ON/RUN or is pressed again. The ignition must be in LOCK/OFF for the panic alarm to work.
Page 119: Remote Vehicle Start
Remote Vehicle Start Your vehicle may have a remote starting feature. This feature allows you to start the engine from outside the vehicle. It may also start the vehicle’s heating or air conditioning systems, rear window defogger, and heated seats. See Heated Seats on page 2-6 and Heated and Ventilated Seats on page 2-7 for additional information.
Page 120: Remote Start Ready
To manually shut off a remote start: • Aim the RKE transmitter at the vehicle and press the remote start button until the parking lamps turn off. • Turn on the hazard warning ﬂashers. • Turn the ignition switch on and then off. The vehicle can be started remotely two separate times between driving sequences.
Page 121: Doors And Locks
Doors and Locks Door Locks WARNING: Unlocked doors can be dangerous. • Passengers, especially children, can easily open the doors and fall out of a moving vehicle. When a door is locked, the handle will not open it. The chance of being thrown out of the vehicle in a crash is increased if the doors are not locked.
Page 122: Power Door Locks
Power Door Locks On vehicles with power door locks, the switches are located on the front doors. " (Unlock): Press to unlock the doors. (Lock): Remove the key from the ignition and press to lock the doors. Delayed Locking This feature allows the driver to delay the actual locking of the doors.
Page 123: Rear Door Security Locks
Rear Door Security Locks Rear door security locks prevent passengers from opening the rear doors from the inside. The rear door security locks are located on the inside edge of each rear door. The rear doors must be opened to access them. To use the lock: 1.
Page 124: Trunk
Trunk WARNING: Exhaust gases can enter the vehicle if it is driven with the liftgate, trunk/hatch open, or with any objects that pass through the seal between the body and the trunk/hatch or liftgate. Engine exhaust contains Carbon Monoxide (CO) which cannot be seen or smelled.
Page 125: Emergency Trunk Release Handle
Emergency Trunk Release Handle Notice: Do not use the emergency trunk release handle as a tie-down or anchor point when securing items in the trunk as it could damage the handle. The emergency trunk release handle is only intended to aid a person trapped in a latched trunk, enabling them to open the trunk from the inside.
Page 126: Windows
Windows WARNING: Leaving children, helpless adults, or pets in a vehicle with the windows closed is dangerous. They can be overcome by the extreme heat and suffer permanent injuries or even death from heat stroke. Never leave a child, a helpless adult, or a pet alone in a vehicle, especially with the windows closed in warm or hot weather.
Page 127: Power Windows
Power Windows WARNING: Leaving children in a vehicle with the keys is dangerous for many reasons, children or others could be badly injured or even killed. They could operate the power windows or other controls or even make the vehicle move. The windows will function and they could be seriously injured or killed if caught in the path of a closing window.
Page 128: Sun Visors
Express-Down Window This feature is on the front windows. Press the switch to the second position to activate the express-down feature. To stop the window as it is lowering, press down brieﬂy on the switch again. Window Lockout (Window Lockout): The rear window lockout button is located on the driver’s door armrest near the window switches.
Page 129: Pass-Key Iii+ Electronic Immobilizer
Arming with the Power Lock Switch The alarm system will arm when you use either power lock switch to lock the doors while any door is open and the key is removed from the ignition. The alarm system will not arm if the truck is open when you use either power lock switch to lock the doors.
Page 130 When trying to start the vehicle if the engine does not start and the security light on the instrument panel cluster comes on, there may be a problem with your theft-deterrent system. Turn the ignition off and try again. If the engine still does not start, and the key appears to be not damaged, try another ignition key.
Page 131: Starting And Operating Your Vehicle
Starting and Operating Your Vehicle New Vehicle Break-In Notice: The vehicle does not need an elaborate break-in. But it will perform better in the long run if you follow these guidelines: • Do not drive at any one constant speed, fast or slow, for the ﬁrst 500 miles (805 km).
Page 132: Retained Accessory Power (Rap)
The steering can bind with the wheels turned off center. If this happens, move the steering wheel from right to left while turning the key to ACC/ACCESSORY. If this doesn’t work, then the vehicle needs service. B (ACC/ACCESSORY): This position lets the radio and windshield wipers operate while the engine is off.
Page 133: Starting Procedure
Notice: Do not try to shift to P (Park) if the vehicle is moving. If you do, you could damage the transmission. Shift to P (Park) only when the vehicle is stopped. Starting Procedure 1. With your foot off the accelerator pedal, turn the ignition to START.
Page 134: Engine Coolant Heater
Engine Coolant Heater The engine coolant heater can provide easier starting and better fuel economy during engine warm-up in cold weather conditions at or below 0°F (−18°C). Vehicles with an engine coolant heater should be plugged in at least four hours before starting. To Use the Engine Coolant Heater 1.
Page 135: Automatic Transmission Operation
Automatic Transmission Operation The vehicle may have a shift lever located either on the steering column or on the console between the seats. P (Park): This position locks the front wheels. It is the best position to use when you start the engine because the vehicle cannot move easily.
Page 136 R (Reverse): Use this gear to back up. Notice: Shifting to R (Reverse) while the vehicle is moving forward could damage the transmission. The repairs would not be covered by the vehicle warranty. Shift to R (Reverse) only after the vehicle is stopped.
Page 137: Parking Brake
2 (Second): This position reduces vehicle speed even more than 3 (Third) without using the brakes. You can use 2 (Second) on hills. It can help control vehicle speed as you go down steep mountain roads, but then you would also want to use the brakes off and on. Notice: Driving in 2 (Second) for more than 25 miles (40 km) or at speeds over 55 mph (90 km/h) may damage the transmission.
Page 138: Shifting Into Park
A warning chime will sound if the parking brake is set, the ignition is on, and the vehicle speed is greater than 5 mph (8 km/h). The brake light will come on and stay on until the parking brake is released. See Brake System Warning Light on page 4-36 for more information.
Page 139: Steering Column Shift Lever
Steering Column Shift Lever If the vehicle has a steering column shift lever, use this procedure to shift the vehicle into P (Park): 1. Hold the brake pedal down. 2. Move the shift lever into P (Park) by pulling the shift lever toward you and moving it up as far as it will go.
Page 140: Torque Lock
Leaving the Vehicle With the Engine Running WARNING: It can be dangerous to leave the vehicle with the engine running. The vehicle could move suddenly if the shift lever is not fully in P (Park) with the parking brake ﬁrmly set. And, if you leave the vehicle with the engine running, it could overheat and even catch ﬁre.
Page 141: Shifting Out Of Park
Shifting Out of Park Automatic Transmission Shift Lock This vehicle has an electronic shift lock release system. The shift lock release is designed to: • Prevent ignition key removal unless the shift lever is in P (Park) • Prevent movement of the shift lever out of P (Park), unless the ignition is in ON/RUN and the regular brake pedal is applied.
Page 142: Parking Over Things That Burn
Parking Over Things That Burn WARNING: Things that can burn could touch hot exhaust parts under the vehicle and ignite. Do not park over papers, leaves, dry grass, or other things that can burn. Engine Exhaust WARNING: Engine exhaust contains Carbon Monoxide (CO) which cannot be seen or smelled.
Page 143: Running The Vehicle While Parked
Running the Vehicle While Parked It is better not to park with the engine running. But if you ever have to, here are some things to know. WARNING: Idling a vehicle in an enclosed area with poor ventilation is dangerous. Engine exhaust may enter the vehicle.
Page 144: Mirrors
Mirrors Automatic Dimming Rearview Mirror The vehicle may have an automatic dimming inside ® rearview mirror with OnStar and/or a compass display. Automatic dimming reduces the glare from the headlamps of the vehicle behind you. The dimming feature comes on and the indicator light illuminates each time the vehicle is started.
Page 145: Outside Power Mirrors
To adjust for compass variance: 1. Find your current location and variance zone number on the following zone map. 2. Press and hold until the zone number displays. The number shown is the current zone number. 3. Once the zone number displays, press until the correct zone number displays.
Page 146: Outside Automatic Dimming Mirror
Outside Automatic Dimming Mirror If the vehicle has this feature, the driver side mirror adjusts for the glare of headlamps behind you. This feature is controlled by the on and off settings on the automatic dimming rearview mirror. See Automatic Dimming Rearview Mirror on page 3-32 for more information.
Page 147: Outside Convex Mirror
Outside Convex Mirror WARNING: A convex mirror can make things, like other vehicles, look farther away than they really are. If you cut too sharply into the right lane, you could hit a vehicle on the right. Check the inside mirror or glance over your shoulder before changing lanes.
Page 148: Object Detection Systems
Object Detection Systems Ultrasonic Rear Parking Assist (URPA) For vehicles with the URPA system, it operates at speeds less than 8 km/h (5 mph), and assists the driver with parking and avoiding objects while in R (Reverse). The sensors on the rear bumper are used to detect the distance to an object up to 2.5 m (8 ft) behind the vehicle, and at least 25 cm (10 in) off the ground.
Page 149: How The System Works
How the System Works URPA comes on automatically when the shift lever is moved into R (Reverse). The rear display brieﬂy illuminates to indicate the system is working. URPA operates only at speeds less than 8 km/h (5 mph). If the vehicle is above this speed, the red light on the rear display will ﬂash.
Page 150: Side Blind Zone Alert (Sbza)
When the System Does Not Seem to Work Properly If the URPA system will not activate due to a temporary condition, the message PARK ASSIST OFF will be displayed on the DIC and a red light will be shown on the rear URPA display when the shift lever is moved into R (Reverse).
Page 151 SBZA Detection Zones The SBZA sensor covers a zone of approximately one lane over from both sides of the vehicle, 3.5 m (11 ft). This zone starts at each side mirror and goes back approximately 5 m (16 ft). The height of the zone is approximately between 0.5 m (1.5 ft) and 2.0 m (6 ft) off the ground.
Page 152 When the System Does Not Seem To Work Properly Occasional missed alerts can occur under normal circumstances and will increase in wet conditions. The system does not need to be serviced due to an occasional missed alert. The number of missed alerts will increase with increased rainfall or road spray.
Page 153 SBZA Error Messages The following messages may appear in the DIC: SIDE BLIND ZONE ALERT SYSTEM OFF: This message indicates that the driver has turned the system off. SIDE BLIND ZONE SYS. UNAVAILABLE: This message indicates that the SBZA system is disabled because the sensor is blocked and cannot detect vehicles in the blind zone.
Page 154: Lane Departure Warning (Ldw)
Lane Departure Warning (LDW) The vehicle may have a Lane Departure Warning (LDW) system. Read this entire section before using the system. WARNING: The Lane Departure Warning (LDW) system does not steer the vehicle and is only an aid to help you stay in your driving lane.
Page 155 How the System Works LDW uses a camera located between the inside rearview mirror and the windshield to detect the lane markings. (Lane Departure Warning): To turn LDW on and off, press the LDW control, located by the exterior headlamp control.
Page 156: Universal Home Remote System
When the System Does Not Seem To Work Properly The LDW symbol will not appear when the system is having difficulty seeing the lines on the road or if the view of the camera on the windshield is blocked with mud, dirt, snow, ice, or slush, if the windshield is damaged, or when weather limits visibility, such as while driving in fog, rain, or snow conditions.
Page 157 Do not use this system with any garage door opener that does not have the stop and reverse feature. This includes any garage door opener model manufactured before April 1, 1982. Read the instructions completely before attempting to program the transmitter. Because of the steps involved, it may be helpful to have another person assist with programming the transmitter.
Page 158 2. Locate in the garage, the garage door opener receiver (motor-head unit). Locate the “Learn” or “Smart” button. It can usually be found where the hanging antenna wire is attached to the motor-head unit and may be a colored button. Press this button. After pressing this button, complete the following steps in less than 30 seconds.
Page 159 Programming Universal Home Remote — Fixed Code For questions or help programming the Universal Home Remote System, call 1-866-572-2728 or go to learcar2u.com. Most garage door openers sold before 1996 are Fixed Code units. Programming a garage door opener involves time-sensitive actions, so read the entire procedure before starting.
Page 160 The garage door opener receiver (motor head unit) could also have a row of dip switches that can be used when programming the Universal Home Remote. If the total number of switches on the motor head and hand held transmitter are different, or if the dip switch settings are different, use the dip switch settings on the motor head unit to program the Universal Home Remote.
Page 161 2. Write down the eight to 12 switch settings from left to right as follows: • When a switch is in the up position, write “Left.” • When a switch is in the down position, write “Right.” • If a switch is set between the up and down position, write “Middle.”...
Page 162: Reprogramming Universal Home Remote Buttons
5. After entering all of the switch positions, again, ﬁrmly press and release all three buttons at the same time. The indicator lights will turn on. 6. Press and hold the button that will be used to control the garage door until the garage door moves.
Page 163: Storage Areas
Storage Areas Glove Box Lift the glove box handle up to open it. Use the key to lock and unlock the glove box. Cupholders There are cupholders located in the full ﬂoor console, or in the front of the center seat console. Cupholders are also located in the rear armrest.
Page 164: Sunroof
Rear Seat Armrest This vehicle has a rear seat armrest with cupholders. Pull the tab on the armrest forward, to access it. Convenience Net Use the convenience net, located in the rear, to store small loads as far forward as possible. The net should not be used to store heavy loads.
Page 165: Instrument Panel
Section 4 Instrument Panel Overview ...4-3 Hazard Warning Flashers ...4-3 Horn ...4-3 Tilt Wheel ...4-3 Power Tilt Wheel and Telescopic Steering Column ...4-4 Heated Steering Wheel ...4-4 Turn Signal/Multifunction Lever ...4-5 Turn and Lane-Change Signals ...4-5 Headlamp High/Low-Beam Changer ...4-6 Flash-to-Pass ...4-6 Windshield Wipers ...4-6 ™...
Page 166 Section 4 Lane Departure Warning (LDW) Light ...4-39 Engine Coolant Temperature Warning Light ...4-40 Engine Coolant Temperature Gage ...4-40 Tire Pressure Light ...4-41 Malfunction Indicator Lamp ...4-42 Oil Pressure Light ...4-44 Security Light ...4-45 Fog Lamp Light ...4-45 Cruise Control Light ...4-45 Highbeam On Light ...4-46 Fuel Gage ...4-46 Driver Information Center (DIC) ...4-47...
Page 167: Instrument Panel Overview
Instrument Panel Overview Hazard Warning Flashers The hazard warning ﬂashers let you warn others that you have a problem. The hazard warning ﬂasher button is located in the center of the instrument panel above the radio. : Press to make the front and rear turn signal lamps ﬂash on and off.
Page 168: Power Tilt Wheel And Telescopic Steering Column
Power Tilt Wheel and Telescopic Steering Column For vehicles with a power tilt control, it is located on the left hand side of the steering column. To adjust the power tilt wheel: • Push the control up or down to tilt the steering wheel up or down.
Page 169: Turn Signal/Multifunction Lever
Turn Signal/Multifunction Lever The lever on the left side of the steering column includes the following: : Turn and Lane-Change Signals : Headlamp High/Low-Beam Changer : Windshield Wipers : Windshield Washer Flash-To-Pass Feature. Information for these features is on the pages following. Turn and Lane-Change Signals An arrow on the instrument panel cluster ﬂashes in the...
Page 170: Headlamp High/Low-Beam Changer
Turn Signal On Chime If the turn signal is left on, a warning chime sounds and the Driver Information Center (DIC) will display TURN SIGNAL ON after driving about a mile as a reminder to turn it off. See DIC Warnings and Messages on page 4-55.
Page 171: Rainsense ™ Ii Wipers
Clear ice and snow from the wiper blades before using them. If frozen to the windshield, carefully loosen or thaw them. Damaged blades should be replaced. Heavy snow or ice can overload the wiper motor. A circuit breaker will stop the motor until it cools. The vehicle has wiper-activated headlamps.
Page 172: Windshield Washer
Windshield Washer WARNING: In freezing weather, do not use your washer until the windshield is warmed. Otherwise the washer ﬂuid can form ice on the windshield, blocking your vision. (Washer Fluid): Press and release this paddle, located at the top of the turn signal/multifunction lever, to spray washer ﬂuid on the windshield.
Page 173: Setting Cruise Control
See Traction Control System (TCS) on page 5-6. When road conditions allow you to safely use it again, the cruise control can be turned back on. The cruise control buttons are located on left side of the steering wheel. (On/Off): Press to turn cruise control on and off. The indicator is lit when cruise control is on.
Page 174 Resuming a Set Speed If cruise control is set at a desired speed and the brakes are applied, this shuts off the cruise control. However, it does not need to be reset. Once your vehicle reaches a speed of about 40 km/h (25 mph) or more, press the +RES button on the steering wheel.
Page 175: Exterior Lamps
Erasing Speed Memory The cruise control set speed memory is erased by turning off the cruise control or the ignition. Exterior Lamps The exterior lamps control is located on the instrument panel to the left of the steering wheel. It controls the following systems: •...
Page 176: Wiper Activated Headlamps
(Headlamps): Turn the control to this position to turn on the headlamps together with the following lamps listed below. A warning chime sounds if the driver’s door is opened while the ignition switch is off and the headlamps are on. •...
Page 177: Fog Lamps
When the DRL are on, only the low-beam headlamps will be on. The parking lamps, taillamps, sidemarker and other lamps will not be on. When it is dark enough outside, the low-beam headlamps will come on. The other lamps that turn on with the headlamps will also turn on.
Page 178: Exterior Lighting Battery Saver
Exterior Lighting Battery Saver If the exterior lamp button has been left on, the exterior lamps will turn off about 10 minutes after the ignition is turned to LOCK/OFF and a door has been opened. This protects against draining the battery if the headlamps or parking lamps are accidentally left on.
Page 179: Theater Dimming
Theater Dimming This feature allows for a three to ﬁve second fade out of the courtesy lamps instead of immediate turn off. Delayed Exit Lighting If it is dark enough outside when you remove the key from the ignition, the interior lamps will turn on and stay on for about 25 seconds.
Page 180: Inadvertent Power Battery Saver
A high electrical load occurs when several of the following are on, such as: headlamps, high beams, fog lamps, rear window defogger, climate control fan at high speed, heated seats, engine cooling fans, trailer loads, and loads plugged into accessory power outlets. EPM works to prevent excessive discharge of the battery.
Page 181: Accessory Power Outlet(S)
Accessory Power Outlet(s) The accessory power outlets can be used to plug in electrical equipment, such as a cellular telephone. The vehicle may have up to three power outlets depending on the type of front seat installed. If the vehicle has front bucket seats with a center console, there are two outlets inside the rear storage compartment.
Page 182: Ashtray(S)
Ashtray(s) Notice: If papers, pins, or other ﬂammable items are put in the ashtray, hot cigarettes or other smoking materials could ignite them and possibly damage the vehicle. Never put ﬂammable items in the ashtray. For vehicles without the ﬂoor console, pull the tray located below the climate controls to reveal the ashtray.
Page 183 A. Fan Control D. Recirculation B. Temperature E. Air Conditioning Control F. Rear Window C. Air Delivery Defogger Mode Control Operation (Off): Turns the climate control system off. Outside air still enters the vehicle and is directed to the ﬂoor. The airﬂow direction and temperature can be adjusted.
Page 184 Air Delivery Mode Control: Turn clockwise or counterclockwise to change the direction of the airﬂow in the vehicle. To change the current mode, select one of the following: (Vent): Air is directed to the instrument panel outlets. (Bi-Level): Air is divided between the instrument panel outlets and the ﬂoor outlets.
Page 185: Rear Window Defogger
The air-conditioning system removes moisture from the air, so a small amount of water might drip under the vehicle while idling or after turning off the engine. This is normal. (Recirculation): Press to turn the recirculation mode on. An indicator light below the button comes on to show that this mode is on.
Page 186: Dual Automatic Climate Control System
Dual Automatic Climate Control System The heating, cooling, and ventilation for the vehicle can be controlled with this system. For vehicles with the remote start feature and it is activated, the climate control system heats or cools the inside of the vehicle, with the settings used before the vehicle was turned off.
Page 187: Automatic Operation
Automatic Operation AUTO (Automatic Fan): When AUTO is selected on the fan control, the system automatically adjusts the fan ® speed. If the OnStar system is activated when this position is selected, the fan speed will lower. AUTO (Automatic Mode) 1.
Page 188: Manual Operation
Manual Operation (Off): Turns the climate control system off. Outside air still enters the vehicle and is directed to the ﬂoor. The airﬂow direction and temperature can be adjusted. If the temperature is adjusted while the system is off, the display will light to show the current settings. (Driver Temperature Controls): Press these buttons next to the fan control to increase or decrease the temperature inside the vehicle.
Page 189 (Floor/Defog): This mode clears the windows of fog or moisture. Air is directed to the ﬂoor outlets, with some air directed to the windshield and side window outlets. The system turns off recirculation and runs the air-conditioning compressor unless the outside temperature is at or below freezing.
Page 190 Sensors The solar sensor, located in the defrost grille, in the middle of the instrument panel, monitors the solar radiation. Do not cover the solar sensor or the system will not work properly. There is also an interior temperature sensor located next to the steering wheel that measures the temperature of the air inside the vehicle.
Page 191 Rear Window Defogger The rear window defogger uses a warming grid to remove fog or frost from the rear window. < (Rear Defogger): Press to turn the rear window defogger on or off. An indicator light below the button comes on to show that the rear window defogger is on. Be sure to clear as much snow from the rear window as possible.
Page 192: Outlet Adjustment
Outlet Adjustment Use the levers, located in the middle of the front outlets, to change the direction of the airﬂow. Use the thumbwheel located between the outlets to turn them on and off. If the vehicle has rear seat outlets, adjust the direction of the airﬂow using the lever in the center of each outlet.
Page 193 To access the passenger compartment air ﬁlter, do the following: 1. Press the tabs back and left to remove the cover. 2. Insert a tool behind the push pin located on the inboard side of the air ﬁlter compartment to carefully pry the pin out.
Page 194: Warning Lights, Gages, And Indicators
4. Insert the new air ﬁlter by pushing until you hear a click. Reinstall the push pin and snap the cover into place. 4-30 Warning Lights, Gages, and Indicators Warning lights and gages can signal that something is wrong before it becomes serious enough to cause an expensive repair or replacement.
Page 195: Instrument Panel Cluster
Instrument Panel Cluster The instrument panel cluster is designed to show how the vehicle is running. It shows how fast the vehicle is going, how much fuel has been used, and many other things needed to drive safely and economically. The vehicle has this cluster or one very similar to it.
Page 196: Speedometer And Odometer
Speedometer and Odometer The speedometer shows the vehicle speed in both miles per hour (mph) and kilometers per hour (km/h). The odometer shows how far the vehicle has been driven, in either miles or kilometers. This vehicle has a tamper resistant odometer. If the vehicle needs a new odometer installed, the new one can be set to the mileage total of the old odometer.
Page 197: Passenger Safety Belt Reminder Light
This chime and light are repeated if the driver remains unbuckled and the vehicle is in motion. If the driver safety belt is already buckled, neither the chime nor the light comes on. Passenger Safety Belt Reminder Light Several seconds after the engine is started, a chime sounds for several seconds to remind the front passenger to buckle their safety belt.
Page 198: Airbag Readiness Light
Airbag Readiness Light The system checks the airbag’s electrical system for possible malfunctions. If the light stays on it indicates there is an electrical problem. The system check includes the airbag sensor, the pretensioners, the airbag modules, the wiring and the crash sensing and diagnostic module.
Page 199: Passenger Airbag Status Indicator
Passenger Airbag Status Indicator The vehicle has the passenger sensing system. See Passenger Sensing System on page 2-72 for important safety information. The overhead console has a passenger airbag status indicator. United States When the vehicle is started, the passenger airbag status indicator will light ON and OFF, or the symbol for on and off, for several seconds as a system check.
Page 200: Charging System Light
Charging System Light This light comes on brieﬂy when the ignition key is turned to START, but the engine is not running, as a check to show it is working. If it does not, have the vehicle serviced by your dealer/retailer.
Page 201: Antilock Brake System (Abs) Warning Light
When the ignition is on, the brake system warning light also comes on when the parking brake is set. The light will stay on if the parking brake does not fully release. If it stays on after the parking brake is fully released, it means there is a brake problem.
Page 202: Traction Control System (Tcs) Warning Light
For vehicles with a Driver Information Center (DIC), see DIC Warnings and Messages on page 4-55 for all brake related DIC messages. Traction Control System (TCS) Warning Light For vehicles with a Traction Control System (TCS) and StabiliTrak warning light, this light comes on brieﬂy when the engine is started.
Page 203: Stabilitrak Indicator Light
® StabiliTrak Indicator Light This light comes on brieﬂy while starting the engine. If it does not, have the vehicle serviced by your dealer/retailer. If the system is working normally the indicator light will then go off. This light may come on while the vehicle is ﬁrst driven and the STABILITRAK NOT READY message will appear in the Driver Information Center (DIC).
Page 204: Engine Coolant Temperature Warning Light
Engine Coolant Temperature Warning Light This light comes on brieﬂy while starting the vehicle. If it does not, have the vehicle serviced by the dealer/retailer. If the system is working normally the indicator light goes off. Notice: Driving with the engine coolant temperature warning light on could cause the vehicle to overheat.
Page 205: Tire Pressure Light
Tire Pressure Light For vehicles with a tire pressure monitoring system, this light comes on brieﬂy when the engine is started. It provides information about tire pressures and the Tire Pressure Monitoring System. When the Light is On Steady This indicates that one or more of the tires are signiﬁcantly underinﬂated.
Page 206: Malfunction Indicator Lamp
Malfunction Indicator Lamp Check Engine Light A computer system called OBD II (On-Board Diagnostics-Second Generation) monitors operation of the fuel, ignition, and emission control systems. It ensures that emissions are at acceptable levels for the life of the vehicle, helping to produce a cleaner environment.
Page 207 To prevent more serious damage to the vehicle: • Reduce vehicle speed. • Avoid hard accelerations. • Avoid steep uphill grades. • If towing a trailer, reduce the amount of cargo being hauled as soon as it is possible. If the light continues to ﬂash, when it is safe to do so, stop the vehicle.
Page 208: Oil Pressure Light
Emissions Inspection and Maintenance Programs Some state/provincial and local governments have or might begin programs to inspect the emission control equipment on the vehicle. Failure to pass this inspection could prevent getting a vehicle registration. Here are some things to know to help the vehicle pass an inspection: •...
Page 209: Maintenance Schedule
Notice: Lack of proper engine oil maintenance can damage the engine. The repairs would not be covered by the vehicle warranty. Always follow the maintenance schedule in this manual for changing engine oil. This light comes on brieﬂy while starting the engine. If it does not, have the vehicle serviced by your dealer/retailer.
Page 210: Highbeam On Light
Highbeam On Light This light comes on when the high-beam headlamps are in use. See Headlamp High/Low-Beam Changer on page 4-6 for more information. Fuel Gage United States The fuel gage shows about how much fuel is in the tank. An arrow on the fuel gage indicates the side of the vehicle the fuel door is on.
Page 211: Driver Information Center (Dic)
Driver Information Center (DIC) Your vehicle has a Driver Information Center (DIC). All messages will appear in the DIC display located below the speedometer in the instrument panel cluster. The DIC buttons are located on the instrument panel, to the left of the instrument panel cluster. The DIC comes on when the ignition is on.
Page 212 DIC Buttons The buttons are the trip/fuel, vehicle information, customization, and set/reset buttons. The button functions are detailed in the following pages. (Trip/Fuel): Press this button to display the odometer, trip odometers, fuel range, average economy, instantaneous economy, and average speed. (Vehicle Information): Press this button to display the oil life, units, park assist on vehicles with this feature, side blind zone alert on vehicles with this...
Page 213 The trip odometer has a feature called the retro-active reset. This can be used to set the trip odometer to the number of kilometers (miles) driven since the ignition was last turned on. This can be used if the trip odometer is not reset at the beginning of the trip.
Page 214 Average Economy Press the trip/fuel button until AVG ECONOMY displays. This display shows the approximate average liters per 100 kilometers (L/100 km) or miles per gallon (mpg). This number is calculated based on the number of L/100 km (mpg) recorded since the last time this menu item was reset.
Page 215: Park Assist
When the remaining oil life is low, the CHANGE ENGINE OIL SOON message will appear on the display. See “CHANGE ENGINE OIL SOON” under DIC Warnings and Messages on page 4-55. You should change the oil as soon as possible. See Engine Oil on page 6-17.
Page 216: Side Blind Zone
Side Blind Zone If your vehicle has the Side Blind Zone Alert (SBZA) system, this display allows the system to be turned on or off. Press the vehicle information button until SIDE BLIND ZONE displays. Once in this display, press the set/reset button to select between ON or OFF.
Page 217: Dic Compass
Relearn Remote Key To access this display, the vehicle must be in PARK (P). This display allows you to match Remote Keyless Entry (RKE) transmitters to your vehicle. This procedure will erase all previously learned transmitters. Therefore, they must be relearned as additional transmitters. To match an RKE transmitter to your vehicle: 1.
Page 218: Compass Calibration
To adjust for compass variance, use the following procedure: Compass Variance (Zone) Procedure 1. Do not set the compass zone when the vehicle is moving. Only set it when the vehicle is in P (Park). Press the vehicle information button until PRESS TO CHANGE COMPASS ZONE displays.
Page 219: Dic Warnings And Messages
To calibrate the compass, use the following procedure: Compass Calibration Procedure 1. Before calibrating the compass, check that the compass zone is set to the variance zone in which the vehicle is located. See “Compass Variance (Zone) Procedure” earlier in this section. Do not operate any switches such as window, sunroof, climate controls, seats, etc.
Page 220: Battery Saver Active
AUTOMATIC LIGHT CONTROL ON This message displays when the automatic headlamps are turned on. See Exterior Lamps on page 4-11 for more information. BATTERY SAVER ACTIVE This message displays when the system detects that the battery voltage is dropping beyond a reasonable level.
Page 221: Engine Overheated Stop Engine
ENGINE OVERHEATED IDLE ENGINE Notice: If you drive your vehicle while the engine is overheating, severe engine damage may occur. If an overheat warning appears on the instrument panel cluster and/or DIC, stop the vehicle as soon as possible. Do not increase the engine speed above normal idling speed.
Page 222: Oil Pressure Low Stop Engine
HOOD OPEN If your vehicle has the remote start feature, this message displays when the hood is not closed properly. Make sure that the hood is closed completely. See Hood Release on page 6-13. ICE POSSIBLE DRIVE WITH CARE This message displays when the outside air temperature is cold enough to create icy road conditions.
Page 223 PARK ASSIST OFF If your vehicle has this feature, after the vehicle has been started, this message will reminder the driver that the Ultrasonic Rear Parking Assist (URPA) system has been turned off. Press the set/reset button to acknowledge this message and clear it from the DIC display.
Page 224: Service Air Bag
SERVICE AIR BAG This message displays when there is a problem with the airbag system. Have your vehicle serviced by your dealer/retailer immediately. See Airbag Readiness Light on page 4-34 for more information. SERVICE BATTERY CHARGING SYSTEM This message displays when there is a problem with the generator and battery charging systems.
Page 225: Service Suspension System
SERVICE PARK ASSIST If your vehicle has this feature, this message displays if there is a problem with the Ultrasonic Rear Parking Assist (URPA) system. Do not use this system to help you park. See Ultrasonic Rear Parking Assist (URPA) on page 3-36 for more information.
Page 226: Service Theft System
SERVICE THEFT SYSTEM This message displays when there is a problem with the theft-deterrent system programmed in the key. A fault has been detected in the system which means that the system is disabled and it is not protecting the vehicle. The vehicle usually restarts;...
Page 227 SIDE BLIND ZONE ALERT SYSTEM OFF If your vehicle has the Side Blind Zone Alert (SBZA) system, this message displays when the SBZA system has been turned off. See Side Blind Zone Alert (SBZA) on page 3-38 and DIC Operation and Displays on page 4-47 for more information.
Page 228: Theft Attempted
STARTING DISABLED SERVICE THROTTLE This message displays if the starting of the engine is disabled due to the electronic throttle control system. Have your vehicle serviced by your dealer/retailer immediately. This message only appears while the ignition is in ON/RUN, and will not disappear until the problem is resolved.
Page 229: Trunk Open
TRACTION CONTROL OFF This message displays when the Traction Control System (TCS) is turned off. Adjust your driving accordingly. See Traction Control System (TCS) on page 5-6 for more information. TRACTION CONTROL ON This message displays when the Traction Control System (TCS) is turned on.
Page 230: Dic Vehicle Customization
DIC Vehicle Customization Your vehicle has customization capabilities that allow you to program certain features to one preferred setting. Customization features can only be programmed to one setting on the vehicle and cannot be programmed to a preferred setting for two different drivers. All of the customization options may not be available on your vehicle.
Page 231: Auto Door Unlock
ESPANOL: All messages will appear in Spanish. NO CHANGE: No change will be made to this feature. The current setting will remain. To select a setting, press the set/reset button while the desired setting is displayed on the DIC. AUTO DOOR LOCK This feature allows you to select when the vehicle’s doors will automatically lock.
Page 232: Remote Door Lock
REMOTE DOOR LOCK This feature allows you to select the type of feedback you will receive when locking the vehicle with the Remote Keyless Entry (RKE) transmitter. You will not receive feedback when locking the vehicle with the RKE transmitter if the doors are open. See Remote Keyless Entry (RKE) System Operation on page 3-5 for more information.
Page 233: Exit Lighting
NO CHANGE: No change will be made to this feature. The current setting will remain. To select a setting, press the set/reset button while the desired setting is displayed on the DIC. DELAY DOOR LOCK This feature allows you to select whether or not the locking of the vehicle’s doors will be delayed.
Page 234: Approach Lighting
NO CHANGE: No change will be made to this feature. The current setting will remain. To select a setting, press the set/reset button while the desired setting is displayed on the DIC. APPROACH LIGHTING This feature allows you to select whether or not to have the exterior lights turn on brieﬂy during low light periods after unlocking the vehicle using the Remote Keyless Entry (RKE) transmitter.
Page 235 PARK TILT MIRRORS If your vehicle has this feature, it allows you to select whether or not the outside mirror(s) will automatically tilt down when the vehicle is shifted into R (Reverse). See Park Tilt Mirrors on page 3-34 for more information. Press the customization button until PARK TILT MIRRORS appears on the DIC display.
Page 236 NO CHANGE: No change will be made to this feature. The current setting will remain. To select a setting, press the set/reset button while the desired setting is displayed on the DIC. EASY EXIT SETUP If your vehicle has this feature, it allows you to select which areas will recall with the automatic easy exit seat feature.
Page 237: Remote Start
MEMORY SEAT RECALL If your vehicle has this feature, it allows you to select your preference for the remote memory seat recall feature. See Memory Seat and Mirrors on page 2-8 for more information. Press the customization button until MEMORY SEAT RECALL appears on the DIC display.
Page 238: Audio System(S)
FACTORY SETTINGS This feature allows you to set all of the customization features back to their factory default settings. Press the customization button until FACTORY SETTINGS appears on the DIC display. Press the set/reset button once to access the settings for this feature.
Page 239: Setting The Clock
This system provides access to many audio and non audio listings. To minimize taking your eyes off the road while driving, do the following while the vehicle is parked: • Become familiar with the operation and controls of the audio system. •...
Page 240 The date does not automatically display. To see the date press while the radio is on. The date with display times out after a few seconds and goes back to the normal radio and time display. To change the time default setting from 12 hour to 24 hour or to change the date default setting from month/day/year to day/month/year: 1.
Page 241: Radio(S)
The date does not automatically display. To see the date press MENU and then softkey below the radio is on. The date with display times out after a few seconds and goes back to the normal radio and time display. To change the time default setting from 12 hour to 24 hour or to change the date default setting from month/day/year to day/month/year:...
Page 242: Playing The Radio
Radio Data System (RDS) The radio may have the Radio Data System (RDS) feature. RDS is available for use only on FM stations that broadcast RDS information. This system relies upon receiving speciﬁc information from these stations and only works when the information is available. While the radio is tuned to an FM-RDS station, the station name or call letters display.
Page 243: Finding A Station
Finding a Station BAND: Press to switch between FM, AM, or XM™ (if equipped). The selection displays. (Tune): Turn to select radio stations. © ¨ SEEK : Press to go to the previous or the next station and stay there. To scan stations, press and hold either arrow for a few seconds until the radio beeps once.
Page 244 The number of favorites pages can be setup using the MENU button. To setup the number of favorites pages: 1. Press the MENU button to display the radio setup menu. 2. Press the pushbutton located below the FAV 1-6 tab. 3.
Page 245 The radio may also be capable of adjusting all tone and speaker controls to the middle position by pressing knob for more than two seconds until the radio beeps once. EQ (Equalization): Press to select preset equalization settings. To return to the manual mode, press until Manual displays or start to manually adjust the bass and depending on the radio, midrange, or treble by pressing knob.
Page 246: Radio Messages
3. Turn the knob, press the buttons below the right or left arrows displayed, or press the SEEK arrows to go to the previous or to the next XM station within the selected category. 4. To exit the category search mode, press the FAV button or BAND button to display favorites again.
Page 247: Playing A Cd
Playing a CD Insert a CD partway into the slot, label side up. The player pulls it in and the CD should begin playing. If the ignition or radio is turned off while a CD in the player it stays in the player. When the ignition or radio is turned on, the CD starts to play where it stopped, if it was the last selected audio source.
Page 248 (Tune): Turn to select tracks on the CD currently playing. © ¨ SEEK : Press the left arrow to go to the start of the current track, if more than ten seconds have played. Press the right arrow to go to the next track. If either arrow is held, or pressed multiple times, the player continues moving backward or forward through the tracks on the CD.
Page 249 CD/AUX (CD/Auxiliary): Press to play a CD while listening to the radio. The CD icon and a message showing disc and/or track number displays when a CD is in the player. Press this button again and the system automatically searches for an auxiliary input device, such as a portable audio player.
Page 250: Using The Auxiliary Input Jack
CD Messages CHECK DISC: If an error message displays and/or the CD comes out, it could be for one of the following reasons: • It is very hot. When the temperature returns to normal, the CD should play. • The road is very rough. When the road becomes smoother, the CD should play.
Page 251: Using An Mp3
BAND: Press to listen to the radio while a portable audio device is playing. The portable audio device continues playing until it is stopped or turned off. CD/AUX (CD/Auxiliary): Press to play a CD while a portable audio device is playing. Press again and the system begins playing audio from the connected portable audio player.
Page 252 • Minimize the length of the ﬁle, folder or playlist names. Long ﬁle, folder, or playlist names, or a combination of a large number of ﬁles and folders, or playlists can cause the player to be unable to play up to the maximum number of ﬁles, folders, playlists, or sessions.
Page 253 When the CD contains only playlists and compressed audio ﬁles, but no folders, all ﬁles are located under the root folder. The folder down and the folder up buttons searches playlists (Px) ﬁrst and then goes to the root folder. When the radio displays the name of the folder the radio displays ROOT.
Page 254 Playing an MP3 Insert a CD partway into the slot (Single CD Player), or press the load button and wait for the message to insert disc (Six-Disc CD Player), label side up. The player pulls it in, and the CD should begin playing. (Tune): Turn this knob to select MP3 ﬁles on the CD currently playing.
Page 255: Xm Radio Messages
(Music Navigator): If the radio has the MP3 feature, it has the music navigator feature to play MP3 ﬁles on the CD-R or CD-RW in order by artist or album. Press the pushbutton located below the music navigator tab. The player scans the disc to sort the ﬁles by artist and album ID3 tag information.
Page 256 No XM Signal: The system is functioning correctly, but the vehicle is in a location that is blocking the XM™ signal. When the vehicle is moved into an open area, the signal should return. Loading XM: The audio system is acquiring and processing audio and text data.
Page 257: Voice Recognition
Navigation/Radio System For vehicles with a navigation radio system, see the separate Navigation System manual. ® Bluetooth Vehicles with a Bluetooth system can use a Bluetooth capable cell phone with a Hands Free Proﬁle to make and receive phone calls. The system can be used while the key is in ON/RUN or ACC/ACCESSORY position.
Page 258: Bluetooth Controls
Bluetooth Controls Use the buttons located on the steering wheel to operate the in-vehicle Bluetooth system. See Audio Steering Wheel Controls on page 4-105 for more information. (Push To Talk): Press to answer incoming calls, to conﬁrm system information, and to start speech recognition.
Page 259: Pairing A Phone
Pairing a Phone 1. Press and hold for two seconds. The system responds with “Ready” followed by a tone. 2. Say “Bluetooth”. The system responds with “Bluetooth ready” followed by a tone. 3. Say “Pair”. The system responds with instructions and a four digit PIN number.
Page 260: Storing Name Tags
Linking to a Different Phone 1. Press and hold for two seconds. The system responds with “Ready” followed by a tone. 2. Say “Bluetooth”. The system responds with “Bluetooth ready” followed by a tone. 3. Say “Change phone”. The system responds with “Please wait while I search for other phones”.
Page 261 5. Say a name tag for the phone number. The name tag is recorded and the system responds with “About to store <name tag>. Does that sound OK?”. • If the name tag does not sound correct, say “No” and repeat Step 5. •...
Page 262: Deleting Name Tags
Using the Directory Command The directory command lists all of the name tags stored by the system. To use the directory command: 1. Press and hold for two seconds. The system responds with “Ready” followed by a tone. 2. Say “Directory”. The system responds with “Directory”...
Page 263: Making A Call
Using the Delete All Name Tags Command The delete all name tags command deletes all stored phone book name tags and route name tags for OnStar (if present). To use the delete all name tags command: 1. Press and hold for two seconds.
Page 264: Using The Call Command
4. Continue entering digits until the number to be dialed is complete. After the whole number has been entered, say “Dial”. The system responds with “OK, Dialing” and dials the number. • If an unwanted number is recognized by the system, say “Clear”...
Page 265: Receiving A Call
Receiving a Call When an incoming call is received, the audio system mutes and a ring tone is heard in the vehicle. • Press and begin speaking to answer the call. • Press to ignore a call. Call Waiting Call waiting must be supported on the Bluetooth phone and enabled by the wireless service carrier to work.
Page 266: Transferring A Call
Muting a Call During a call, all sounds from inside the vehicle can be muted so that the person on the other end of the call cannot hear them. To Mute a call 1. Press . The system responds with “Ready” followed by a tone.
Page 267 Voice Pass-Thru Voice Pass-Thru allows access to the voice recognition commands on the cell phone. See the cell phone manufacturers user guide to see if the cell phone supports this feature. This feature can be used to verbally access contacts stored in the cell phone. 1.
Page 268: Other Information
3. Say the name tag to send. • If the system clearly recognizes the name tag it responds with “OK, Sending <name tag>” and the dial tones are sent and the call continues. • If the system is not sure it recognized the name tag properly, it responds “Dial <name tag>, Please say yes or no?”...
Page 269: Audio Steering Wheel Controls
Audio Steering Wheel Controls Vehicles with audio steering wheel controls could differ depending on the vehicle’s options. Some audio controls can be adjusted at the steering wheel. (Next): Press to go to the next radio station stored as a favorite, or the next track if a CD/DVD is playing. (Previous/End): Press to go to the previous radio station stored as a favorite, the next track if a CD/DVD is playing, to reject an incoming call, or end...
Page 270: Radio Reception
Radio Reception Frequency interference and static can occur during normal radio reception if items such as cell phone chargers, vehicle convenience accessories, and external electronic devices are plugged into the accessory power outlet. If there is interference or static, unplug the item from the accessory power outlet.
Page 271: Backglass Antenna
Cellular Phone Usage Cellular phone usage may cause interference with the vehicle’s radio. This interference may occur when making or receiving phone calls, charging the phone’s battery, or simply having the phone on. This interference causes an increased level of static while listening to the radio.
Page 272 ✍ NOTES 4-108...
Page 273: Driving Your Vehicle
Section 5 Your Driving, the Road, and the Vehicle ...5-2 Defensive Driving ...5-2 Drunk Driving ...5-2 Control of a Vehicle ...5-3 Braking ...5-3 Antilock Brake System (ABS) ...5-4 Braking in Emergencies ...5-5 ® StabiliTrak System ...5-6 Traction Control System (TCS) ...5-6 Magnetic Ride Control™...
Page 274: Your Driving, The Road, And The Vehicle
Your Driving, the Road, and the Vehicle Defensive Driving Defensive driving means “always expect the unexpected.” The ﬁrst step in driving defensively is to wear your safety belt — See Safety Belts: They Are for Everyone on page 2-14. WARNING: Assume that other road users (pedestrians, bicyclists, and other drivers) are going to be careless and make mistakes.
Page 275: Control Of A Vehicle
Police records show that almost 40 percent of all motor vehicle-related deaths involve alcohol. In most cases, these deaths are the result of someone who was drinking and driving. In recent years, more than 17,000 annual motor vehicle-related deaths have been associated with the use of alcohol, with about 250,000 people injured.
Page 276: Antilock Brake System (Abs)
And, of course, actual stopping distances vary greatly with the surface of the road, whether it is pavement or gravel; the condition of the road, whether it is wet, dry, or icy; tire tread; the condition of the brakes; the weight of the vehicle; and the amount of brake force applied.
Page 277: Brake Assist
ABS can change the brake pressure to each wheel, as required, faster than any driver could. This can help the driver steer around the obstacle while braking hard. As the brakes are applied, the computer keeps receiving updates on wheel speed and controls braking pressure accordingly.
Page 278: Stabilitrak System
® StabiliTrak System The vehicle may have the StabiliTrak system which combines antilock brake, traction and stability control systems and helps the driver maintain directional control of the vehicle in most driving conditions. This is accomplished by selectively applying any one of the vehicle’s brakes and reducing engine power.
Page 279 The TCS and StabiliTrak light will ﬂash when the system is limiting wheel spin. The system may be heard or felt while it is working, but this is normal. See Traction Control System (TCS) Warning Light on page 4-38 for more information. If the vehicle is in cruise control when TCS begins to limit wheel spin, the cruise control will automatically disengage.
Page 280: Power Steering
It is recommended to leave the system on for normal driving conditions, but it may be necessary to turn the system off if the vehicle is stuck in sand, mud, ice or snow, and you want to “rock” the vehicle to attempt to free it.
Page 281: Steering In Emergencies
Steering in Emergencies There are times when steering can be more effective than braking. For example, you come over a hill and ﬁnd a truck stopped in your lane, or a car suddenly pulls out from nowhere, or a child darts out from between parked cars and stops right in front of you.
Page 282: Off-Road Recovery
Off-Road Recovery The vehicle’s right wheels can drop off the edge of a road onto the shoulder while driving. If the level of the shoulder is only slightly below the pavement, recovery should be fairly easy. Ease off the accelerator and then, if there is nothing in the way, steer so that the vehicle straddles the edge of the pavement.
Page 283 Skidding In a skid, a driver can lose control of the vehicle. Defensive drivers avoid most skids by taking reasonable care suited to existing conditions, and by not overdriving those conditions. But skids are always possible. The three types of skids correspond to the vehicle’s three control systems.
Page 284: Driving At Night
Driving at Night Night driving is more dangerous than day driving because some drivers are likely to be impaired — by alcohol or drugs, with night vision problems, or by fatigue. Night driving tips include: • Drive defensively. • Do not drink and drive. •...
Page 285: Driving In Rain And On Wet Roads
Driving in Rain and on Wet Roads Rain and wet roads can reduce vehicle traction and affect your ability to stop and accelerate. Always drive slower in these types of driving conditions and avoid driving through large puddles and deep-standing or ﬂowing water. WARNING: Wet brakes can cause crashes.
Page 286: Before Leaving On A Long Trip
Before Leaving on a Long Trip To prepare your vehicle for a long trip, consider having it serviced by your dealer/retailer before departing. Things to check on your own include: • Windshield Washer Fluid: Reservoir full? Windows clean — inside and outside? •...
Page 287: Hill And Mountain Roads
Hill and Mountain Roads Driving on steep hills or through mountains is different than driving on ﬂat or rolling terrain. Tips for driving in these conditions include: • Keep the vehicle serviced and in good shape. • Check all ﬂuid levels and brakes, tires, cooling system, and transmission.
Page 288: Winter Driving
Winter Driving Driving on Snow or Ice Drive carefully when there is snow or ice between the tires and the road, creating less traction or grip. Wet ice can occur at about 32°F (0°C) when freezing rain begins to fall, resulting in even less traction. Avoid driving on wet ice or in freezing rain until roads can be treated with salt or sand.
Page 289 WARNING: Snow can trap engine exhaust under the vehicle. This may cause exhaust gases to get inside. Engine exhaust contains carbon monoxide (CO) which cannot be seen or smelled. It can cause unconsciousness and even death. If the vehicle is stuck in the snow: •...
Page 290: If Your Vehicle Is Stuck In Sand, Mud, Ice, Or Snow
If Your Vehicle is Stuck in Sand, Mud, Ice, or Snow Slowly and cautiously spin the wheels to free the vehicle when stuck in sand, mud, ice, or snow. See Rocking Your Vehicle to Get It Out on page 5-19. If the vehicle has a traction system, it can often help to free a stuck vehicle.
Page 291: Rocking Your Vehicle To Get It Out
Rocking Your Vehicle to Get It Out Turn the steering wheel left and right to clear the area around the front wheels. Turn off any traction or stability system. Shift back and forth between R (Reverse) and a forward gear, spinning the wheels as little as possible.
Page 292 Tire and Loading Information Label Label Example A vehicle speciﬁc Tire and Loading Information label is attached to the vehicle’s center pillar (B-pillar). With the driver door open, you will ﬁnd the label attached below the door lock post (striker). 5-20 The Tire and Loading Information label lists the number of occupant seating positions (A), and the...
Page 293 Steps for Determining Correct Load Limit Locate the statement “The combined weight of occupants and cargo should never exceed XXX kg or XXX lbs” on your vehicle’s placard. Determine the combined weight of the driver and passengers that will be riding in your vehicle.
Page 294 Example 1 Item Description Maximum Vehicle Capacity Weight for Example 1 = Subtract Occupant Weight 150 lbs (68 kg) × 2 = Available Occupant and Cargo Weight = 5-22 Total Item 1,000 lbs (453 kg) 300 lbs (136 kg) 700 lbs (317 kg) Example 2 Description Maximum Vehicle...
Page 295 Example 3 Item Description Maximum Vehicle Capacity Weight for Example 3 = Subtract Occupant Weight 200 lbs (91 kg) × 5 = Available Cargo Weight = Refer to your vehicle’s Tire and Loading Information label for speciﬁc information about your vehicle’s maximum vehicle capacity weight and seating positions.
Page 296 Certiﬁcation Label A vehicle speciﬁc Certiﬁcation label is found on the rear edge of the driver door. The label shows the gross weight capacity of your vehicle, called the Gross Vehicle Weight Rating (GVWR). The GVWR includes the weight of the vehicle, all occupants, fuel, and cargo.
Page 297: Towing
WARNING: Things you put inside the vehicle can strike and injure people in a sudden stop or turn, or in a crash. • Put things in the cargo area of the vehicle. In the cargo area, put them as far forward as you can. Try to spread the weight evenly.
Page 298: Recreational Vehicle Towing
Recreational Vehicle Towing Recreational vehicle towing means towing the vehicle behind another vehicle – such as behind a motorhome. The two most common types of recreational vehicle towing are known as dinghy towing and dolly towing. Dinghy towing is towing the vehicle with all four wheels on the ground.
Page 299: Dolly Towing
Dolly Towing The vehicle can be towed using a dolly. To tow the vehicle using a dolly, follow these steps: 1. Put the front wheels on a dolly. 2. Put the gear shift lever in P (Park). 3. Set the parking brake. 4.
Page 300: Towing A Trailer
Towing a Trailer WARNING: The driver can lose control when pulling a trailer if the correct equipment is not used or the vehicle is not driven properly. For example, if the trailer is too heavy, the brakes may not work well — or even at all.
Page 301: Pulling A Trailer
Pulling A Trailer Here are some important points: • There are many different laws, including speed limit restrictions, having to do with trailering. Make sure the rig will be legal, not only where you live but also where you will be driving. A good source for this information can be state or provincial police.
Page 302: Weight Of The Trailer Tongue
Weight of the Trailer Tongue The tongue load (A) of any trailer is an important weight to measure because it affects the total gross weight of the vehicle. The Gross Vehicle Weight (GVW) includes the curb weight of the vehicle, any cargo carried in it, and the people who will be riding in the vehicle.
Page 303: Driving With A Trailer
Total Weight on the Vehicle’s Tires Be sure the vehicle’s tires are inﬂated to the upper limit for cold tires. These numbers can be found on the Certiﬁcation/Tire label. See Loading the Vehicle on page 5-19. Make sure not to go over the GVW limit for the vehicle, including the weight of the trailer tongue.
Page 304: Making Turns
Before starting, check all trailer hitch parts and attachments, safety chains, electrical connectors, lamps, tires and mirror adjustments. If the trailer has electric brakes, start the vehicle and trailer moving and then apply the trailer brake controller by hand to be sure the brakes are working.
Page 305: Parking On Hills
When towing a trailer, the arrows on the instrument panel ﬂash for turns even if the bulbs on the trailer are burned out. For this reason you may think other drivers are seeing the signal when they are not. It is important to check occasionally to be sure the trailer bulbs are still working.
Page 306: Engine Cooling When Trailer Towing
Leaving After Parking on a Hill 1. Apply and hold the brake pedal while you: • start the engine, • shift into a gear, and • release the parking brake. 2. Let up on the brake pedal. 3. Drive slowly until the trailer is clear of the chocks. 4.
Page 307: Service And Appearance Care
Section 6 Service ...6-3 Accessories and Modiﬁcations ...6-3 California Proposition 65 Warning ...6-4 California Perchlorate Materials Requirements ...6-4 Doing Your Own Service Work ...6-4 Adding Equipment to the Outside of the Vehicle ...6-5 Fuel ...6-5 Gasoline Octane ...6-6 Gasoline Speciﬁcations ...6-6 California Fuel ...6-6 Additives ...6-7 Fuel E85 (85% Ethanol) ...6-8...
Page 308 Section 6 Buying New Tires ...6-74 Different Size Tires and Wheels ...6-76 Uniform Tire Quality Grading ...6-76 Wheel Alignment and Tire Balance ...6-78 Wheel Replacement ...6-78 Tire Chains ...6-80 If a Tire Goes Flat ...6-81 Tire Sealant and Compressor Kit ...6-82 Tire Sealant and Compressor Kit Storage ...6-89 Changing a Flat Tire ...6-90 Removing the Spare Tire and Tools ...6-91...
Page 309: Service
Service For service and parts needs, visit your dealer/retailer. You will receive genuine GM parts and GM-trained and supported service people. Genuine GM parts have one of these marks: Accessories and Modiﬁcations When non-dealer/non-retailer accessories are added to the vehicle, they can affect vehicle performance and safety, including such things as airbags, braking, stability, ride and handling, emissions systems, aerodynamics, durability, and electronic systems like antilock brakes,...
Page 310: California Proposition 65 Warning
California Proposition 65 Warning Most motor vehicles, including this one, contain and/or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Engine exhaust, many parts and systems, many ﬂuids, and some component wear by-products contain and/or emit these chemicals.
Page 311: Adding Equipment To The Outside Of The Vehicle
Keep a record with all parts receipts and list the mileage and the date of any service work performed. See Maintenance Record on page 7-13. Adding Equipment to the Outside of the Vehicle Things added to the outside of the vehicle can affect the airﬂow around it.
Page 312: Gasoline Octane
Gasoline Octane If the vehicle has the 3.9L V6 engine (VIN Code 1) or the 3.9L V6 engine (VIN Code M), use regular unleaded gasoline with a posted octane rating of 87 or higher. If the octane rating is less than 87, an audible knocking noise, commonly referred to as spark knock, might be heard when driving.
Page 313: Additives
Additives To provide cleaner air, all gasolines in the United States are now required to contain additives that help prevent engine and fuel system deposits from forming, allowing the emission control system to work properly. In most cases, nothing should have to be added to the fuel. However, some gasolines contain only the minimum amount of additive required to meet U.S.
Page 314: Fuel E85 (85% Ethanol)
Fuel E85 (85% Ethanol) The 8th digit of the Vehicle Identiﬁcation Number (VIN) shows the code letter or number that identiﬁes the vehicle’s engine. The VIN is at the top left of the instrument panel. See Vehicle Identiﬁcation Number (VIN) on page 6-108. If the vehicle has the 3.9L V6 engine (VIN Code M), you can use either unleaded gasoline or ethanol fuel containing up to 85% ethanol (E85).
Page 315: Fuels In Foreign Countries
To ensure quick starts in the wintertime, the E85 fuel must be formulated properly for your climate according to ASTM speciﬁcation D 5798. If you have trouble starting on E85, it could be because the E85 fuel is not properly formulated for your climate.
Page 316: Filling The Tank
Filling the Tank WARNING: Fuel vapor burns violently and a fuel ﬁre can cause bad injuries. To help avoid injuries to you and others, read and follow all the instructions on the fuel pump island. Turn off the engine when refueling.
Page 317 WARNING: Fuel can spray out on you if you open the fuel cap too quickly. If you spill fuel and then something ignites it, you could be badly burned. This spray can happen if the tank is nearly full, and is more likely in hot weather.
Page 318: Filling A Portable Fuel Container
Filling a Portable Fuel Container WARNING: Never ﬁll a portable fuel container while it is in the vehicle. Static electricity discharge from the container can ignite the fuel vapor. You can be badly burned and the vehicle damaged if this occurs.
Page 319: Hood Release
Hood Release To open the hood: 1. Pull the hood release handle inside the vehicle. It is located next to the parking brake pedal near the ﬂoor. 2. Then go to the front of the vehicle and pull the secondary hood release to the right. The hood latch is located under the hood, near the center, at the front edge of the grille.
Page 320: Engine Compartment Overview
Engine Compartment Overview When you open the hood on the 3.9L V6 engine, here is what you will see: 6-14...
Page 321 A. Underhood Fuse Block on page 6-109. B. Remote Positive (+) Battery Terminal. See Jump Starting on page 6-46. C. Windshield Washer Fluid Reservoir. See “Adding Washer Fluid” under Windshield Washer Fluid on page 6-39. D. Engine Coolant Recovery Tank. See Cooling System on page 6-26.
Page 322 When you open the hood on the 4.6L V8 engine, here is what you will see: 6-16...
Page 323: Engine Oil
A. Underhood Fuse Block on page 6-109. B. Remote Positive (+) Terminal. See Jump Starting on page 6-46. C. Windshield Washer Fluid Reservoir. See “Adding Washer Fluid” under Windshield Washer Fluid on page 6-39. D. Engine Coolant Surge Tank and Pressure Cap. See Cooling System on page 6-26.
Page 324: When To Add Engine Oil
When to Add Engine Oil 3.9L V6 Engine 4.6L V8 Engine If the oil is below the cross-hatched area at the tip of the dipstick, add at least one quart/liter of the recommended oil. This section explains what kind of oil to use. For engine oil crankcase capacity, see Capacities and Speciﬁcations on page 6-117.
Page 325: Cold Temperature Operation
What Kind of Engine Oil to Use Look for three things: • GM6094M Use only an oil that meets GM Standard GM6094M. • SAE 5W-30 SAE 5W-30 is best for the vehicle. These numbers on an oil container show its viscosity, or thickness. Do not use other viscosity oils such as SAE 20W-50.
Page 326: Engine Oil Life System
Engine Oil Additives / Engine Oil Flushes Do not add anything to the oil. The recommended oils with the starburst symbol that meet GM Standard GM6094M are all that is needed for good performance and engine protection. Engine oil system ﬂushes are not recommended and could cause engine damage not covered by the vehicle warranty.
Page 327: How To Reset The Engine Oil Life System
How to Reset the Engine Oil Life System The Engine Oil Life System calculates when to change the engine oil and ﬁlter based on vehicle use. Whenever the oil is changed, reset the system so it can calculate when the next oil change is required. If a situation occurs where the oil is changed prior to a CHANGE ENGINE OIL SOON message being turned on, reset the system.
Page 328: Engine Air Cleaner/Filter
Engine Air Cleaner/Filter See Engine Compartment Overview on page 6-14 for the location of the engine air cleaner/ﬁlter. When to Inspect the Engine Air Cleaner/Filter Inspect the air cleaner/ﬁlter at the Maintenance II intervals and replace it at the ﬁrst oil change after each 50,000 mile (80 000 km) interval.
Page 329: Automatic Transmission Fluid
To reinstall the cover: 1. Align the two hinges located on the inboard side of the cover. 2. Push the cover slightly down and towards the engine to engage the tabs in the hinges and align the two screws. 3. Tighten the two screws on the top of the engine air cleaner/ﬁlter cover.
Page 330: Checking The Fluid Level
How to Check Automatic Transmission Fluid (3.9L Engine) Because this operation can be a little difficult, you may choose to have this done at the dealer/retailer service department. If you do it yourself, be sure to follow all the instructions here, or you could get a false reading on the dipstick.
Page 331: How To Add Automatic Transmission Fluid
Then, without shutting off the engine, follow these steps: 1. For the 3.9L V6 engine, locate the transmission ﬂuid dipstick top which is a round loop with this symbol. See Engine Compartment Overview on page 6-14 for more information on location. 2.
Page 332: Cooling System
If the ﬂuid level is low, add only enough of the proper ﬂuid to bring the level into the cross-hatched area on the dipstick. 1. Pull out the dipstick. 2. Using a long-neck funnel, add enough ﬂuid at the dipstick hole to bring it to the proper level. It does not take much ﬂuid, generally less than one pint (0.5 L).
Page 333 4.6L Engine A. Coolant Surge Tank with Pressure Cap B. Electric Engine Cooling Fans WARNING: An electric engine cooling fan under the hood can start up even when the engine is not running and can cause injury. Keep hands, clothing, and tools away from any underhood electric fan.
Page 334: Engine Coolant (4.6L Engine)
Engine Coolant (4.6L Engine) The cooling system in the vehicle is ﬁlled with ® DEX-COOL engine coolant. This coolant is designed to remain in the vehicle for ﬁve years or 150,000 miles (240 000 km), whichever occurs ﬁrst. The following explains the cooling system and how to check and add coolant when it is low.
Page 335: Checking Coolant
Notice: If an improper coolant mixture is used, the engine could overheat and be badly damaged. The repair cost would not be covered by the vehicle warranty. Too much water in the mixture can freeze and crack the engine, radiator, heater core, and other parts.
Page 336 If no coolant is visible in the surge tank, add coolant as follows: How to Add Coolant to the Surge Tank WARNING: You can be burned if you spill coolant on hot engine parts. Coolant contains ethylene glycol and it will burn if the engine parts are hot enough. Do not spill coolant on a hot engine.
Page 337 You can remove the coolant surge tank pressure cap when the cooling system, including the coolant surge tank pressure cap and upper radiator hose, is no longer hot. 1. Turn the pressure cap slowly counterclockwise. If you hear a hiss, wait for that to stop. A hiss means there is still some pressure left.
Page 338: Engine Coolant (3.9L Engine)
Engine Coolant (3.9L Engine) The cooling system in the vehicle is ﬁlled with ® DEX-COOL engine coolant. This coolant is designed to remain in the vehicle for ﬁve years or 150,000 miles (240 000 km), whichever occurs ﬁrst. The following explains the cooling system and how to check and add coolant when it is low.
Page 339: How To Add Coolant To The Recovery Tank
Notice: If an improper coolant mixture is used, the engine could overheat and be badly damaged. The repair cost would not be covered by the vehicle warranty. Too much water in the mixture can freeze and crack the engine, radiator, heater core, and other parts.
Page 340: How To Add Coolant To The Radiator
How to Add Coolant to the Radiator WARNING: An electric engine cooling fan under the hood can start up even when the engine is not running and can cause injury. Keep hands, clothing, and tools away from any underhood electric fan. WARNING: Steam and scalding liquids from a hot cooling system can blow out and burn you badly.
Page 341: Engine Overheating
If the coolant in the recovery tank is constantly low, you should have a dealer/retailer service department inspect the vehicle for leaks. Notice: If the pressure cap is not tightly installed, coolant loss and possible engine damage may occur. Be sure the cap is properly and tightly secured.
Page 342: If Steam Is Coming From The Engine Compartment
If Steam Is Coming From The Engine Compartment WARNING: Steam from an overheated engine can burn you badly, even if you just open the hood. Stay away from the engine if you see or hear steam coming from it. Turn it off and get everyone away from the vehicle until it cools down.
Page 343: Overheated Engine Protection Operating Mode
If the temperature overheat gage is no longer in the overheat zone or an overheat warning no longer displays, the vehicle can be driven. Continue to drive the vehicle slow for about 10 minutes. Keep a safe vehicle distance from the car in front of you. If the warning does not come back on, continue to drive normally.
Page 344: Power Steering Fluid
Power Steering Fluid See Engine Compartment Overview on page 6-14 for information on the location of the power steering ﬂuid reservoir. When to Check Power Steering Fluid It is not necessary to regularly check power steering ﬂuid unless you suspect there is a leak in the system or you hear an unusual noise.
Page 345: Windshield Washer Fluid
Windshield Washer Fluid What to Use When the vehicle needs windshield washer ﬂuid, be sure to read the manufacturer’s instructions before use. If the vehicle will be operating in an area where the temperature may fall below freezing, use a ﬂuid that has sufficient protection against freezing.
Page 346: Brakes
Brakes Brake Fluid The brake master cylinder reservoir is ﬁlled with DOT 3 brake ﬂuid. See Engine Compartment Overview on page 6-14 for the location of the reservoir. There are only two reasons why the brake ﬂuid level in the reservoir might go down: •...
Page 347 What to Add Use only new DOT 3 brake ﬂuid from a sealed container. See Recommended Fluids and Lubricants on page 7-10. Always clean the brake ﬂuid reservoir cap and the area around the cap before removing it. This helps keep dirt from entering the reservoir.
Page 348: Brake Wear
Brake Wear This vehicle has disc brakes. Disc brake pads have built-in wear indicators that make a high-pitched warning sound when the brake pads are worn and new pads are needed. The sound can come and go or be heard all the time the vehicle is moving, except when applying the brake pedal ﬁrmly.
Page 349: Brake Adjustment
Brake Pedal Travel See your dealer/retailer if the brake pedal does not return to normal height, or if there is a rapid increase in pedal travel. This could be a sign that brake service might be required. Brake Adjustment Every time the brakes are applied, with or without the vehicle moving, the brakes adjust for wear.
Page 350: Battery
Battery Refer to the replacement number on the original battery label when a new battery is needed. DANGER: Battery posts, terminals, and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and reproductive harm. Wash hands after handling.
Page 351: Vehicle Storage
To be sure the vent hose (A) is properly attached, the vent hose connectors (B) must be securely reattached to the vent outlets (C) on each side of the battery and the vent assembly grommet (D) must be secured to the ﬂoor pan (E).
Page 352: Jump Starting
Jump Starting If the vehicle’s battery has run down, you may want to use another vehicle and some jumper cables to start your vehicle. Be sure to use the following steps to do it safely. WARNING: Batteries can hurt you. They can be dangerous because: •...
Page 353 Notice: If you leave the radio or other accessories on during the jump starting procedure, they could be damaged. The repairs would not be covered by the warranty. Always turn off the radio and other accessories when jump starting the vehicle. 3.
Page 354 WARNING: Using a match near a battery can cause battery gas to explode. People have been hurt doing this, and some have been blinded. Use a ﬂashlight if you need more light. Be sure the battery has enough water. You do not need to add water to the battery installed in your new vehicle.
Page 355 6. Connect the red positive (+) cable to the positive (+) terminal of the dead battery. Use a remote positive (+) terminal if the vehicle has one. 7. Do not let the other end touch metal. Connect it to the positive (+) terminal of the good battery. Use a remote positive (+) terminal if the vehicle has one.
Page 356 Notice: If the jumper cables are connected or removed in the wrong order, electrical shorting may occur and damage the vehicle. The repairs would not be covered by the vehicle warranty. Always connect and remove the jumper cables in the correct order, making sure that the cables do not touch each other or other metal.
Page 357: Headlamp Aiming
Headlamp Aiming The vehicle has a visual optical headlamp aiming system. The aim of the headlamps have been preset at the factory and should need no further adjustment. However, if the vehicle is damaged in a crash, the aim of the headlamps may be affected and adjustment may be necessary.
Page 358 To adjust the vertical aim: 1. Open the hood. See Hood Release on page 6-13 for more information. 2. Locate the aim dot on the lens of the low-beam headlamp. 3. Record the distance from the ground to the aim dot on the low-beam headlamp.
Page 359 7. Locate the vertical headlamp aiming screws, which are under the hood near each headlamp assembly. The adjustment screw can be turned with a 6 mm male hex. 8. Turn the vertical aiming screw until the headlamp beam is aimed to the horizontal tape line. Turn it clockwise or counterclockwise to raise or lower the angle of the beam.
Page 360: Bulb Replacement
Bulb Replacement For the proper type of replacement bulbs, see Replacement Bulbs on page 6-57. For any bulb changing procedure not listed in this section, contact your dealer/retailer. Halogen Bulbs WARNING: Halogen bulbs have pressurized gas inside and can burst if you drop or scratch the bulb. You or others could be injured.
Page 361 To replace one of these bulbs: 1. Open the trunk. See Trunk on page 3-12. 2. Remove the convenience net. 3. Remove the plastic wing nuts retaining the trunk trim. 4. Pull back the trunk trim. 5. Remove the three hex nuts holding the taillamp assembly in place.
Page 362: Taillamps And Back-Up Lamps
Taillamps and Back-Up Lamps A. Taillamp B. Back-up Lamp 6-56 To replace an auxiliary taillamp or back-up lamp bulb: 1. Open the trunk. See Trunk on page 3-12. 2. Remove the three fasteners from the trunk trim. 3. Pull back the trunk trim to access the bulbs. 4.
Page 363: License Plate Lamp
License Plate Lamp To replace one of these bulbs: 1. Remove the license plate. 2. Reach up through the opening above the license plate to access the two license plate lamps. 3. Turn the socket counterclockwise to remove. 4. Grasp the bulb in the socket and pull straight out. 5.
Page 364 To replace the wiper blade assembly: 1. Turn the ignition to ACC/ACCESSORY with the engine off. 2. Pull the windshield wiper assembly away from the windshield. 3. Squeeze the tabs on each side of the wiper blade assembly and slide the assembly off the end of the wiper arm.
Page 365: Tires
Tires Your new vehicle comes with high-quality tires made by a leading tire manufacturer. If you ever have questions about your tire warranty and where to obtain service, see your vehicle Warranty booklet for details. For additional information refer to the tire manufacturer. WARNING: Poorly maintained and improperly used tires are dangerous.
Page 366: Tire Sidewall Labeling
Tire Sidewall Labeling Useful information about a tire is molded into its sidewall. The examples below show a typical passenger vehicle tire and a compact spare tire sidewall. Passenger (P-Metric) Tire Example 6-60 (A) Tire Size The tire size is a combination of letters and numbers used to deﬁne a particular tire’s width, height, aspect ratio, construction type, and service description.
Page 367 (F) Uniform Tire Quality Grading (UTQG) manufacturers are required to grade tires based on three performance factors: treadwear, traction, and temperature resistance. For more information see Uniform Tire Quality Grading on page 6-76. (G) Maximum Cold Inﬂation Load Limit Maximum load that can be carried and the maximum pressure needed to support that load.
Page 368 (F) Tire Size A combination of letters and numbers deﬁne a tire’s width, height, aspect ratio, construction type, and service description. The letter T as the ﬁrst character in the tire size means the tire is for temporary use only. (G) TPC Spec (Tire Performance Criteria Speciﬁcation) Original equipment tires designed...
Page 369: Tire Terminology And Deﬁnitions
Tire Terminology and Deﬁnitions Air Pressure The amount of air inside the tire pressing outward on each square inch of the tire. Air pressure is expressed in pounds per square inch (psi) or kilopascal (kPa). Accessory Weight This means the combined weight of optional accessories.
Page 370 Intended Outboard Sidewall asymmetrical tire, that must always face outward when mounted on a vehicle. Kilopascal (kPa) The metric unit for air pressure. Light Truck (LT-Metric) Tire light duty trucks and some multipurpose passenger vehicles. Load Index An assigned number ranging from 1 to 279 that corresponds to the load carrying capacity of a tire.
Page 371 Radial Ply Tire A pneumatic tire in which the ply cords that extend to the beads are laid at 90 degrees to the centerline of the tread. A metal support for a tire and upon which the tire beads are seated. Sidewall The portion of a tire between the tread and the bead.
Page 372: Inﬂation - Tire Pressure
Inﬂation - Tire Pressure Tires need the correct amount of air pressure to operate effectively. Notice: Do not let anyone tell you that under-inﬂation or over-inﬂation is all right. It is not. If your tires do not have enough air (under-inﬂation), you can get the following: •...
Page 373: How To Check
How to Check Use a good quality pocket-type gage to check tire pressure. You cannot tell if your tires are properly inﬂated simply by looking at them. Radial tires may look properly inﬂated even when they are under-inﬂated. Check the tire’s inﬂation pressure when the tires are cold.
Page 374: Tire Pressure Monitor Operation
Please note that the TPMS is not a substitute for proper tire maintenance, and it is the driver’s responsibility to maintain correct tire pressure, even if under-inﬂation has not reached the level to trigger illumination of the TPMS low tire pressure telltale. Your vehicle has also been equipped with a TPMS malfunction indicator to indicate when the system is not operating properly.
Page 375 At the same time a message to check the pressure in a speciﬁc tire appears on the Driver Information Center (DIC) display. The low tire pressure warning light and the DIC warning message come on at each ignition cycle until the tires are inﬂated to the correct inﬂation pressure.
Page 376: Tpms Malfunction Light And Message
TPMS Malfunction Light and Message The TPMS will not function properly if one or more of the TPMS sensors are missing or inoperable. When the system detects a malfunction, the low tire warning light ﬂashes for about one minute and then stays on for the remainder of the ignition cycle.
Page 377 The TPMS sensors can also be matched to each tire/wheel position by increasing or decreasing the tire’s air pressure. If increasing the tire’s air pressure, do not exceed the maximum inﬂation pressure indicated on the tire’s sidewall. To decrease air-pressure out of a tire you can use the pointed end of the valve cap, a pencil-style air pressure gage, or a key.
Page 378: Tire Inspection And Rotation
Tire Inspection and Rotation We recommend that you regularly inspect your vehicle’s tires, including the spare tire, for signs of wear or damage. See When It Is Time for New Tires on page 6-73 for more information. Tires should be rotated every 5,000 to 8,000 miles (8 000 to 13 000 km).
Page 379: When It Is Time For New Tires
WARNING: Rust or dirt on a wheel, or on the parts to which it is fastened, can make wheel nuts become loose after time. The wheel could come off and cause an accident. When you change a wheel, remove any rust or dirt from places where the wheel attaches to the vehicle.
Page 380: Buying New Tires
You need new tires if any of the following statements are true: • You can see the indicators at three or more places around the tire. • You can see cord or fabric showing through the tire’s rubber. • The tread or sidewall is cracked, cut, or snagged deep enough to show cord or fabric.
Page 381 GM recommends replacing tires in sets of four. This is because uniform tread depth on all tires will help keep your vehicle performing most like it did when the tires were new. Replacing less than a full set of tires can affect the braking and handling performance of your vehicle.
Page 382: Different Size Tires And Wheels
Different Size Tires and Wheels If you add wheels or tires that are a different size than your original equipment wheels and tires, this may affect the way your vehicle performs, including its braking, ride and handling characteristics, stability, and resistance to rollover.
Page 383 Treadwear The treadwear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a speciﬁed government test course. For example, a tire graded 150 would wear one and a half (1.5) times as well on the government course as a tire graded 100.
Page 384: Wheel Alignment And Tire Balance
Wheel Alignment and Tire Balance The tires and wheels on your vehicle were aligned and balanced carefully at the factory to give you the longest tire life and best overall performance. Adjustments to wheel alignment and tire balancing will not be necessary on a regular basis. However, if you notice unusual tire wear or your vehicle pulling to one side or the other, the alignment might need to be checked.
Page 385: Used Replacement Wheels
WARNING: Using the wrong replacement wheels, wheel bolts, or wheel nuts on your vehicle can be dangerous. It could affect the braking and handling of your vehicle, make your tires lose air and make you lose control. You could have a collision in which you or others could be injured.
Page 386: Tire Chains
Tire Chains WARNING: If your vehicle has P235/55R17, or P245/50R18 size tires, do not use tire chains. There is not enough clearance. Tire chains used on a vehicle without the proper amount of clearance can cause damage to the brakes, suspension, or other vehicle parts. The area damaged by the tire chains could cause you to lose control of your vehicle and you or others may be injured in a crash.
Page 387: If A Tire Goes Flat
If a Tire Goes Flat It is unusual for a tire to blowout while you are driving, especially if you maintain your vehicle’s tires properly. If air goes out of a tire, it is much more likely to leak out slowly.
Page 388 Tire Sealant and Compressor Kit WARNING: Idling a vehicle in an enclosed area with poor ventilation is dangerous. Engine exhaust may enter the vehicle. Engine exhaust contains Carbon Monoxide (CO) which cannot be seen or smelled. It can cause unconsciousness and even death. Never run the engine in an enclosed area that has no fresh air ventilation.
Page 389: Tire Sealant
Read and follow all of the tire sealant and compressor kit instructions. The kit includes: A. On/Off Button D. Pressure Gage B. Selector Switch E. Air Only Hose (Sealant/Air or (Black) Air Only) F. Sealant/Air Hose C. Pressure Relief (Clear) Button G.
Page 390: Punctured Tire
Using the Tire Sealant and Compressor Kit to Temporarily Seal and Inﬂate a Punctured Tire Follow the directions closely for correct sealant usage. When using the tire sealant and compressor kit during cold temperatures, warm the kit in a heated environment for 5 minutes.
Page 391 7. Start the vehicle. The vehicle must be running while using the air compressor. 8. Turn the selector switch (B) clockwise to the Sealant + Air position. 9. Press the on/off (A) button to turn the tire sealant and compressor kit on. The compressor will inject sealant and air into the tire.
Page 392 16. If the ﬂat tire was able to inﬂate to the recommended inﬂation pressure, remove the maximum speed label from the sealant canister and place it in a highly visible location. The label is a reminder not to exceed 55 mph (90 km/h) until the damaged tire is repaired or replaced.
Page 393: Not Punctured
Using the Tire Sealant and Compressor Kit without Sealant to Inﬂate a Tire (Not Punctured) To use the air compressor to inﬂate a tire with air only and not sealant: Always do a safety check ﬁrst. See If a Tire Goes Flat on page 6-81.
Page 394 7. Start the vehicle. The vehicle must be running while using the air compressor. 8. Turn the selector switch (B) counterclockwise to the Air Only position. 9. Press the on/off (A) button to turn the compressor on. The compressor will inﬂate the tire with air only. 10.
Page 395: Tire Sealant And Compressor Kit
Removal and Installation of the Sealant Canister To remove the sealant canister: 1. Remove the plastic cover. 2. Unscrew the connector (B) from the canister (A). 3. Pull up on the canister (A) to remove it. 4. Replace with a new canister which is available from your dealer/retailer.
Page 396: Changing A Flat Tire
Changing a Flat Tire If a tire goes ﬂat, avoid further tire and wheel damage by driving slowly to a level place. Turn on the hazard warning ﬂashers. See Hazard Warning Flashers on page 4-3. WARNING: Changing a tire can be dangerous. The vehicle can slip off the jack and roll over or fall on you or other people.
Page 397: Removing The Spare Tire And Tools
Removing the Spare Tire and Tools The equipment you will need is located in the trunk. 1. Open the trunk. See Trunk on page 3-12. 2. Turn the center retainer counterclockwise to remove it. 3. Lift and remove the compact spare tire cover. 4.
Page 398: Removing The Flat Tire And Installing The Spare Tire
The tools you will be using include the jack (A) and the wheel wrench (B). 6-92 Removing the Flat Tire and Installing the Spare Tire 1. Do a safety check before proceeding. See Changing a Flat Tire on page 6-90. 2.
Page 399 WARNING: Raising your vehicle with the jack improperly positioned can damage the vehicle and even make the vehicle fall. To help avoid personal injury and vehicle damage, be sure to ﬁt the jack lift head into the proper location before raising the vehicle.
Page 400 5. Position the jack and raise the jack head until it ﬁts ﬁrmly on the ridge in the vehicle’s frame nearest the ﬂat tire. Do not raise the vehicle yet. 6. Put the compact spare tire near the ﬂat tire. WARNING: Getting under a vehicle when it is jacked up is dangerous.
Page 401 8. Remove all wheel nuts and remove the ﬂat tire. WARNING: Rust or dirt on a wheel, or on the parts to which it is fastened, can make wheel nuts become loose after time. The wheel could come off and cause an accident.
Page 402 12. Lower the vehicle by turning the jack handle counterclockwise. Lower the jack completely. 6-96 WARNING: Wheel nuts that are improperly or incorrectly tightened can cause the wheels to become loose or come off. The wheel nuts should be tightened with a torque wrench to the proper torque speciﬁcation after replacing.
Page 403: Storing A Flat Or Spare Tire And Tools
Notice: Improperly tightened wheel nuts can lead to brake pulsation and rotor damage. To avoid expensive brake repairs, evenly tighten the wheel nuts in the proper sequence and to the proper torque speciﬁcation. See Capacities and Speciﬁcations on page 6-117 for the wheel nut torque speciﬁcation.
Page 404 To store the compact spare tire and tools: 6-98 A. Center Retainer B. Compact Spare Tire Cover C. Retainer D. Washer E. Jack Container F. Spare Tire G. Wheel Wrench H. Jack I. Foam Insert J. Bolt 1. Open the trunk. See Trunk on page 3-12. 2.
Page 405: Compact Spare Tire
6. Secure the compact spare tire and the jack container (E) with the washer (D) and the retainer (C). 7. Reinstall the compact spare tire cover (B). 8. Secure with the center retainer (A). The compact spare tire is for temporary use only. Replace the compact spare tire with a full-size tire as soon as you can.
Page 406: Appearance Care
Appearance Care Interior Cleaning The vehicle’s interior will continue to look its best if it is cleaned often. Although not always visible, dust and dirt can accumulate on the upholstery. Dirt can damage carpet, fabric, leather, and plastic surfaces. Regular vacuuming is recommended to remove particles from the upholstery.
Page 407: Fabric/Carpet
Do not clean the vehicle using: • A knife or any other sharp object to remove a soil from any interior surface. • A stiff brush. It can cause damage to the vehicle’s interior surfaces. • Heavy pressure or aggressive rubbing with a cleaning cloth.
Page 408: Leather
To clean: 1. Saturate a lint-free, clean white cloth with water or club soda. 2. Wring the cloth to remove excess moisture. 3. Start on the outside edge of the soil and gently rub toward the center. Continue cleaning, using a clean area of the cloth each time it becomes soiled.
Page 409: Instrument Panel, Vinyl, And Other Plastic Surfaces
Instrument Panel, Vinyl, and Other Plastic Surfaces A soft cloth dampened with water may be used to remove dust. If a more thorough cleaning is necessary, a clean soft cloth dampened with a mild soap solution can be used to gently remove dust and dirt. Never use spot lifters or removers on plastic surfaces.
Page 410: Washing Your Vehicle
Washing Your Vehicle The best way to preserve the vehicle’s ﬁnish is to keep it clean by washing it often. Notice: Certain cleaners contain chemicals that can damage the emblems or nameplates on the vehicle. Check the cleaning product label. If it states that it should not be used on plastic parts, do not use it on the vehicle or damage may occur and it would not be covered by the warranty.
Page 411: Windshield And Wiper Blades
Foreign materials such as calcium chloride and other salts, ice melting agents, road oil and tar, tree sap, bird droppings, chemicals from industrial chimneys, etc., can damage the vehicle’s ﬁnish if they remain on painted surfaces. Wash the vehicle as soon as possible. If necessary, use non-abrasive cleaners that are marked safe for painted surfaces to remove foreign matter.
Page 412: Aluminum Or Chrome-Plated Wheels And Trim
Aluminum or Chrome-Plated Wheels and Trim The vehicle may have either aluminum or chrome-plated wheels. Keep the wheels clean using a soft clean cloth with mild soap and water. Rinse with clean water. After rinsing thoroughly, dry with a soft clean towel. A wax may then be applied.
Page 413: Tires
Tires To clean the tires, use a stiff brush with tire cleaner. Notice: Using petroleum-based tire dressing products on the vehicle may damage the paint ﬁnish and/or tires. When applying a tire dressing, always wipe off any overspray from all painted surfaces on the vehicle.
Page 414: Vehicle Identiﬁcation
Vehicle Identiﬁcation Vehicle Identiﬁcation Number (VIN) This legal identiﬁer is in the front corner of the instrument panel, on the driver side. It can be seen through the windshield from outside. The VIN also appears on the Vehicle Certiﬁcation and Service Parts labels and certiﬁcates of title and registration.
Page 415: Power Windows And Other Power Options
Power Windows and Other Power Options Circuit breakers in the rear fuse block protect the power windows and other power accessories. When the current load is too heavy, the circuit breaker opens and closes, protecting the circuit until the problem is ﬁxed or goes away.
Page 416 Fuses Engine Control Module (ECM), Crank Fuel Injectors Odd Fuel Injectors Even Air Conditioning Clutch 6-110 Usage Fuses Usage Air Injection Reactor (AIR) Solenoid Oxygen Sensor Emission Device Transmission, Ignition 1...
Page 417 Fuses Usage Engine Control Module (ECM), Powertrain Control Module (PCM) Climate Control System, Instrument Panel Cluster Ignition 1 Airbag System Horn Windshield Wiper Fog Lamps Right High-Beam Headlamp Left High-Beam Headlamp Left Low-Beam Headlamp Right Low-Beam Headlamp Windshield Washer Pump Motor Left Front Cornering Lamp Right Front Cornering Lamp Air Pump (J-Case)
Page 418: Rear Underseat Fuse Block
Rear Underseat Fuse Block The rear fuse block is located under the rear seat on the driver side. The rear seat cushion must be removed to access the rear fuse block. Removing the Rear Seat Cushion Notice: If you touch the exposed wires with the metal on the seat cushion, you could cause a short that could damage the battery and or wires.
Page 419 To reinstall the rear seat cushion, do the following: WARNING: A safety belt that is not properly routed through the seat cushion or is twisted will not provide the protection needed in a crash. If the safety belt has not been routed through the seat cushion at all, it will not be there to work for the next passenger.
Page 420 Fuses Fuel Pump Left Park Lamp Not Used Right Park Lamp 6-114 Usage Fuses Usage Engine Control Module (ECM)/Transmission Control Module (TCM) Memory Module Not Used...
Page 421 Fuses Usage Steering Wheel Illumination Front Heated/Cooled Seat Module Run 2 - Heated/Cooled Seats Not Used RPA Module ® PASS-Key III System Unlock/Lock Module Magnetic Ride Control Daytime Running Lamps (DRL) Sunroof Body Control Module (BCM) Dim Body Control Module (BCM) Run 1-Heated Steering Wheel Ignition Switch Driver Door Module...
Page 422 Fuses Rear Defogger (J-Case) Electronic Leveling Control Compressor (J-Case) Blower (J-Case) Not Used Resistor Terminating Resistor Relays Not Used Rear Defogger Electronic Leveling Control Compressor Park Lamps Fuel Pump Not Used Not Used 6-116 Usage Relays Usage Usage Circuit Breakers Usage Unlock Lock...
Page 423: Capacities And Speciﬁcations
Capacities and Speciﬁcations The following approximate capacities are given in English and metric conversions. See Recommended Fluids and Lubricants on page 7-10 for more information. Application Air Conditioning Refrigerant R134a Engine Cooling System 3.9L V6 Engine 4.6L V8 Engine Engine Oil with Filter 3.9L V6 Engine 4.6L V8 Engine Fuel Tank...
Page 424 Application Transmission Fluid - Bottom Pan Removal 3.9L V6 Engine 4.6L V8 Engine Wheel Nut Torque All capacities are approximate. When adding, be sure to ﬁll to the approximate level, as recommended in this manual. Recheck ﬂuid level after ﬁlling. Engine 3.9L V6 Engine 3.9L V6 Engine...
Page 425 Section 7 Maintenance Schedule ...7-2 Introduction ...7-2 Scheduled Maintenance ...7-3 Owner Checks and Services ...7-8 Maintenance Schedule Recommended Fluids and Lubricants ...7-10 Maintenance Replacement Parts ...7-11 Engine Drive Belt Routing ...7-12 Maintenance Record ...7-13...
Page 426: Maintenance Schedule
Maintenance Schedule Introduction Notice: Maintenance intervals, checks, inspections, recommended ﬂuids, and lubricants are necessary to keep this vehicle in good working condition. Damage caused by failure to follow scheduled maintenance might not be covered by the vehicle warranty. Proper vehicle maintenance helps to keep the vehicle in good working condition, improves fuel economy, and reduces vehicle emissions for better air quality.
Page 427: Scheduled Maintenance
Rotation of New Tires To maintain ride, handling, and performance of the vehicle, it is important that the ﬁrst rotation service for new tires be performed when they have 8 000 to 13 000 km (5,000 to 8,000 miles). See Tire Inspection and Rotation on page 6-72.
Page 428 • Fluids visual leak check (or every 12 months, whichever occurs ﬁrst). A leak in any system must be repaired and the ﬂuid level checked. • Engine air cleaner ﬁlter inspection (vehicles driven in dusty conditions only). See Engine Air Cleaner/Filter on page 6-22.
Page 429: Additional Required Services
Additional Required Services At Each Fuel Stop • Engine oil level check. See Engine Oil on page 6-17. • Engine coolant level check. See Engine Coolant (4.6L Engine) on page 6-28 or Engine Coolant (3.9L Engine) on page 6-32. • Windshield washer ﬂuid level check.
Page 430 First Engine Oil Change After Every 80 000 km/50,000 Miles • Engine air cleaner ﬁlter replacement. See Engine Air Cleaner/Filter on page 6-22. • Automatic transmission ﬂuid change (severe service) for vehicles mainly driven in heavy city traffic in hot weather, in hilly or mountainous terrain, when frequently towing a trailer, or used for taxi, police, or delivery service.
Page 431 Change engine oil and ﬁlter. Reset oil life system. Engine coolant level check. Windshield washer ﬂuid level check. Tire inﬂation pressures check. Tire wear inspection. Rotate tires. Fluids visual leak check. Engine air cleaner ﬁlter inspection (vehicles driven in dusty conditions only). Brake system inspection.
Page 432: Owner Checks And Services
Owner Checks and Services Starter Switch Check WARNING: When you are doing this inspection, the vehicle could move suddenly. If the vehicle moves, you or others could be injured. 1. Before starting this check, be sure there is enough room around the vehicle. 2.
Page 433: Ignition Transmission Lock Check
Ignition Transmission Lock Check While parked, and with the parking brake set, try to turn the ignition to LOCK/OFF in each shift lever position. • The ignition should turn to LOCK/OFF only when the shift lever is in P (Park). •...
Page 434: Recommended Fluids And Lubricants
Recommended Fluids and Lubricants Fluids and lubricants identiﬁed below by name, part number, or speciﬁcation can be obtained from your dealer/retailer. Usage Fluid/Lubricant Engine oil which meets GM Standard GM6094M and displays the American Petroleum Institute Certiﬁed for Gasoline Engine Oil Engines starburst symbol.
Page 435: Maintenance Replacement Parts
Maintenance Replacement Parts Replacement parts identiﬁed below by name, part number, or speciﬁcation can be obtained from your dealer/retailer. Part Engine Air Cleaner/Filter Engine Oil Filter 3.9L V6 Engine 4.6L V8 Engine Passenger Compartment Air Filter Spark Plugs 3.9L V6 4.6L V8 Wiper Blades Driver Side –...
Page 436: Engine Drive Belt Routing
Engine Drive Belt Routing 4.6L V8 Engine 3.9L V6 Engine 7-12...
Page 437: Maintenance Record
Maintenance Record After the scheduled services are performed, record the date, odometer reading, who performed the service, and the type of services performed in the boxes provided. Retain all maintenance receipts. Maintenance Record Odometer Date Serviced By Services Performed Reading 7-13...
Page 438 Maintenance Record (cont’d) Odometer Date Serviced By Services Performed Reading 7-14...
Page 439 Maintenance Record (cont’d) Odometer Date Serviced By Services Performed Reading 7-15...
Page 440 Maintenance Record (cont’d) Odometer Date Serviced By Services Performed Reading 7-16...
Page 441: Customer Assistance Information
Section 8 Customer Assistance and Information ...8-2 Customer Satisfaction Procedure ...8-2 Online Owner Center ...8-5 Customer Assistance for Text Telephone (TTY) Users ...8-6 Customer Assistance Offices ...8-6 GM Mobility Reimbursement Program ...8-7 Roadside Assistance Program ...8-7 Scheduling Service Appointments ...8-9 Courtesy Transportation Program ...8-10 Collision Damage Repair ...8-11 Customer Assistance Information...
Page 442: Customer Assistance And Information
Information Customer Satisfaction Procedure Your satisfaction and goodwill are important to your dealer and to Buick. Normally, any concerns with the sales transaction or the operation of your vehicle will be resolved by your GM dealer’s sales or service departments. Sometimes, however, despite the best intentions of all concerned, misunderstandings can occur.
Page 443 STEP THREE — U.S. Owners: Both General Motors and your dealer are committed to making sure you are completely satisﬁed with your new vehicle. However, in the United States, if you continue to remain unsatisﬁed after following the procedure outlined in Steps One and Two, you can ﬁle with the BBB Auto Line Program to enforce your rights.
Page 444 STEP THREE — Canadian Owners: In the event that you do not feel your concerns have been addressed after following the procedure outlined in Steps one and two, General Motors of Canada Limited wants you to be aware of its participation in a no-charge Mediation/Arbitration program.
Page 445: Online Owner Center
— all in one convenient place. • Digital owner manual, warranty information, and more • Online service and maintenance records • Find Buick dealers for service nationwide • Exclusive privileges and offers • Recall notices for your speciﬁc vehicle • ®...
Page 446: Customer Assistance For Text Telephone (Tty) Users
Customer Assistance Offices Buick encourages customers to call the toll-free number for assistance. However, if a customer wishes to write or e-mail Buick, the letter should be addressed to: United States — Customer Assistance Buick Customer Assistance Center P.O. Box 33136 Detroit, MI 48232-5136 www.Buick.com...
Page 447: Calling For Assistance
GM Mobility Reimbursement Program This program, available to qualiﬁed applicants, can reimburse you up to $1,000 of the cost of eligible aftermarket adaptive equipment required for your vehicle, such as hand controls or a wheelchair/ scooter lift. The offer is available for a very limited period of time from the date of vehicle purchase/lease.
Page 448: Services Provided
• Emergency Tow From a Public Road or Highway: Tow to the nearest Buick dealer for warranty service, or if the vehicle was in a crash and cannot be driven. Assistance is also given when the vehicle is stuck in sand, mud, or snow.
Page 449: Scheduling Service Appointments
Services Speciﬁc to Canadian Purchased Vehicles • Fuel delivery: Reimbursement is approximately $5 Canadian. Diesel fuel delivery may be restricted. Propane and other fuels are not provided through this service. • Lock-Out Service: Vehicle registration is required. • Trip Routing Service: Detailed maps of North America are provided when requested either with the most direct route or the most scenic route.
Page 450: Courtesy Transportation Program
Courtesy Transportation Program To enhance your ownership experience, we and our participating dealers are proud to offer Courtesy Transportation, a customer support program for vehicles with the New Vehicle Limited Warranty (Base Warranty Coverage period in Canada) and extended powertrain, and hybrid speciﬁc warranty in both the U.S.
Page 451: Collision Damage Repair
In addition, for U.S. customers, should you arrange transportation through a friend or relative, limited reimbursement for reasonable fuel expenses may be available. Claim amounts should reﬂect actual costs and be supported by original receipts. See your dealer for information regarding the allowance amounts for reimbursement of fuel or other transportation costs.
Page 452: Repair Facility
Collision Parts Genuine GM Collision parts are new parts made with the same materials and construction methods as the parts with which your vehicle was originally built. Genuine GM Collision parts are your best choice to ensure that your vehicle’s designed appearance, durability, and safety are preserved.
Page 453: If A Crash Occurs
If a Crash Occurs Here is what to do if you are involved in a crash. • Check to make sure that you are all right. If you are uninjured, make sure that no one else in your vehicle, or the other vehicle, is injured. •...
Page 454: Reporting Safety Defects
Managing the Vehicle Damage Repair Process In the event that your vehicle requires damage repairs, GM recommends that you take an active role in its repair. If you have a pre-determined repair facility of choice, take your vehicle there, or have it towed there. Specify to the facility that any required replacement collision parts be original equipment parts, either new Genuine GM parts or recycled original GM parts.
Page 455: Reporting Safety Defects To The Canadian Government
Motors In addition to notifying NHTSA (or Transport Canada) in a situation like this, please notify General Motors. Call 1-800-521-7300, or write: Buick Customer Assistance Center P.O. Box 33136 Detroit, MI 48232-5136 In Canada, call 1-800-263-3777 (English) or 1-800-263-7854 (French), or write:...
Page 456: Vehicle Data Recording And Privacy
Current and Past Model Order Forms Technical Service Bulletins and Manuals are available for current and past model GM vehicles. To request an order form, specify year and model name of the vehicle. ORDER TOLL FREE: 1-800-551-4123 Monday-Friday 8:00 AM - 6:00 PM Eastern Time For Credit Card Orders Only (VISA-MasterCard-Discover), visit Helm, Inc.
Page 457: Event Data Recorders
Event Data Recorders This vehicle has an Event Data Recorder (EDR). The main purpose of an EDR is to record, in certain crash or near crash-like situations, such as an airbag deployment or hitting a road obstacle, data that will assist in understanding how a vehicle’s systems performed.
Page 458: Onstar
® OnStar If the vehicle has OnStar and you subscribe to the OnStar services, please refer to the OnStar Terms and Conditions for information on data collection and use. Navigation System If your vehicle has a navigation system, use of the system may result in the storage of destinations, addresses, telephone numbers, and other trip information.
Page 459 Accessories and Modiﬁcations ... 6-3 Accessory Power ... 3-20 Accessory Power Outlets ... 4-17 Additives, Fuel ... 6-7 Add-On Electrical Equipment ... 6-108 Air Cleaner/Filter, Engine ... 6-22 Air Conditioning ... 4-18 Air Filter, Passenger Compartment ... 4-28 Airbag Adding Equipment to Your Airbag-Equipped Vehicle ...
Page 460 Audio System (cont.) Setting the Clock ... 4-75 Theft-Deterrent Feature ... 4-104 XM™ Satellite Radio Antenna System ... 4-107 Audio System(s) ... 4-77 Automatic Transmission Fluid ... 6-23 Operation ... 3-23 Backglass Antenna ... 4-107 Battery ... 6-44 Electric Power Management ... 4-15 Exterior Lighting Battery Saver ...
Page 461 Center Flex Storage Unit ... 3-51 Center Seat ... 2-13 Chains, Tire ... 6-80 Charging System Light ... 4-36 Check Engine Lamp ... 4-42 Checking Things Under the Hood ... 6-12 Chemical Paint Spotting ... 6-107 Child Restraints Infants and Young Children ... 2-39 Lower Anchors and Tethers for Children ...
Page 462 Cruise Control ... 4-8 Light ... 4-45 Cupholders ... 3-51 Customer Assistance ... 8-6 Offices ... 8-6 Text Telephone (TTY) Users ... 8-6 Customer Information Service Publications Ordering Information ... 8-15 Customer Satisfaction Procedure ... 8-2 Damage Repair, Collision ... 8-11 Data Recorders, Event ...
Page 463 Electronic Immobilizer ® PASS-Key III+ ... 3-17 Electronic Immobilizer Operation ® PASS-Key III+ ... 3-17 Engine Air Cleaner/Filter ... 6-22 Check and Service Engine Soon Lamp ... 4-42 Compartment Overview ... 6-14 Coolant ... 6-28, 6-32 Coolant Heater ... 3-22 Coolant Temperature Gage ...
Page 464 Fuel (cont.) Gage ... 4-46 Gasoline Octane ... 6-6 Gasoline Speciﬁcations ... 6-6 Fuel Economy Driving for Better ... 1-23 Fuses Fuses and Circuit Breakers ... 6-109 Rear Underseat Fuse Block ... 6-112 Underhood Fuse Block ... 6-109 Gages Engine Coolant Temperature ... 4-40 Fuel ...
Page 465 Ignition Positions ... 3-19 Inadvertent Power Battery Saver ... 4-16 Infants and Young Children, Restraints ... 2-39 Inﬂation - Tire Pressure ... 6-66 Instrument Panel Brightness ... 4-14 Cluster ... 4-31 Introduction ... 7-2 Jump Starting ... 6-46 Keyless Entry Remote (RKE) System ...
Page 466 Lights (cont.) Oil Pressure ... 4-44 On Reminder ... 4-12 Passenger Airbag Status Indicator ... 4-35 Safety Belt Reminders ... 4-32 Security ... 4-45 ® StabiliTrak Indicator ... 4-39 Tire Pressure ... 4-41 Traction Control System (TCS) Warning ... 4-38 Loading Your Vehicle ...
Page 467 Navigation System, Privacy ... 8-18 Navigation/Radio System, see Navigation Manual ... 4-93 Net, Convenience ... 3-52 New Vehicle Break-In ... 3-19 Object Detection, Side Blind Zone Alert (SBZA) ... 3-38 Odometer ... 4-32 Trip ... 4-32 Off-Road Recovery ... 5-10 Engine ...
Page 468 ® PASS-Key III+ Electronic Immobilizer Operation ... 3-17 Perchlorate Materials Requirements, California ... 6-4 Perimeter Lighting ... 4-15 Phone ® Bluetooth ... 4-93 Power Door Locks ... 3-10 Electrical System ... 6-109 Lumbar Controls ... 2-5 Retained Accessory (RAP) ... 3-20 Seat ...
Page 469 Removing the Spare Tire and Tools ... 6-91 Replacement Bulbs ... 6-57 Replacement Parts Maintenance ... 7-11 Reporting Safety Defects Canadian Government ... 8-15 General Motors ... 8-15 U.S. Government ... 8-14 Restraint System Check Checking the Restraint Systems ... 2-79 Replacing Restraint System Parts After a Crash ...
Page 470 Service ... 6-3 Accessories and Modiﬁcations ... 6-3 Adding Equipment to the Outside of the Vehicle ... 6-5 Doing Your Own Work ... 6-4 Engine Soon Lamp ... 4-42 Parts Identiﬁcation Label ... 6-108 Publications Ordering Information ... 8-15 Scheduling Appointments ... 8-9 Servicing Your Airbag-Equipped Vehicle ...
Page 471 Theft-Deterrent Feature ... 4-104 Theft-Deterrent Systems ... 3-16 Content Theft-Deterrent ... 3-16 ® PASS-Key III+ Electronic Immobilizer ... 3-17 ® PASS-Key III+ Electronic Immobilizer Operation ... 3-17 Tilt Wheel ... 4-3 Time, Setting ... 4-75 Tires ... 6-59 Aluminum or Chrome-Plated Wheels, Cleaning ...
Page 472 Vehicle Control ... 5-3 Loading ... 5-19 Remote Start ... 3-7 Running While Parked ... 3-31 Symbols ... iv Vehicle Customization, DIC ... 4-66 Vehicle Data Recording and Privacy ... 8-16 Vehicle Identiﬁcation Number (VIN) ... 6-108 Service Parts Identiﬁcation Label ... 6-108 Ventilated Seats ...

Buick 2010 Lucerne Owner's Manual

Section 2 Seats and Restraint System

Head Restraints

Front Seats

Rear Seats

Safety Belts

Child Restraints

Airbag System

Restraint System Check

Section 3 Features and Controls

Keys

Doors and Locks

Windows

Theft-Deterrent Systems

Starting and Operating Your Vehicle

Mirrors

Object Detection Systems

Universal Home Remote System

Section 4 Instrument Panel

Instrument Panel Overview

Climate Controls

Warning Lights, Gages, and Indicators

Driver Information Center (DIC)

Audio System(S)

Section 5 Driving Your Vehicle

Your Driving, the Road, and the Vehicle

Towing

Quick Links

Chapters

Related Manuals for Buick 2010 Lucerne

Summary of Contents for Buick 2010 Lucerne
