DELL S2422HGB

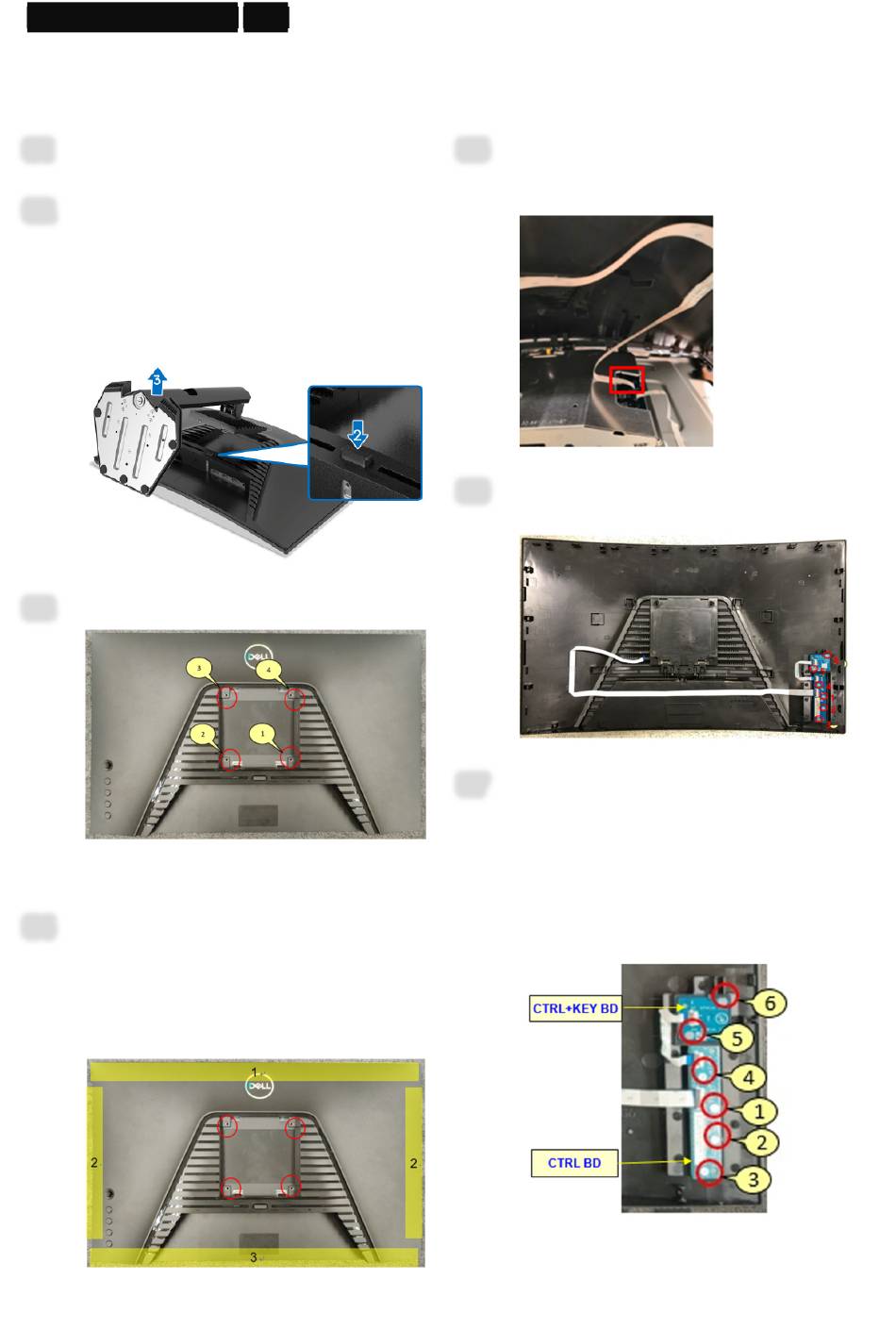

1. Disassembly Procedures

Turn off the monitor.

Place the monitor on S2422HGB Curve

Sponge Jig

Press and hold the stand release button

Lift the stand up and away from the

monitor.

Unlock 4 RC screws

(Screw Torque: 8~10kgf)

Use hands or scraper bar to

disassemble Rear Cover from monitor

Notice the disassembly order:

Top Side=>Right/ Left Side=>Bottom

Side

Remove "CTRL BD FFC" from I/F BD

and tear off it from Main SHD to take off

Rear Cover

Tear off "CTRL BD FFC" from Rear

Cover

Unlock 6 CTRL BD screws

Disassemble "CTRL BD" and "CTRL +

KEY BD" from Rear Cover

Remove "CTRL BD FFC" and "CTRL +

KEY BD FFC" from "CTRL BD" and

"CTRL+KEY BD"

(Screw Torque: 0.95~1.05kgf)

Page 1 Remove “CTRL BD FFC” from I/F BD Turn off the monitor. and tear off it from Main SHD to take off Rear Cover Place the monitor on S2422HGB Curve Sponge Jig Press and hold the stand release button Lift the stand up and away from the monitor.
Page 2 DELL S2422HGB Remove “LENS BD (PWR BTN BD) Remove conductive cloth and acetate FFC” from I/F BD tape from panel Unlock 4 screws on Main SHD Unplug “LVDS FFC cable” and “WIRE 6P/10P” from panel Take off Main SHD from Panel (Screw Torque: 4.5±0.5kgf)
Page 3 DELL S2422HGB Unlock 2 screws from Middle Frame Remove Mylar from SPS BD Disassemble PWR BTN from Middle Frame Unlock 8 PCBA screws (Screw Torque: 1.8~2.0kgf) Unlock 2 screws from PWR BTN Disassemble “LENS BD (PWR BTN BD)” from PWR BTN (Screw Torque: 8.5±1.0kgf)
Page 4 DELL S2422HGB Remove electrolyte capacitors (red mark) from printed circuit boards S22-1 Cut the glue between bulk cap. and PCB with a knife S22-2 Ensure cutting path within the glue, don’t touch bulk cap. or PCB...
Page 5 DELL S2422HGB S22-3 Take out bulk cap. pin solder with soldering iron and absorber S22-4 Lift the bulk cap. up and away from the PCB...
Page 6 List the type and size of the tools that would typically can be used to disassemble the product to a point where components and materials requiring selective treatment can be removed. Tool Description: - Screwdriver - Scraper Bar - Penknife - Soldering iron and absorber - S2422HGB Curve Sponge Jig...
