Modules

The RUGGEDCOM RX1512 features slots for up to two field-replaceable line modules,
which can be used to expand and customize the capabilities of the device to suit
specific applications.
A variety of modules are available, each featuring a specific type of communication
port: copper Ethernet, fiber optic Ethernet, SFP, WAN, cellular modem and DDS.
The RUGGEDCOM APE (Application Processing Engine) line module, a utility-grade
computing platform for running third-party applications directly from within the
RUGGEDCOM RX1512, is also available.
Use the RUGGEDCOM ROX software to determine which ports are equipped on the
device. For more information, refer to the RUGGEDCOM ROX Configuration Manual
for the device.
4.1

Requirements and Restrictions

Before installing modules in the device, consider the following restrictions and
requirements.
Module Support
Figure 4.1
RUGGEDCOM RX1512
Installation Manual, 04/2021, C79000-G8976-1057-20
Only one T1/E1 WAN module or up to two DDS modules are supported
Only one RUGGEDCOM APE module is supported
1
2

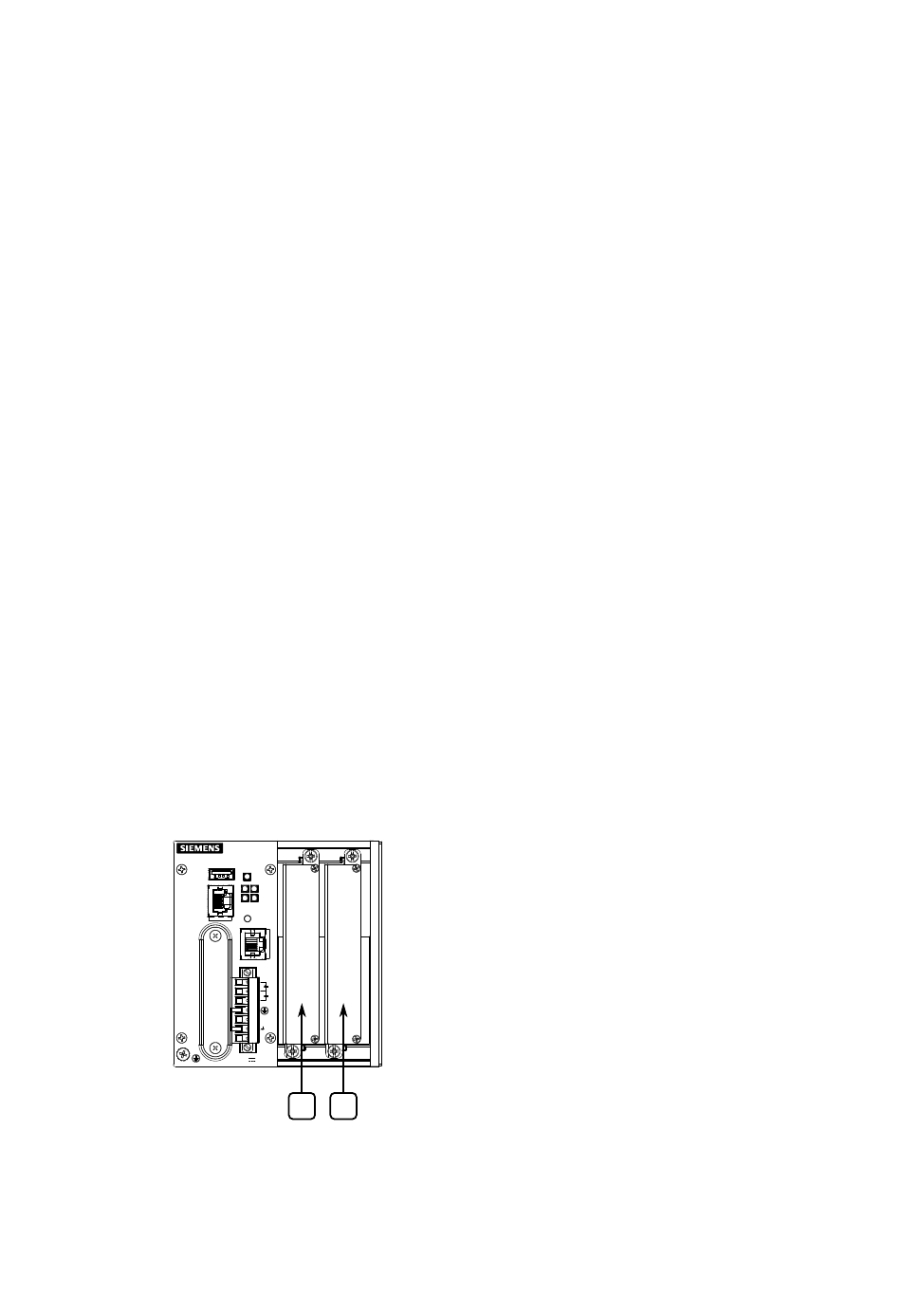

Available Chassis Slots
4
21
