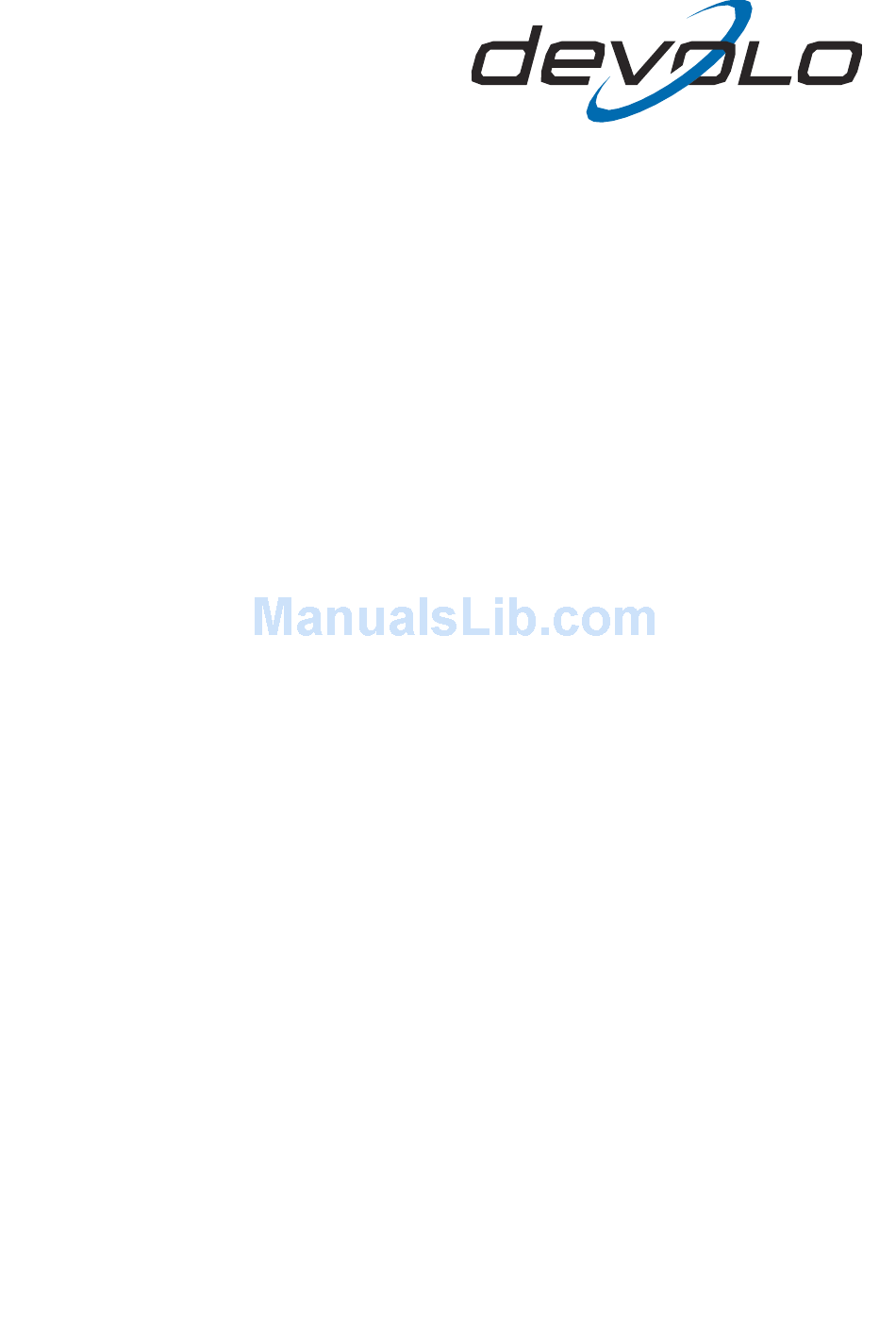

- Page 1 1100 duo...
- Page 2 The reproduction and distribution of the documentation and software supplied with this product and the use of its contents is subject to written authorization from devolo. We reserve the right to make any alterations that arise as the result of technical development.
- Page 3 For further information, please visit 'www.devolo.com' Our online services (www.devolo.com) are available to you around the clock should you have any queries or require any further support. devolo dsl+ 1100 duo...
- Page 4 Installation wizard Product manual Network manual Software devolo AG reserves the right to change the package contents without prior notice. Description of the symbols Here we briefly describe the meaning of the symbols used in this manual. Very important notice which, if ignored, may lead to damage.
-
Page 5: Table Of Contents
Update firmware ....26 4 devolo software ....28 Overview of the devolo software ....28 4.1.1 Informer ... - Page 6 Care and maintenance of the device ....38 CE conformity ....38 Warranty conditions ....39 devolo dsl+ 1100 duo...
-
Page 7: Introduction
To load multimedia content (video sequences, animations, images etc.) onto the computer from the Internet at acceptable quality and speed, a transmis- sion rate of up to 25 Mbps brings significant savings in terms of cost and time. Introduction devolo dsl+ 1100 duo... -
Page 8: What Does The Dsl + 1100 Duo Have To Offer
What does the dsl The dsl 1100 duo is a DSL modem router for the simple and fast connection to the Internet. The various connection possibilities of the dsl one or more computers to be connected with your DSL connection. Every con-... -
Page 9: Virus Scanner
(Softphone) or hardware (IP telephone, VoIP adapter) are necessary. Meets the highest quality standards! The products from devolo are subjected to thorough German quality assurance. In this way, devolo assures the optimal functionality with operating systems, international versions and protocols. -
Page 10: Protect Your Child In The Internet With Orangebox Web Home
The OrangeBox Web Home software, which is supplied with the dsl 1100 duo, provides more protection for your child in the Internet. It allows you to set filters that allow Internet pages to be accessed or blocked. Internet access can even be blocked completely. devolo dsl+ 1100 duo... -
Page 11: Connection And Installation
DSL connection; flashes while setting up a connection; lit when a connection exists. Lit when a computer or another network device is connected; flashes during data transfers. Lit when a computer or another network device is connected; flashes during data transfers. devolo dsl+ 1100 duo 1100... -
Page 12: Connecting The Dsl + 1100 Duo
In order to be able to work with your dsl with a network-capable operating system and web browser (e.g. Windows 98, devolo dsl+ 1100 duo RJ11 socket for DSL cable to DSL port. USB socket for USB cable to connect a computer or another... -
Page 13: Initial Operation
Then switch the device on using the switch located on the back. The 'Power' light will illuminate on the front. Connect the DSL cable to the DSL connection of your router and then con- nect the other end to the DSL connection provided by your Internet provider. - Page 14 'Search for the best driver for your device (Recommended)' option and click Next. The correct driver can be found on the devolo product CD. Activate the 'CD- ROM drive' option and deactivate all other boxes. Then click Next. The driver installation is started.
-
Page 15: Installation Of The Usb Driver On A Mac
The correct driver can be found on the devolo product CD. Activate the 'CD- ROM drives' option and deactivate all other boxes. Then click Next. The driver installation is started. Click Next to continue the installation. By clicking Finish you'll exit the installation. - Page 16 Please note that this procedure can only be executed as "root". Under Debian Linux, append the following information to the file /etc/inter- faces : devolo dsl+ 1100 duo 1100 duo is connected via Ethernet you can configure the network 1100 duo. In most...
-
Page 17: Networking Example
Networking of two workstations via Ethernet and USB; Internet access via the 1100 duo Information for the configuration of the dsl ing chapter Router configuration. Connection and installation via Ethernet via USB devolo dsl 1100 duo 1100 duo is available in the follow- devolo dsl+ 1100 duo 1100 duo. In most... -
Page 18: Router Configuration
If you are using a computer with a Windows operating system to configure the router, you have the option of using the setup wizard. Put the enclosed devolo product CD in your CD-ROM drive. The 'devolo dsl 1100 duo' setup application will start automatically. -
Page 19: Setting Up Internet Access Via A Browser
Enter your access information provided by your Internet provider (username, password). Confirm the password and click on Next. Complete the setting up of your Internet access with Finish. Your input is then saved. devolo dsl+ 1100 duo 1100 duo must be set to auto-... -
Page 20: Connection Status
Connection status If you have successfully set up the Internet connection, the router can automat- ically make a connection to the Internet on behalf of the computer in the net- work. 'DSL connection': Status of the DSL network connection. The DSL network connection is used to establish the connection to the Internet. -
Page 21: Change Configuration
This function is deactivated as standard. Network settings This is where you enter the IP address under which the router is to be available. The standard setting is '192.168.0.253'. In addition enter the netmask (stan- dard '255.255.255.0'). If you want to configure your dsl... -
Page 22: Port Forwarding
Port forwarding Services offered within the local network e.g. Internet file sharing can also be made publicly available in the Internet. 'Local IP address': IP address of the local computer which makes its services available. Router configuration devolo dsl+ 1100 duo... - Page 23 Dynamic DNS The Dynamic Domain Name System controls the allocation of dynamic IP addresses to fixed computer names. The router registers your public IP address as assigned by your Internet provider (IP addresses of this type are renewed reg- ularly) with a provider of dynamic DNS, so that the services which you make public in the Internet are always accessible under the computer name of your choice.
-
Page 24: Save Configuration File
Please note that all of your previous configuration settings will be lost. 3.4.2 Save configuration file You can store the configuration of the router in a file on your computer or another data medium. Router configuration 1100 duo. -
Page 25: Restore Configuration File
Update firmware The firmware controls the internal programs of the router. This may be updated occasionally. Download the current firmware from the devolo homepage at www.devolo.com. Then proceed as follows: Scan the appropriate directory and select the downloaded firmware file. - Page 26 Scan the appropriate directory again and select the downloaded firmware file. Then click on Update firmware in order to transfer the new firmware on to the router. If you have any questions regarding terminology and scenarios please read the information at www.devolo.com. Router configuration devolo dsl+ 1100 duo...
-
Page 27: Devolo Software
Installing the devolo software The devolo software is normally installed together with the installation wizard. To install the devolo software separately on a computer with a Windows oper- ating system, follow the steps below. Put the enclosed devolo product CD in your CD-ROM drive. -
Page 28: Overview In The Network With The Informer
If you would like to install the complete devolo software package, select 'Stan- dard Installation'. Then, click Select 'Custom Installation' to choose the software components you would like to be installed yourself. Then, click Next. Terminate the installation by clicking Finish. - Page 29 Activate port fowarding by clicking on OK. 'Remove application': If you would like to delete an application from the list, select it and click on Remove application. Only those entries that you have added can be deleted. devolo dsl+ 1100 duo...
-
Page 30: Communication In The Network Using Easyshare
EasyShare is started, or by using the sharing wizard. You can open the sharing wizard by clicking the Add share button, or by select- ing File Add share from the menu. devolo software devolo dsl+ 1100 duo... -
Page 31: Downloading Files
The 'Host' column shows the computer from which the file is being down- loaded, or to which it is being uploaded from your computer. You can cancel the current download by clicking the file and selecting Cancel from the context menu (right mouse button). devolo dsl+ 1100 duo Options from the menu. -
Page 32: Maintain Your Privacy With Easyclean
These files may contain personal information such as log-in data, passwords or credit card numbers. Temporary Internet files—Temporary files are stored on your hard drive while you surf the Net. Over time, these files take up a considerable amount of space. Send devolo software devolo dsl+ 1100 duo... - Page 33 Sensitive information such as this should only be stored locally in special programs designed for this purpose. Document history—Internet Explorer maintains lists of open documents and visited websites. This information is generally no longer needed. Please note that EasyClean only supports Microsoft Internet Explorer. devolo dsl+ 1100 duo...
-
Page 34: Appendix
Connection type: RJ11 (DSL) Connector Typ: RJ45 (Ethernet) Connector Typ: USB-B (USB) Connect status Power DSL status Status LED for Ethernet connection Status LED for USB connection Power adapter 9V DC, 500mA, EU 0–40°C, 10–90% humidity (non-condensing) devolo dsl+ 1100 duo Appendix... - Page 35 Appendix Protocols System requirements Miscellaneous CE conformity Warranty devolo dsl+ 1100 duo 1100 duo TCP/IP DHCP-Server Dynamisches DNS UPnP PPPoE PPPoA VPN Pass Through ATM AAL5 CD-ROM drive Computer interface: Ethernet (RJ45) or USB One of the following operatings systems: Windows 98, Windows...
-
Page 36: Declaration Of Conformity
Schutzanforderungen in Bezug auf die EMV §3 (1) 2, (Artikel 3 (1) b) Protection requirements with respect to EMC §3 (1) 2, (Article 3 (1) b) EN 55024:1998+A1:2001+A2:2003 EN 55022:1998+A1:2000+A2:2003 Class B Heiko Harbers Vorstandsvorsitzender Appendix devolo dsl+ 1100 duo... -
Page 37: Care And Maintenance Of The Device
This product is class B equipment. This equipment may cause interference with radio waves in home use; if this occurs the operator may be required to take cor- rective action. devolo dsl+ 1100 duo 1100 duo, as these could dam-... -
Page 38: Warranty Conditions
Warranty period The warranty period for this devolo product is three years. This period begins at the day of delivery from the devolo dealer. Warranty services rendered by devolo do not result in an extension of the warranty period nor do they initiate a new warranty period. The warranty period for installed replacement parts ends with the warranty period of the device as a whole. - Page 39 Claims for compensation of lost profits, indirect or consequential detriments, are excluded. devolo is not liable for lost data or retrieval of lost data in cases of slight and ordinary negli- gence.
