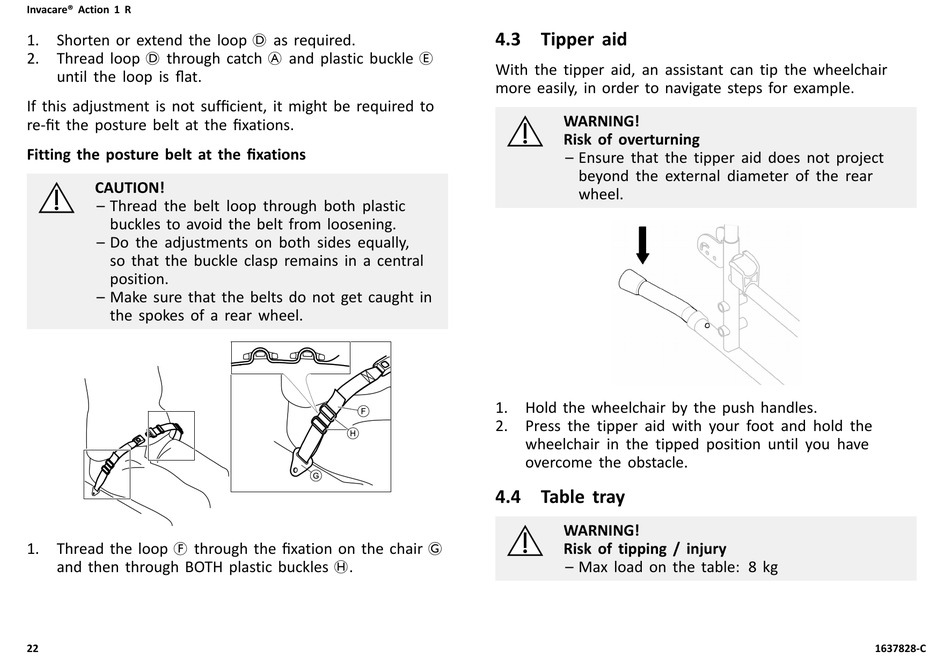

1. Shorten or extend the loop D as required.
2. Thread loop D through catch A and plastic buckle E
until the loop is flat.
If this adjustment is not sufficient, it might be required to
re-fit the posture belt at the fixations.
Fitting the posture belt at the fixations
CAUTION!
– Thread the belt loop through both plastic
buckles to avoid the belt from loosening.
– Do the adjustments on both sides equally,
so that the buckle clasp remains in a central
position.
– Make sure that the belts do not get caught in
the spokes of a rear wheel.
1. Thread the loop F through the fixation on the chair G
and then through BOTH plastic buckles H.
22

4.3 Tipper aid

With the tipper aid, an assistant can tip the wheelchair
more easily, in order to navigate steps for example.
WARNING!
Risk of overturning
– Ensure that the tipper aid does not project
beyond the external diameter of the rear
wheel.
1. Hold the wheelchair by the push handles.
2. Press the tipper aid with your foot and hold the
wheelchair in the tipped position until you have
overcome the obstacle.
4.4 Table tray
WARNING!
Risk of tipping / injury
– Max load on the table: 8 kg
