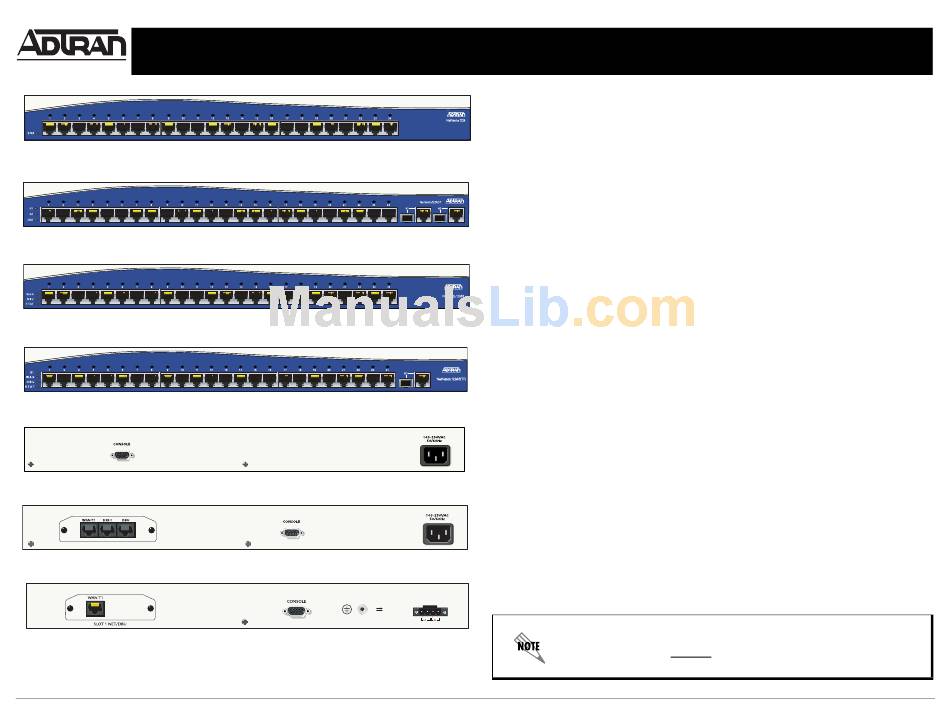

ADTRAN NetVanta 1224 Quick Start Manual

®
NetVanta 1224 Series Switches
Quick Start Guide
N V 1224 F P
ET ANTA RONT ANEL
N V 1224ST F P
ET ANTA RONT ANEL
N V 1224R F P
ET ANTA RONT ANEL
N V 1224STR F P
ET ANTA RONT ANEL
N V 1224 1224ST R
ET ANTA AND
N V 1224R 1224STR (AC
ET ANTA AND
N V 1224STR (DC
ET ANTA VERSION
Quick Start Guide, 61200500E1-13C, November 2006
L
AYOUT
L
AYOUT
L
AYOUT
L
AYOUT
P L
EAR ANEL AYOUT
) R P L
VERSION EAR ANEL AYOUT
) R P L
EAR ANEL AYOUT
For more detailed documentation, visit us online at www.adtran.com.
P/N 1200500E1/L1, 1200504E1/L1, 1200510L1,
G S
ETTING TARTED
Two configuration methods are available for your NetVanta switch:
• Web-based GUI
• AOS Command Line Interface (CLI)
The GUI lets you configure the main unit settings and provides online guidance and explanations
for each setting. However, using the AOS CLI may be necessary for more advanced
configurations.
A GUI
CCESS THE
You may access the web-based GUI from any web browser on your network by following these
steps:
1. Connect the switch to your PC using any of the 24 Ethernet ports on the front of the unit.
2. Set your PC to a fixed IP address of 10.10.10.2. If you cannot change the PC's IP address,
you will need to change the unit's IP address using the CLI. (Refer to the next two sections
for instructions.)
3. Enter the unit's IP address in your browser address line. The default IP address is
10.10.10.1.
4. You will then be prompted for the username and password (the default settings are admin
and password).
5. The initial GUI screen appears.
A CLI
CCESS THE
Access the AOS CLI via the CONSOLE port or a Telnet session. To establish a connection to the
NetVanta switch CONSOLE port, you need the following items:
• VT100 terminal or PC (with VT100 terminal emulation software)
• Straight-through serial cable with a DB-9 (male) connector on one end and the appropriate
interface for your terminal or PC communication port on the other end
1. Connect the DB-9 (male) connector of your serial cable to the CONSOLE port on the rear
panel of the unit.
2. Connect the other end of the serial cable to the terminal or PC.
3. Provide power to the unit as appropriate. Refer to the NetVanta 1000 and NetVanta 1000R
Series Hardware Installation Guide (provided on the ADTRAN OS System Documentation
CD) for more details.
4. Once the unit is powered up, open a VT100 terminal session using the following settings:
9600 baud, 8 data bits, no parity bits, and 1 stop bit. Press <Enter> to activate the AOS CLI.
5. Enter enable at the > prompt.
6. Enter the enable password when prompted. The default password is password.
USE COPPER
CONDUCTORS ONLY
-48V....., 1.2A
+24V....., 2.5A
The configuration parameters used in the examples outlined in this
document are for instructional purposes only. Please replace all
underlined entries (
your application.
1200520E1/L1, 1200590L1
) with your specific parameters to configure
example
Copyright © 2006 ADTRAN, All Rights Reserved
