Using the ITC­100 with the SE­800 / RMC­140:

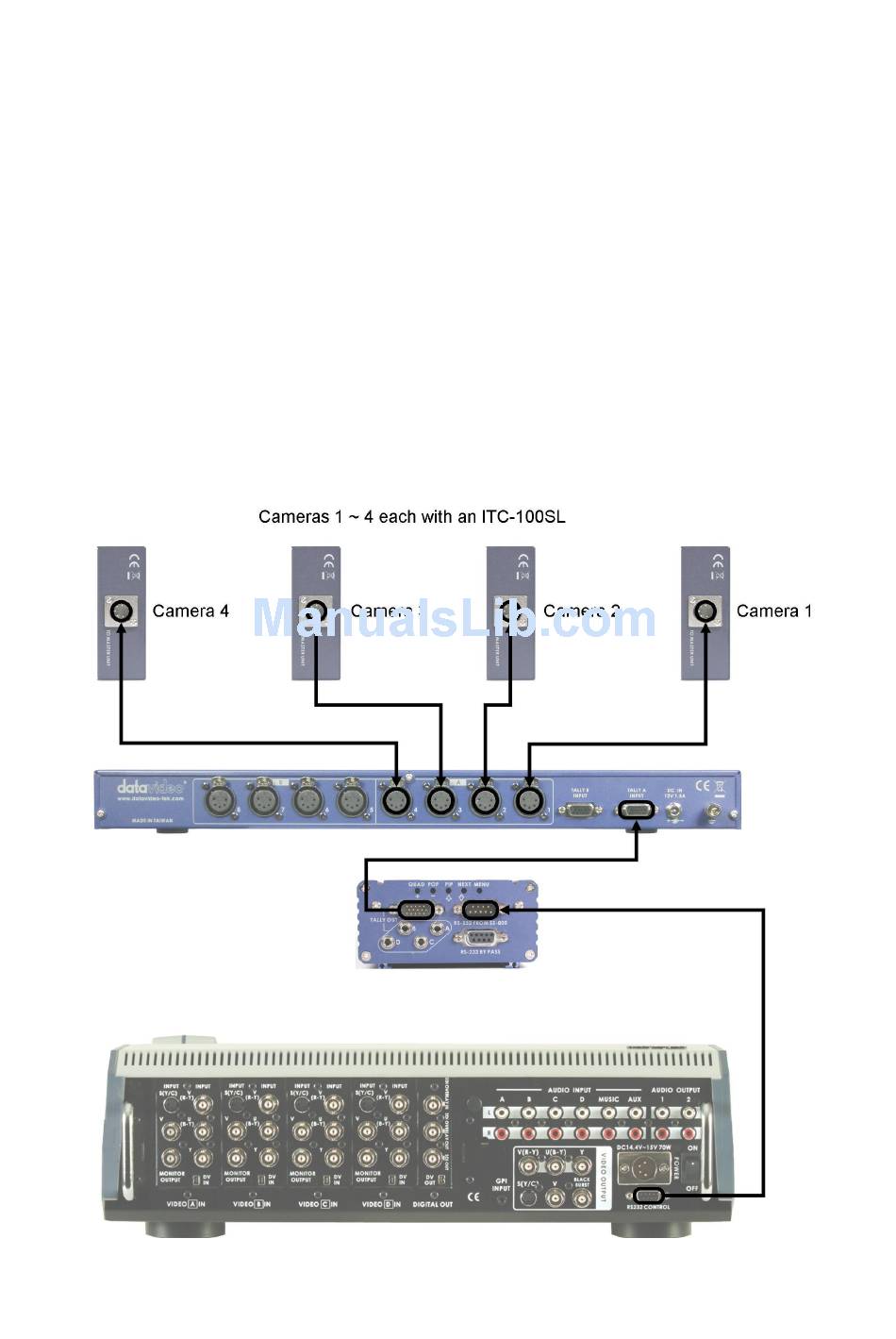

The ITC­100 is an ideal accessory for the Datavideo SE­800 / SE­800AV Vision
Mixer. The SE­800 has four channels, so in the diagram below we have four
camera crew, each with an ITC­100SL
The RS­232 output from the SE­800 connects to the RMC­140; this provides the
status of the SE­800. The RMC­140 Tally Out connects to the ITC­100 Tally Input A.
Tally Input A provides tally information to channels 1 ~ 4. When the camera is live
the cameraman will see a red light, when a camera is cued up the cameraman will
see an amber light.
