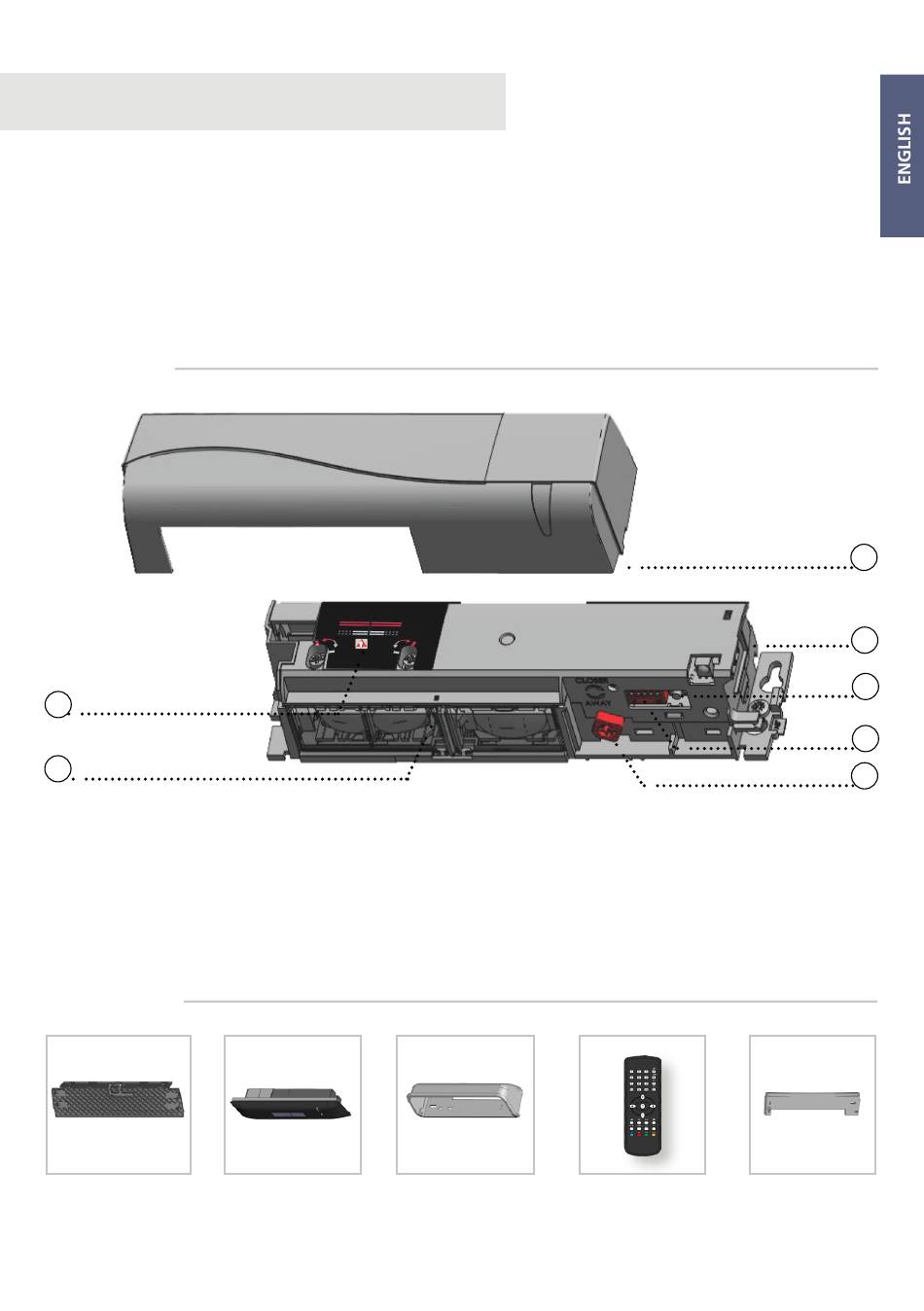

DESCRIPTION
1
2
ACCESSORIES
BA: Bracket accessory
1.
IR-curtain width adjustment
2.
IR-lenses
3.
cover
4.
main connectors
CA: Ceiling accessory
RA: Rain accessory
IXIO-S CAN
SAFETY SENSOR
FOR AUTOMATIC SLIDING DOORS
(according to EN 16005 and DIN 18650)
User's Guide for product version 0202 and higher
See product label for serial number
5.
push button
6.
DIP-switch
7.
IR-curtain angle adjustment knob
BEA Remote control
3
4
5
6
7
CDA: Curved door
accessory

Advertisement

Table of Contents
loading

Related Manuals for BEA IXIO-S CAN

Summary of Contents for BEA IXIO-S CAN

  • Page 1 IXIO-S CAN SAFETY SENSOR FOR AUTOMATIC SLIDING DOORS (according to EN 16005 and DIN 18650) User’s Guide for product version 0202 and higher See product label for serial number DESCRIPTION IR-curtain width adjustment push button IR-lenses DIP-switch cover IR-curtain angle adjustment knob...

  • Page 2: Installation

    LED-SIGNAL Presence detection LED flashes LED flashes LED flashes LED flashes LED is off quickly red-green x times INSTALLATION the sensor should be Do not cover the sensor. Avoid moving objects Avoid highly fixed firmly to avoid and light sources in reflective objects in extreme vibrations.

  • Page 3: Mounting And Wiring

    IXIO-S CAN: INSTALLATION GUIDE MOUNTING & WIRING GREEN POWER BROWN SUPPLY YELLOW CAN HIGH WHITE CAN LOW Plug the connector with the WHITE and GREEN wires on top towards the sensor cover. INFRARED SAFETY FIELD DOOR CLOSER max. 9 cm**...
  • Page 4 DIP-SWITCH 1-4: CAN-ADDRESS DIP-switches: each sensor needs a different CAN address depending on its position. After changing a DIP-switch, the orange LED flashes quickly. Cut and restore power supply to confirm the setting. SENSOR 1 SENSOR 2 SENSOR 3 SENSOR 4 SENSOR 5 SENSOR 6 SENSOR 7...

  • Page 5: Setup / Factory Reset

    SETUP / FACTORY RESET STEP OUT OF THE INFRARED FIELD! SETUP 1 (QUICK) reference picture SETUP 2 (ASSISTED) test of full door cycle + reference picture FACTORY RESET complete reset to factory values OVERVIEW OF SETTINGS < 2.8 m > 2.8 m ≥...

  • Page 6: Troubleshooting

    TROUBLESHOOTING The ORANGE LED flashes DIP-switch setting awaiting Cut and restore power to confirm the DIP-switch setting quickly. confirmation. the sensor signals ORANGE LED flashes 1 x. Replace sensor. an internal fault. the power supply is too Check power supply ORANGE LED flashes 2 x.

  • Page 7: Technical Specifications

    TECHNICAL SPECIFICATIONS Supply voltage: 12 V - 30 V DC +/-10% (to be operated from low-voltage systems with electrical separation only (SELV)) Power consumption: < 2.5 W Mounting height: 2 m to 3.5 m (according to the applicable laws and regulations) temperature range: -25°C to +55°C;...
  • Page 8 BEA SA | LIEGE Science Park | ALLÉE DES NOISEtIERS 5 - 4031 ANGLEUR [BELGIUM] | t +32 4 361 65 65 | F +32 4 361 28 58 | INFO@BEA.BE | WWW.BEA-SENSORS.COM BEA hereby declares that the IXIO-S CAN is in conformity with the basic requirements and the other relevant provisions of the directives 2014/30/EU, 2006/42/EC and 2011/65/EU.
