Parts and Accessories
Installation Instructions

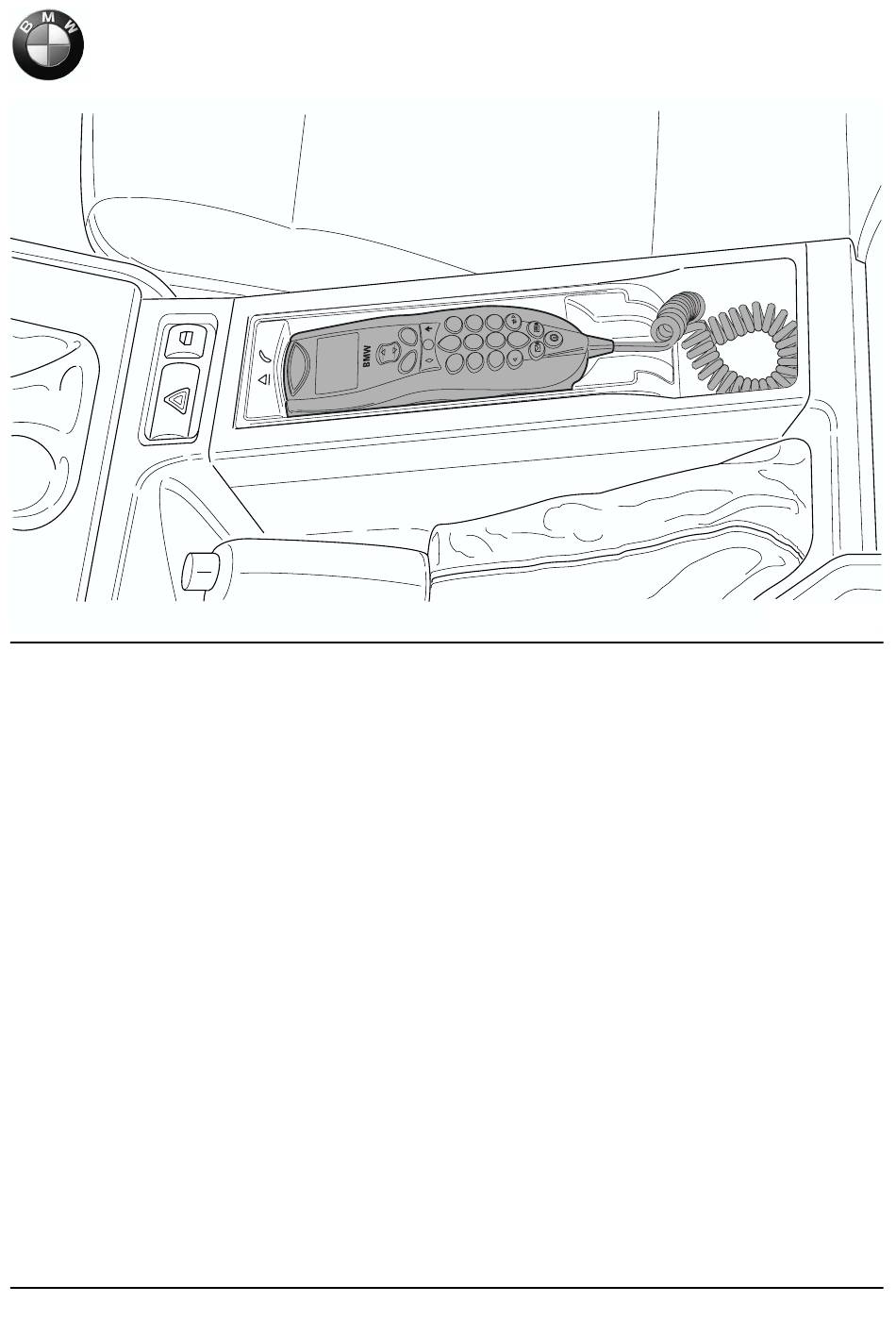

BMW Apollo car phone retrofit kit
BMW 3 Series compact (E 46/5)
The installation time is approx. 5 hours, but this may vary depending on the condition of the car and the
equipment in it.
Retrofit kit No.
Retrofit kit No. 84 61 0 143 953
Installation Instructions No. 01 29 0 146 558
84 61 0 143 953
Issue date: 04.2002
046 0627 Z
