Teile und Zubehör - Einbauanleitung
F 46 0350 2W

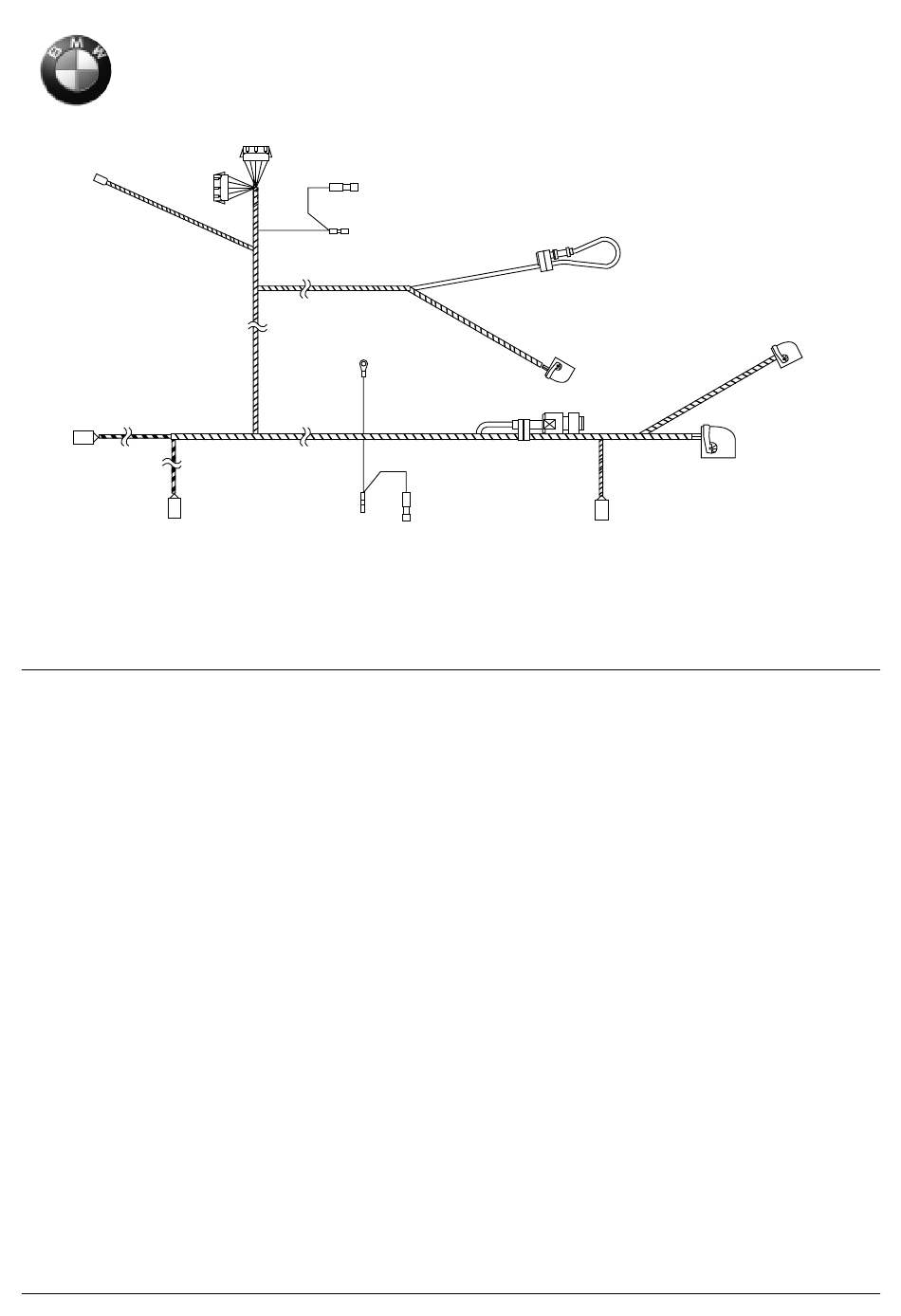

Nachrüstkabelbaum BMW Mobiltelefon (GSM)
BMW 3er-Reihe Coupé, touring und Limousine (E46/2/3/4)
Die Einbauanleitung ist nur gültig für Fahrzeuge ohne (SA 640)
Retrofit wiring harness for BMW mobile phone (GSM)
BMW 3 Series Coupé, touring and Saloon (E46/2/3/4)
These installation instructions are only applicable for cars without (SA 640)
Faisceau de câbles de deuxième monte "Téléphone mobile BMW" (GSM)
BMW Série 3 coupé, touring et berline (E46/2/3/4)
Ces instructions de montage sont valables uniquement pour les voitures sans (SA 640)
Naderhand in te bouwen kabelbundel BMW mobiele telefon (GSM)
BMW 3-serie coupé, touring en sedan (E46/2/3/4)
De montagehandleiding is alleen geldig voor auto's zonder (SA 640)
Kabelstam för eftermontering av BMW mobiltelefon (GSM)
BMW 3-serie coupé, touring och sedan (E46/2/3/4)
Monteringsanvisningen gäller endast för fordon utan (SA 640)
Pettine del cavo per postmontaggio telefono mobile BMW (GSM)
BMW Serie 3 Coupé, touring e berlina (E46/2/3/4)
Le presenti istruzioni di montaggio sono valide esclusivamente per vetture senza optional 640
Arnés de cables de reequipamiento del teléfono móvil BMW (GSM)
BMW Serie 3 Coupé, touring y berlina (E46/2/3/4)
Las instrucciones de montaje son válidas solamente para vehículos sin (SA 640)
Cablagem de montagem posterior para telefone móvel BMW (GSM)
Modelos BMW da Série 3 Coupé, touring e Berlina (E46/2/3/4)
Estas instruções de montagem só são válidas para veículos sem pré-instalação para o telefone (SA 640)
Best.-Nr. 01 29 0 015 988 XI/99 Printed in Germany
Advertisement
Related Manuals for BMW 01290015988
Summary of Contents for BMW 01290015988
- Page 1 BMW 3 Series Coupé, touring and Saloon (E46/2/3/4) These installation instructions are only applicable for cars without (SA 640) Faisceau de câbles de deuxième monte "Téléphone mobile BMW" (GSM) BMW Série 3 coupé, touring et berline (E46/2/3/4) Ces instructions de montage sont valables uniquement pour les voitures sans (SA 640) Naderhand in te bouwen kabelbundel BMW mobiele telefon (GSM) BMW 3-serie coupé, touring en sedan (E46/2/3/4)
- Page 2 F 46 0350 2W Branch Description Connection location in the car Plug designation 18-PIN white plug Connect to the enclosed adapter cable X18618 (socket casing) 26-PIN blue plug Connect to the enclosed adapter cable X18626 (socket casing) 3-PIN black plug Connect to cable compensator N27 (optional) X1765 (socket casing)
- Page 3 F 46 0350 2W Branch Description Connection location in the car Plug designation 8-PIN black plug Connect to plug X322 behind the heating/air X322 (plug casing) conditioning control Double stop Cars with SA 602/606/609 only (plug/socket casing) Connect to the 17-PIN radio connection plug X18126, PIN 4 Note In cars without SA 602, 606 or 609, insulate...
- Page 4 Legende Klappseite ausklappen! Sicherungsverteiler Leitungskompensator (optional) U400 BIT-Steuergerät X322 STVB HIFI X704 VB 31 X1483 VB 30 X1765 STVB Leitungskompensator (optional) X1963 Anschluß Lautsprecher X4221 STVB Mikrofon X4545 STVB Eject-Box X4553 VB Mute X10015 Sicherungshalter I A46 X13016 Masse Stereo HIFI X13322 HF-Anschluß...
- Page 5 X18618 16 1 X10015 0.35 0.35 0.35 0.35 0.35 X13322 SCHIRM X13323 X1765 0.35 0.35 X1483 X704 X704 VB 30 VB 31 VB 31 0.35 0.35 0.35 X13016 X1963 F46 0328 2W X4221...
- Page 6 U400 X18618 X18626 15 3 7 9 16 2 10 17 12 11 13 0.35 0.35 0.35 0.35 0.35 0.35 X1483 VB 30 X4553 0.35 VB MUTE SCHIRM 0.35 0.35 0.35 0.35 0.35 0.35 0.35 0.35 0.35 0.35 0.35 0.35 0.35 0.35 0.35...
