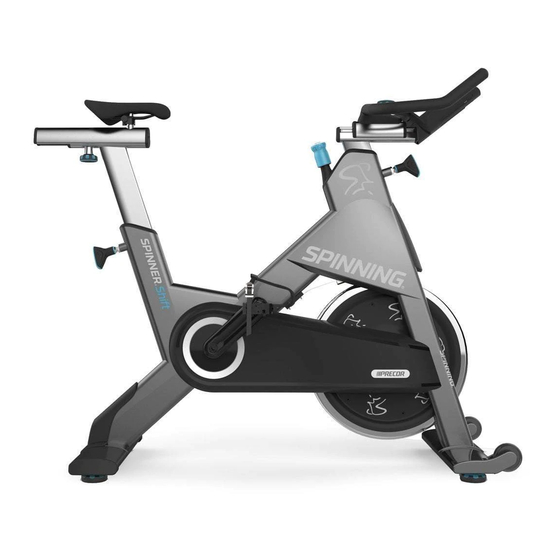

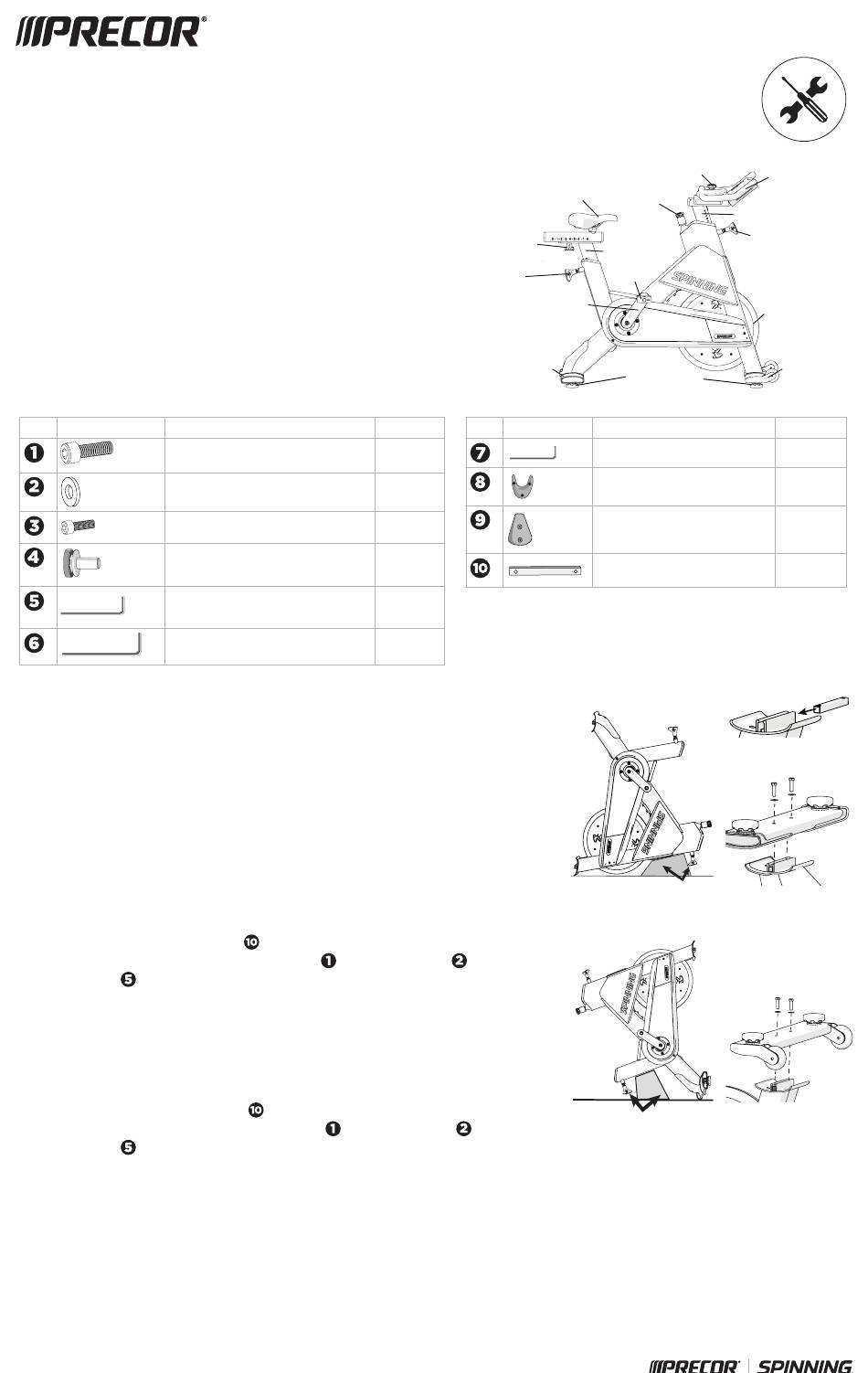

Spinner® Rally and Spinner® Shift
Assembly Guide
To assemble the Spinner® Rally and Spinner® Shift, follow the steps in the order listed
in this assembly guide. For more product information, visit us at www.precor.com.
WARNING At least two people are required to assemble the equipment.
DO NOT attempt assembly by yourself.
Assembly Requirements
When assembling the bike, we recommend you:
• Assemble the equipment close to where you plan to use it.
• Assemble the equipment on a solid, flat surface, so that it remains level
and stable.
• Leave a minimum of 0.5 m (19.7 in.) on at least once side of the bike
and 0.5 m (19.7 in.) behind or in front of the bike.
Hardware Kit
Component
Socket head bolt (M8 x 30 mm)
Flat washer (8 mm)
Socket head bolt (M3 x 8 mm)
Socket head bolt (M8 x 16 mm)
Hex key (6 mm)
Hex key (8 mm)
Begin Assembly
Remove the following parts from the packaging: handlebar assembly, handlebar post, hardware kit,
product documentation, seat assembly, seat post, and spare parts.
CAUTION Damage to the bike during assembly is not covered by the Precor Limited
Warranty.
During assembly, you must protect the handlebar and seat adjustment pop-pin
threaded stems from damage.
To attach the rear stabilizer:
1. Stand the bike frame on its front end (toward flywheel) and place a piece of foam under the bike
frame (Figure 1) to protect the handlebar adjustment pop-pin stem from damage.
2. Remove the packaging from the rear stabilizer and gently pry off the plastic protection plate from
the frame. Be careful not to chip the paint.
3. Slide the rear stabilizer attachment bar
4. Attach the rear stabilizer to the frame using two bolts
Using a hex key , tighten to 15.6 ft-lb (21.2 N-m).
To attach the front stabilizer:
1. Stand the bike frame on its back end and place a piece of foam under the bike frame (Figure 4) to
protect the seat adjustment pop-pin stem from damage.
2. Remove the packaging from the front stabilizer and gently pry off the plastic protection plate from
the frame. Be careful not to chip the paint.
3. Slide the front stabilizer attachment bar
4. Attach the front stabilizer to the frame using two bolts
Using a hex key , tighten to 15.6 ft-lb (21.2 N-m).
5. Return the bike to the upright position.
Quantity
4
4
7
2
1
1
into the slot in the bike frame (Figure 2).
and two flat washers
into the slot in the bike frame (Figure 2).
and two flat washers
Seat assembly
Seat
slider knob
Seat post
Seat adjustment
Pedal
pop-pin
Crank arm
Rear
stabilizer
Adjustment feet
Component
Hex key (2.5 mm)
Seat slider end cap
Handlebar post end cap
Stabilizer attachment bar
Figure 1
(Figure 3).
Figure 4
(Figure 5).
Fore/aft handlebar
knob
Handlebar
assembly
Resistance
knob
Handlebar post
Handlebar
adjustment
pop-pin
Flywheel
Bike frame
Front
stabilizer
Quantity
Figure 2
Figure 3
Figure 5
1
1
1
2
