Summary of Contents for Belkin Baby Pacifier

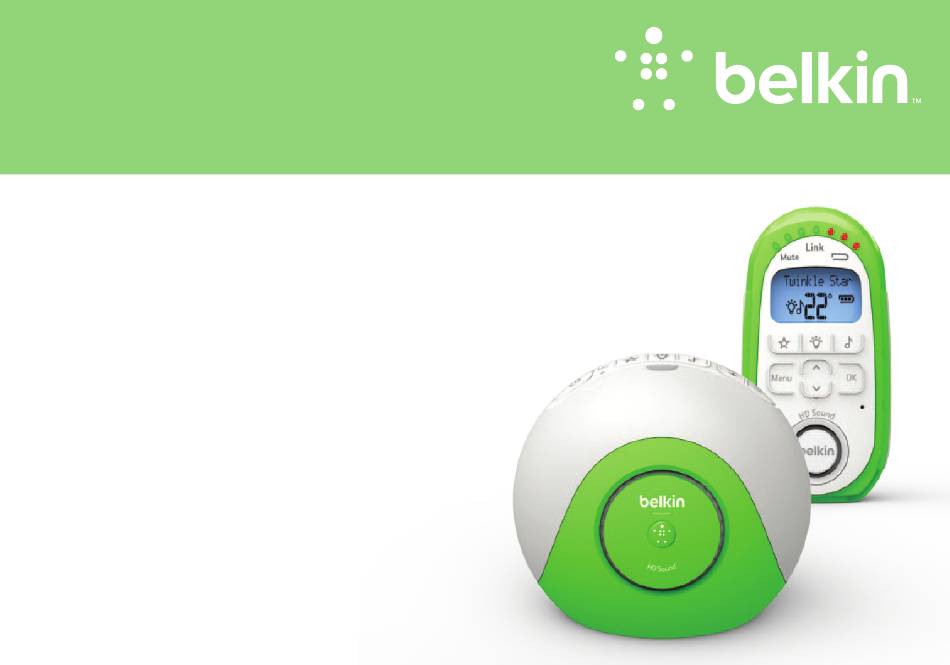

- Page 1 BaBy Pacifier Digital BaBy Monitor with lightshow Projector User Manual F7C036_8830ed01743uk_Rev.A00...
-
Page 2: Table Of Contents
Using your belkin baby pacifier . . . . . . . . . . . . . . . . . . -
Page 3: Your Baby Pacifier
YOUR babY PaCIfIeR Parent unit... - Page 4 YOUR babY PaCIfIeR Parent unit Press to switch the Nightlight on the Baby unit on or off. 9 . Down 1 . baby sound level leDs Decrease speaker volume. Scroll through the menu options. Indicates the level of received sound. The LEDs will light up progressively as the sound increases.
- Page 5 YOUR babY PaCIfIeR Parent unit display icons Lightshow Nightlight Music Feed Timer Setup Menu options: Battery status Full charge (75-100%) Temperature alert (vibrate on) Medium charge (51-74%) Temperature alert (vibrate off) Low charge (25-50%) Displays the temperature as measured at the Baby unit...
- Page 6 YOUR babY PaCIfIeR Parent unit charger front back Charging light BT Baby Monitor Power socket Charging light Power socket Red when the Parent unit is correctly placed on the charger. For connection to the mains power socket via the power adapter cable supplied.
- Page 7 YOUR babY PaCIfIeR baby unit Temperature sensor Make sure the sensor is placed with clear space around it and not in contact with any surfaces to ensure it works effectively. nightlight Music Press to switch the Nightlight on or off.
- Page 8 YOUR babY PaCIfIeR back of baby unit Lightshow tilt control Lightshow focus control Auxiliary input socket Use to plug in an external audio Power socket source, e.g. MP3 player, so you can play your own choice For connection to the mains power socket of music to your baby.
-
Page 9: Setting Up
seTTIng UP Warning! Only use the power adapters supplied. Using incorrect power adapters may permanently damage your product. Battery performance Rechargeable batteries in the Parent unit will last approximately 20 hours in normal use. Please note that new batteries do not reach full capacity until they have been in normal use for several days. - Page 10 seTTIng UP Parent unit Activate the batteries by pulling the plastic tab Plug one of the power adapter cables into the socket marked away from the bottom of the Parent unit. on the back of the Parent unit charger and plug the other end into the mains power wall socket and switch the power on.
- Page 11 seTTIng UP battery low warning – Parent unit When the batteries are low – approximately within 1 hour of running Low battery indicator out – the Parent unit will emit a low battery alert and the low battery indicator on the unit will turn red. Place the Parent unit back on the charger to charge the batteries.
- Page 12 seTTIng UP Once the units are linked the green Link indicator on the Parent unit and the Baby unit will stop flashing and remain a steady green. The units are now ready to use. Important: The link confirmation between the two units is vital for use so they can communicate.
- Page 13 seTTIng UP If the link is broken: • check that the mains power is plugged in and switched on at the Baby unit • check that both units are switched on • check that the batteries are charged in the Parent unit •...
-
Page 14: Using Your Belkin Baby Pacifier
UsIng YOUR belKIn babY PaCIfIeR switching on/off switch the baby unit on baby sound level leD indicators Press and hold the button until the LEDs 1-2 = Green LEDs 3-4 = Green LEDs 5-7 = Red nightlight briefly illuminates and the green Link indicator flashes. - Page 15 UsIng YOUR belKIn babY PaCIfIeR adjust the loudspeaker volume Mute all feature – Parent unit only At the Parent unit: The Mute All feature prevents any sound coming from 1.Press to select the required level. The first press the Parent unit loudspeaker. With Mute All on you can will show the current setting.
- Page 16 UsIng YOUR belKIn babY PaCIfIeR Talk back You can use the Parent unit Talk Back feature as a one way intercom to comfort and reassure your baby. By speaking into the If the Parent unit receives sound up to the level of the first two LEDs Parent unit your baby will hear your voice from the Baby unit.
- Page 17 UsIng YOUR belKIn babY PaCIfIeR find The Parent unit menu The Parent unit menu You can press the button on the Baby unit to make the Parent unit sound an alert to help you find it if it’s been misplaced. If the...
- Page 18 UsIng YOUR belKIn babY PaCIfIeR lightshow The Baby unit has a Lightshow feature that projects a starry image onto the ceiling of your baby’s room. There are 3 brightness levels to choose from and you can set a period of time for the Lightshow to illuminate using the Parent unit menu.
- Page 19 UsIng YOUR belKIn babY PaCIfIeR select the lightshow brightness level using the Parent unit Select the lightshow brightness level using the Parent unit 1.Press . Lightshow is displayed, press 2.Turn On? is displayed, press to display Brightness and press 3.Press...
- Page 20 UsIng YOUR belKIn babY PaCIfIeR nightlight You can set a comforting nightlight on the Baby unit. There are 3 brightness levels to choose from and you can set a period of time for the nightlight to illuminate. Switch nightlight on/off using the Baby unit 1.To switch on, press the...
- Page 21 UsIng YOUR belKIn babY PaCIfIeR select the nightlight brightness level using the Parent unit 1.Press . Lightshow is displayed, press 3.Press to display either 5 min, 10 min, 15 min to display Nightlight and press or Constant and press to select. The display will show Saved briefly and you’ll hear a confirmation tone.
- Page 22 UsIng YOUR belKIn babY PaCIfIeR Play music from the baby unit Turn music on/off using the Parent unit 1. To turn the music on, press the button. The display will briefly show Music On and music The Baby unit has 19 songs that can be played to gently will start playing from the Baby unit.
- Page 23 UsIng YOUR belKIn babY PaCIfIeR feed Timer Connect an auxiliary player You can set a Feed Timer on the Parent unit to act as a countdown 1. Plug your player into the auxiliary input socket timer that will alert you when you next need to feed your baby.
- Page 24 UsIng YOUR belKIn babY PaCIfIeR start the feed timer countdown switch timer repeat option on or off 1. Press . Lightshow is displayed, press until 1. Press . Lightshow is displayed, press until Feed Timer is displayed and press Feed Timer is displayed and press 2.
- Page 25 UsIng YOUR belKIn babY PaCIfIeR Temperature monitor select the type of temperature alert Select the type of temperature alert There is a temperature sensor on the Baby unit to constantly monitor the 1. Press . Lightshow is displayed, press temperature in your baby’s room and you’ll be alerted if it gets too hot, too...
- Page 26 UsIng YOUR belKIn babY PaCIfIeR Crying alert backlight You can select whether or not the LCD backlight comes on when an alert is activated. When the backlight comes on it The crying alert will only be activated if Mute All has been switched on (or if the Parent unit volume has been switched to volume will stay on for 15 seconds.
- Page 27 UsIng YOUR belKIn babY PaCIfIeR backlight You can select whether or not the LCD backlight comes on when an alert is activated. When the backlight comes on it User Alert tones can be silenced by pressing will stay on for 15 seconds. The default setting is On.
-
Page 28: Help
HelP Parent unit is beeping link light is flashing green • If you have pressed to use the Talk Back feature, the Link light • The link has been lost between your units. Check that the will flash to indicate one-way communication between the units. Baby unit Link indicator is illuminated. - Page 29 HelP Parent unit remains silent or very quiet You can hear a high pitched noise • You may have set the volume too low • The units might be too close to each other. • You may have switched a Mute feature on. •...
-
Page 30: Support, And Warranty
What is not covered by this warranty? 2-Year Product Warranty All above warranties are null and void if the Belkin product is not provided to Belkin for inspection upon Belkin’s request at the sole expense of the purchaser, or if Belkin determines that the Belkin product has been improperly installed, altered What this warranty covers . - Page 31 Belkin reserves the right to review the damaged Belkin product. 1 . Contact Belkin International, Inc., on the telephone number All costs of shipping the Belkin product to Belkin for inspection listed on the next page, within 15 days of the Occurrence.
- Page 32 WaRRanTY Technical support http://www.belkin.com/support http://www.belkin.com/uk/support australia http://www.belkin.com/au/support new Zealand http://www.belkin.com/au/support singapore 1800 622 1130 europe http://www.belkin.com/uk/support NORWAY 81 50 0287 www.belkin.com/uk/networking/ AUSTRIA 0820 200 766 www.belkin.com/de/networking/ www.belkin.com/nl/networking/ BELGIUM 07 07 00 073 POLAND 00800 - 441 17 37 www.belkin.com/uk/networking/...
- Page 33 Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you. IN NO EVENT SHALL BELKIN BE LIABLE FOR INCIDENTAL, SPECIAL, DIRECT, INDIRECT, CONSEQUENTIAL OR MULTIPLE DAMAGES SUCH AS, BUT NOT LIMITED TO,...
-
Page 34: Regulatory Information
Class B digital device, pursuant to the requirements of EN 55022 and EN 55024. These limits are designed to provide reasonable We, Belkin International, Inc., of Schiphol-Rijk, Netherlands, declare under our protection against harmful interference in a residential installation. - Page 35 This device complies with the essential requirements of the R&TTE Directive 1999/5/EC, the EMC Directive 2004/108/EC, and the low-voltage Directive 2006/95/EC. A copy of the European Union CE marking “Declaration of Conformity” may be obtained at the website: www.belkin.com/doc For information on product disposal please refer to http://environmental.belkin.com...
- Page 36 © 2014 Belkin International, Inc. All rights reserved. All trade names are registered trademarks of respective manufacturers listed. iPad, iPhone, iPod touch, Mac, Mac OS, and Safari are trademarks of Apple Inc., registered in the U.S. and other countries. Windows, Windows Vista, Internet Explorer, and DirectX are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
