Summary of Contents for Draytek Vigor160 Series

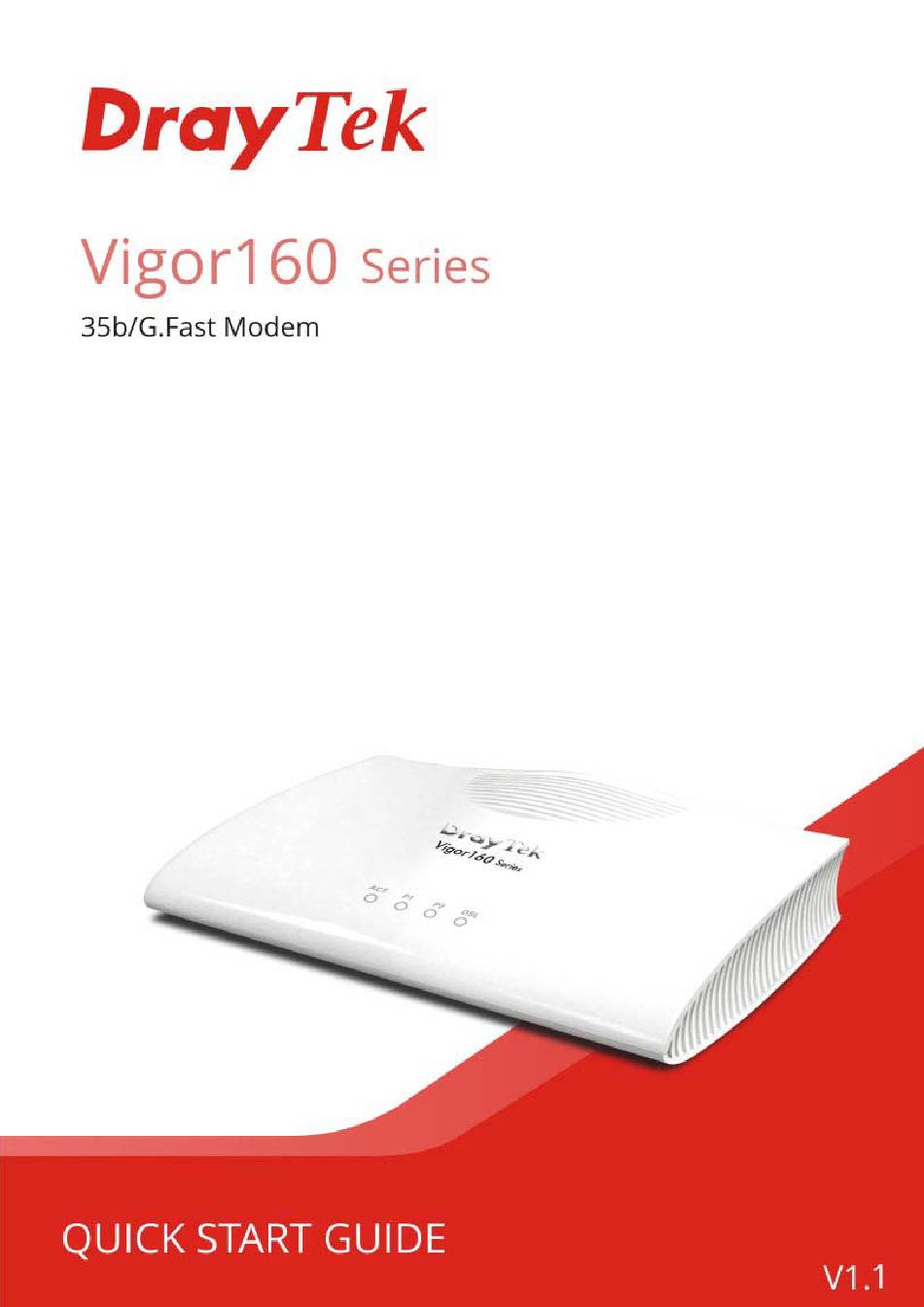

- Page 2 Vigor160 series 35b/G.Fast Modem Quick Start Guide Version: 1.1 Firmware Version: V4.0.2 (For future update, please visit DrayTek web site) Date: September 20, 2019...
- Page 3 Intellectual Property Rights (IPR) Information © All rights reserved. This publication contains information that is protected Copyrights by copyright. No part may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language without written permission from the copyright holders. The following trademarks are used in this document: Trademarks Microsoft is a registered trademark of Microsoft Corp.
- Page 4 EU Declaration of Conformity We DrayTek Corp. , office at No.26, Fu Shing Road, HuKou County, Hsin-Chu Industry Park, Hsinchu 300, Taiwan , R.O.C., declare under our sole responsibility that the product Product name: 35b/G.Fast Modem Model number: Vigor165, Vigor166 ...
- Page 5 (2) This device may accept any interference received, including interference that may cause undesired operation. Company name ABP International Inc. USA Local Address 13988 Diplomat Drive Suite 180 Dallas TX 75234 Representative ZIP Code 75234 E-mail rmesser@abptech.com Contact Person Mr. Robert Tel. 19728311600 Messer More update, please visit www.draytek.com.
-
Page 6: Table Of Contents
1. Introduction......................1 2. Package Content ....................2 3. Panel Explanation....................3 4. Hardware Installation ................... 4 4.1 Network Connection ........................4 4.2 Wall-Mounted Installation ......................5 5. Software Configuration ..................6 6. Customer Service ....................11... -
Page 7: Introduction
Vigor160 series include Vigor165, 35b Modem and Vigor166, G.Fast Modem. As the following figure shown, the modem supports triple play application like Video, VoIP and Data via the Internet. Check the label on the bottom of the modem to differentiate which modem you... -
Page 8: Package Content
Take a look at the package content. If there is anything missed or damaged, please contact DrayTek or dealer immediately. Modem Quick Start Guide RJ-45 Cable (Ethernet) RJ-11 to RJ-11 Cable (Annex A) RJ-11 to RJ-45 Cable (Annex B) RJ-45 to RJ-45 Cable (Annex B) The type of the power adapter depends on the country that the modem will be installed. -
Page 9: Panel Explanation
Status Explanation The system is not ready or is failed. Blinking The system is ready and can work normally. P1/P2 A normal connection is through its corresponding port. LAN is disconnected. Blinking Data is transmitting (sending/receiving). xDSL connection synchronized. Blinking xDSL connection is synchronizing. -
Page 10: Hardware Installation
This section will guide you to install the modem through hardware connection and configure the modem’s settings through web browser. Before starting to configure the modem, you have to connect your devices correctly. Connect the DSL interface to the MODEM port of external splitter with a DSL line cable. -
Page 11: Wall-Mounted Installation
Vigor160 series has keyhole type mounting slots on the underside. A template is provided on the Vigor160 series packaging box to enable you to space the screws correctly on the wall. Place the template on the wall and drill the holes according to the recommended instruction. -
Page 12: Software Configuration
To access Internet, please finish basic configuration after completing the hardware installation. Here we take Vigor165 as an example. The Quick Start Wizard is designed for you to easily set up your modem for Internet access. You can directly access the Quick Start Wizard via Web Configurator. - Page 13 Now, the Main Screen will pop up. Click Wizards>>Quick Start Wizard. Note The home page will change slightly in accordance with the modem you have. The first screen of Quick Start Wizard is entering login password. After typing the password, please click Next.
- Page 14 Next, select the appropriate protocol according to the information from your ISP. For example, you should select PPPoE mode if the ISP provides you PPPoE interface. Choose PPPoE / PPPoA as the protocol. Encapsulation for PPPoE/PPoA contains PPPoE and PPoA; encapsulation for MPoA/Static or Dynamic IP contains 1483 Bridged IP and 1483 Routed IP.
- Page 15 Please manually enter the Username/Password provided by your ISP. Then click Next for viewing summary of such connection. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown. Now, you can enjoy surfing on the Internet.
- Page 16 Choose WAN1 as WAN Interface and click the Next button; you will get the following page. Choose MPoA / Static or Dynamic IP as the protocol. Please type in the IP address/mask/gateway information originally provided by your ISP. Then click Next for viewing summary of such connection. Click Finish.
-
Page 17: Customer Service
Web registration is preferred. You can register your Vigor modem via http://www.draytek.com. Firmware & Tools Updates Due to the continuous evolution of DrayTek technology, all devices will be regularly upgraded. Please consult the DrayTek web site for more information on newest firmware, tools and documents.
